20UPGFC0142135

MODULE/POST_PARYLENE_WARM

Component Information

Serial Number 20UPGFC0142135
ProdDB ID  bc195d…54ea52
LocalDB ID 660d7c422fc9f200350b6cfe
Component Type fe_chip
Parents 20UPGM23210289  20UPGB43200157 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None
Target Iref trim None
Target Iref trim version None

 Comments

Scan Result: std_totscan / run 4416 (Stage: MODULE/POST_PARYLENE_WARM)
(ObjectId: 660d7c422fc9f200350b6cfe)


Result Plots

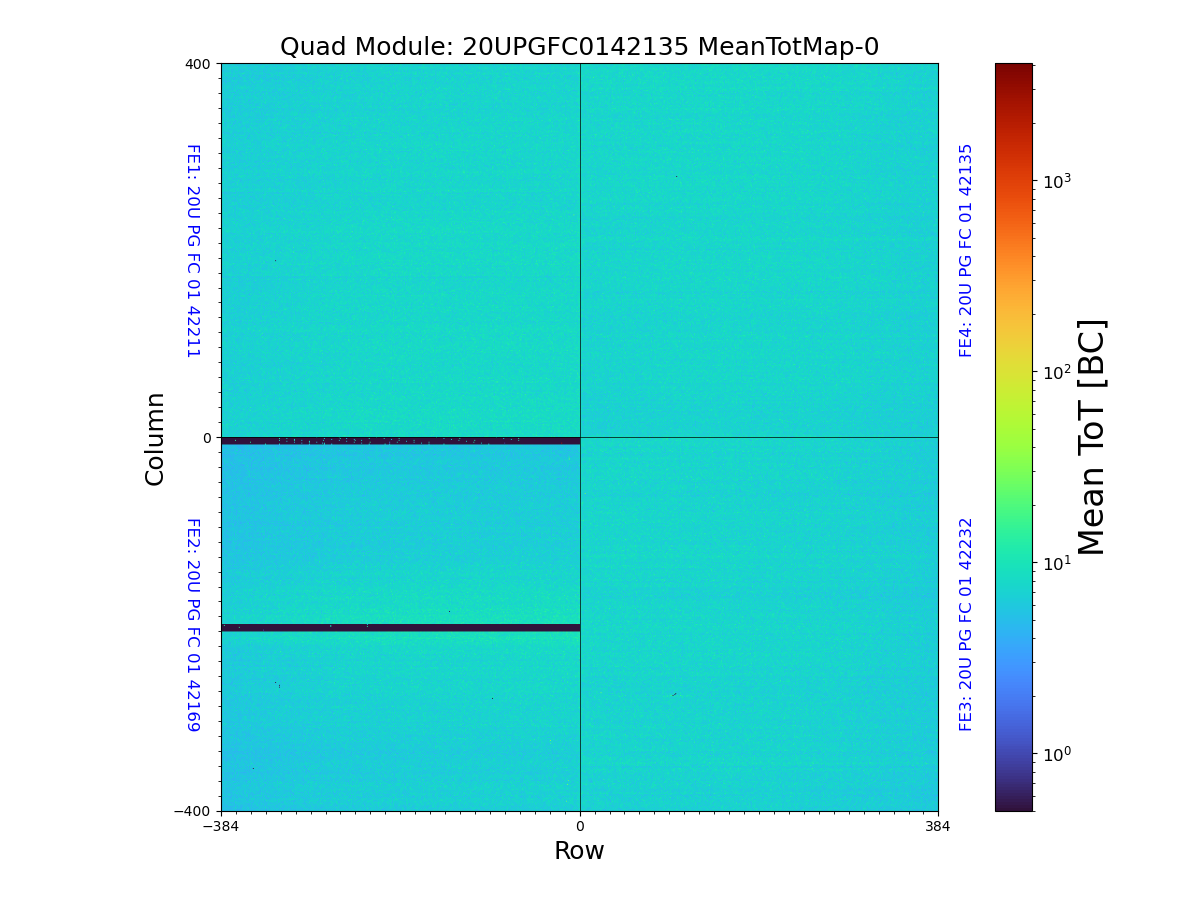

MeanTotMap-0

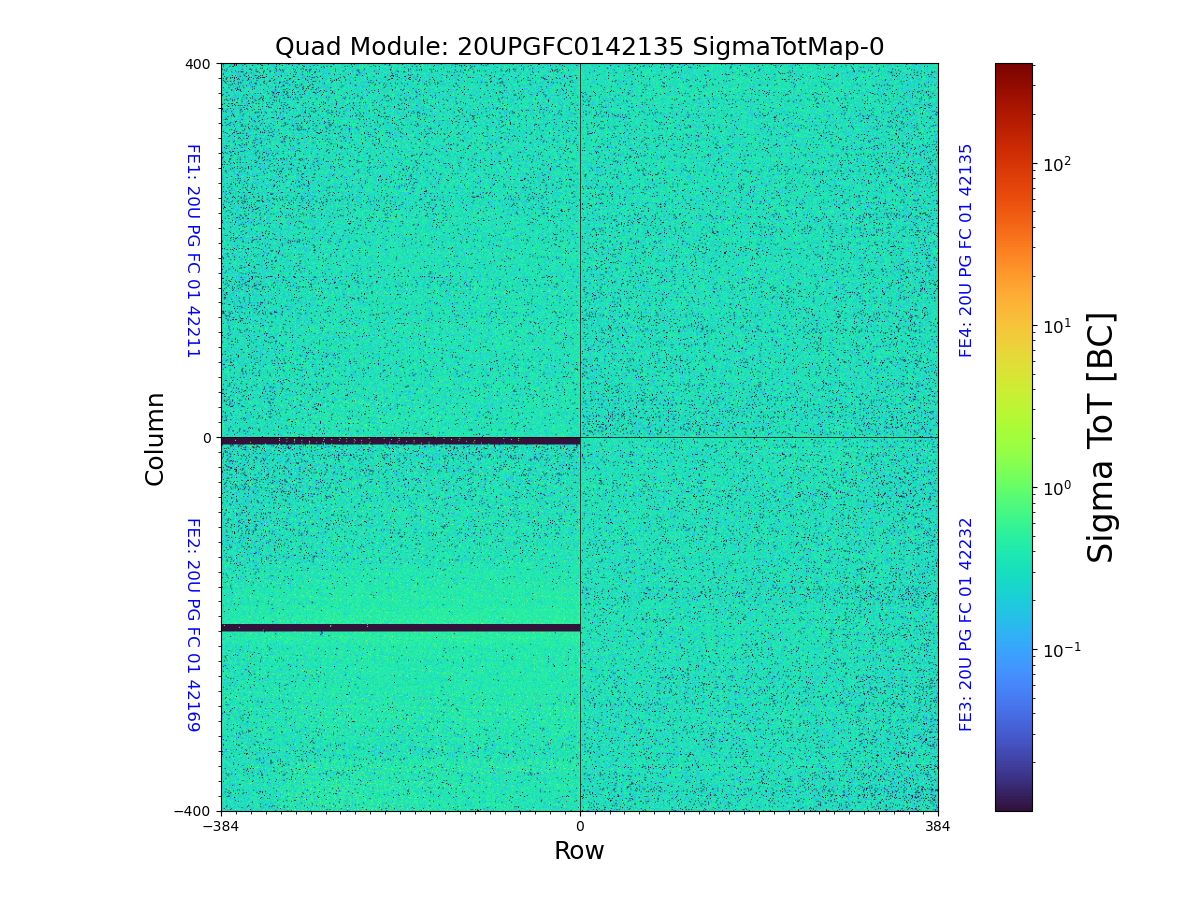

SigmaTotMap-0

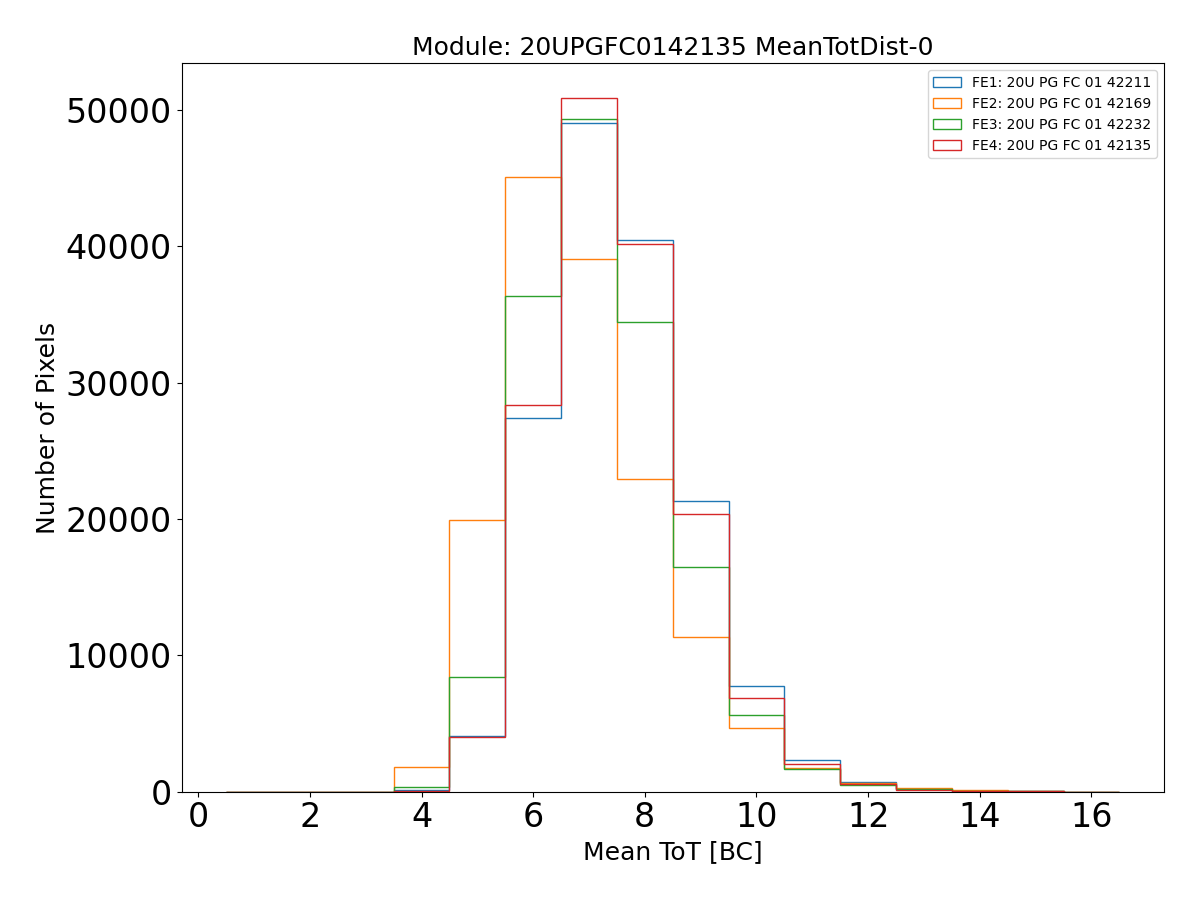

MeanTotDist-0

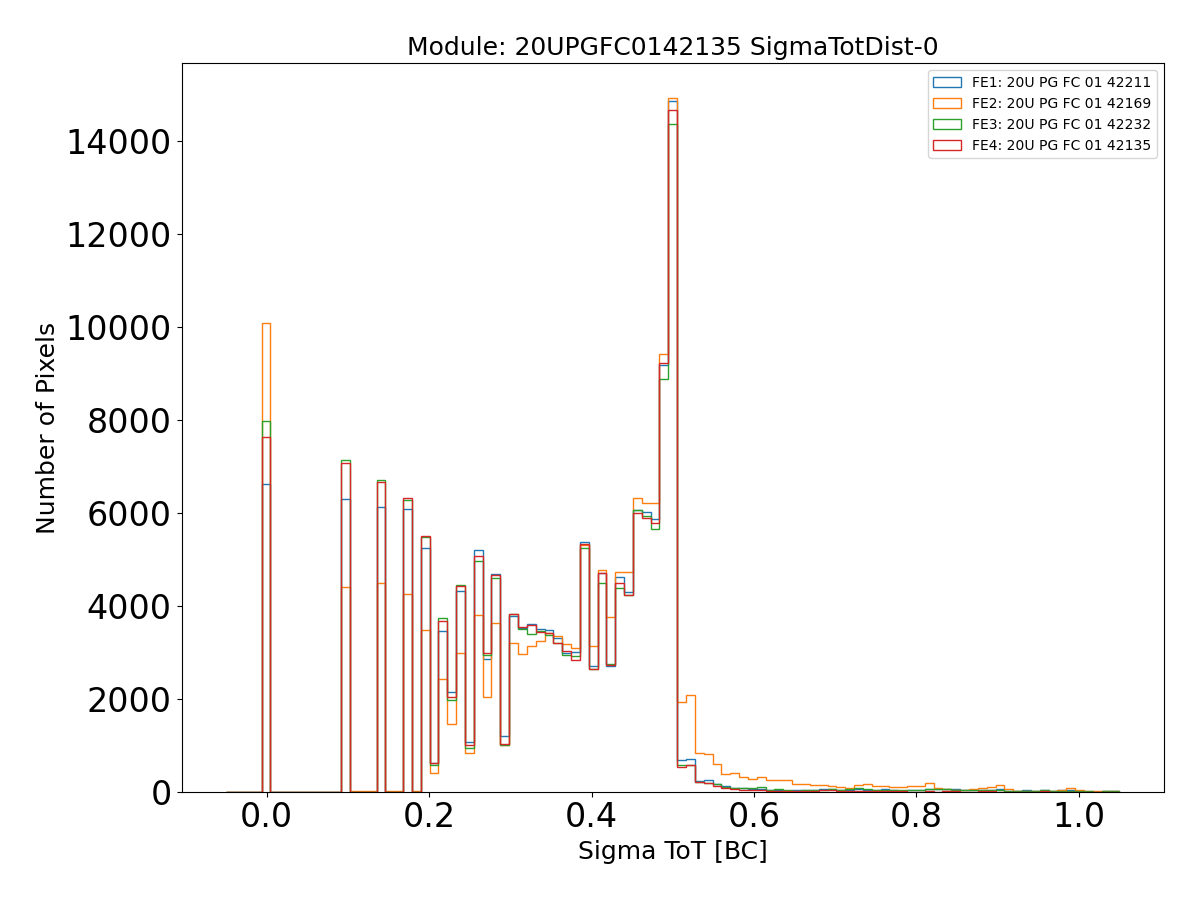

SigmaTotDist-0

TagDist

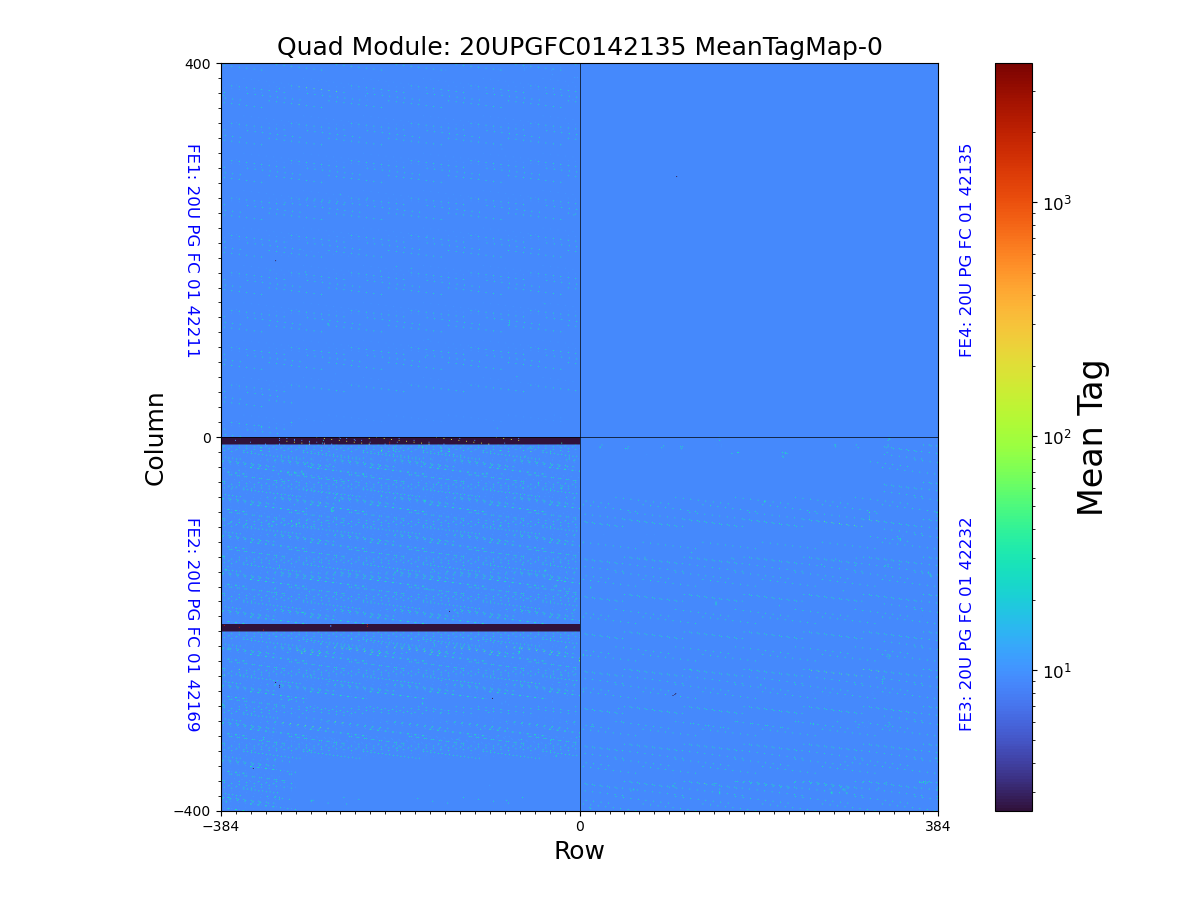

MeanTagMap-0


Details

Scan

Key Data
runNumber 4416
testType std_totscan
stage MODULE/POST_PARYLENE_WARM
component 20UPGM23210289
20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
startTime 2025-11-07 06:15:42
finishTime 2025-11-07 06:16:37
user fhartanto
site jittereel.dhcp.lbl.gov
targetCharge 6000
targetTot -1
ctrlStatus channel_configuration: 16x1
fe_chip_type: RD53A/B/C
firmware_hash: 0x7b14549
firmware_identifier: 0x1030242
firmware_vers: v1.5.0
fmc_card_type: Ohio Card (Display Port)
fpga_card: Trenz TEF1001_R1
lpm_status: 0
rx_speed: 1280Mbps
exec -r /home/fhartanto/Yarr-jittereel/YARR/configs/controller/specCfg-rd53b-16x1-setup3.json -c /home/fhartanto/20UPGM23210289/20UPGM23210289_L2_warm.json -o data -W TUN -s /home/fhartanto/Yarr-jittereel/YARR/configs/scans/itkpixv2/std_totscan.json -t 6000
stopwatch analysis: 575
config: 1476
processing: 0
scan: 47850
yarr_version build_flags:
build_time: 2025-07-09 21:57:34 UTC
build_type:
git_branch: master
git_date: 2025-05-29 22:26:06 +0000
git_hash: 008e8ef3c1cc6700bf1876addcdbfee4888ba4b3
git_subject: Merge branch 'devel' into 'master'
git_tag: v1.5.5
QC False
environment False
plots
passed True

Output Data

Data Display Download
Type FE Chip Serial Number
ctrlCfg N/A
dbCfg N/A
siteCfg N/A
userCfg N/A
scanCfg N/A
feCfg.before 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
feCfg.after 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
MeanTotMap-0 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
SigmaTotMap-0 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
MeanTotDist-0 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
SigmaTotDist-0 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
TagDist 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135
MeanTagMap-0 20UPGFC0142211
20UPGFC0142169
20UPGFC0142232
20UPGFC0142135

DCS ### NO DCS DATA ###

 Current Stage: Post-Parylene Warm

Test Type Local Result
ADC Calibration
(ADC_CALIBRATION)		 TestRun Present
Analog Readback
(ANALOG_READBACK)		 TestRun Present
Overvoltage Protection
(OVERVOLTAGE_PROTECTION)		 No TestRun!
Undershunt Protection
(UNDERSHUNT_PROTECTION)		 No TestRun!
SLDO
(SLDO)		 TestRun Present
VCAL Calibration
(VCAL_CALIBRATION)		 TestRun Present
Data Transmission
(DATA_TRANSMISSION)		 TestRun Present
Injection Capacitance
(INJECTION_CAPACITANCE)		 TestRun Present
Minimal Health Test
(MIN_HEALTH_TEST)		 TestRun Present
Tuning
(TUNING)		 TestRun Present
Pixel Failure Analysis
(PIXEL_FAILURE_ANALYSIS)		 TestRun Present
Low Power Mode
(LP_MODE)		 TestRun Present

 Candidate TestRuns of this Stage

LDB ID TestRun Code QC Passed Inspector Measurement Date Analysis Date Analysis Version Tags QC Registration
