20UPGFC0141722

MODULE/FINAL_COLD

Component Information

Serial Number 20UPGFC0141722
ProdDB ID  ece22a…85cc0f
LocalDB ID 660d232aeeb7490035a47182
Component Type fe_chip
Parents 20UPGM24210397  20UPGB43200228 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Target Iref trim 12
Target Iref trim version 1
Wafer serial number None

 Comments

Date Commented by on which Component Comment
2 days ago pixel (Lawrence Berkeley National Lab - pixel modules) MODULE
20UPGM24210397 		sign-off at MODULE/FINAL_WARM; appended flags: []; next stage: MODULE/FINAL_COLD; comment: Failed LP mode. Want to investigate further.

Scan Result: std_totscan / run 1945 (Stage: MODULE/FINAL_COLD)
(ObjectId: 660d232aeeb7490035a47182)


Result Plots

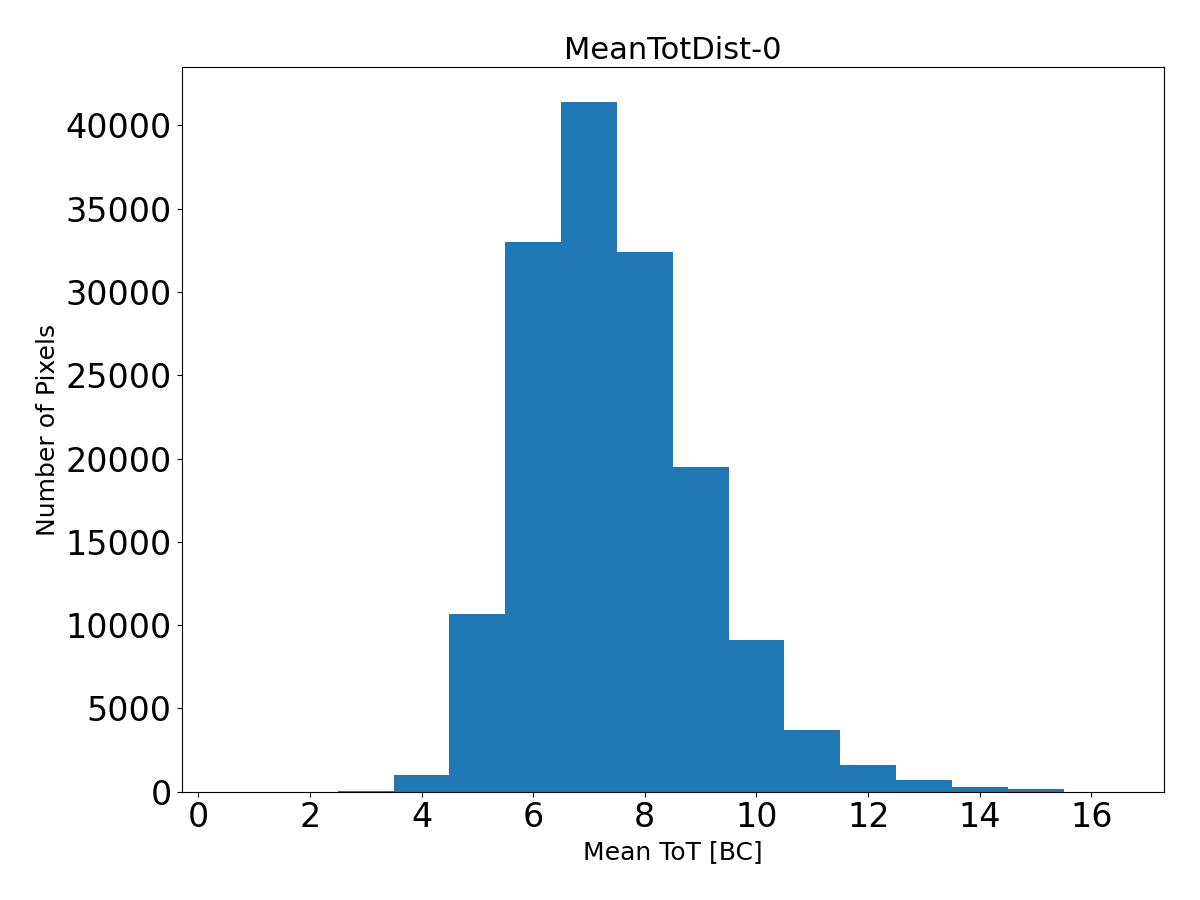

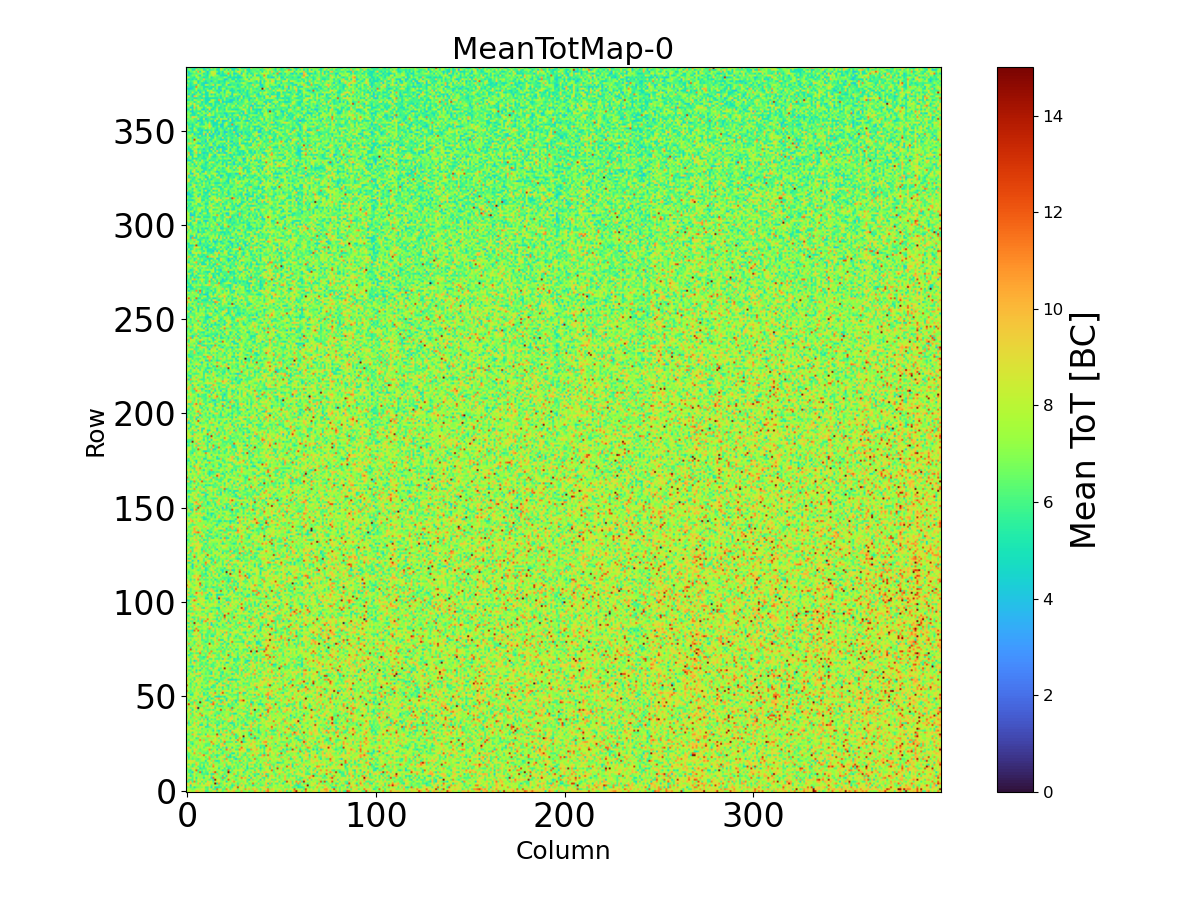

MeanTotMap-0

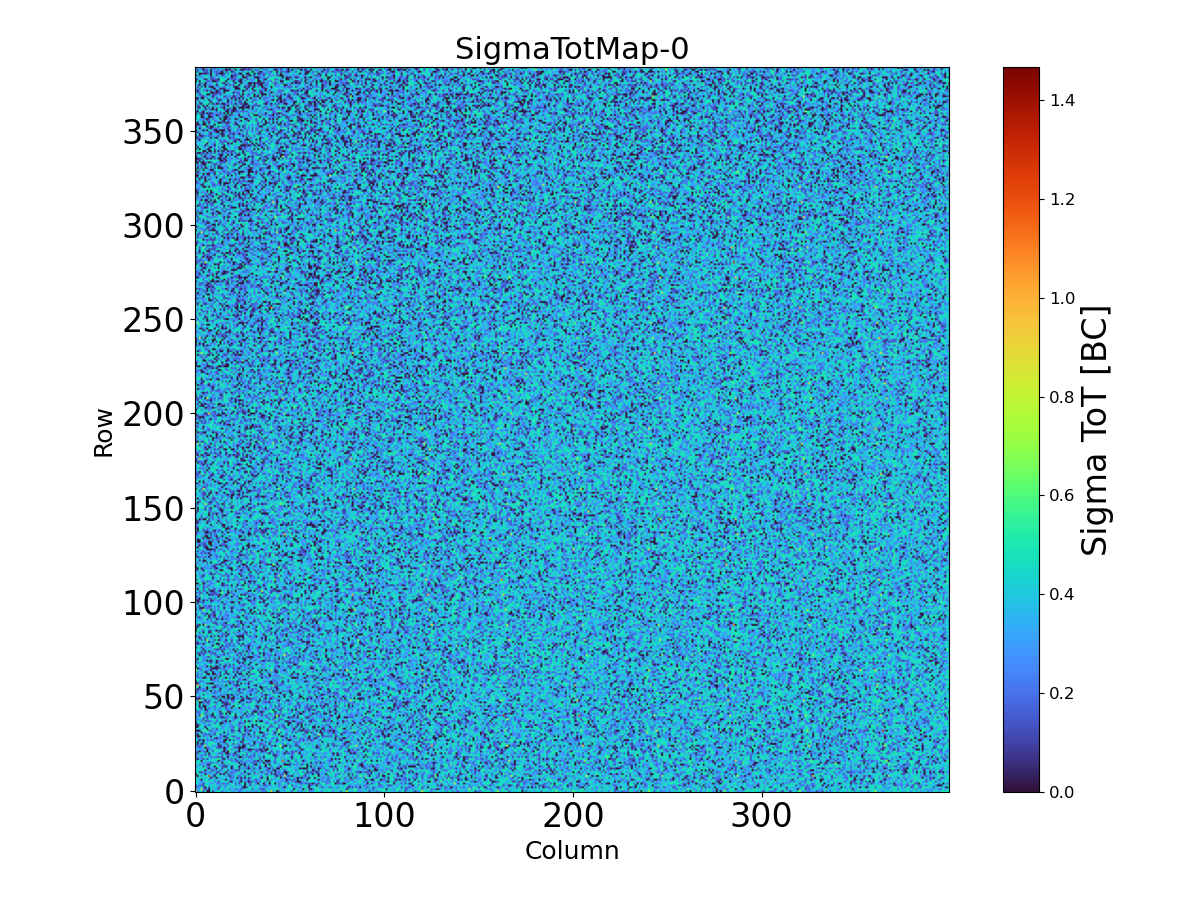

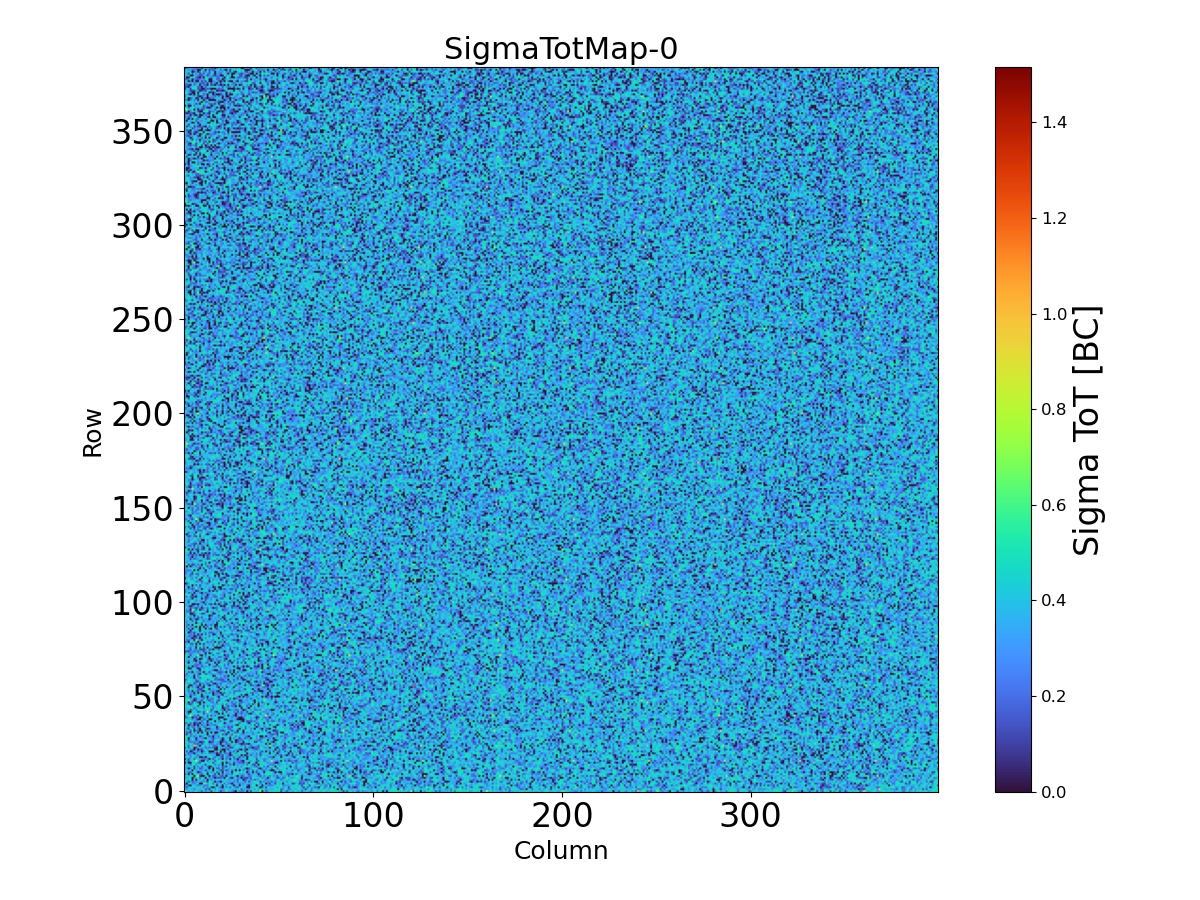

SigmaTotMap-0

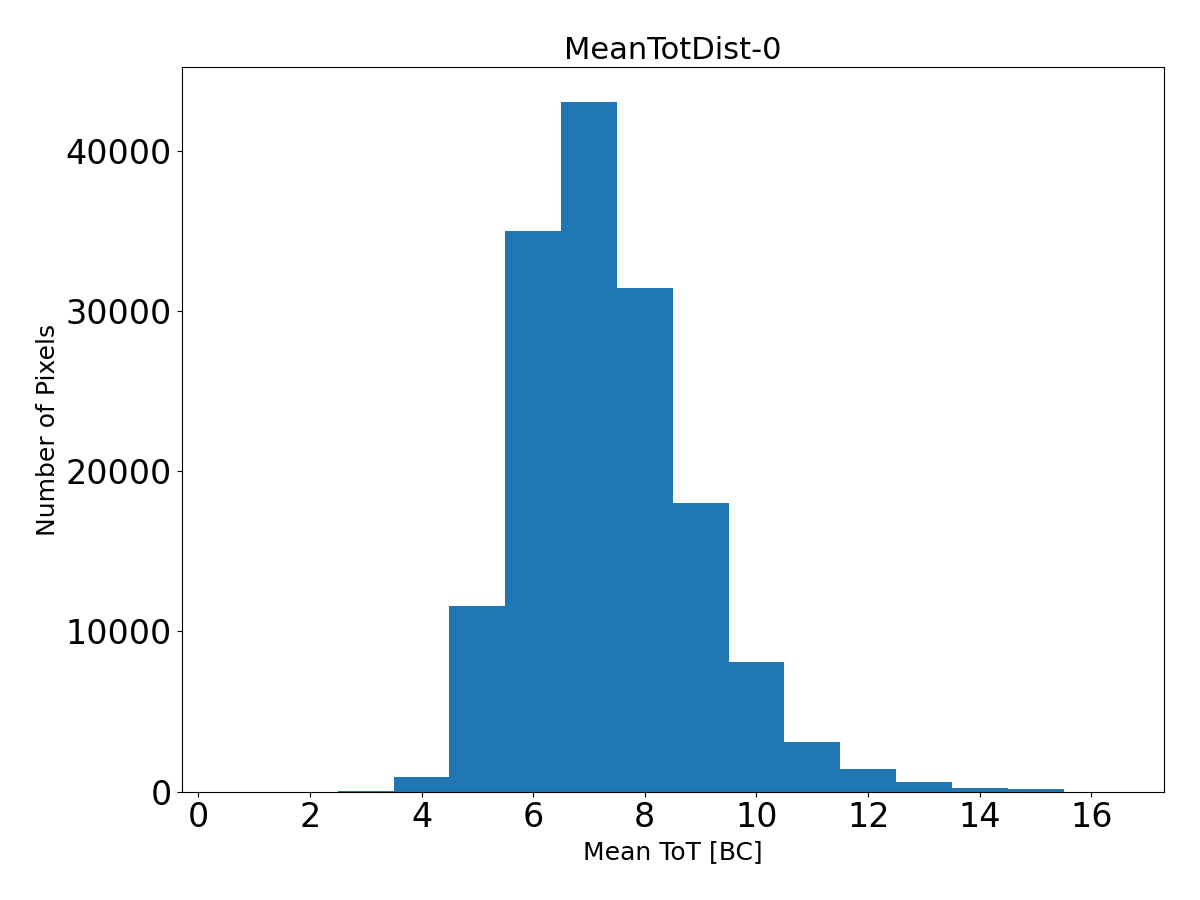

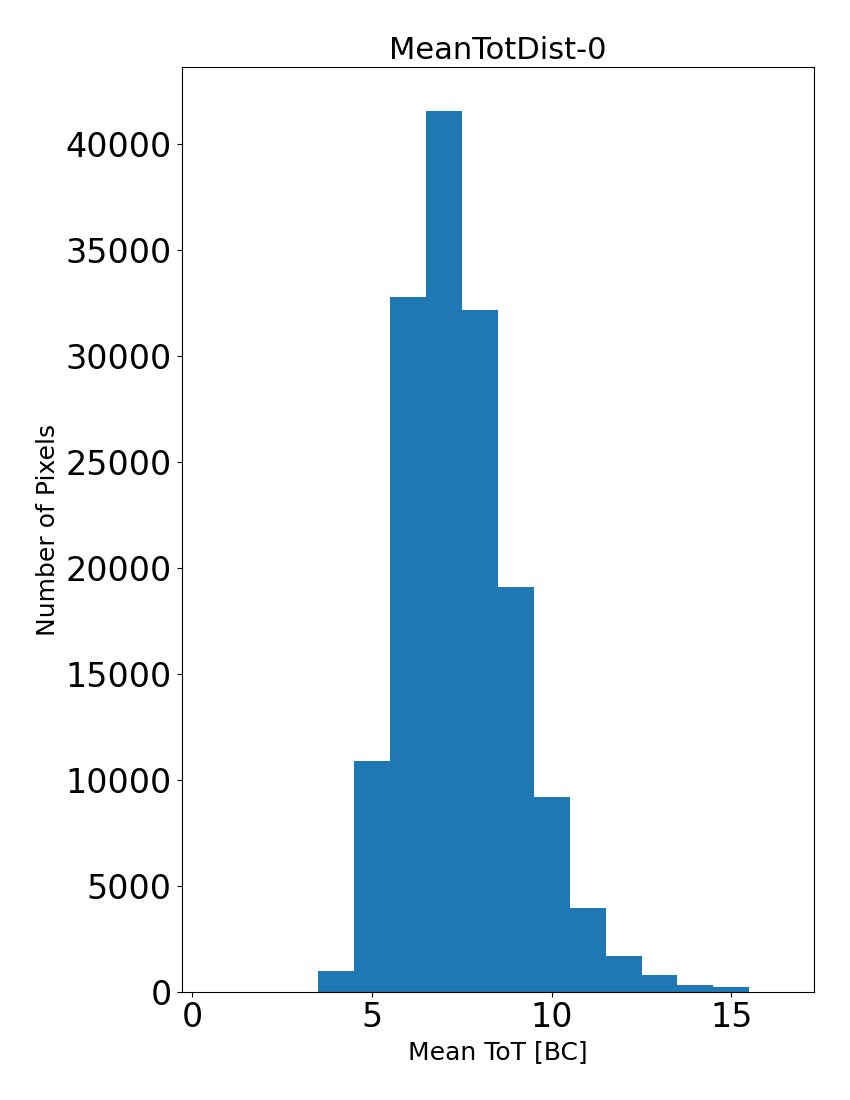

MeanTotDist-0

SigmaTotDist-0

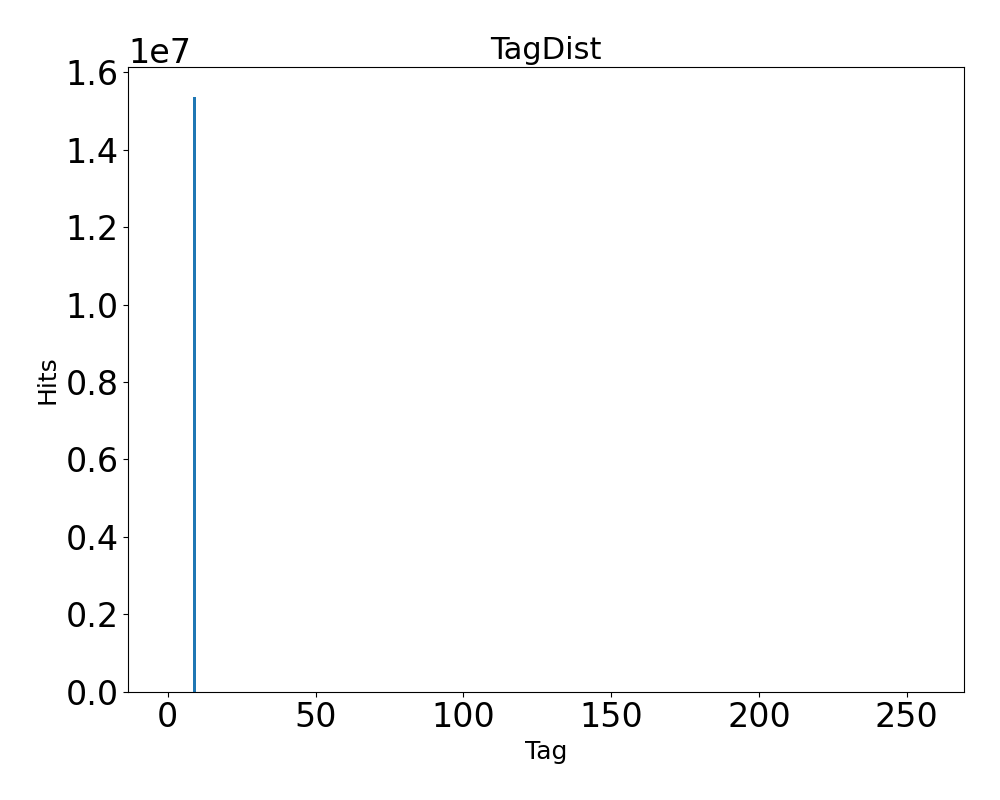

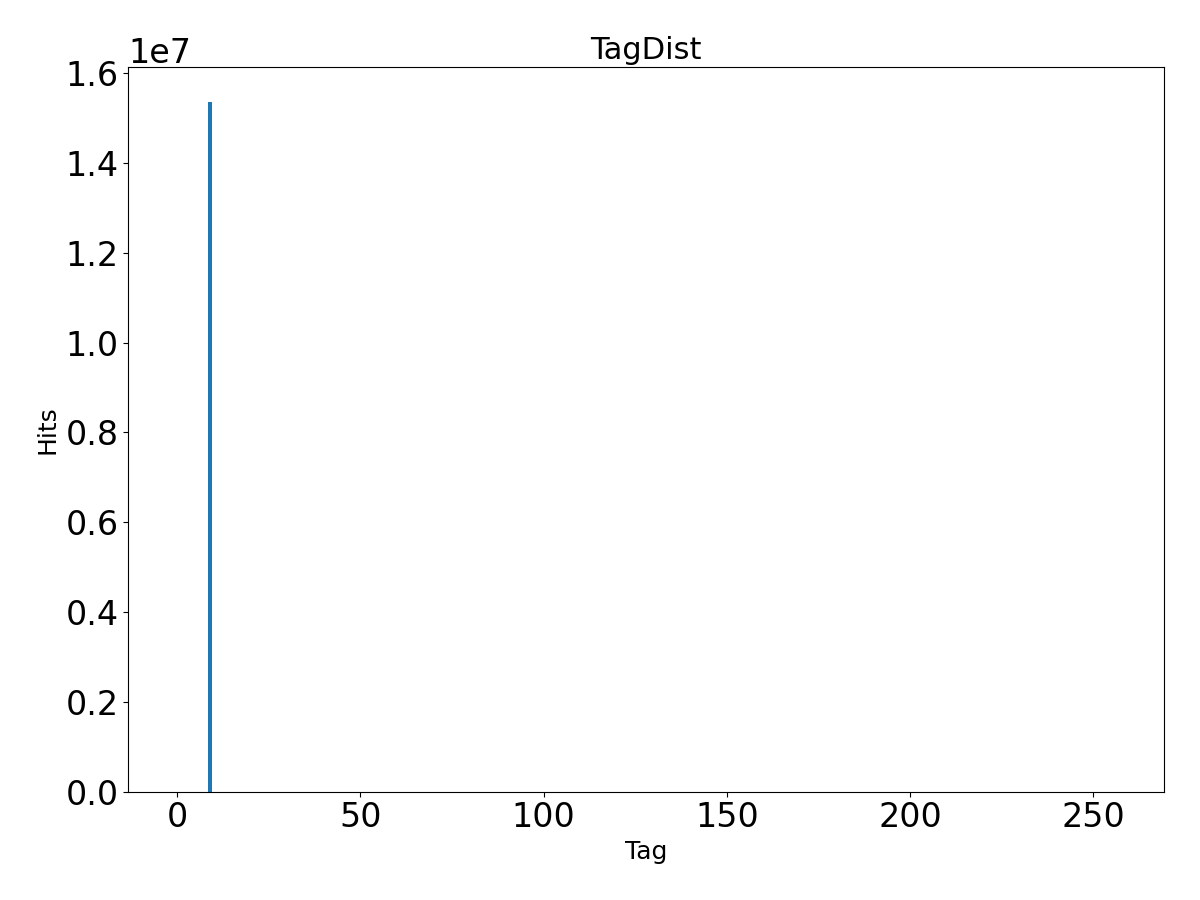

TagDist

MeanTagMap-0


Details

Scan

Key Data
runNumber 1945
testType std_totscan
stage MODULE/FINAL_COLD
component 20UPGM24210397
20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
startTime 2026-06-11 05:47:07
finishTime 2026-06-11 05:47:23
user pixqc
site jittereel.dhcp.lbl.gov
targetCharge 6000
targetTot -1
FeDataProcessorLog 0x22919: {'Any errors': 0, 'Chip tag bitflips': 0, 'Chip unrecognized tags': 0, 'Corrupt streams': 0, 'Split events count': 0, 'Unfinished streams (no EOS)': 0, 'Unfinished streams (w/ EOS)': 0}
0x22927: {'Any errors': 0, 'Chip tag bitflips': 0, 'Chip unrecognized tags': 0, 'Corrupt streams': 0, 'Split events count': 0, 'Unfinished streams (no EOS)': 0, 'Unfinished streams (w/ EOS)': 0}
0x2296c: {'Any errors': 0, 'Chip tag bitflips': 0, 'Chip unrecognized tags': 0, 'Corrupt streams': 0, 'Split events count': 0, 'Unfinished streams (no EOS)': 0, 'Unfinished streams (w/ EOS)': 0}
0x2299a: {'Any errors': 0, 'Chip tag bitflips': 0, 'Chip unrecognized tags': 0, 'Corrupt streams': 0, 'Split events count': 0, 'Unfinished streams (no EOS)': 0, 'Unfinished streams (w/ EOS)': 0}
ctrlStatus channel_configuration: 16x1
fe_chip_type: RD53A/B/C
firmware_hash: 0xacb87f4
firmware_identifier: 0x1030242
firmware_vers: v1.6.0
fmc_card_type: Ohio Card (Display Port)
fpga_card: Trenz TEF1001_R1
lpm_status: 0
rx_speed: 1280Mbps
exec -r /opt/local/pixqc/common_configs/specCfg-rd53b-16x1-setup1.json -c /opt/local/pixqc/20UPGM24210397/20UPGM24210397_L2_cold.json -o /opt/local/pixqc/20UPGM24210397/data -W TUN -s /opt/local/pixqc/qc_software/YARR/configs/scans/itkpixv2/std_totscan.json -t 6000
stopwatch analysis: 737
config: 1167
processing: 0
scan: 7845
yarr_version build_flags:
build_time: 2026-05-21 19:00:19 UTC
build_type:
git_branch: HEAD
git_date: 2026-05-05 17:05:25 +0000
git_hash: bc51c936e4328c9cffe2ba84e67b13dc909932e6
git_subject: Merge-branch-devel-into-master
git_tag: v1.6.0
QC False
environment False
plots
passed True

Output Data

Data Display Download
Type FE Chip Serial Number
ctrlCfg N/A
dbCfg N/A
siteCfg N/A
userCfg N/A
scanCfg N/A
feCfg.before 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
feCfg.after 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
MeanTotMap-0 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
SigmaTotMap-0 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
MeanTotDist-0 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
SigmaTotDist-0 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
TagDist 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593
MeanTagMap-0 20UPGFC0141676
20UPGFC0141722
20UPGFC0141607
20UPGFC0141593

DCS ### NO DCS DATA ###

 Current Stage: Final Cold

Test Type Local Result
ADC Calibration
(ADC_CALIBRATION)		 TestRun Present
Analog Readback
(ANALOG_READBACK)		 TestRun Present
SLDO
(SLDO)		 TestRun Present
VCAL Calibration
(VCAL_CALIBRATION)		 TestRun Present
Injection Capacitance
(INJECTION_CAPACITANCE)		 TestRun Present
Low Power Mode
(LP_MODE)		 No TestRun!
Overvoltage Protection
(OVERVOLTAGE_PROTECTION)		 No TestRun!
Undershunt Protection
(UNDERSHUNT_PROTECTION)		 No TestRun!
Tuning
(TUNING)		 TestRun Present
Minimal Health Test
(MIN_HEALTH_TEST)		 TestRun Present
Pixel Failure Analysis
(PIXEL_FAILURE_ANALYSIS)		 TestRun Present
Data Transmission
(DATA_TRANSMISSION)		 TestRun Present
Cold startup
(COLD_STARTUP)		 No TestRun!

 Candidate TestRuns of this Stage
