Database for ITk Pixel Module

Serial Number	20UPGFC0222564
ProdDB ID	4d318c…347511
LocalDB ID	67a21cfc89d864a1f4111bad
Component Type	fe_chip
Parents	20UPGM24831020 20UPGB43000257
Children	No match.
Flags

Item	Value
Target Iref trim	9
Target Iref trim version	1
Wafer serial number	None

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	67a21cfc89d864a1f4111bad
Stage	MODULE/QC_CROSSCHECK
Test Type	TUNING
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	69826632f95db4464d2c7b41
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.7.3
MEASUREMENT_DATE	2026-02-03T19:45:28.000+00:00
MEASUREMENT_DURATION	668
YARR_VERSION	v1.5.5
TUNING_TUNED_NOISE_95_HIGH	129.906
TUNING_TUNED_NOISE_95_LOW	88.364

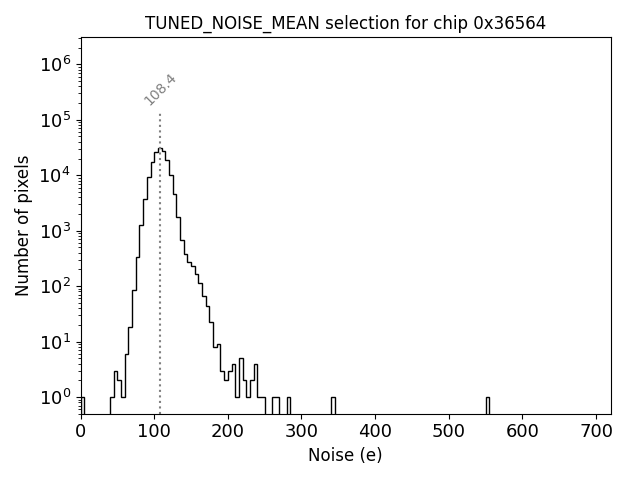

TUNING_TUNED_NOISE_MEAN	108.382
TUNING_TUNED_NOISE_SIGMA	11.035
TUNING_TUNED_TDAC_MEAN	-1.5
TUNING_TUNED_TDAC_SIGMA	4.179
TUNING_TUNED_THRESHOLD_95_HIGH	1565.434
TUNING_TUNED_THRESHOLD_95_LOW	1434.261
TUNING_TUNED_THRESHOLD_FAILED_FITS	6

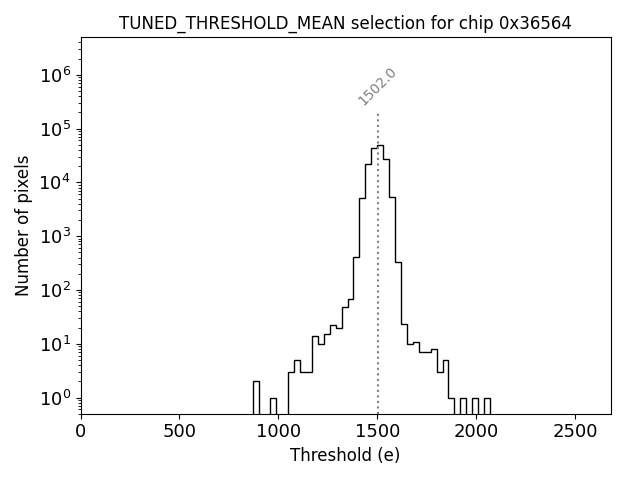

TUNING_TUNED_THRESHOLD_MEAN	1502
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	10.17
TUNING_TUNED_TOT_95_LOW	5.51

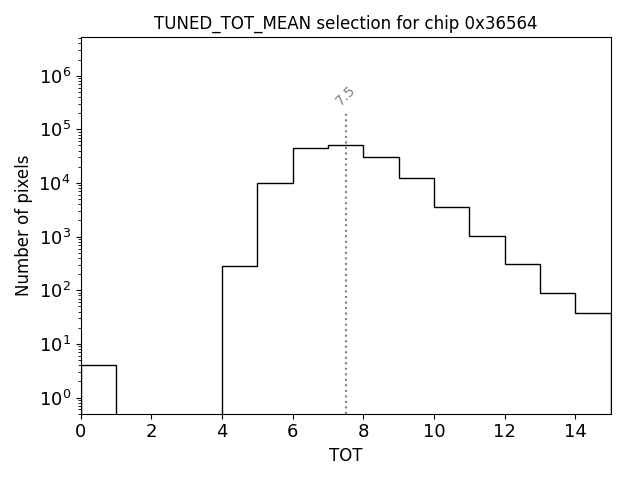

TUNING_TUNED_TOT_MEAN	7.5
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	126.902
TUNING_UNTUNED_NOISE_95_LOW	86.745

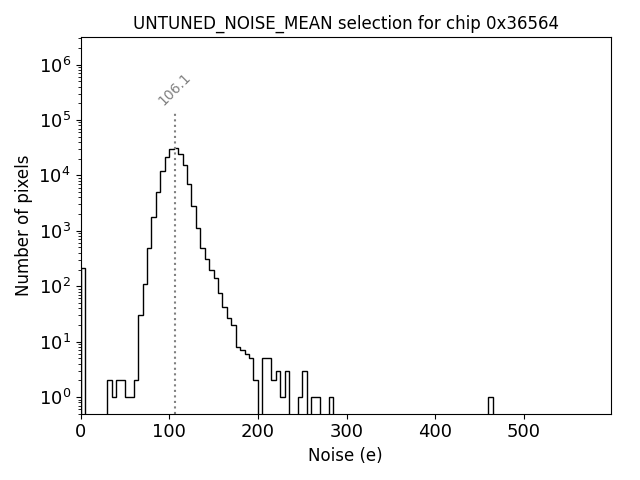

TUNING_UNTUNED_NOISE_MEAN	106.13
TUNING_UNTUNED_NOISE_SIGMA	11.21
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2830.058
TUNING_UNTUNED_THRESHOLD_95_LOW	1610.06

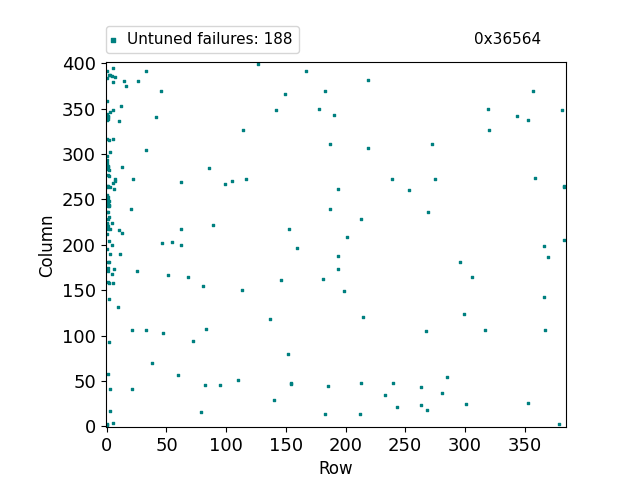

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	188

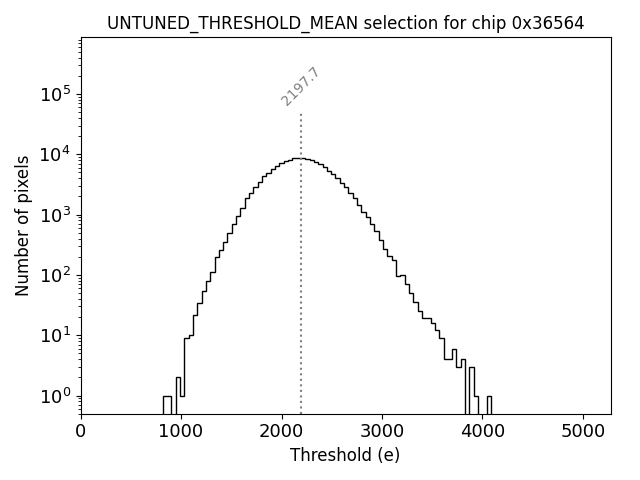

TUNING_UNTUNED_THRESHOLD_MEAN	2197.677
TUNING_UNTUNED_THRESHOLD_SIGMA	310.859

Filename	Contents
0x36564_L2_default.json	Download
output.log	Download
0x36564.log	Download
20UPGFC0222564_MODULE__QC_CROSSCHECK_TUNING.zip	Download

Expand ProductionDB Record

69b1cfaa8aae92e94de8073c

state

ready

stateTs

2026-03-11T20:25:14.983Z

stateUserIdentity

4728-7541-1

date

2026-02-03T21:18:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

runNumber

69826632f95db4464d2c7b41

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.7.3	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-02-03T19:45:28.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	668	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	129.906	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	88.364	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	108.382	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	11.035	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.5	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.179	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1565.434	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1434.261	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	6	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1502	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.17	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.51	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.5	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	126.902	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	86.745	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	106.13	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	11.21	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2830.058	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1610.06	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	188	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2197.677	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	310.859	None

cts

2026-03-11T20:25:14.983Z

sys

cts	2026-03-11T20:25:14.983Z
mts	2026-03-11T20:26:47.547Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

e99789158a60832f6d4b990960455d32

2026-03-11T20:25:58.604Z

0x36564_L2_default.json

{"_id":"69824e767a7b6ca22ec732e7","serialNumber":"20UPGFC0222564","stage":"MODULE/QC_CROSSCHECK","branch":"default","current_revision_id":"698257c3a32377dd6b075e0e"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/e/9/9/e99789158a60832f6d4b990960455d32?authz=zteos64:MDAwMDAyZjR4nO2Rv0oDQRDGSUCLgKCWqQaxsLnc7t6f3E5jasFG0x0p9rJ7yZHk9rjsNdHOzpew0sIHEB8gdcBS0SbaBEGwk1SewcLC2soZmOLHzHwzfLXnaq2Sb16fn92t19cSM8jkTnWS7VVY21Z6bAszFN-1q_K0l-sik8l4YEtlrLLdznItLRnZyuZlKs6bAadeIHwSOCz2pRtxTrhPXM-TDjvYJY7DJfGV5cVCWJTG1OIskpZwo5jQJvck40ezStjuF3BQpAAuEIaUIWHACPM7UCQSqUv9gIarezvQ-yIOaYaTrAMmkSo1mGttGpQGfoC0VG-FiHEZ6NGS-g0eNCjpQCpGCldbQKYI5TMGB3nkgcgyhL4eG_x9UOqRSFL8QXpKI4wLqZGAyUVXIeg0Un0xjHEbjg_fr2bTrfmHs7F4mp--vg3d5fTiZP9ePlqth8Vt_d-HP_ABLpcvN9VPJPDsgw%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/e/9/9/e99789158a60832f6d4b990960455d32

e99789158a60832f6d4b990960455d32

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

ea151df3e98f186f8a9499f6844cf5e4

2026-03-11T20:26:47.547Z

TestRun_69b1cfaa8aae92e94de8073c_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_69b1cfaa8aae92e94de8073c_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/e/a/1/ea151df3e98f186f8a9499f6844cf5e4?authz=zteos64:MDAwMDAyZjR4nO2RsUrEQBCGOUEPrMRSm0EEbXLJJtlkd7SwtpRr9Dhhk929xDuzIbdpFBuvELS3shJsrvYFfAHRV1AEH8LCeFhYWFs5xV98_P8ww7_4OrfYqpaml5PnhZX53A5LuTZ3Um62_K6rzNgVdiS-NVVVMahMXcp8PHSlsk5jd8vKSEcmrnKFS1wlCCVSB4ozTVikmeAh5zpiYZhqqsLddS-gSqY0cqgWwiFEE4cnEXdEmGiPxJxKn-89tnrdrIbdugAIwfOR-OgF4Ht-1Ic6l0hCEjHSm93bh8EXCby4d1L2weZSFRYrY2yHEMZiDGLKdnqIuhmkpKFRh7MO8fpQiGOFsy0gC4TmGYvDKqEgyhIhM2OLvwelORZ5gT_IQBmEcS0NemArkSoEUyQqEyONy9C-LQ_Obx6yrYX561N_--xl_zC-uHs7Gl1lG9dPq9OV_x7-oAeY3H-8tz8Bnh7pdw%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/e/a/1/ea151df3e98f186f8a9499f6844cf5e4

ea151df3e98f186f8a9499f6844cf5e4

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

67a21cfc89d864a1f4111bad

4d318c51ef3731056cec3bc896347511

ready

2025-02-04T13:58:20.411Z

5310-2637-1

False

None

False

None

20UPGFC0222564

None

parent

component

68d2c40546c81c946fdc4418

code

37b4c0e7dc772ea81f8f60ab167fc372

state

ready

stateTs

2025-09-23T16:00:05.898Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43000257

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/INITIAL_WARM
name	Initial Warm

highestLevelParent

component

690e43ca44c06a976341dc6e

code

d5b574f1c620fef092445b4f12a0513e

state

ready

stateTs

2025-11-07T19:08:58.555Z

stateUserIdentity

4561-2270-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24831020

alternativeIdentifier

ANL_ITkPix_178

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/INITIAL_WARM
name	Initial Warm

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

code	name	dataType	required	default	value
TARGET_IREF_TRIM	Target Iref trim	integer	False	False	9
TARGET_IREF_TRIM_VERSION	Target Iref trim version	string	False	False	1

code	MODULE/QC_CROSSCHECK
name	QC cross-check (module swapping)
order	9
initial	False
final	False

code	GL
name	Glasgow University

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No TestRun!
Undershunt Protection (UNDERSHUNT_PROTECTION)	No TestRun!
SLDO (SLDO)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
Data Transmission (DATA_TRANSMISSION)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!
Low Power Mode (LP_MODE)	No TestRun!

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
698266…2c7c6a	PIXEL_FAILURE_ANALYSIS	Pass	DanielAceves	N/A	3 months ago	2.7.3	No tags	Selected
698266…2c7b41	TUNING	Pass	DanielAceves	N/A	3 months ago	2.7.3	No tags	Selected
698266…2c7ad7	MIN_HEALTH_TEST	Pass	DanielAceves	N/A	3 months ago	2.7.3	No tags	Selected
69824d…78ece0	INJECTION_CAPACITANCE	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
69824c…78ebec	DATA_TRANSMISSION	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
69824e…78ed5d	LP_MODE	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
69824c…78ebac	VCAL_CALIBRATION	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
69824b…78eafa	SLDO	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
698248…78e736	ANALOG_READBACK	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected
698240…78e0e5	ADC_CALIBRATION	Pass	DanielAceves	4 months ago	3 months ago	2.7.3	No tags	Selected

Past QC Stages and Results

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
698266…2c7c6a	MODULE/QC_CROSSCHECK	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	3 months ago	No tags	Selected
698266…2c7b41	MODULE/QC_CROSSCHECK	TUNING	DanielAceves	N/A	3 months ago	No tags	Selected
698266…2c7ad7	MODULE/QC_CROSSCHECK	MIN_HEALTH_TEST	DanielAceves	N/A	3 months ago	No tags	Selected
69824d…78ece0	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	DanielAceves	4 months ago	3 months ago	No tags	Selected
69824c…78ebec	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	DanielAceves	4 months ago	3 months ago	No tags	Selected
69824e…78ed5d	MODULE/QC_CROSSCHECK	LP_MODE	DanielAceves	4 months ago	3 months ago	No tags	Selected
69824c…78ebac	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	DanielAceves	4 months ago	3 months ago	No tags	Selected
69824b…78eafa	MODULE/QC_CROSSCHECK	SLDO	DanielAceves	4 months ago	3 months ago	No tags	Selected
698248…78e736	MODULE/QC_CROSSCHECK	ANALOG_READBACK	DanielAceves	4 months ago	3 months ago	No tags	Selected
698240…78e0e5	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	DanielAceves	4 months ago	3 months ago	No tags	Selected
692f59…afc010	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	3 months ago	No tags	Selected
692f59…afbf30	MODULE/INITIAL_WARM	TUNING	DanielAceves	N/A	3 months ago	No tags	Selected
692f59…afbe65	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	DanielAceves	N/A	3 months ago	No tags	Selected
692f4e…afbd0d	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4e…afbc73	MODULE/INITIAL_WARM	DATA_TRANSMISSION	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4f…afbd5d	MODULE/INITIAL_WARM	LP_MODE	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4e…afbc05	MODULE/INITIAL_WARM	VCAL_CALIBRATION	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4e…afbb23	MODULE/INITIAL_WARM	SLDO	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4e…afba44	MODULE/INITIAL_WARM	ANALOG_READBACK	DanielAceves	6 months ago	3 months ago	No tags	Selected
692f4e…afb978	MODULE/INITIAL_WARM	ADC_CALIBRATION	DanielAceves	6 months ago	3 months ago	No tags	Selected
67a21d…6b7e2a	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage: MODULE/POST_PARYLENE_WARM

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d7106	3 weeks ago	downloaded from ITkPD : code = c95583772945d524800e5396c440d7dc, description = {"_id":"6920c7e3d7bf966e0aaf24b6","serialNumber":"20UPGFC0222564","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"692f550f59393c81417e0d9d"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d7108	3 weeks ago	downloaded from ITkPD : code = 4431b24edf248537fdfc6488e4c7574a, description = {"_id":"6920c7e3d7bf966e0aaf24be","serialNumber":"20UPGFC0222564","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"6920c7e3d7bf966e0aaf24bf"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d710a	3 weeks ago	downloaded from ITkPD : code = 5226cf332d1b8ed4c5dfe064ce99b8cd, description = {"_id":"6920c7e3d7bf966e0aaf24c6","serialNumber":"20UPGFC0222564","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"692f4f08d7bf966e0aafbd5e"}

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/GRAVEYARD
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0222564

MODULE/POST_PARYLENE_WARM

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/QC_CROSSCHECK)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Post-Parylene Warm

Candidate TestRuns of this Stage

Past QC Stages and Results

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Config Revisions

Stage: MODULE/POST_PARYLENE_WARM

Mode: warm

Mode: cold

Mode: LP

Check QC Flow

Back to top page of this component
