20UPGFC0146089

MODULE/FINAL_COLD

Component Information

Serial Number	20UPGFC0146089
ProdDB ID	7b984c…08d110
LocalDB ID	660fbe94ec873d00354e22ae
Component Type	fe_chip
Parents	20UPGM24211761 20UPGB43200441
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	8
Target Iref trim version	1
Wafer serial number	None

Comments

Test: DATA_TRANSMISSION QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a day ago
component ObjectId	660fbe94ec873d00354e22ae
Stage	MODULE/FINAL_COLD
Test Type	DATA_TRANSMISSION
Institute ObjectId
User Name	None
ObjectId of this record	6a2a5633a2083033ec8cd9b3
ObjectId of RAW record	6a2a5630a2083033ec8cd9ac
Tags	ganymede_3

Results

Key	Data
DCSdata	{}
MEASUREMENT_VERSION	2.8.1.dev0
QC_LAYER	L2
INSTITUTION	LBNL_PIXEL_MODULES
EYE_WIDTH0	7
ANALYSIS_VERSION	mqat v2.9.0
YARR_VERSION	v1.6.0
MEASUREMENT_DATE	2026-06-11T06:30:56.000+00:00
MEASUREMENT_DURATION	15
4_TO_1	1
2_TO_1	1

Attachments

Filename	Contents
output.log	Download

RAW Results Record

Download RAW

_id

6a2a5630a2083033ec8cd9ac

raw

serialNumber

testType

runNumber

results

subtestType

stage

component

dbVersion

address

sys

20UPGFC0146089

DATA_TRANSMISSION

6a2a562e2b85f532d90bcedb

DCSdata

SensorVoltage	-120.022
SensorCurrent	2.55e-08
ModuleNTC	-14.870250721

Measurements

Delay

X	True
Unit
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

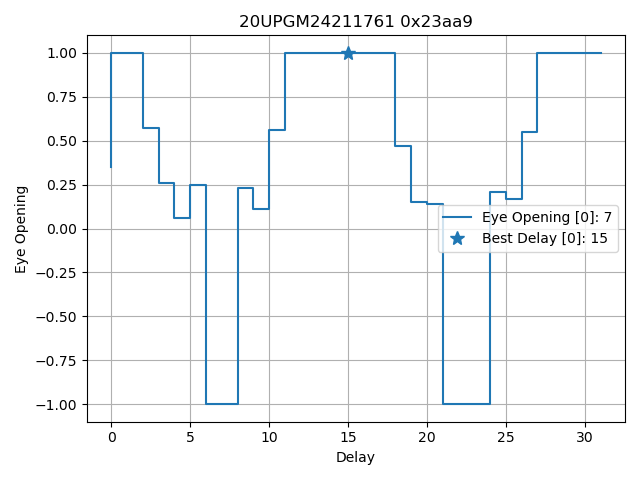

EyeOpening0

X	False
Unit
Values	0.35 1.0 1.0 0.57 0.26 0.06 0.25 -1.0 -1.0 0.23 0.11 0.56 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.47 0.15 0.14 -1.0 -1.0 -1.0 0.21 0.17 0.55 1.0 1.0 1.0 1.0

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

ITKPIXV2

GlobalConfig

AiRegionRow	0
AuroraActiveLanes	1
AuroraAltOutput0	0
AuroraAltOutput1	0
AuroraCBSend	0
AuroraCBWait0	4095
AuroraCBWait1	0
AuroraCCSend	3
AuroraCCWait	25
AuroraEnPrbs	0
AuroraInitWait	32
AuroraSendAlt	0
AutoRead0	134
AutoRead1	135
AutoRead2	137
AutoRead3	138
AutoRead4	140
AutoRead5	151
AutoRead6	152
AutoRead7	156
BcidCnt	0
BitFlipErrCnt	0
BitFlipWngCnt	0
CapMeasEn	0
CapMeasEnPar	0
CdrClkSel	0
CdrCp	40
CdrCpBuff	200
CdrCpFd	400
CdrPhaseDetSel	0
CdrVco	1023
CdrVcoBuff	500
ChSyncLockThr	31
ChipIdSense	0
Clk160En	7
Clk40En	7
ClkAuroraEn	7
ClkDataMergeEn	7
CmdErrCnt	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
DataDecodingValues	0
DataEnBcid	0
DataEnBinaryRo	0
DataEnCrc	0
DataEnL1id	0
DataEnRaw	0
DataMaxHits	0
DataMaxTot	0
DataMergeEn	0
DataMergeEnBond	0
DataMergeEnClkGate	0
DataMergeFixedMode	0
DataMergeGpoSel	0
DataMergeInMux0	0
DataMergeInMux1	1
DataMergeInMux2	2
DataMergeInMux3	3
DataMergeInPol	0
DataMergeManChoice	0
DataMergeManMode	0
DataMergeOutMux0	2
DataMergeOutMux1	3
DataMergeOutMux2	0
DataMergeOutMux3	1
DataMergeSelClk	0
DataReadDelay	0
DiffComp	500
DiffFbCapEn	0
DiffLcc	200
DiffLccEn	1
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffTh1L	350
DiffTh1M	350
DiffTh1R	350
DiffTh2	50
DiffVff	60
EfuseConfig	3855
EfuseReadData0	43280
EfuseReadData1	8762
EfuseWriteData0	0
EfuseWriteData1	0
EnChipId	0
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
EnCoreColCal0	0
EnCoreColCal1	0
EnCoreColCal2	0
EnCoreColCal3	0
EnHitsRemoval0	0
EnHitsRemoval1	0
EnHitsRemoval2	0
EnHitsRemoval3	0
EnIsoHitsRemoval0	0
EnIsoHitsRemoval1	0
EnIsoHitsRemoval2	0
EnIsoHitsRemoval3	0
ErrWngMask	0
EvenMask	0
FineDelayClk	0
FineDelayData	0
GatedHitOrCnt0	0
GatedHitOrCnt1	0
GcrDefaultConfig	44149
GcrDefaultConfigB	21386
GlobalConfigSeuCnt	0
GlobalPulseConf	0
GlobalPulseWidth	10
GpCmosDs	0
GpCmosEn	1
GpCmosRoute	34
GpLvdsBias	7
GpLvdsEn	15
GpLvdsPad0	0
GpLvdsPad1	1
GpLvdsPad2	33
GpLvdsPad3	35
GpValReg	5
HitOrCnt0	0
HitOrCnt1	0
HitOrCnt2	0
HitOrCnt3	0
HitOrMask0	0
HitOrMask1	0
HitOrMask2	0
HitOrMask3	0
InjAnaMode	0
InjDigEn	0
InjFineDelay	5
InjVcalHigh	200
InjVcalMed	200
InjVcalRange	1
IrefTrimSense	0
Latency	500
LinComp	110
LinCompTa	110
LinFc	20
LinGdacL	408
LinGdacM	408
LinGdacR	408
LinKrumCurr	50
LinLdac	100
LinPreampL	300
LinPreampM	300
LinPreampR	300
LinPreampT	300
LinPreampTL	300
LinPreampTR	300
LinRefKrum	300
LockLossCnt	0
MonAdcTrim	0
MonSensAcbDem	0
MonSensAcbEn	0
MonSensAcbSelBias	0
MonSensSldoAnaDem	0
MonSensSldoAnaEn	0
MonSensSldoAnaSelBias	0
MonSensSldoDigDem	0
MonSensSldoDigEn	0
MonSensSldoDigSelBias	0
MonitorEnable	1
MonitorI	63
MonitorV	32
MonitoringDataAdc	0
NtcDac	100
NumOfEventsInStream	0
OddMask	0
PixAutoRow	1
PixBroadcast	0
PixConfMode	1
PixDefaultConfig	40162
PixDefaultConfigB	25373
PixEnSeuCount	0
PixHitSampleMode	0
PixPortal	1285
PixRegionCol	199
PixRegionRow	0
PixelSeuCntCnt	0
PtotCoreColEn0	0
PtotCoreColEn1	0
PtotCoreColEn2	0
PtotCoreColEn3	0
RdWrFifoErrCnt	0
ReadTrigCnt	0
ReadTrigLatency	0
RingOscAClear	0
RingOscAEn	0
RingOscAOut	0
RingOscARoute	0
RingOscBClear	0
RingOscBEnBl	0
RingOscBEnBr	0
RingOscBEnCapA	0
RingOscBEnFf	0
RingOscBEnLvt	0
RingOscBOut	0
RingOscBRoute	0
RstCoreCol0	0
RstCoreCol1	0
RstCoreCol2	0
RstCoreCol3	0
SelfTrigDeadtime	64
SelfTrigDelay	512
SelfTrigDigThr	1
SelfTrigDigThrEn	0
SelfTrigEn	0
SelfTrigMulti	4
SelfTrigPattern	65534
SerEnLane	15
SerEnTap	1
SerInvTap	1
SerSelOut0	3
SerSelOut1	3
SerSelOut2	1
SerSelOut3	3
ServiceBlockEn	1
ServiceBlockPeriod	50
SkippedTrigCnt	0
SldoEnUndershuntA	0
SldoEnUndershuntD	0
SldoTrimA	12
SldoTrimD	8
TotEn6b4b	0
TotEn80	0
TotEnPtoa	0
TotEnPtot	0
TotPtotLatency	500
TrigCnt	0
TruncTimeoutConf	0
TwoLevelTrig	0
VrefIn	1
VrefRsensBot	0
VrefRsensTop	0

Parameter

ADCcalPar	10.0 0.188 10000.0
ChipId	12
EnforceNameIdCheck	True
InjCap	6.81
IrefTrim	8
KSenseInA	21084.695
KSenseInD	21294.404
KSenseShuntA	21687.0
KSenseShuntD	21903.0
KShuntA	1001.768
KShuntD	986.918
Name	0x23aa9
NfACB	1.2566707
NfASLDO	1.2578992
NfDSLDO	1.2580278
NtcCalPar	0.0007489 0.0002769 7.0595e-08
VcalPar	-2.0 0.2

SoftwareType

ChipID

Name

0x23aa9

Institution

LBNL_PIXEL_MODULES

ModuleSN

20UPGM24211761

AverageTemperature

-14.931769182

EyeWidth0

DelaySetting0

TimeStart

1781159445

TimeEnd

1781159456

comment

property

YARR_VERSION	v1.6.0
DATA_TRANSMISSION_MEASUREMENT_VERSION	2.8.1.dev0

DT_EYE

MODULE/FINAL_COLD

660fbe94ec873d00354e22ae

1.01

64657cef8d79bac1f3f005c0

mts	2026-06-11 06:31:12.014000
cts	2026-06-11 06:31:12.014000
rev	0
