20UPGFC0145972

MODULE/FINAL_COLD

Component Information

Serial Number 20UPGFC0145972
ProdDB ID  2f0179…42cfe8
LocalDB ID 660fbdc52fc9f20035147b9a
Component Type fe_chip
Parents 20UPGM24211762  20UPGB43200442 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Target Iref trim 13
Target Iref trim version 1
Wafer serial number None

 Comments

Date Commented by on which Component Comment
3 days ago pixel (Lawrence Berkeley National Lab - pixel modules) MODULE
20UPGM24211762 		sign-off at MODULE/QC_CROSSCHECK; appended flags: ['INFO_CORE_COLUMN', 'DISABLED_CC_BY_HAND']; next stage: MODULE/PARYLENE_MASKING; comment: Disabled cc 50 by-hand

Test: PIXEL_FAILURE_ANALYSIS QC Passed

(Stage: MODULE/FINAL_COLD)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 2 days ago
component ObjectId 660fbdc52fc9f20035147b9a
Stage MODULE/FINAL_COLD
Test Type PIXEL_FAILURE_ANALYSIS
Institute ObjectId
User Name None
ObjectId of this record 6a2ae37fa2083033ec8cda0b
ObjectId of RAW record None
Tags No tags

Results

Key Data
DCSdata {}
QC_LAYER L2

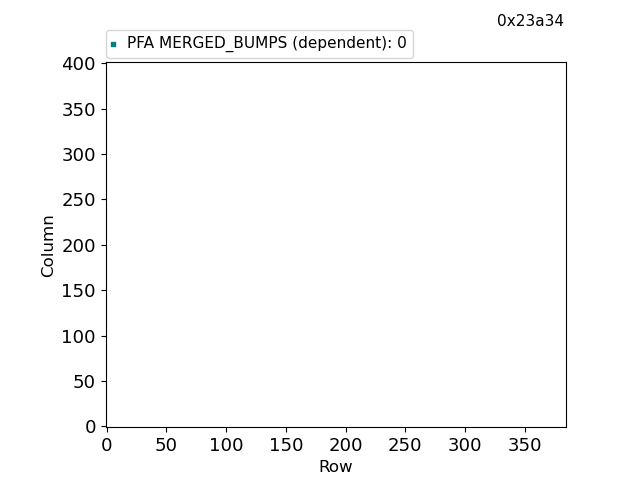

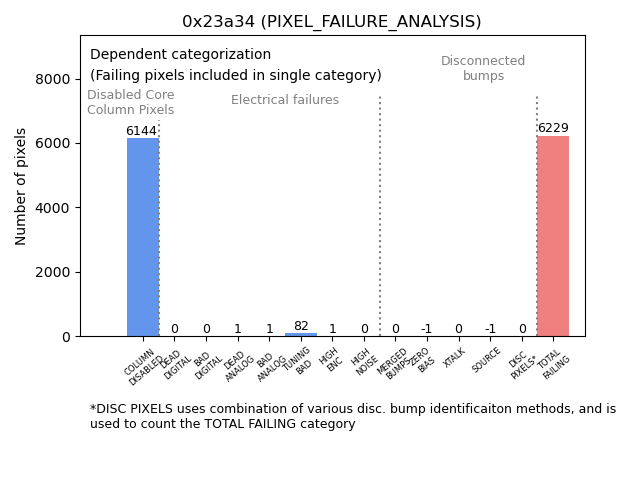

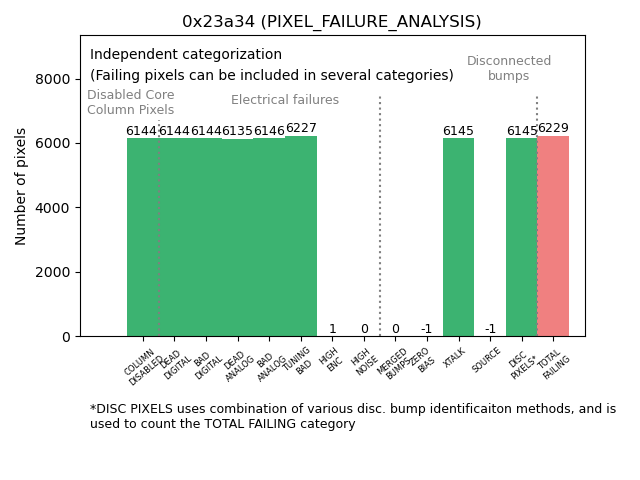

PIXEL_FAILURE_ANY_ERRORS {'digitalscan': 0, 'analogscan': 4, 'thresholdscan_hd': 1085, 'noisescan': 0, 'mergedbumpscan': 0, 'discbumpscan': 0, 'all': 1089}
PIXEL_FAILURE_SOURCE_SCAN_DONE False
PIXEL_FAILURE_COLUMN_DISABLED 6144
PIXEL_FAILURE_DEAD_DIGITAL 0
PIXEL_FAILURE_BAD_DIGITAL 0
PIXEL_FAILURE_DEAD_ANALOG 1
PIXEL_FAILURE_BAD_ANALOG 1

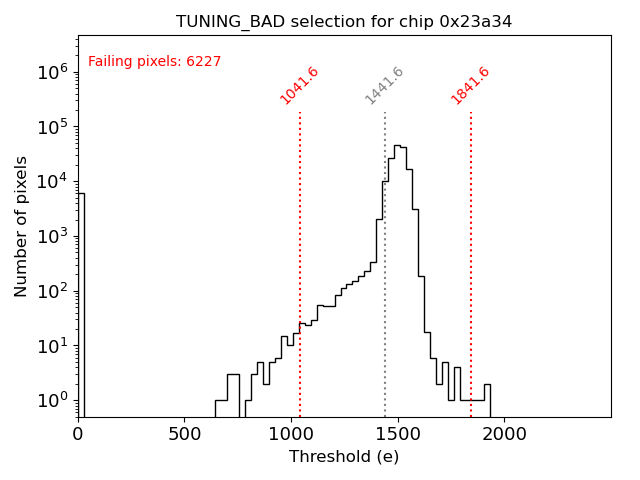

PIXEL_FAILURE_TUNING_BAD 82
PIXEL_FAILURE_HIGH_ENC 1
PIXEL_FAILURE_HIGH_NOISE 0
PIXEL_FAILURE_MERGED_BUMPS 0
PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN -1

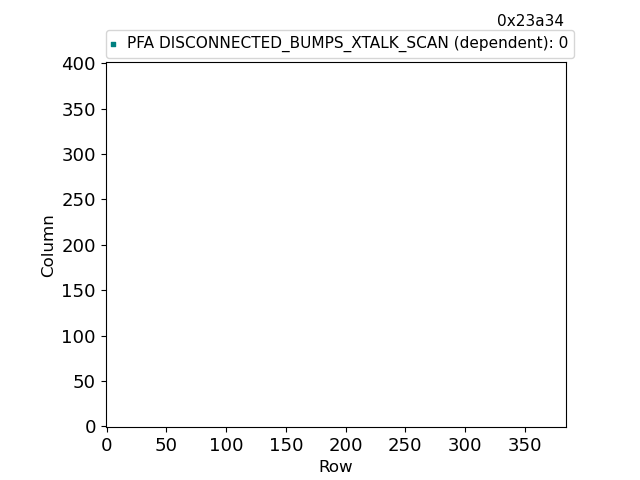

PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN 0
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN -1

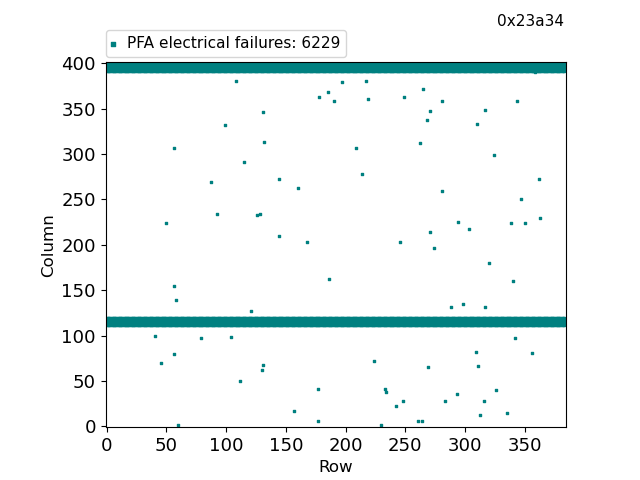

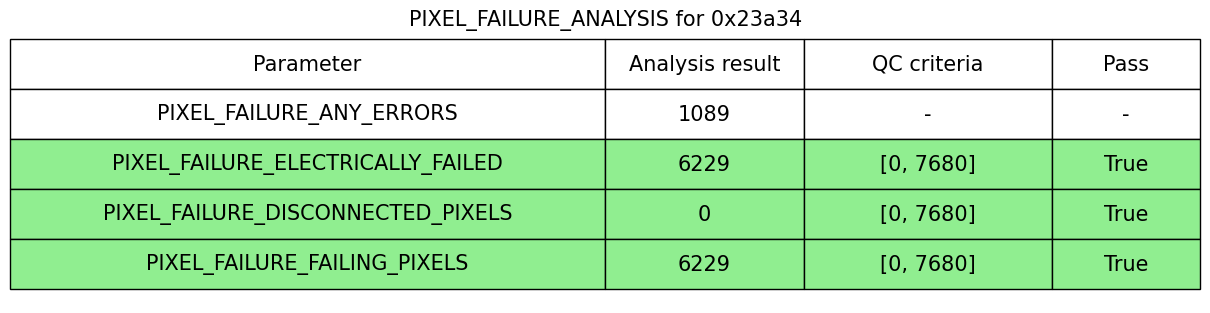

PIXEL_FAILURE_ELECTRICALLY_FAILED 6229
PIXEL_FAILURE_DISCONNECTED_PIXELS 0
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC 6145
PIXEL_FAILURE_FAILING_PIXELS 6229
ANALYSIS_VERSION mqat v2.9.0
YARR_VERSION v1.6.0
MEASUREMENT_DATE 2026-06-11T13:03:56.000+00:00
MEASUREMENT_DURATION 666

Attachments

Filename Contents
output.log Download
0x23a34.log Download
20UPGFC0145972_MODULE__FINAL_COLD_PIXEL-FAILURE-ANALYSIS.zip Download
