20UPGFC0142490

MODULE/THERMAL_CYCLES

Component Information

Serial Number 20UPGFC0142490
ProdDB ID  56a946…aa015b
LocalDB ID 660dc886ec873d003545b10a
Component Type fe_chip
Parents 20UPGM24211289  20UPGB43200206 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Target Iref trim 11
Target Iref trim version 1
Wafer serial number None

 Comments


Test: TUNING QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date a month ago
component ObjectId 660dc886ec873d003545b10a
Stage MODULE/POST_PARYLENE_WARM
Test Type TUNING
Institute ObjectId
User Name None
ObjectId of this record 690e83f890a797f298691368
ObjectId of RAW record None
Tags No tags
Tuning Config Associated FE Config

Results

Key Data
DCSdata {}
QC_LAYER L2

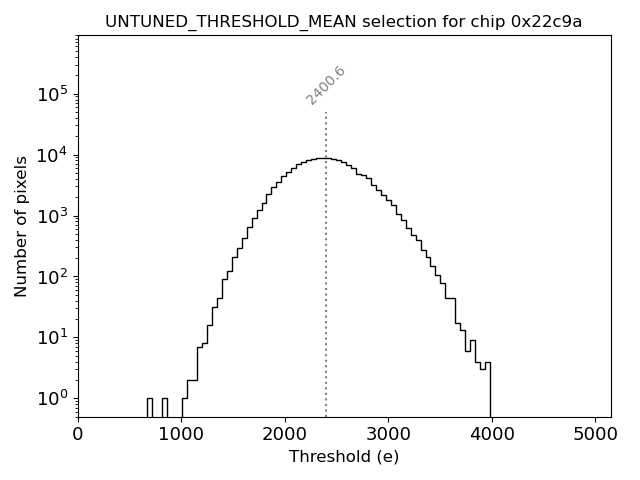

TUNING_UNTUNED_THRESHOLD_MEAN 2400.646
TUNING_UNTUNED_THRESHOLD_95_LOW 1768.749
TUNING_UNTUNED_THRESHOLD_95_HIGH 3095.457
TUNING_UNTUNED_THRESHOLD_SIGMA 336.514
TUNING_UNTUNED_TDAC_MEAN 0.0
TUNING_UNTUNED_TDAC_SIGMA 0.0
TUNING_UNTUNED_NOISE_MEAN 106.493
TUNING_UNTUNED_NOISE_SIGMA 12.386
TUNING_UNTUNED_NOISE_95_LOW 86.003
TUNING_UNTUNED_NOISE_95_HIGH 128.989

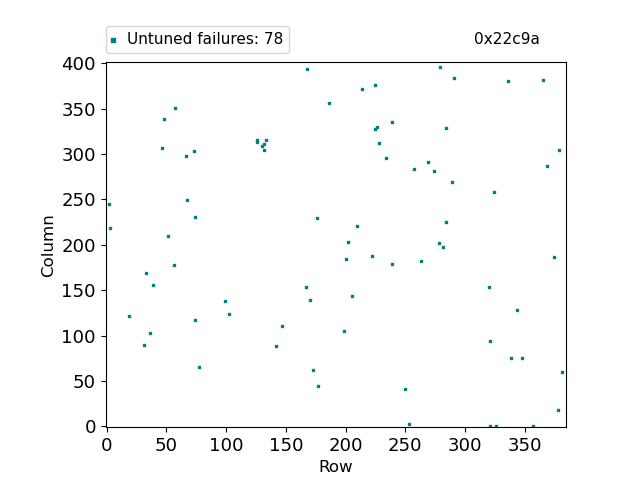

TUNING_UNTUNED_THRESHOLD_FAILED_FITS 78
TUNING_TUNED_THRESHOLD_MEAN 1496.9
TUNING_TUNED_THRESHOLD_95_LOW 1426.245
TUNING_TUNED_THRESHOLD_95_HIGH 1563.583
TUNING_TUNED_THRESHOLD_SIGMA 37.0
TUNING_TUNED_TDAC_MEAN -1.6
TUNING_TUNED_TDAC_SIGMA 3.998

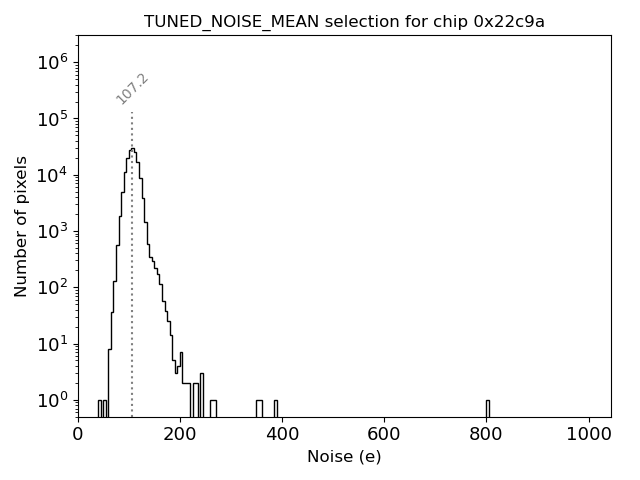

TUNING_TUNED_NOISE_MEAN 107.155
TUNING_TUNED_NOISE_SIGMA 11.312
TUNING_TUNED_NOISE_95_LOW 86.87
TUNING_TUNED_NOISE_95_HIGH 129.002

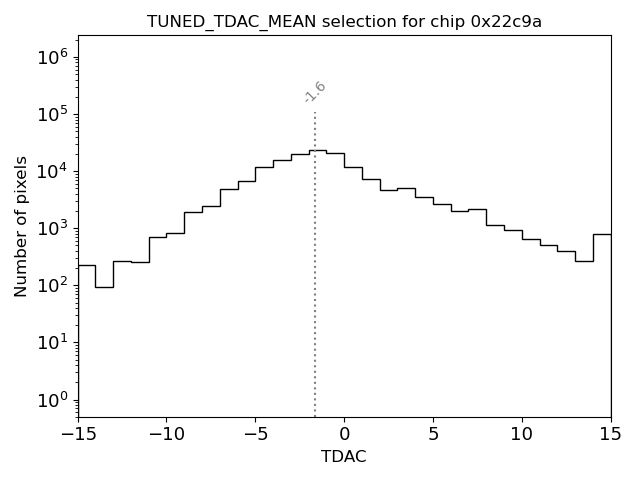

TUNING_TUNED_TOT_MEAN 7.3
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_TUNED_TOT_95_LOW 5.08
TUNING_TUNED_TOT_95_HIGH 10.02

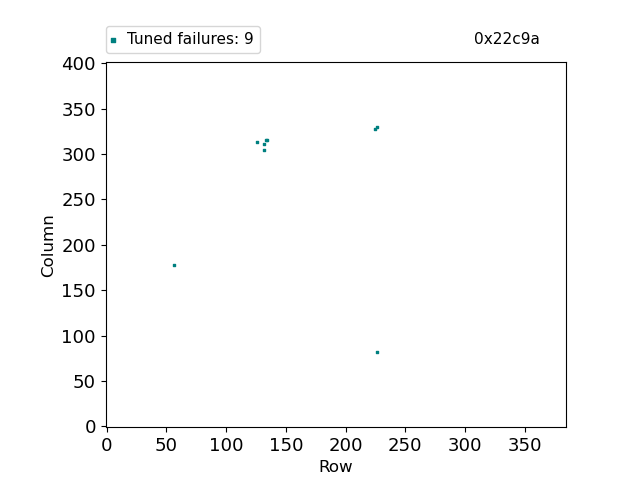

TUNING_TUNED_THRESHOLD_FAILED_FITS 9
ANALYSIS_VERSION mqat v2.7.0
YARR_VERSION v1.5.5
MEASUREMENT_DATE 2025-11-07T03:25:45.000+00:00
MEASUREMENT_DURATION 5302

Attachments

Filename Contents
output.log Download
0x22c9a.log Download
20UPGFC0142490_MODULE__POST_PARYLENE_WARM_TUNING.zip Download
