20UPGFC0142116
MODULE/FINAL_WARM
Component Information
| Serial Number | 20UPGFC0142116 |
|---|---|
| ProdDB ID | dec2d4…81ca97 |
| LocalDB ID | 660d7c2cec873d0035450dcd |
| Component Type | fe_chip |
| Parents | 20UPGM23210292 20UPGB43200160 |
| Children | No match. |
| Flags |
Properties
Comments
Test: ANALOG_READBACK QC Passed
(Stage: MODULE/FINAL_WARM)
Basic View Only: custom view for this TestRun is not prepared.
Metadata
| Key | Data |
|---|---|
| QC Passed | True |
| Date | |
| component ObjectId | 660d7c2cec873d0035450dcd |
| Stage | MODULE/FINAL_WARM |
| Test Type | ANALOG_READBACK |
| Institute ObjectId | |
| User Name | None |
| ObjectId of this record | 6a23369e63ab0365fd46b29f |
| ObjectId of RAW record | 6a23369963ab0365fd46b27c |
| Tags | titan_1 |
Results
| Key | Data |
|---|---|
| DCSdata | {} |
| MEASUREMENT_VERSION | 2.8.0 |
| QC_LAYER | L2 |
| INSTITUTION | LBNL_PIXEL_MODULES |
| AR_TEMP_NTC | 20.063 |
| AR_TEMP_EXT | 20.004 |
| AR_TEMP_ASLDO | 32.996 |
| AR_TEMP_DSLDO | 34.5 |
| AR_TEMP_ACB | 32.086 |
| AR_TEMP_NF_ASLDO | 1.244 |
| AR_TEMP_NF_DSLDO | 1.244 |
| AR_TEMP_NF_ACB | 1.242 |
| AR_TEMP_POLY_TOP | -999 |
| AR_TEMP_POLY_BOTTOM | -999 |
| AR_TEMP_NF_TOP | -999 |
| AR_TEMP_NF_BOTTOM | -999 |
| AR_IREF | 3.8e-06 |
| AR_GADC | 0.783 |
| AR_VCALDAC | 0.786 |
| AR_VREFCORE | 0.46 |
| AR_VREFOVP | 1.977 |
| AR_NOMINAL_SETTINGS | [3.8e-06, 8.31e-05, 4.76e-05, 3.9e-06, 3.76e-05, 1.93e-05, 0.0, 3.59e-05, 6.88e-05, -999, 0.0, 0.0, 4.77e-05, 6.45e-05, 5.11e-05, 8.49e-05, 6.36e-05, 7.47e-05, 8.47e-05, 8.49e-05, 6.41e-05, 4.63e-05, 4.65e-05, 6.38e-05, 4.58e-05, 4.62e-05, -999, -999, 0.6662921, 0.0728152, 0.9320061, 0.3125879, 0.7834033, -999, -999, 0.7855606, 1.2039086, 0.1142203, 0.1187063, 0.0389963, 0.0366451, 0.0407127, 0.2335463, 0.2363003, 0.2420433, 0.6304083, -999, 0.6291803, -999, 0.5954553, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, 0.0180057, 0.4604473, 1.9774116, 1.5040012, 1.2058206, 0.5953283, 0.9769772, 1.5086252, 1.2070506, 0.5940443] |
| AR_VDDA_VS_TRIM | [0.99, 1.014, 1.037, 1.061, 1.087, 1.11, 1.133, 1.157, 1.182, 1.206, 1.228, 1.25, 1.277, 1.3, 1.323, 1.347] |
| AR_VDDD_VS_TRIM | [0.997, 1.021, 1.045, 1.068, 1.091, 1.114, 1.139, 1.162, 1.183, 1.207, 1.232, 1.255, 1.278, 1.3, 1.326, 1.351] |
| AR_VDDA_TRIM | 9 |
| AR_VDDD_TRIM | 9 |
| AR_ROSC_SLOPE | [755.690106667076, 1129.4034129625165, 746.3974659417305, 1135.6083026394765, 800.8002417138235, 1311.7615845240089, 954.2156607722847, 1355.6052548183955, 1174.1315002189638, 1174.729592905095, 1335.3974036649306, 1334.8488184770943, 1180.4292150174274, 1198.4138462545613, 1333.8744819536503, 1326.5436032313914, 1349.5613533801468, 1353.3731081295132, 1544.2910732435619, 1552.742298953725, 1319.0688790107533, 1323.3346908610856, 1602.6049914413595, 1599.6293125120521, 820.7532245222595, 814.0260342541828, 984.9933102232366, 982.4565312519435, 979.4588358972393, 980.8577705901521, 1149.364690147543, 1182.3746975640709, 1117.9681302656002, 1155.3919429843766, 1485.3308296137982, 1491.037086688286, 1485.4410113642589, 1487.053175508204, 1486.4859227794577, 1488.189426715748, 1488.0207801670292, 1485.30925789335] |
| AR_ROSC_OFFSET | [-446.54424862396087, -667.745061533428, -453.8694154910757, -681.931461273793, -538.2400065006403, -877.9020853892421, -669.5651526040676, -944.9540808016536, -722.2258176435481, -721.9609814257204, -814.6968302178819, -821.1199867496721, -735.7628475361112, -751.8748501424038, -831.4105040054917, -827.574239182703, -900.1565138217433, -906.4941120772663, -1040.0794311644916, -1042.6170681622034, -933.0900618477312, -932.0310634090516, -1115.4623231959324, -1118.721908413404, -531.727306716799, -528.8782692881355, -644.5369160346149, -639.7071258358665, -633.8951991675548, -631.9152185699804, -578.8462782213445, -586.1158831953852, -634.3402451271347, -647.482629558156, -1001.62942527053, -1004.426573925965, -997.7126640537958, -1004.4246055677737, -1007.3635533212446, -1005.8200077557678, -1008.9055046041991, -1003.7541225058524] |
| AR_ROSC_MAX_RESIDUAL | [2.4530858987486175, 3.852704902729762, 2.216131064022395, 3.6945769265560946, 1.072689503929206, 1.8130335126540673, 1.1235735168693175, 1.7148884695455104, 3.3184861796983265, 3.4633333903995394, 3.823523038049955, 3.892887184321631, 2.9849060465094213, 3.128678149572315, 3.639306172618503, 3.4970846631715413, 1.9140194236903332, 1.8196124711430532, 1.8550291663989618, 1.9287628882689252, 1.2956085899927725, 1.3830710789809821, 1.8381038773625222, 1.5805790192698166, 1.578837005946339, 1.4532103063129358, 1.6654590337378175, 1.661043945691972, 1.8298117116349926, 1.8720593110050738, 4.503705174600807, 4.910039400224982, 3.0179895758808333, 3.212342620655673, 1.8189655520805192, 1.726123442297261, 1.809229976100263, 1.7167033437583494, 1.7347850397167324, 1.679066360747773, 1.720330718593178, 1.8037201565549845] |
| AR_VDDD_SATURATION | -1.0 |
| AR_VDDA_SATURATION | -1.0 |
| AR_IREF_TRIM | 6 |
| ANALYSIS_VERSION | mqat v2.9.0 |
| YARR_VERSION | v1.6.0 |
| MEASUREMENT_DATE | 2026-06-05T20:06:41.000+00:00 |
| MEASUREMENT_DURATION | 376 |
Attachments
| Filename | Contents |
|---|---|
| output.log | Download |
| 0x22b24_VDDA_TRIM.png |  |
| 0x22b24_VDDD_TRIM.png |  |
| 0x22b24_IshuntA_TrimA.png |  |
| 0x22b24_IshuntD_TrimD.png |  |

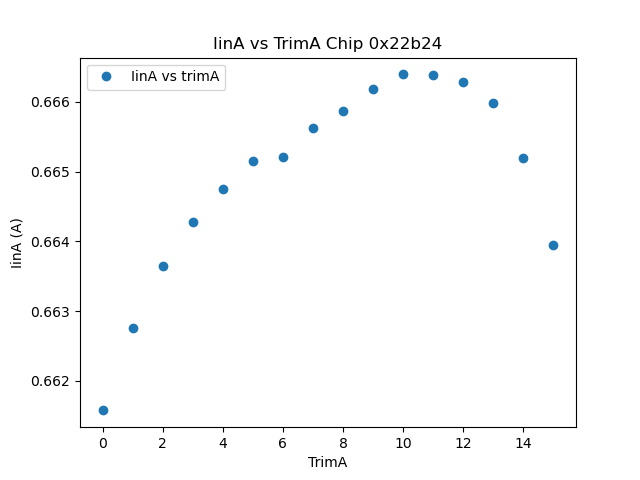

| 0x22b24_IinA_TrimA.png |  |

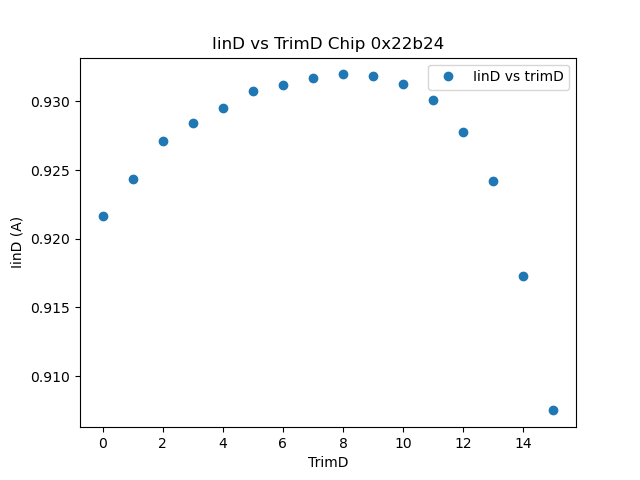

| 0x22b24_IinD_TrimD.png |  |

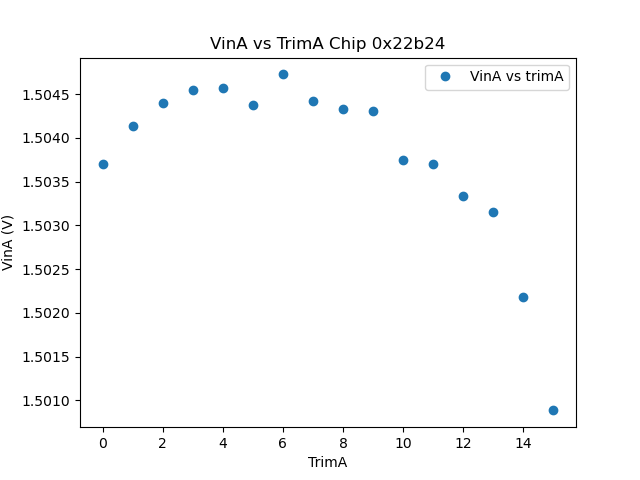

| 0x22b24_VinA_TrimA.png |  |
| 0x22b24_VinD_TrimD.png |  |

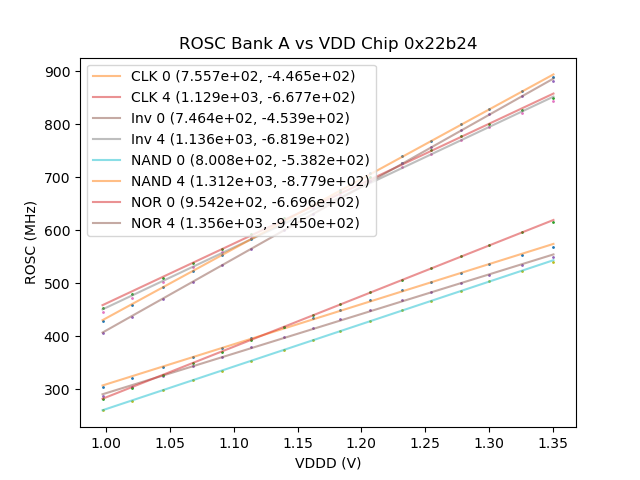

| 0x22b24_ROSC_vs_VDDD_Bank_A.png |  |
| 0x22b24_ROSC_vs_VDDD_Bank_B_left.png |  |
| 0x22b24_ROSC_vs_VDDD_Bank_B_right.png |  |
| 0x22b24_ROSC_vs_VDDD_Bank_B_FF.png |  |
| 0x22b24_ROSC_vs_VDDD_Bank_B_LVT.png |  |
| 0x22b24_ROSC_vs_VDDD_Bank_B_Inj-cap-loaded_4-input_NAND_4.png |  |
| 0x22b24.log | Download |
| 0x22b24_summary_0.png |  |
