20UPGFC0141752

MODULE/QC_STATUS

Component Information

Serial Number	20UPGFC0141752
ProdDB ID	338a2f…5192eb
LocalDB ID	660d235b5d9bdc0035fd9412
Component Type	fe_chip
Parents	20UPGM24210028 20UPGB43200226
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	7
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d235b5d9bdc0035fd9412
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	None
ObjectId of this record	6a03e52f5857bb4fa13d5b14
ObjectId of RAW record	None
Tags	No tags
Tuning Config	Associated FE Config

Results

Key	Data
DCSdata	{}
QC_LAYER	L2

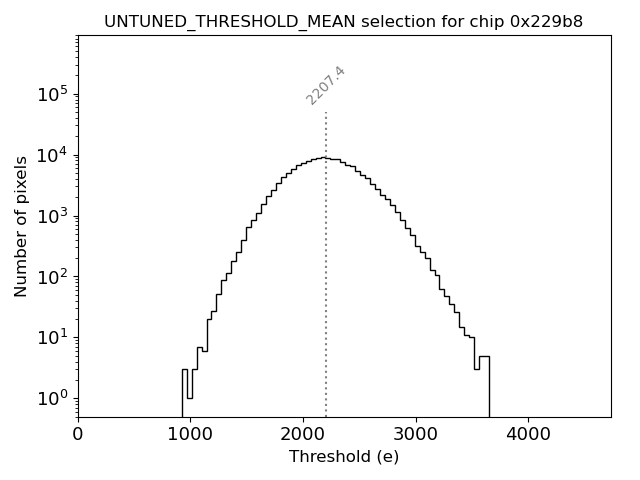

TUNING_UNTUNED_THRESHOLD_MEAN	2207.414
TUNING_UNTUNED_THRESHOLD_95_LOW	1630.935
TUNING_UNTUNED_THRESHOLD_95_HIGH	2831.64
TUNING_UNTUNED_THRESHOLD_SIGMA	305.924

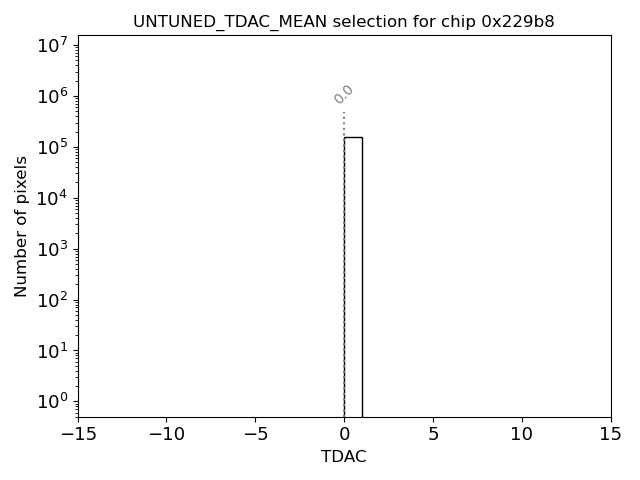

TUNING_UNTUNED_TDAC_MEAN	0.0
TUNING_UNTUNED_TDAC_SIGMA	0.0
TUNING_UNTUNED_NOISE_MEAN	101.52
TUNING_UNTUNED_NOISE_SIGMA	11.259
TUNING_UNTUNED_NOISE_95_LOW	82.898
TUNING_UNTUNED_NOISE_95_HIGH	121.57
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	68
TUNING_TUNED_THRESHOLD_MEAN	1497.1
TUNING_TUNED_THRESHOLD_95_LOW	1429.411
TUNING_TUNED_THRESHOLD_95_HIGH	1560.405
TUNING_TUNED_THRESHOLD_SIGMA	35.0

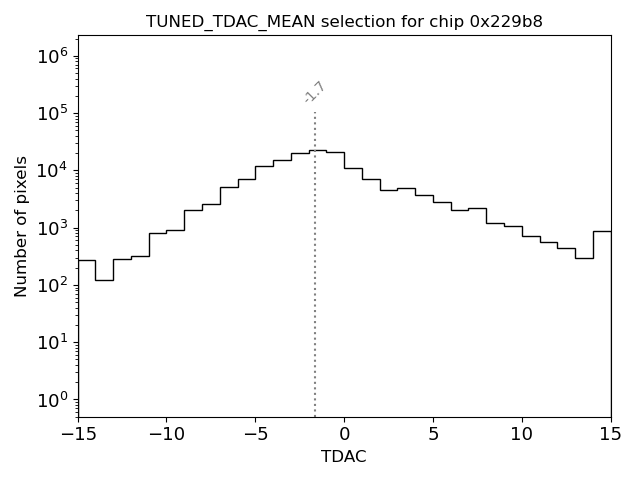

TUNING_TUNED_TDAC_MEAN	-1.7
TUNING_TUNED_TDAC_SIGMA	4.117

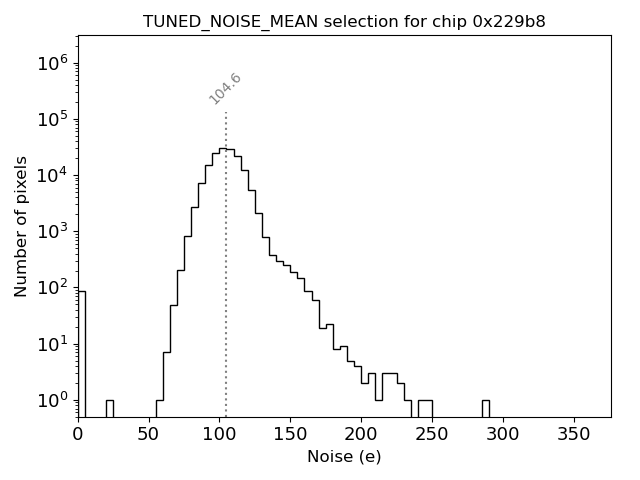

TUNING_TUNED_NOISE_MEAN	104.614
TUNING_TUNED_NOISE_SIGMA	11.1
TUNING_TUNED_NOISE_95_LOW	84.955
TUNING_TUNED_NOISE_95_HIGH	125.876
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.1
TUNING_TUNED_TOT_95_HIGH	10.11
TUNING_TUNED_THRESHOLD_FAILED_FITS	4
TUNING_ANY_ERRORS	{'tune_globalthreshold': 0, 'thresholdscan_hr': 10, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 3, 'totscan': 0, 'all': 13}
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.6
MEASUREMENT_DATE	2026-05-13T07:19:31.000+00:00
MEASUREMENT_DURATION	662

Attachments

Filename	Contents
output.log	Download
0x229b8.log	Download
20UPGFC0141752_MODULE__FINAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

6a04acea852db2d5fcc3b712

state

ready

stateTs

2026-05-13T16:55:06.852Z

stateUserIdentity

4567-7563-1

date

2026-05-13T02:42:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5f99e7c9ecd73e000a47d6de
code	LBNL_PIXEL_MODULES
name	Lawrence Berkeley National Lab - pixel modules

user

id	68dd53c646c81c946f43368b
userIdentity	4567-7563-1
firstName	Maria
middleName
lastName	Therese Satnik

runNumber

6a03e52f5857bb4fa13d5b14

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.8.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-05-13T07:19:31.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	662	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.6	None	None

results

code

TUNING_ANY_ERRORS

name

TUNING_ANY_ERRORS

order

dataType

object

valueType

single

arrayDimensions

None

additional

False

rangeMin

None

rangeMax

None

value

tune_globalthreshold	0
thresholdscan_hr	10
tune_pixelthreshold	0
thresholdscan_hd	3
totscan	0
all	13

associateChild

None

code TUNING_TUNED_NOISE_95_HIGH
name Tuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 125.876
associateChild None
code TUNING_TUNED_NOISE_95_LOW
name Tuned noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 84.955
associateChild None
code TUNING_TUNED_NOISE_MEAN
name Tuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 104.614
associateChild None
code TUNING_TUNED_NOISE_SIGMA
name Tuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.1
associateChild None
code TUNING_TUNED_TDAC_MEAN
name Tuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value -1.7
associateChild None
code TUNING_TUNED_TDAC_SIGMA
name Tuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 4.117
associateChild None
code TUNING_TUNED_THRESHOLD_95_HIGH
name Tuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1560.405
associateChild None
code TUNING_TUNED_THRESHOLD_95_LOW
name Tuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1429.411
associateChild None

code	TUNING_TUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the tuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	4
associateChild	None

code TUNING_TUNED_THRESHOLD_MEAN
name Mean of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1497.1
associateChild None
code TUNING_TUNED_THRESHOLD_SIGMA
name Sigma of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 35
associateChild None
code TUNING_TUNED_TOT_95_HIGH
name Tuned ToT 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.11
associateChild None
code TUNING_TUNED_TOT_95_LOW
name Tuned ToT 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 5.1
associateChild None
code TUNING_TUNED_TOT_MEAN
name Mean of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.4
associateChild None
code TUNING_TUNED_TOT_SIGMA
name Sigma of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0.3
associateChild None
code TUNING_UNTUNED_NOISE_95_HIGH
name Untuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 121.57
associateChild None
code TUNING_UNTUNED_NOISE_95_LOW
name Noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 82.898
associateChild None
code TUNING_UNTUNED_NOISE_MEAN
name Untuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 101.52
associateChild None
code TUNING_UNTUNED_NOISE_SIGMA
name Untuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.259
associateChild None
code TUNING_UNTUNED_TDAC_MEAN
name Untuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_TDAC_SIGMA
name Untuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_HIGH
name Untuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2831.64
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_LOW
name Untuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1630.935
associateChild None

code	TUNING_UNTUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the untuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	68
associateChild	None

code TUNING_UNTUNED_THRESHOLD_MEAN
name Mean of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2207.414
associateChild None
code TUNING_UNTUNED_THRESHOLD_SIGMA
name Sigma of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 305.924
associateChild None

cts

2026-05-13T16:55:06.852Z

sys

cts	2026-05-13T16:55:06.852Z
mts	2026-05-13T16:55:39.390Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

ad1be9d7a2bf967e021c85a672058a13

2026-05-13T16:55:14.226Z

0x229b8_L2_warm.json

{"_id":"6a038d565857bb4fa13d57fc","serialNumber":"20UPGFC0141752","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"6a03ce9f609a305d04a45918"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/d/1/ad1be9d7a2bf967e021c85a672058a13

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/d/1/ad1be9d7a2bf967e021c85a672058a13

ad1be9d7a2bf967e021c85a672058a13

id	68dd53c646c81c946f43368b
userIdentity	4567-7563-1
firstName	Maria
middleName
lastName	Therese Satnik

44b4d7c7cef1ed4ea9d5c91089a875b3

2026-05-13T16:55:39.390Z

TestRun_6a04acea852db2d5fcc3b712_Attachment_Pack.zip

/var/www/localdb-tools/viewer/static/cache/thumbnail/TestRun_6a04acea852db2d5fcc3b712_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/4/b/44b4d7c7cef1ed4ea9d5c91089a875b3

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/4/b/44b4d7c7cef1ed4ea9d5c91089a875b3

44b4d7c7cef1ed4ea9d5c91089a875b3

id	68dd53c646c81c946f43368b
userIdentity	4567-7563-1
firstName	Maria
middleName
lastName	Therese Satnik

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660d235b5d9bdc0035fd9412

338a2f5bf09ded42c4bcbd48985192eb

ready

2024-04-03T09:37:31.594Z

5310-2637-1

False

None

False

None

20UPGFC0141752

None

parent

component

67e41735f1be53f1ec4d33b1

code

9c4018f2b526b7cf7e4745b875c0c3a1

state

ready

stateTs

2025-03-26T15:03:17.036Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200226

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/THERMAL_CYCLES
name	Thermal Cycles

highestLevelParent

component

689ce47b4352ea8e9ff63ef3

code

a776e459c05ca8d554c3f592f47598fb

state

ready

stateTs

2025-08-13T19:16:11.195Z

stateUserIdentity

1294-8027-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24210028

alternativeIdentifier

ANL_ITkPix_123

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/THERMAL_CYCLES
name	Thermal Cycles

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

code	name	dataType	required	default	value
TARGET_IREF_TRIM	Target Iref trim	integer	False	False	7
TARGET_IREF_TRIM_VERSION	Target Iref trim version	string	False	False	1

code	MODULE/FINAL_WARM
name	Final Warm
order	19
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Ranking of the module

No tests are allocated for this stage.

Past QC Stages and Results

Final flatness measurement (MODULE/FINAL_METROLOGY)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6a05ff…3041bb	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	None	N/A	a month ago	No tags	Selected
6a05ff…6cd55b	MODULE/FINAL_COLD	MIN_HEALTH_TEST	None	N/A	a month ago	No tags	Selected
6a05ff…f6fc50	MODULE/FINAL_COLD	TUNING	None	N/A	a month ago	No tags	Selected
6a052e…6cd53f	MODULE/FINAL_COLD	DATA_TRANSMISSION	None	a month ago	a month ago	ganymede_4	Selected
6a052d…3d5f98	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	None	a month ago	a month ago	ganymede_4	Selected
6a0524…f6fb9a	MODULE/FINAL_COLD	VCAL_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6a0522…73bbc9	MODULE/FINAL_COLD	SLDO	None	a month ago	a month ago	ganymede_4	Selected
6a051c…73bb91	MODULE/FINAL_COLD	ANALOG_READBACK	None	a month ago	a month ago	ganymede_4	Selected
6a0508…f6fa81	MODULE/FINAL_COLD	ADC_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6a04f3…6cd4dd	MODULE/FINAL_COLD	ADC_CALIBRATION	None	a month ago	a month ago	ganymede_4
6a04d3…3d5d64	MODULE/FINAL_COLD	DATA_TRANSMISSION	None	a month ago	a month ago	ganymede_4
6a04d2…304168	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	None	a month ago	a month ago	ganymede_4
6a04d1…f6f986	MODULE/FINAL_COLD	VCAL_CALIBRATION	None	a month ago	a month ago	ganymede_4
6a04d0…f6f8f6	MODULE/FINAL_COLD	SLDO	None	a month ago	a month ago	ganymede_4
6a04ca…3d5ca4	MODULE/FINAL_COLD	ANALOG_READBACK	None	a month ago	a month ago	ganymede_4
6a04b6…6cd3c5	MODULE/FINAL_COLD	ADC_CALIBRATION	None	a month ago	a month ago	ganymede_4
6a03e5…3d5b14	MODULE/FINAL_WARM	TUNING	None	N/A	a month ago	No tags	Selected
6a03e4…6cd32e	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	None	N/A	a month ago	No tags	Selected
6a03e4…303f96	MODULE/FINAL_WARM	MIN_HEALTH_TEST	None	N/A	a month ago	No tags	Selected
6a03be…f6f6e3	MODULE/FINAL_WARM	DATA_TRANSMISSION	None	a month ago	a month ago	ganymede_4	Selected
6a03be…73b8a9	MODULE/FINAL_WARM	LP_MODE	None	a month ago	a month ago	ganymede_4	Selected
6a03b5…6cd2d3	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	None	a month ago	a month ago	ganymede_4	Selected
6a03b4…73b826	MODULE/FINAL_WARM	VCAL_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6a03b2…73b7c1	MODULE/FINAL_WARM	SLDO	None	a month ago	a month ago	ganymede_4	Selected
6a03ac…73b76c	MODULE/FINAL_WARM	ANALOG_READBACK	None	a month ago	a month ago	ganymede_4	Selected
6a0398…3d5862	MODULE/FINAL_WARM	ADC_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6a0248…9a6d03	MODULE/QC_CROSSCHECK	PIXEL_FAILURE_ANALYSIS	None	N/A	a month ago	No tags	Selected
6a0248…9e7112	MODULE/QC_CROSSCHECK	TUNING	None	N/A	a month ago	No tags	Selected
6a0247…53e4fb	MODULE/QC_CROSSCHECK	MIN_HEALTH_TEST	None	N/A	a month ago	No tags	Selected
6a0239…53e4a9	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	None	a month ago	a month ago	ganymede_4	Selected
6a0239…53e46c	MODULE/QC_CROSSCHECK	LP_MODE	None	a month ago	a month ago	ganymede_4	Selected
6a0238…f73833	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	a month ago	a month ago	ganymede_4	Selected
6a0237…9a6c39	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6a0235…53e43d	MODULE/QC_CROSSCHECK	SLDO	None	a month ago	a month ago	ganymede_4	Selected
6a022f…53e3e9	MODULE/QC_CROSSCHECK	ANALOG_READBACK	None	a month ago	a month ago	ganymede_4	Selected
6a021d…f73715	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a month ago	a month ago	ganymede_4	Selected
6904ec…bad747	MODULE/POST_PARYLENE_WARM	LP_MODE	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
691b81…aefca2	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	Simpson,Liana Rae	N/A	7 months ago	No tags	Selected
691b80…aefba1	MODULE/POST_PARYLENE_WARM	TUNING	Simpson,Liana Rae	N/A	7 months ago	No tags	Selected
691b80…aefb0b	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	Simpson,Liana Rae	N/A	7 months ago	No tags	Selected
6904eb…bad71c	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
6904ea…bad6cc	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
6904ea…bad68c	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
6904e9…bad62c	MODULE/POST_PARYLENE_WARM	SLDO	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
6904e6…bad593	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
6904df…bad4d4	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	Simpson,Liana Rae	8 months ago	7 months ago	No tags	Selected
68debe…90fdd2	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	8 months ago	No tags	Selected
68debe…90fd1d	MODULE/INITIAL_WARM	TUNING	DanielAceves	N/A	8 months ago	No tags	Selected
68debd…90fc6e	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	DanielAceves	N/A	8 months ago	No tags	Selected
68deb1…90fb0d	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	DanielAceves	8 months ago	8 months ago	No tags	Selected
68deb1…90fad9	MODULE/INITIAL_WARM	DATA_TRANSMISSION	DanielAceves	8 months ago	8 months ago	No tags	Selected
68deb2…90fb31	MODULE/INITIAL_WARM	LP_MODE	DanielAceves	8 months ago	8 months ago	No tags	Selected
68deb0…90fab5	MODULE/INITIAL_WARM	VCAL_CALIBRATION	DanielAceves	8 months ago	8 months ago	No tags	Selected
68deaf…90fa71	MODULE/INITIAL_WARM	SLDO	DanielAceves	8 months ago	8 months ago	No tags	Selected
68dead…90fa3d	MODULE/INITIAL_WARM	ANALOG_READBACK	DanielAceves	8 months ago	8 months ago	No tags	Selected
68dea5…90f901	MODULE/INITIAL_WARM	ADC_CALIBRATION	DanielAceves	8 months ago	8 months ago	No tags
661411…590183	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected
660d30…a4aa6b	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags

Run	Date	Test Type	Stage	User	Site	Tags	Status
1227	a month ago	std_mergedbumpscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1225	a month ago	std_discbumpscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1223	a month ago	std_noisescan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1221	a month ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1219	a month ago	std_thresholdscan_hd	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1217	a month ago	std_analogscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1215	a month ago	std_digitalscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1213	a month ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1211	a month ago	std_thresholdscan_hd	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1209	a month ago	std_tune_pixelthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1207	a month ago	std_tune_globalthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1205	a month ago	std_tune_globalpreamp	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1203	a month ago	std_tune_globalthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1201	a month ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1199	a month ago	std_thresholdscan_hr	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1197	a month ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1195	a month ago	std_thresholdscan_hr	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1193	a month ago	std_analogscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1191	a month ago	std_digitalscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1086	a month ago	std_mergedbumpscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1084	a month ago	std_discbumpscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1082	a month ago	std_noisescan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1080	a month ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1078	a month ago	std_thresholdscan_hd	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1076	a month ago	std_analogscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1074	a month ago	std_digitalscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1072	a month ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1070	a month ago	std_thresholdscan_hd	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1068	a month ago	std_tune_pixelthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1066	a month ago	std_tune_globalthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1064	a month ago	std_tune_globalpreamp	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1062	a month ago	std_tune_globalthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1060	a month ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1058	a month ago	std_thresholdscan_hr	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1056	a month ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1054	a month ago	std_thresholdscan_hr	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1052	a month ago	std_analogscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1050	a month ago	std_digitalscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
949	a month ago	std_mergedbumpscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
948	a month ago	std_discbumpscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
947	a month ago	std_noisescan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
946	a month ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
945	a month ago	std_thresholdscan_hd	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
944	a month ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
943	a month ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
942	a month ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
941	a month ago	std_thresholdscan_hd	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
940	a month ago	std_tune_pixelthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
939	a month ago	std_tune_globalthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
938	a month ago	std_tune_globalpreamp	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
937	a month ago	std_tune_globalthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
936	a month ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
935	a month ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
934	a month ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
933	a month ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
932	a month ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
931	a month ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass

Stage: MODULE/QC_STATUS

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a07...3046a7	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}

Stage: MODULE/FINAL_COLD

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a04...3d5dab	a month ago	downloaded from ITkPD : code = 14f869cb1ec7c9f1555fd30c395cb597, description = {"_id":"6a038d565857bb4fa13d57fc","serialNumber":"20UPGFC0141752","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"6a03ce9f609a305d04a45918"}
HEAD^1	6a04...f6f9a1	a month ago	downloaded from ITkPD : code = 14f869cb1ec7c9f1555fd30c395cb597, description = {"_id":"6a038d565857bb4fa13d57fc","serialNumber":"20UPGFC0141752","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"6a03ce9f609a305d04a45918"}
HEAD^2	6a04...30403e	a month ago	downloaded from ITkPD : code = 14f869cb1ec7c9f1555fd30c395cb597, description = {"_id":"6a038d565857bb4fa13d57fc","serialNumber":"20UPGFC0141752","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"6a03ce9f609a305d04a45918"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a05...ed619c	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^1	6a05...b9b24f	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a05...33f0e4	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a05...14b72e	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a05...27ce34	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a05...013aea	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a05...9128aa	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a05...ea9736	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a05...67e3e9	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a05...5ff5b5	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a05...da5c30	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a05...5fdcd2	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a05...6e9e40	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a05...a458dc	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a05...a33f3a	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a05...1e0cf7	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a05...52f018	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a05...45c982	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^18	6a05...6cd540	a month ago	config revision by DATA-TRANSMISSION with RAW data 6a052e1d8d85d0e79d6cd538 and analysis result 6a052e218d85d0e79d6cd53f
HEAD^19	6a05...3d5f99	a month ago	config revision by INJECTION-CAPACITANCE with RAW data 6a052de05857bb4fa13d5f8d and analysis result 6a052de45857bb4fa13d5f98
HEAD^20	6a05...f6fb9b	a month ago	config revision by VCAL-CALIBRATION with RAW data 6a05245e0077847aebf6fb8b and analysis result 6a0524620077847aebf6fb9a
HEAD^21	6a05...73bbca	a month ago	config revision by SLDO with RAW data 6a05227edc6089db7173bbbe and analysis result 6a052282dc6089db7173bbc9
HEAD^22	6a05...73bb92	a month ago	config revision by ANALOG-READBACK with RAW data 6a051ca3dc6089db7173bb6e and analysis result 6a051ca8dc6089db7173bb91
HEAD^23	6a05...f6fa82	a month ago	config revision by ADC-CALIBRATION with RAW data 6a0508d70077847aebf6fa7a and analysis result 6a0508db0077847aebf6fa81
HEAD^24	6a04...6cd4de	a month ago	config revision by ADC-CALIBRATION with RAW data 6a04f34e8d85d0e79d6cd4d6 and analysis result 6a04f3518d85d0e79d6cd4dd
HEAD^25	6a04...3d5dac	a month ago	downloaded from ITkPD : code = d767089ee0630eed158b3dfd7f4d4bcc, description = {"_id":"68b21a788428c598c0335948","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b21a788428c598c0335949"}
HEAD^26	6a04...f6f9a2	a month ago	downloaded from ITkPD : code = d767089ee0630eed158b3dfd7f4d4bcc, description = {"_id":"68b21a788428c598c0335948","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b21a788428c598c0335949"}
HEAD^27	6a04...3d5d65	a month ago	config revision by DATA-TRANSMISSION with RAW data 6a04d31f5857bb4fa13d5d5d and analysis result 6a04d3235857bb4fa13d5d64
HEAD^28	6a04...304169	a month ago	config revision by INJECTION-CAPACITANCE with RAW data 6a04d2d98a277601d030415d and analysis result 6a04d2dc8a277601d0304168
HEAD^29	6a04...f6f987	a month ago	config revision by VCAL-CALIBRATION with RAW data 6a04d1fa0077847aebf6f977 and analysis result 6a04d1ff0077847aebf6f986
HEAD^30	6a04...f6f8f7	a month ago	config revision by SLDO with RAW data 6a04d01a0077847aebf6f8eb and analysis result 6a04d01e0077847aebf6f8f6
HEAD^31	6a04...3d5ca5	a month ago	config revision by ANALOG-READBACK with RAW data 6a04ca1c5857bb4fa13d5c81 and analysis result 6a04ca225857bb4fa13d5ca4
HEAD^32	6a04...6cd3c6	a month ago	config revision by ADC-CALIBRATION with RAW data 6a04b6658d85d0e79d6cd3be and analysis result 6a04b6698d85d0e79d6cd3c5
HEAD^33	6a04...304040	a month ago	downloaded from ITkPD : code = d767089ee0630eed158b3dfd7f4d4bcc, description = {"_id":"68b21a788428c598c0335948","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b21a788428c598c0335949"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a04...3d5dad	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}
HEAD^1	6a04...f6f9a3	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}
HEAD^2	6a04...304042	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}

Stage: MODULE/FINAL_WARM

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a03...a45918	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^1	6a03...d81bf6	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a03...c8ec46	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a03...cffc5f	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a03...e278b5	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a03...d264e9	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a03...1d50cb	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a03...9c80c3	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a03...a76c07	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a03...9abc14	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a03...1b92a5	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a03...e12b5f	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a03...ee81c6	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a03...91f03c	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a03...2d5694	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a03...6099d7	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a03...74a4fb	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a03...03e6e8	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^18	6a03...f6f6eb	a month ago	config revision by DATA-TRANSMISSION with RAW data 6a03beb30077847aebf6f6dc and analysis result 6a03beb80077847aebf6f6e3
HEAD^19	6a03...6cd2db	a month ago	config revision by INJECTION-CAPACITANCE with RAW data 6a03b59d8d85d0e79d6cd2c8 and analysis result 6a03b5a28d85d0e79d6cd2d3
HEAD^20	6a03...73b82e	a month ago	config revision by VCAL-CALIBRATION with RAW data 6a03b4abdc6089db7173b817 and analysis result 6a03b4b1dc6089db7173b826
HEAD^21	6a03...73b7c9	a month ago	config revision by SLDO with RAW data 6a03b2b8dc6089db7173b7b6 and analysis result 6a03b2bedc6089db7173b7c1
HEAD^22	6a03...73b774	a month ago	config revision by ANALOG-READBACK with RAW data 6a03acc3dc6089db7173b749 and analysis result 6a03accbdc6089db7173b76c
HEAD^23	6a03...3d586a	a month ago	config revision by ADC-CALIBRATION with RAW data 6a0398da5857bb4fa13d585b and analysis result 6a0398e05857bb4fa13d5862
HEAD^24	6a03...3d5804	a month ago	downloaded from ITkPD : code = 4ed5bb8e25111ea34ae67e5e0e588f5a, description = {"_id":"6a02077c0a15099ca79e6fd6","serialNumber":"20UPGFC0141752","stage":"MODULE/QC_CROSSCHECK","branch":"warm","current_revision_id":"6a0241848bbc46a627a2a8ee"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a03...3d5806	a month ago	downloaded from ITkPD : code = d767089ee0630eed158b3dfd7f4d4bcc, description = {"_id":"68b21a788428c598c0335948","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b21a788428c598c0335949"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a03...73b8aa	a month ago	config revision by LP-MODE with RAW data 6a03be72dc6089db7173b8a2 and analysis result 6a03be75dc6089db7173b8a9
HEAD^1	6a03...3d5808	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}

Stage: MODULE/QC_CROSSCHECK

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a02...a2a8ee	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^1	6a02...7fb0dc	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a02...ab75fa	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a02...534398	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a02...93d1ef	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a02...c78c88	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a02...e2712b	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a02...5da554	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a02...679eab	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a02...e457fb	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a02...ba9e4d	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a02...05bab2	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a02...55d1f3	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a02...20c6b0	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a02...eef7a9	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a02...7ffd3e	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a02...11b05b	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a02...6d8143	a month ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^18	6a02...53e4b1	a month ago	config revision by DATA-TRANSMISSION with RAW data 6a02398b1f68f7138e53e4a2 and analysis result 6a0239901f68f7138e53e4a9
HEAD^19	6a02...f7383b	a month ago	config revision by INJECTION-CAPACITANCE with RAW data 6a02389ee2dc1a549ef73828 and analysis result 6a0238a3e2dc1a549ef73833
HEAD^20	6a02...9a6c41	a month ago	config revision by VCAL-CALIBRATION with RAW data 6a0237b465a63025239a6c2a and analysis result 6a0237ba65a63025239a6c39
HEAD^21	6a02...53e445	a month ago	config revision by SLDO with RAW data 6a0235b91f68f7138e53e432 and analysis result 6a0235be1f68f7138e53e43d
HEAD^22	6a02...53e3f1	a month ago	config revision by ANALOG-READBACK with RAW data 6a022fd11f68f7138e53e3c6 and analysis result 6a022fd91f68f7138e53e3e9
HEAD^23	6a02...f7371d	a month ago	config revision by ADC-CALIBRATION with RAW data 6a021d67e2dc1a549ef7370e and analysis result 6a021d6de2dc1a549ef73715
HEAD^24	6a02...9e6fde	a month ago	downloaded from ITkPD : code = 546acf232b6e681aedd10dd71b92791d, description = {"_id":"68fa5dab64f873154cba9364","serialNumber":"20UPGFC0141752","stage":"MODULE/POST_PARYLENE_WARM","branch":"warm","current_revision_id":"6905133931bd125ffc67b04c"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a02...9e6fe0	a month ago	downloaded from ITkPD : code = d767089ee0630eed158b3dfd7f4d4bcc, description = {"_id":"68b21a788428c598c0335948","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b21a788428c598c0335949"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a02...53e46d	a month ago	config revision by LP-MODE with RAW data 6a0239591f68f7138e53e465 and analysis result 6a02395c1f68f7138e53e46c
HEAD^1	6a02...9e6fe2	a month ago	downloaded from ITkPD : code = aee888c258cc4b90dd9938b185b56a2d, description = {"_id":"68b21a788428c598c0335950","serialNumber":"20UPGFC0141752","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"68deb23a12752b66da90fb32"}

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/GRAVEYARD
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0141752

MODULE/QC_STATUS

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Ranking of the module

Past QC Stages and Results

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

All YARR Scans

Config Revisions

Stage: MODULE/QC_STATUS

Mode: LP

Stage: MODULE/FINAL_COLD

Mode: warm

Mode: cold

Mode: LP

Stage: MODULE/FINAL_WARM

Mode: warm

Mode: cold

Mode: LP

Stage: MODULE/QC_CROSSCHECK

Mode: warm

Mode: cold

Mode: LP

Check QC Flow

Back to top page of this component
