Database for ITk Pixel Module

Serial Number	20UPGFC0141610
ProdDB ID	4d99cd…f046b5
LocalDB ID	660d2266eeb7490035a46f91
Component Type	fe_chip
Parents	20UPGM24211149 20UPGB43200223
Children	No match.
Flags

Item	Value
Target Iref trim	10
Target Iref trim version	1
Wafer serial number	None

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d2266eeb7490035a46f91
Stage	MODULE/POST_PARYLENE_WARM
Test Type	TUNING
Institute ObjectId
User Name	Simpson,Liana Rae
ObjectId of this record	691b6ec1d7bf966e0aaef6db
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.7.1
MEASUREMENT_DATE	2025-10-30T21:42:24.000+00:00
MEASUREMENT_DURATION	682
YARR_VERSION	v1.5.5

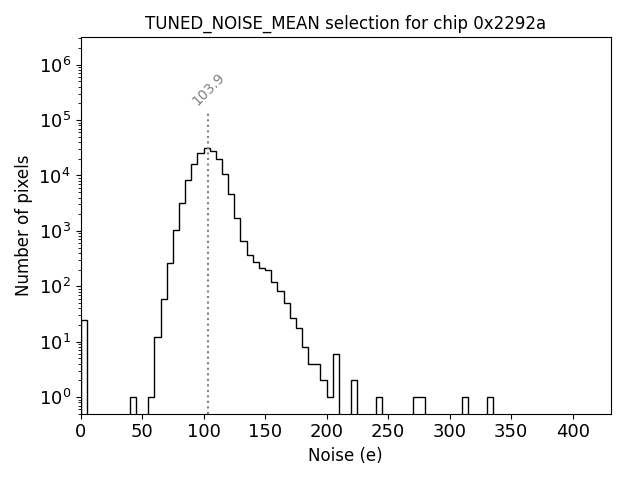

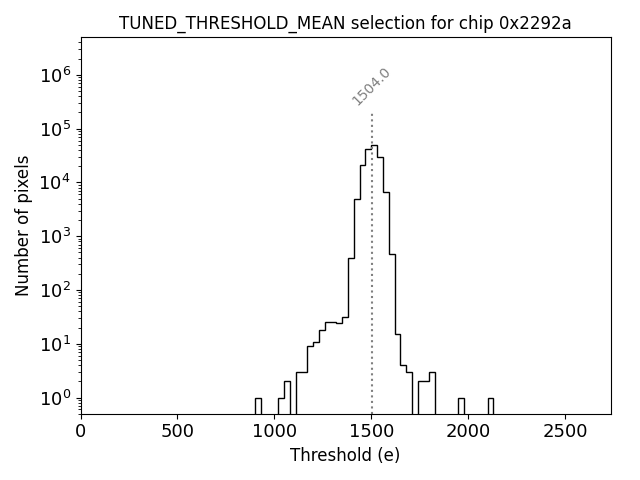

TUNING_TUNED_NOISE_95_HIGH	124.815
TUNING_TUNED_NOISE_95_LOW	84.204
TUNING_TUNED_NOISE_MEAN	103.855
TUNING_TUNED_NOISE_SIGMA	10.836
TUNING_TUNED_TDAC_MEAN	-1.3
TUNING_TUNED_TDAC_SIGMA	3.957
TUNING_TUNED_THRESHOLD_95_HIGH	1568.275
TUNING_TUNED_THRESHOLD_95_LOW	1434.922
TUNING_TUNED_THRESHOLD_FAILED_FITS	2
TUNING_TUNED_THRESHOLD_MEAN	1504
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	10.08
TUNING_TUNED_TOT_95_LOW	5.19
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3

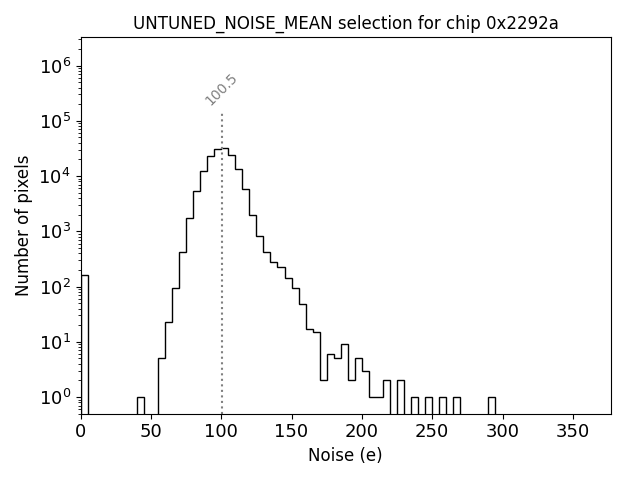

TUNING_UNTUNED_NOISE_95_HIGH	120.357
TUNING_UNTUNED_NOISE_95_LOW	81.864
TUNING_UNTUNED_NOISE_MEAN	100.516
TUNING_UNTUNED_NOISE_SIGMA	10.594
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

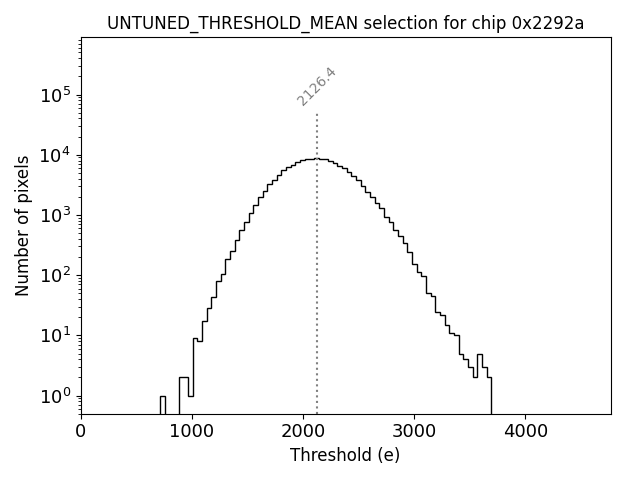

TUNING_UNTUNED_THRESHOLD_95_HIGH	2729.884
TUNING_UNTUNED_THRESHOLD_95_LOW	1565.171

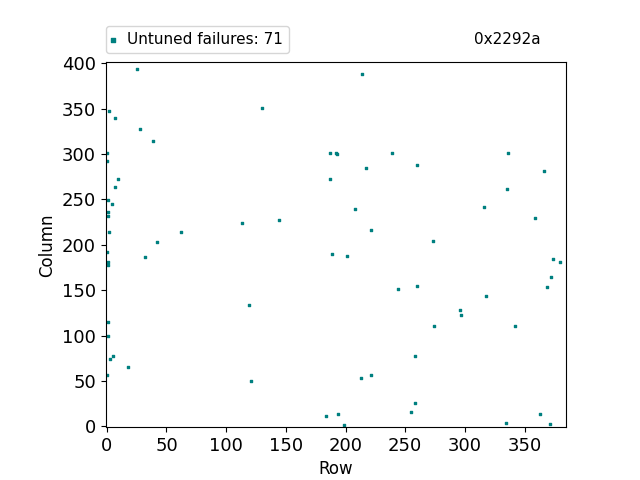

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	71
TUNING_UNTUNED_THRESHOLD_MEAN	2126.404
TUNING_UNTUNED_THRESHOLD_SIGMA	296.518

Filename	Contents
0x2292a_L2_warm.json	Download
output.log	Download
0x2292a.log	Download
20UPGFC0141610_MODULE__POST_PARYLENE_WARM_TUNING.zip	Download

Expand ProductionDB Record

691b715744c06a9763c3c995

state

ready

stateTs

2025-11-17T19:02:47.527Z

stateUserIdentity

1294-8027-1

date

2025-11-17T18:51:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6797ca0f2ffbf908f24868f9
userIdentity	1294-8027-1
firstName	Simpson,
middleName
lastName	Liana Rae

runNumber

691b6ec1d7bf966e0aaef6db

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.7.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-10-30T21:42:24.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	682	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	124.815	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	84.204	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	103.855	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.836	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.3	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	3.957	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1568.275	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1434.922	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	2	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1504	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.08	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.19	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.4	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	120.357	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	81.864	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	100.516	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	10.594	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2729.884	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1565.171	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	71	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2126.404	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	296.518	None
