20UPGFC0134182

MODULE/INITIAL_COLD

Component Information

Serial Number 20UPGFC0134182
ProdDB ID  480325…ea5378
LocalDB ID 65d90f819960840042821a74
Component Type fe_chip
Parents 20UPIM13602206  20UPGB43000019 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None

 Comments


Test: TUNING QC Failed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date a year ago
component ObjectId 65d90f819960840042821a74
Stage MODULE/INITIAL_WARM
Test Type TUNING
Institute ObjectId
User Name None
ObjectId of this record 6737dd989c1d66cf44c91749
ObjectId of RAW record None
Tags No tags
Tuning Config Associated FE Config

Results

Key Data
ANALYSIS_VERSION mqat v2.2.9rc4
YARR_VERSION v1.5.2
MEASUREMENT_DATE 2024-10-09T07:53:04.000+00:00
QC_LAYER L1

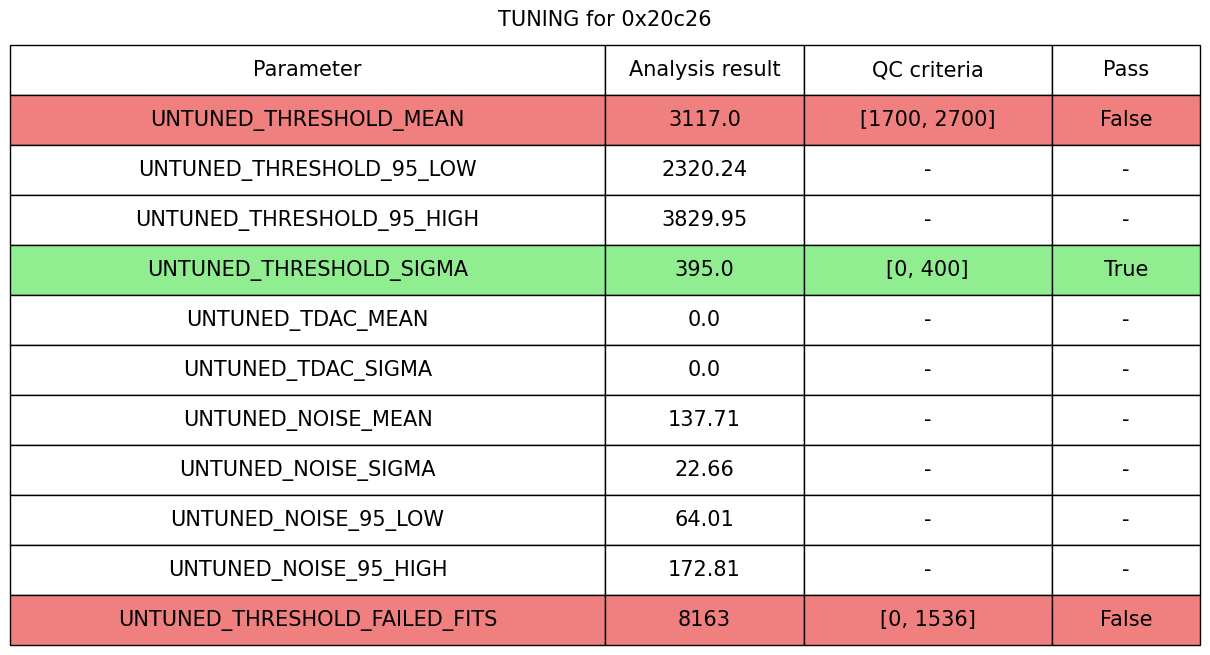

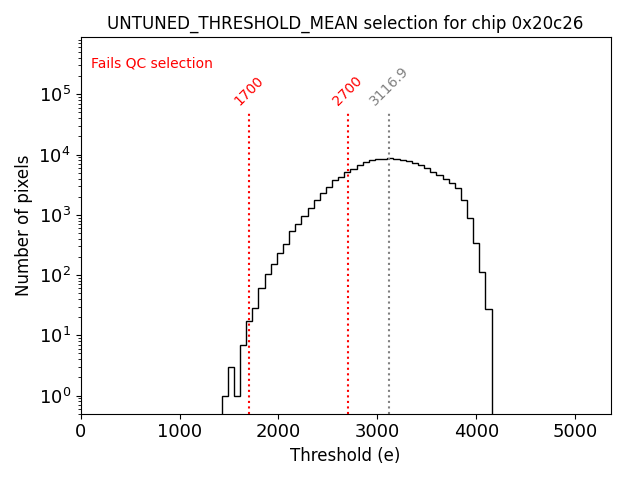

TUNING_UNTUNED_THRESHOLD_MEAN 3117.0
TUNING_UNTUNED_THRESHOLD_95_LOW 2320.236
TUNING_UNTUNED_THRESHOLD_95_HIGH 3829.953
TUNING_UNTUNED_THRESHOLD_SIGMA 395.0
TUNING_UNTUNED_TDAC_MEAN 0.0
TUNING_UNTUNED_TDAC_SIGMA 0.0

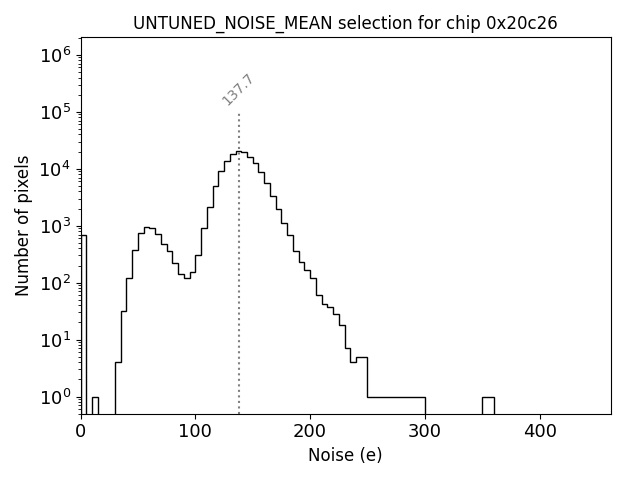

TUNING_UNTUNED_NOISE_MEAN 137.71
TUNING_UNTUNED_NOISE_SIGMA 22.663
TUNING_UNTUNED_NOISE_95_LOW 64.008
TUNING_UNTUNED_NOISE_95_HIGH 172.808

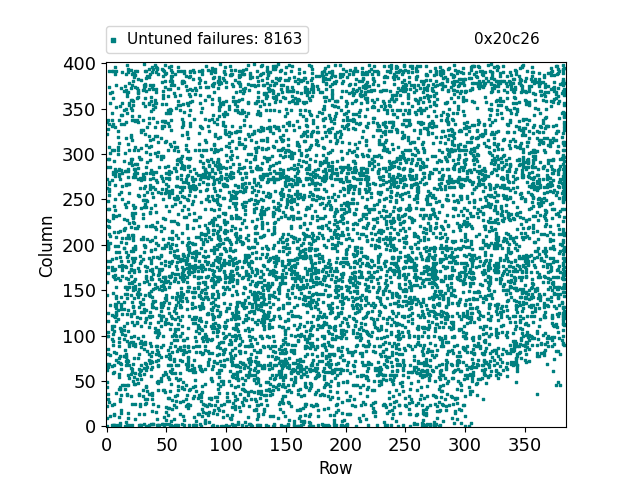

TUNING_UNTUNED_THRESHOLD_FAILED_FITS 8163

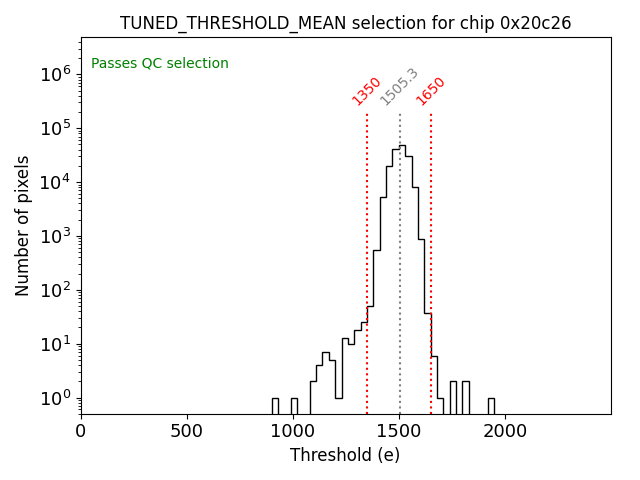

TUNING_TUNED_THRESHOLD_MEAN 1505.3
TUNING_TUNED_THRESHOLD_95_LOW 1433.214
TUNING_TUNED_THRESHOLD_95_HIGH 1573.072
TUNING_TUNED_THRESHOLD_SIGMA 37.0

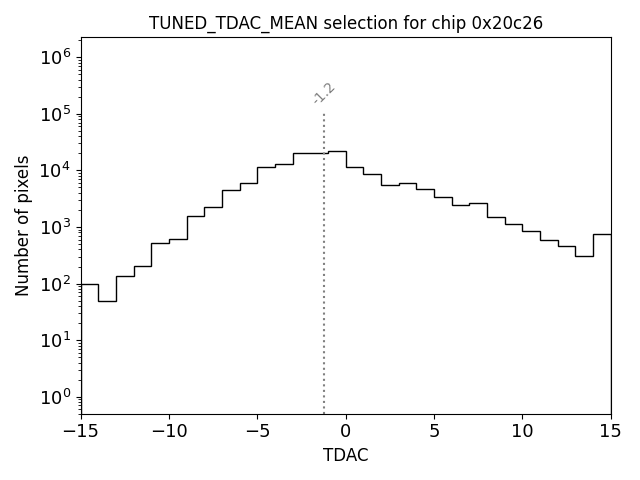

TUNING_TUNED_TDAC_MEAN -1.221
TUNING_TUNED_TDAC_SIGMA 4.075

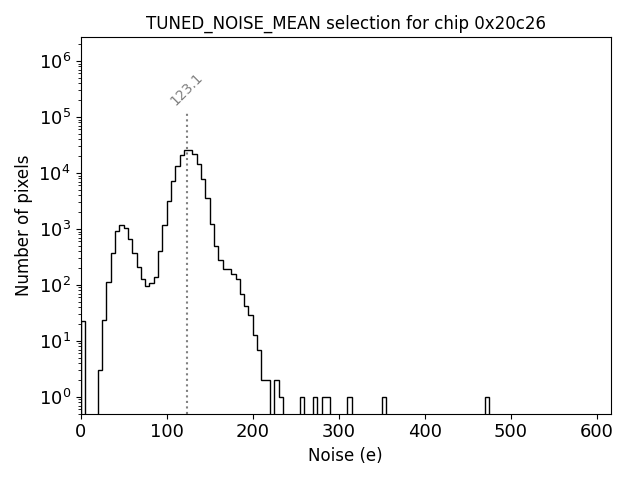

TUNING_TUNED_NOISE_MEAN 123.123
TUNING_TUNED_NOISE_SIGMA 17.954
TUNING_TUNED_NOISE_95_LOW 55.98
TUNING_TUNED_NOISE_95_HIGH 148.128

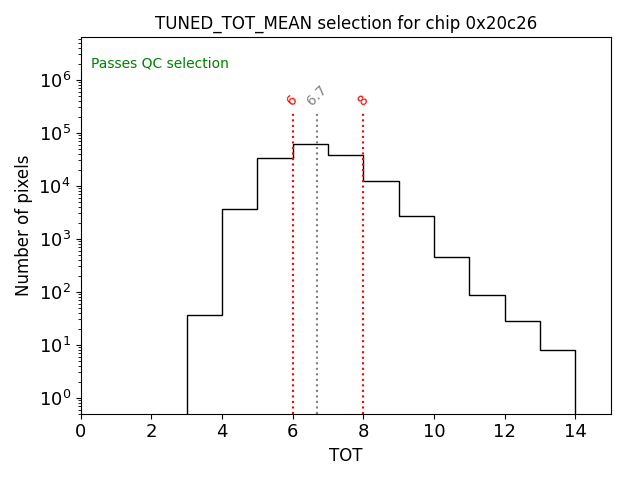

TUNING_TUNED_TOT_MEAN 6.7
TUNING_TUNED_TOT_SIGMA 0.4
TUNING_TUNED_TOT_95_LOW 5.0
TUNING_TUNED_TOT_95_HIGH 8.91
TUNING_TUNED_THRESHOLD_FAILED_FITS 1

Attachments

Filename Contents
output.log Download
0x20c26.log Download
20UPGFC0134182_MODULE__INITIAL_WARM_TUNING.zip Download

ProductionDB Record

id673bdc054386c2105cfee2b8
stateready
stateTs2024-11-19T00:29:57.429Z
stateUserIdentity2471-5384-1
date2024-11-15T23:47:00.000Z
testType
id6393a09015838700361eecc5
codeTUNING
nameTuning
stateactive
institution
id5f99e7c9ecd73e000a47d6de
codeLBNL_PIXEL_MODULES
nameLawrence Berkeley National Lab - pixel modules
user
id6352ded64cc1d500277dca05
userIdentity2471-5384-1
firstNameEmily
middleNameAnne
lastNameThompson
runNumber6737dd989c1d66cf44c91749
passedFalse
problemsFalse
properties
codenamedataTypevalueTyperequiredvaluerangeMinrangeMax
ANALYSIS_VERSIONTuning analysis versionstringNoneTrue2.2.9rc4NoneNone
MEASUREMENT_DATEDate measurement performeddatetimeNoneFalse2024-10-09T07:53:04.000+00:00NoneNone
YARR_VERSIONYarr VersionstringNoneFalsev1.5.2NoneNone
results
codenamedataTypevalueTypearrayDimensionsadditionalrangeMinrangeMaxvalueassociateChild
TUNING_TUNED_NOISE_95_HIGHTuned noise 95% highfloatsingleNoneNoneNoneNone148.128None
TUNING_TUNED_NOISE_95_LOWTuned noise 95% lowfloatsingleNoneNoneNoneNone55.98None
TUNING_TUNED_NOISE_MEANTuned noise meanfloatsingleNoneNoneNoneNone123.123None
TUNING_TUNED_NOISE_SIGMATuned noise sigmafloatsingleNoneNoneNoneNone17.954None
TUNING_TUNED_TDAC_MEANTuned TDAC meanfloatsingleNoneNoneNoneNone-1.221None
TUNING_TUNED_TDAC_SIGMATuned TDAC sigmafloatsingleNoneNoneNoneNone4.075None
TUNING_TUNED_THRESHOLD_95_HIGHTuned threshold 95% highfloatsingleNoneNoneNoneNone1573.072None
TUNING_TUNED_THRESHOLD_95_LOWTuned threshold 95% lowfloatsingleNoneNoneNoneNone1433.214None
TUNING_TUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the tuned threshold scanintegersingleNoneNoneNoneNone1None
TUNING_TUNED_THRESHOLD_MEANMean of the tuned threshold distributionfloatsingleNoneNoneNoneNone1505.3None
TUNING_TUNED_THRESHOLD_SIGMASigma of the tuned threshold distributionfloatsingleNoneNoneNoneNone37None
TUNING_TUNED_TOT_95_HIGHTuned ToT 95% highfloatsingleNoneNoneNoneNone8.91None
TUNING_TUNED_TOT_95_LOWTuned ToT 95% lowfloatsingleNoneNoneNoneNone5None
TUNING_TUNED_TOT_MEANMean of tuned ToT distributionfloatsingleNoneNoneNoneNone6.7None
TUNING_TUNED_TOT_SIGMASigma of tuned ToT distributionfloatsingleNoneNoneNoneNone0.4None
TUNING_UNTUNED_NOISE_95_HIGHUntuned noise 95% highfloatsingleNoneNoneNoneNone172.808None
TUNING_UNTUNED_NOISE_95_LOWNoise 95% lowfloatsingleNoneNoneNoneNone64.008None
TUNING_UNTUNED_NOISE_MEANUntuned noise meanfloatsingleNoneNoneNoneNone137.71None
TUNING_UNTUNED_NOISE_SIGMAUntuned noise sigmafloatsingleNoneNoneNoneNone22.663None
TUNING_UNTUNED_TDAC_MEANUntuned TDAC meanfloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_TDAC_SIGMAUntuned TDAC sigmafloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_THRESHOLD_95_HIGHUntuned threshold 95% highfloatsingleNoneNoneNoneNone3829.953None
TUNING_UNTUNED_THRESHOLD_95_LOWUntuned threshold 95% lowfloatsingleNoneNoneNoneNone2320.236None
TUNING_UNTUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the untuned threshold scanintegersingleNoneNoneNoneNone8163None
TUNING_UNTUNED_THRESHOLD_MEANMean of the untuned threshold distributionfloatsingleNoneNoneNoneNone3117None
TUNING_UNTUNED_THRESHOLD_SIGMASigma of the untuned threshold distributionfloatsingleNoneNoneNoneNone395None
