20UPGFC0086650
ITkPixV1-52-(7,10)
  ITkPD Component Page Jump to ITkPD component page

Component Information

Item Value
Serial Number 20UPGFC0086650
Production DB Component ID c3afe1ccf53a736620f672945673e6fb
LocalDB Component ID 6225074e80e95c000a571da1
Component Type front-end_chip
Super-Component 20UPGM22001172  20UPGB42000028 
Sub-Components No match.
Flags

Result: 16251

Properties

Item Data Type Value
Wafer serial number string 20UPGFW0000338

Comments

Scan Result: std_thresholdscan_hd / run 16251 (Stage: MODULE/INITIAL_WARM)
(ObjectId: 6225074e80e95c000a571da1)


Result Plots

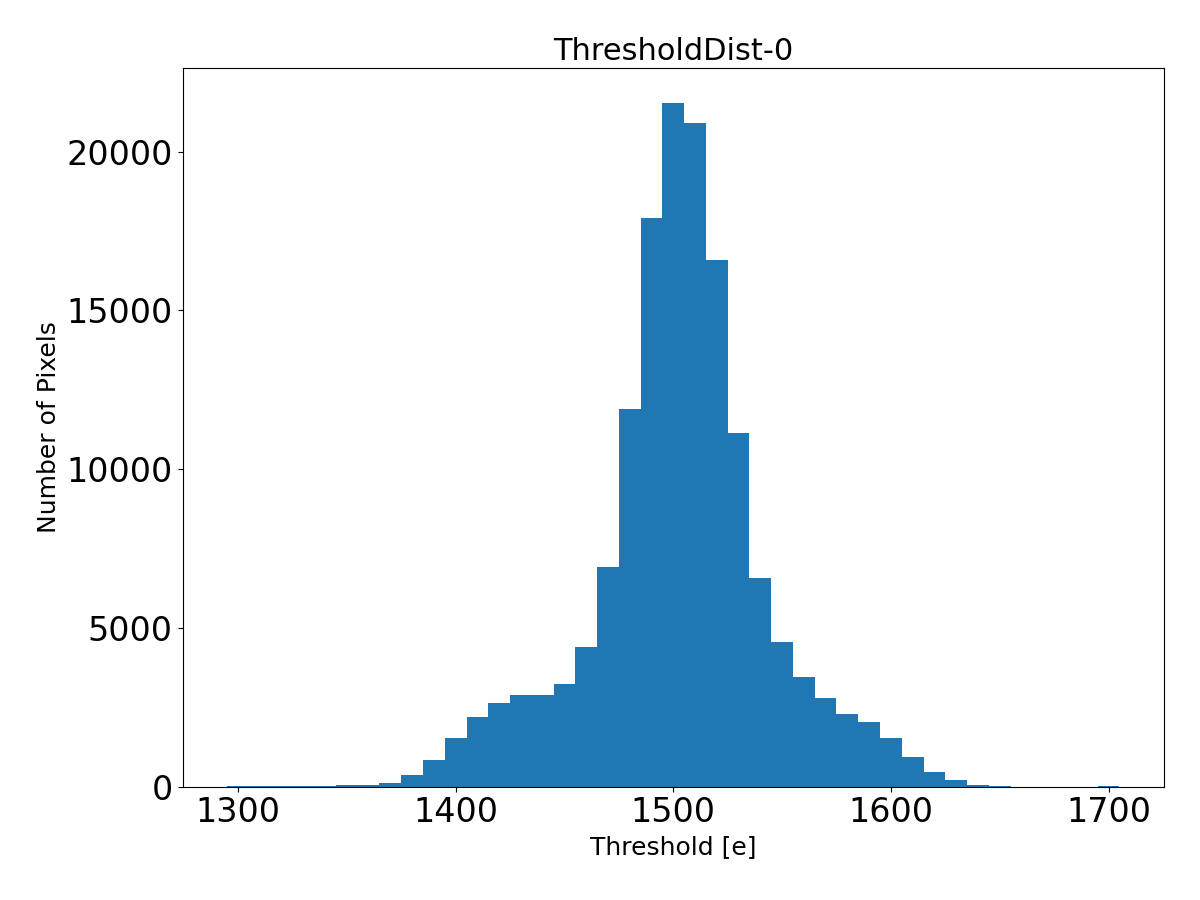

ThresholdDist-0

ThresholdMap-0_0_300_0_0_0

NoiseDist-0

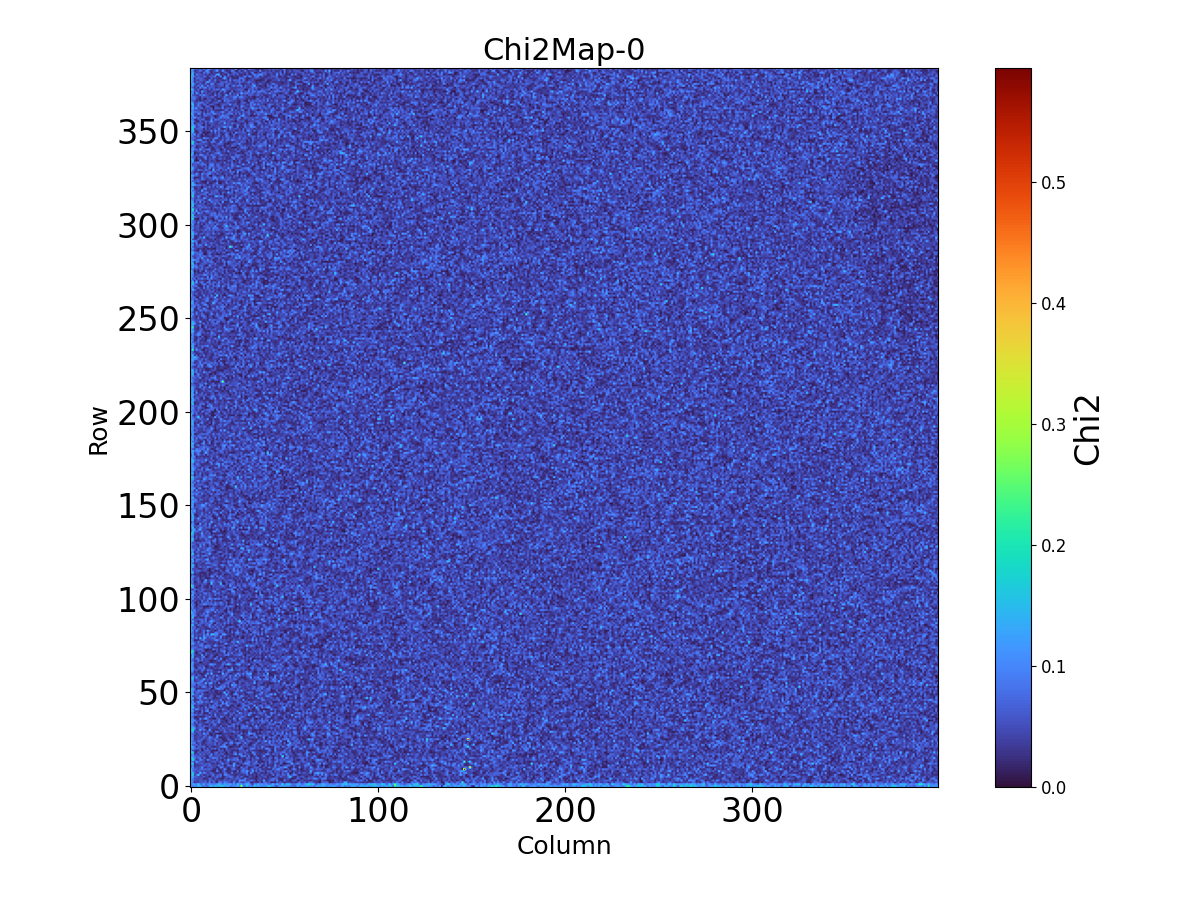

Chi2Map-0

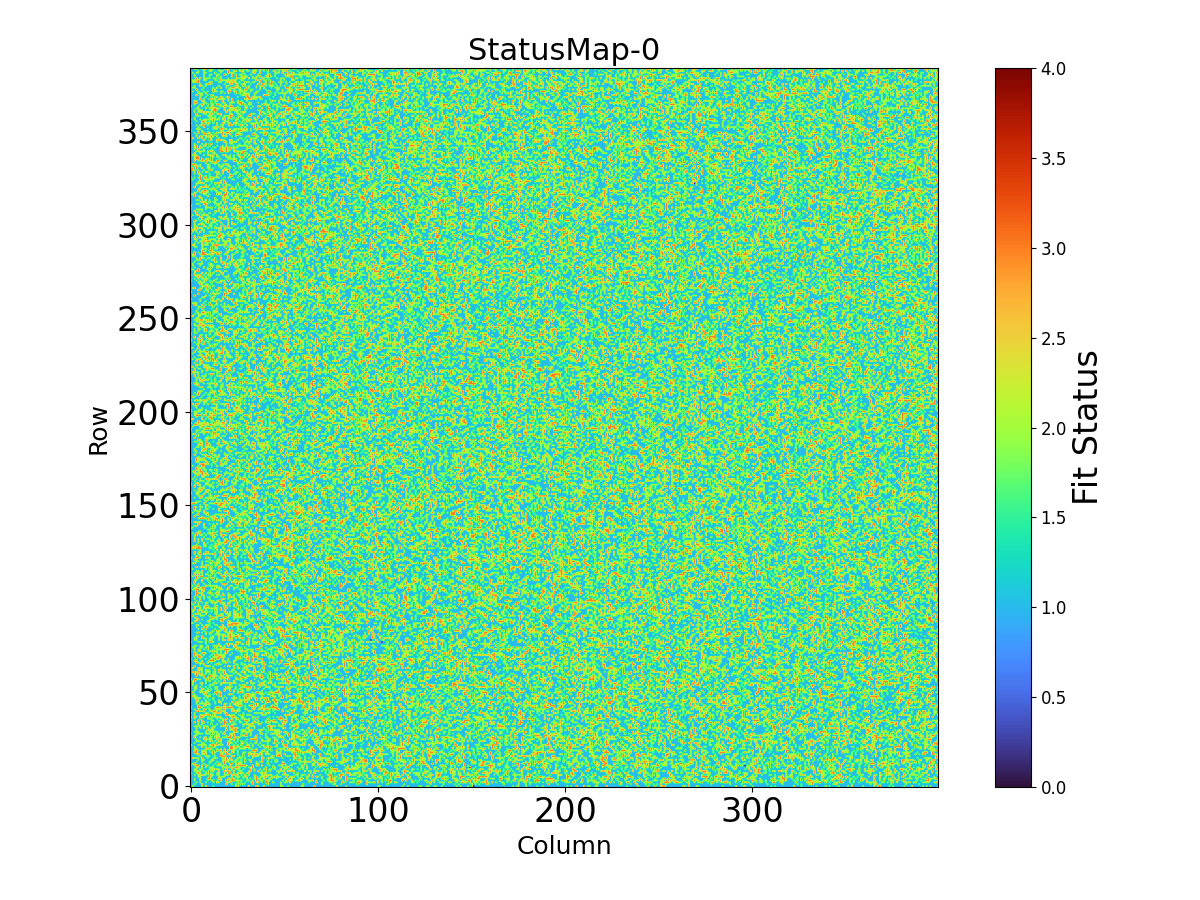

StatusMap-0

StatusDist-0

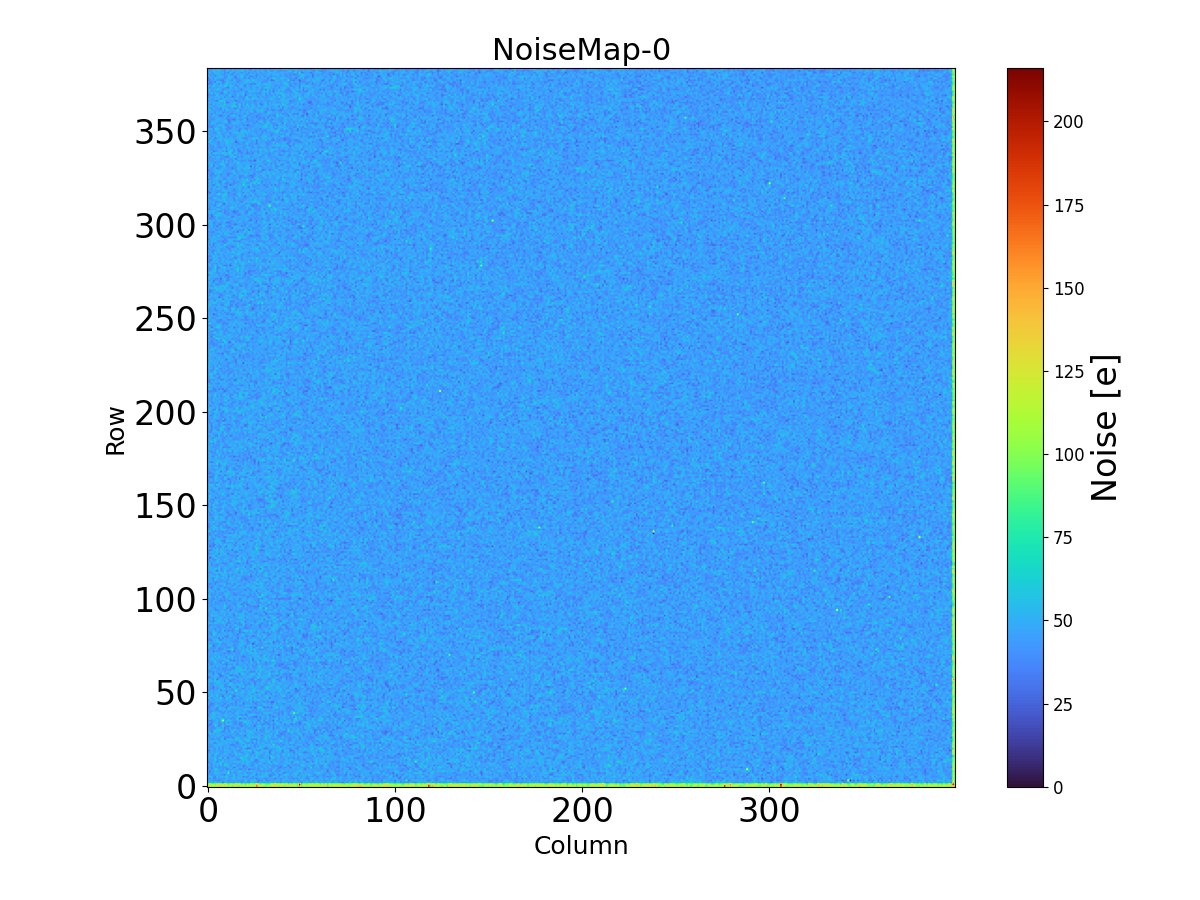

NoiseMap-0

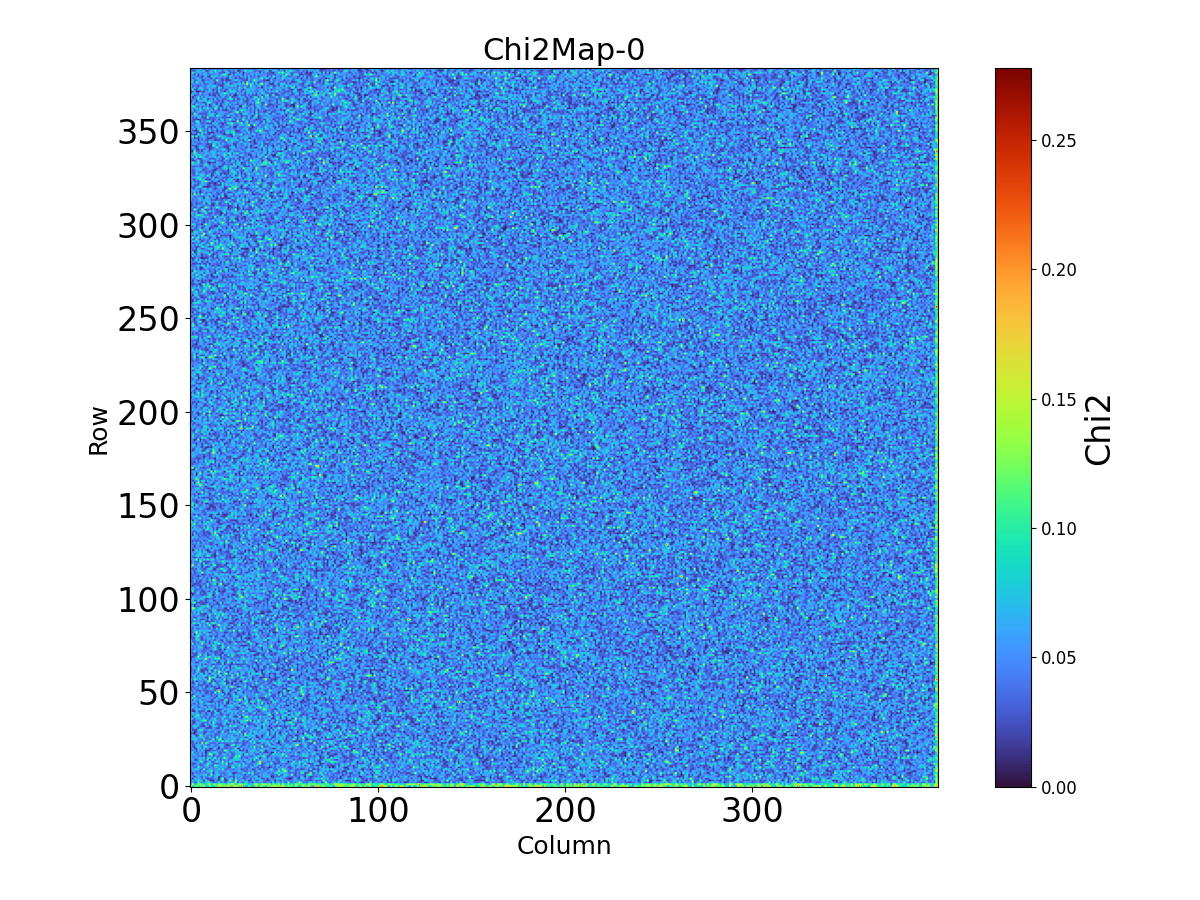

Chi2Dist-0

TimePerFitDist-0

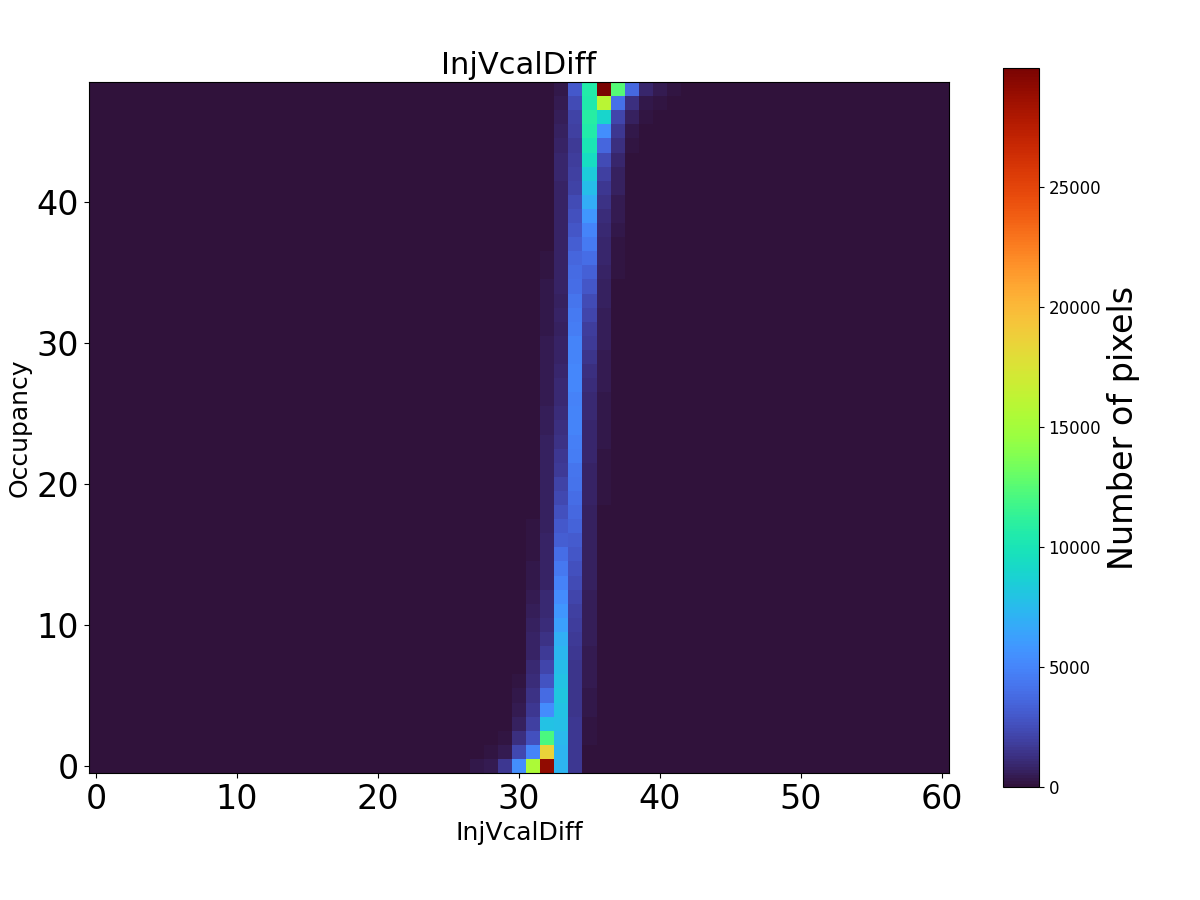

InjVcalDiff

InjVcalDiff_Map


Details

Scan

Key Data
runNumber 16251
testType std_thresholdscan_hd
stage MODULE/INITIAL_WARM
component 20UPGM22001172
20UPGFC0086650
20UPGFC0086620
20UPGFC0086627
20UPGFC0086649
startTime 2023-10-18 10:18:22 PDT(-0700)
finishTime 2023-10-18 10:21:36 PDT(-0700)
user eathompson
site shieldtoad.dhcp.lbl.gov
targetCharge -1
targetTot -1
ctrlStatus channel_configuration: 16x1
fe_chip_type: RD53A/B
firmware_hash: 0xcd23cbc
firmware_identifier: 0x2030232
firmware_vers:
fmc_card_type: Ohio Card (Display Port)
fpga_card: Trenz TEF1001_R2
lpm_status: 0
rx_speed: 640Mbps
exec -r configs/controller/specCfg-rd53b-16x1-shieldtoad.json -c /home/eathompson/20UPGM22001172/20UPGM22001172_L2_warm.json -s configs/scans/rd53b/std_thresholdscan_hd.json -o /home/eathompson/20UPGM22001172/data -W PFA
stopwatch analysis: 716
config: 1206
processing: 0
scan: 184533
yarr_version git_branch: devel
git_date: 2023-09-27 17:52:24 +0200
git_hash: 8c21f3ebea06f8f27be3abf8d85d9e1cb2b19280-dirty
git_subject: Merge branch 'mask_pixel_cfg' into 'devel'
git_tag: v1.4.4-90-g8c21f3e
QC False
environment False
plots
passed True
