20UPGFC0223192

MODULE/POST_PARYLENE_COLD

Component Information

Serial Number 20UPGFC0223192
ProdDB ID  4b2ed4…398f0c
LocalDB ID 67a21eb489d864a1f41149c5
Component Type fe_chip
Parents 20UPGM24830014  20UPGB43000293 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Target Iref trim 9
Target Iref trim version 1
Wafer serial number None

 Comments


Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 3 months ago
component ObjectId 67a21eb489d864a1f41149c5
Stage MODULE/INITIAL_WARM
Test Type TUNING
Institute ObjectId
User Name Simpson,Liana Rae
ObjectId of this record 6931ece6d7bf966e0aafef34
ObjectId of RAW record None
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.7.1
MEASUREMENT_DATE 2025-12-04T19:47:04.000+00:00
MEASUREMENT_DURATION 659
YARR_VERSION v1.5.5
TUNING_TUNED_NOISE_95_HIGH 119.979
TUNING_TUNED_NOISE_95_LOW 79.619

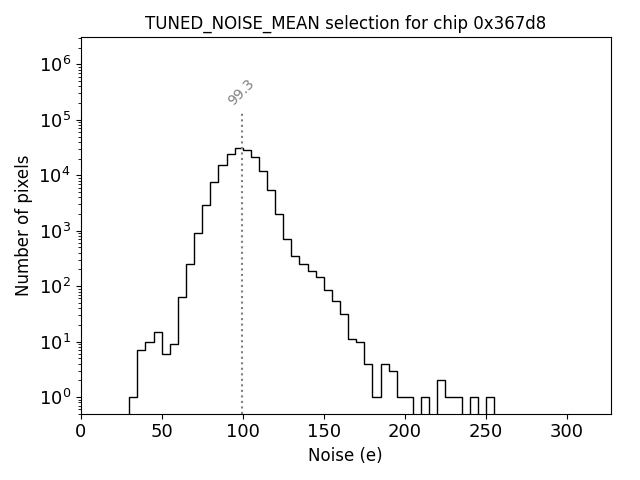

TUNING_TUNED_NOISE_MEAN 99.344
TUNING_TUNED_NOISE_SIGMA 10.597

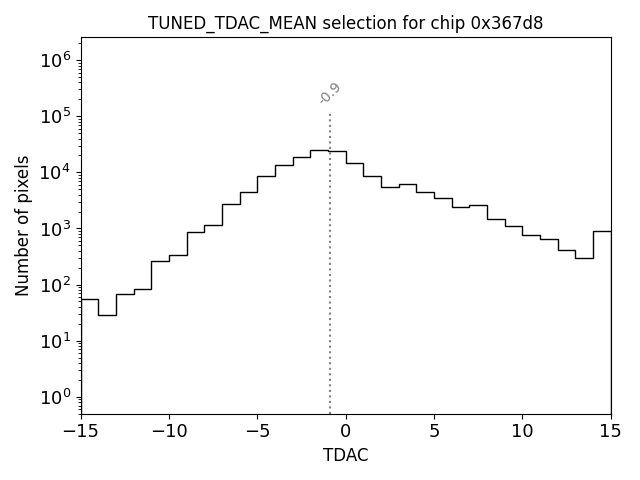

TUNING_TUNED_TDAC_MEAN -0.9
TUNING_TUNED_TDAC_SIGMA 3.831
TUNING_TUNED_THRESHOLD_95_HIGH 1565.987
TUNING_TUNED_THRESHOLD_95_LOW 1431.602

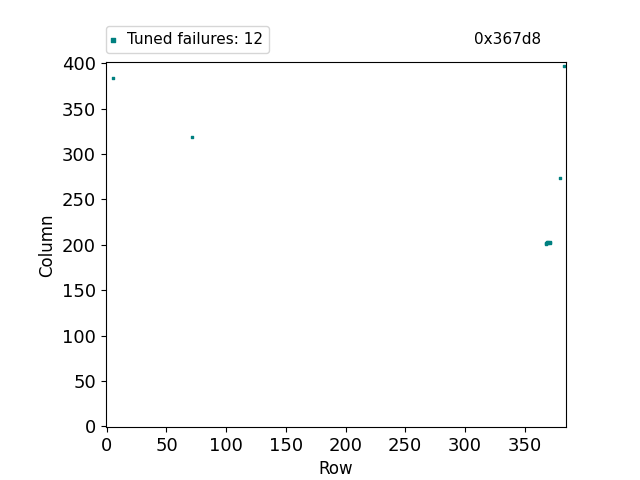

TUNING_TUNED_THRESHOLD_FAILED_FITS 12

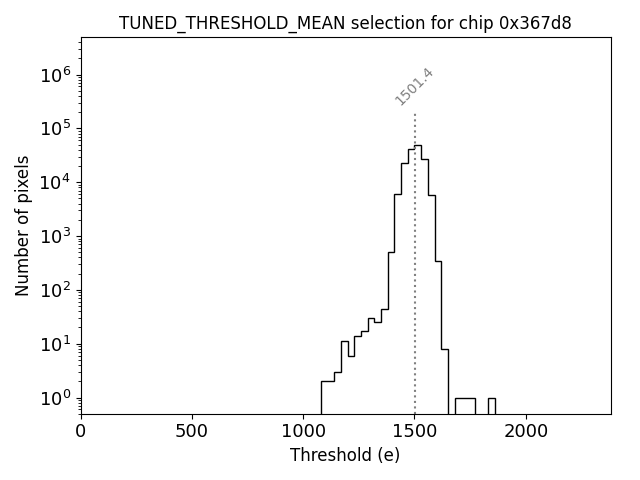

TUNING_TUNED_THRESHOLD_MEAN 1501.4
TUNING_TUNED_THRESHOLD_SIGMA 35
TUNING_TUNED_TOT_95_HIGH 10.05
TUNING_TUNED_TOT_95_LOW 5.23
TUNING_TUNED_TOT_MEAN 7.4
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_UNTUNED_NOISE_95_HIGH 118.723
TUNING_UNTUNED_NOISE_95_LOW 79.641

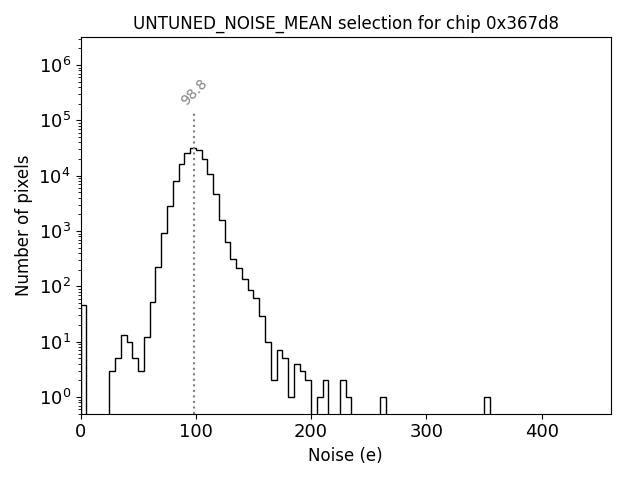

TUNING_UNTUNED_NOISE_MEAN 98.773
TUNING_UNTUNED_NOISE_SIGMA 10.376
TUNING_UNTUNED_TDAC_MEAN 0
TUNING_UNTUNED_TDAC_SIGMA 0

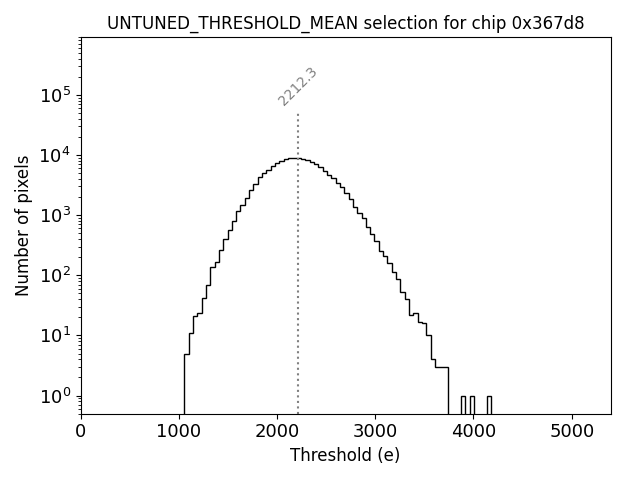

TUNING_UNTUNED_THRESHOLD_95_HIGH 2840.633
TUNING_UNTUNED_THRESHOLD_95_LOW 1633.866
TUNING_UNTUNED_THRESHOLD_FAILED_FITS 104
TUNING_UNTUNED_THRESHOLD_MEAN 2212.275
TUNING_UNTUNED_THRESHOLD_SIGMA 306.932

Attachments

Filename Contents
0x367d8_L2_warm.json Download
output.log Download
0x367d8.log Download
20UPGFC0223192_MODULE__INITIAL_WARM_TUNING.zip Download

ProductionDB Record

id69bb24c71925772d47c4aeae
stateready
stateTs2026-03-18T22:18:47.724Z
stateUserIdentity1294-8027-1
date2026-02-12T04:03:00.000Z
testType
id6393a09015838700361eecc5
codeTUNING
nameTuning
stateactive
institution
id5d318624df98f200097386d5
codeANL
nameArgonne National Laboratory
user
id6797ca0f2ffbf908f24868f9
userIdentity1294-8027-1
firstNameSimpson,
middleName
lastNameLiana Rae
runNumber6931ece6d7bf966e0aafef34
passedTrue
problemsFalse
properties
codenamedataTypevalueTyperequiredvaluerangeMinrangeMax
ANALYSIS_VERSIONTuning analysis versionstringNoneTrue2.7.1NoneNone
MEASUREMENT_DATEDate measurement performeddatetimeNoneFalse2025-12-04T19:47:04.000+00:00NoneNone
MEASUREMENT_DURATIONMeasurement durationintegerNoneFalse659NoneNone
YARR_VERSIONYarr VersionstringNoneFalsev1.5.5NoneNone
results
codenamedataTypevalueTypearrayDimensionsadditionalrangeMinrangeMaxvalueassociateChild
TUNING_TUNED_NOISE_95_HIGHTuned noise 95% highfloatsingleNoneNoneNoneNone119.979None
TUNING_TUNED_NOISE_95_LOWTuned noise 95% lowfloatsingleNoneNoneNoneNone79.619None
TUNING_TUNED_NOISE_MEANTuned noise meanfloatsingleNoneNoneNoneNone99.344None
TUNING_TUNED_NOISE_SIGMATuned noise sigmafloatsingleNoneNoneNoneNone10.597None
TUNING_TUNED_TDAC_MEANTuned TDAC meanfloatsingleNoneNoneNoneNone-0.9None
TUNING_TUNED_TDAC_SIGMATuned TDAC sigmafloatsingleNoneNoneNoneNone3.831None
TUNING_TUNED_THRESHOLD_95_HIGHTuned threshold 95% highfloatsingleNoneNoneNoneNone1565.987None
TUNING_TUNED_THRESHOLD_95_LOWTuned threshold 95% lowfloatsingleNoneNoneNoneNone1431.602None
TUNING_TUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the tuned threshold scanintegersingleNoneNoneNoneNone12None
TUNING_TUNED_THRESHOLD_MEANMean of the tuned threshold distributionfloatsingleNoneNoneNoneNone1501.4None
TUNING_TUNED_THRESHOLD_SIGMASigma of the tuned threshold distributionfloatsingleNoneNoneNoneNone35None
TUNING_TUNED_TOT_95_HIGHTuned ToT 95% highfloatsingleNoneNoneNoneNone10.05None
TUNING_TUNED_TOT_95_LOWTuned ToT 95% lowfloatsingleNoneNoneNoneNone5.23None
TUNING_TUNED_TOT_MEANMean of tuned ToT distributionfloatsingleNoneNoneNoneNone7.4None
TUNING_TUNED_TOT_SIGMASigma of tuned ToT distributionfloatsingleNoneNoneNoneNone0.3None
TUNING_UNTUNED_NOISE_95_HIGHUntuned noise 95% highfloatsingleNoneNoneNoneNone118.723None
TUNING_UNTUNED_NOISE_95_LOWNoise 95% lowfloatsingleNoneNoneNoneNone79.641None
TUNING_UNTUNED_NOISE_MEANUntuned noise meanfloatsingleNoneNoneNoneNone98.773None
TUNING_UNTUNED_NOISE_SIGMAUntuned noise sigmafloatsingleNoneNoneNoneNone10.376None
TUNING_UNTUNED_TDAC_MEANUntuned TDAC meanfloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_TDAC_SIGMAUntuned TDAC sigmafloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_THRESHOLD_95_HIGHUntuned threshold 95% highfloatsingleNoneNoneNoneNone2840.633None
TUNING_UNTUNED_THRESHOLD_95_LOWUntuned threshold 95% lowfloatsingleNoneNoneNoneNone1633.866None
TUNING_UNTUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the untuned threshold scanintegersingleNoneNoneNoneNone104None
TUNING_UNTUNED_THRESHOLD_MEANMean of the untuned threshold distributionfloatsingleNoneNoneNoneNone2212.275None
TUNING_UNTUNED_THRESHOLD_SIGMASigma of the untuned threshold distributionfloatsingleNoneNoneNoneNone306.932None
cts2026-03-18T22:18:47.724Z
sys
cts2026-03-18T22:18:47.724Z
mts2026-03-18T22:18:48.559Z
rev1
defects
commentsNone
attachments
codedateTimetitledescriptioncontentTypetypeurlurlCernboxfilenameuser
8a3bd0cacfe6f852ef2a3ef06e7b6f2d2026-03-18T22:18:48.559ZTestRun_69bb24c71925772d47c4aeae_Attachment_Pack.zip/home/data/viewer/static/cache/thumbnail/TestRun_69bb24c71925772d47c4aeae_Attachment_Pack.zipNoneeoshttps://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/a/3/8a3bd0cacfe6f852ef2a3ef06e7b6f2d?authz=zteos64:MDAwMDAyZjF4nO2RsUvDQBTGaUEHJ3FQ7CCP4uCS5u6aXJM3CW7tJt1Ch0vurg2tuZBeELoI6iD-AU7OLjq5KujooIJuroKr_4LW4uDg6uYbvuHH9z3e41t4rS5UisWL44On-dpcaoe5rFcn-UaFdV1lxq6wI_GtiSqyfmHKXKbjoSuVdaZ2Ny-MdGTsBq5wm24gmrEkiUi04jrwmdJMNJUmXLVirplsrxOP05ZPiONrIRxKNXVCmWhHeLEmtBX6koXbD5WoOyihXWYAHhCGlCHxgBHGe1CmEqlHeUCj2b096H-RJmlFk7wHNpUqs1gYYxuUhj5FzvhmhKingz6dQt4IgwYlPcjEjsLZEpAZwvQXi8Mi9kHkOcLAjC3-HpRmR6QZ_iB9ZRDGpTRIwBYiUQgmi9VAjDQuwfmzHXgfl3f70eP9Vmf35uTorX7QOVx5f-nfLl-v7dX-a_j7GuDs9Gr1E_GT7Ec%3dhttps://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/a/3/8a3bd0cacfe6f852ef2a3ef06e7b6f2d8a3bd0cacfe6f852ef2a3ef06e7b6f2d
id6797ca0f2ffbf908f24868f9
userIdentity1294-8027-1
firstNameSimpson,
middleName
lastNameLiana Rae
components
idcodestatestateTsstateUserIdentitydummycompletedcompletedTscompletedUserIdentitytrashedtrashedTstrashedUserIdentityserialNumberalternativeIdentifierancestorMapprojectsubprojectcomponentTypetypepropertiestestedAtStageinstitution
67a21eb489d864a1f41149c54b2ed46e65a850dd77a7cc5004398f0cready2025-02-04T14:05:40.556Z5310-2637-1FalseFalseNoneNoneFalseNoneNone20UPGFC0223192None
parent
component
id68d2c40ab5f1d1f55a7bf85c
code0ebf71bfccac6a44d90d68c0edb25266
stateready
stateTs2025-09-23T16:00:10.562Z
stateUserIdentity23-6780-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGB43000293
alternativeIdentifierNone
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeBARE_MODULE
nameBare Module
type
codeQUAD_BARE_MODULE
nameQuad bare module
testedAtStage
codeMODULE/INITIAL_COLD
nameInitial Cold
highestLevelParent
component
id690e48c344c06a976341e4f7
code14d6ac889604b9cc7d1a5b02d29ffcec
stateready
stateTs2025-11-07T19:30:11.266Z
stateUserIdentity4561-2270-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGM24830014
alternativeIdentifierANL_ITkPix_186
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeMODULE
nameModule
type
codeOUTER_SYSTEM_QUAD_MODULE
nameOuter system quad module
testedAtStage
codeMODULE/INITIAL_COLD
nameInitial Cold
codeP
namePixels
codePG
namePixel general
codeFE_CHIP
nameFront-end Chip
codeITKPIX_V2
nameITkpix_V2
codenamedataTyperequireddefaultvalue
TARGET_IREF_TRIMTarget Iref trimintegerFalseFalse9
TARGET_IREF_TRIM_VERSIONTarget Iref trim versionstringFalseFalse1
codeMODULE/INITIAL_WARM
nameInitial Warm
order8
initialFalse
finalFalse
codeGL
nameGlasgow University

 Current Stage: Post-Parylene Cold
