20UPGFC0146778

MODULE/THERMAL_CYCLES

Component Information

Serial Number 20UPGFC0146778
ProdDB ID  2d3e63…778699
LocalDB ID 66100327ec873d00354f4fc0
Component Type fe_chip
Parents 20UPGM24210577  20UPGB43200364 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None
Target Iref trim None
Target Iref trim version None

 Comments

Date Commented by on which Component Comment
a week ago pixel (Lawrence Berkeley National Lab - pixel modules) MODULE
20UPGM24210577 		sign-off at MODULE/QC_CROSSCHECK; appended flags: ['ELECTRICAL_TESTING_CANT_COMPLETE']; next stage: MODULE/PARYLENE_MASKING; comment: Failed ADC ground check, most likely failure in communication. To be looked in further. Moved to Unhappy for now.

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 8 months ago
component ObjectId 66100327ec873d00354f4fc0
Stage MODULE/INITIAL_WARM
Test Type TUNING
Institute ObjectId
User Name DanielAceves
ObjectId of this record 68ded60b12752b66da91071c
ObjectId of RAW record None
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.6.4
MEASUREMENT_DATE 2025-10-02T19:04:19.000+00:00
MEASUREMENT_DURATION 698
MEASUREMENT_VERSION None
YARR_VERSION v1.5.5

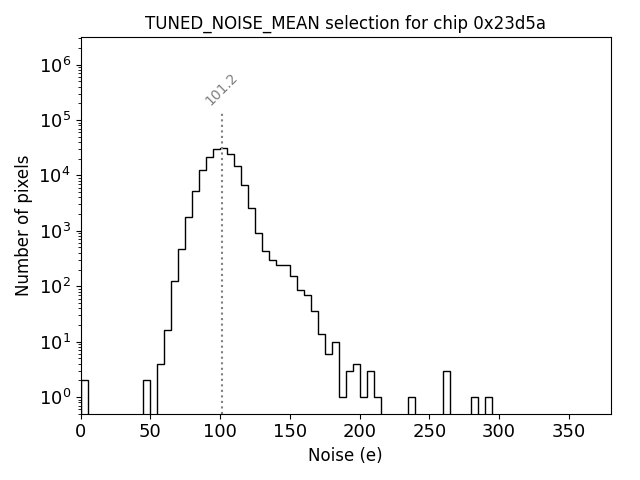

TUNING_TUNED_NOISE_95_HIGH 121.847
TUNING_TUNED_NOISE_95_LOW 82.04
TUNING_TUNED_NOISE_MEAN 101.193
TUNING_TUNED_NOISE_SIGMA 10.6

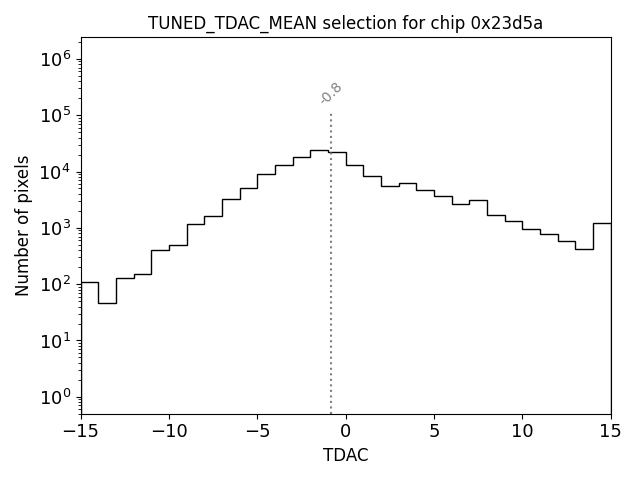

TUNING_TUNED_TDAC_MEAN -0.8
TUNING_TUNED_TDAC_SIGMA 4.158
TUNING_TUNED_THRESHOLD_95_HIGH 1561.913
TUNING_TUNED_THRESHOLD_95_LOW 1430.678
TUNING_TUNED_THRESHOLD_FAILED_FITS 4

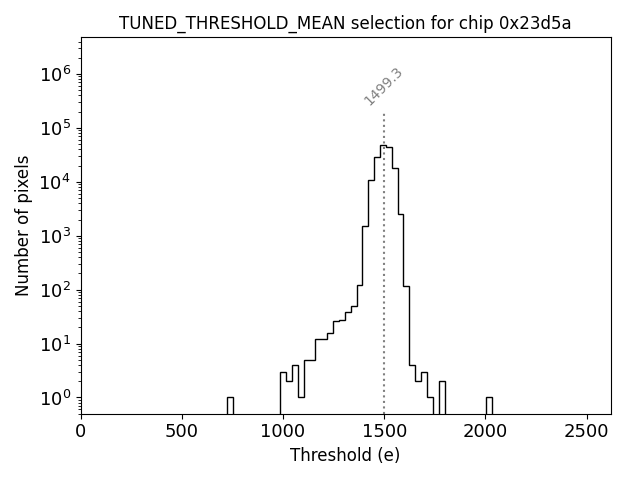

TUNING_TUNED_THRESHOLD_MEAN 1499.3
TUNING_TUNED_THRESHOLD_SIGMA 35
TUNING_TUNED_TOT_95_HIGH 10.2
TUNING_TUNED_TOT_95_LOW 5.12
TUNING_TUNED_TOT_MEAN 7.4
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_UNTUNED_NOISE_95_HIGH 119.442
TUNING_UNTUNED_NOISE_95_LOW 80.618

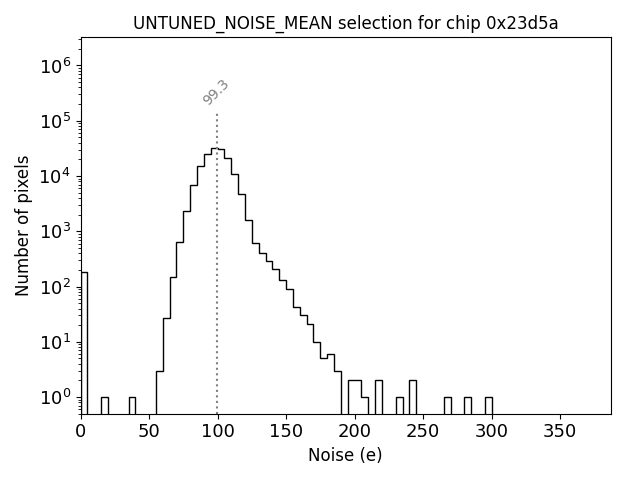

TUNING_UNTUNED_NOISE_MEAN 99.278
TUNING_UNTUNED_NOISE_SIGMA 10.722
TUNING_UNTUNED_TDAC_MEAN 0
TUNING_UNTUNED_TDAC_SIGMA 0
TUNING_UNTUNED_THRESHOLD_95_HIGH 2780.139
TUNING_UNTUNED_THRESHOLD_95_LOW 1582.023

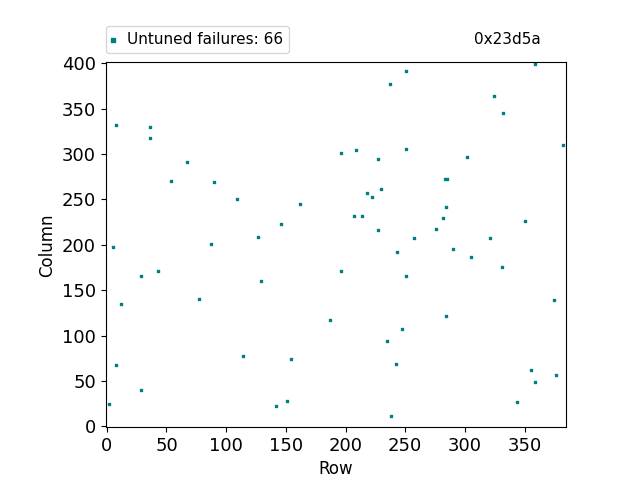

TUNING_UNTUNED_THRESHOLD_FAILED_FITS 66

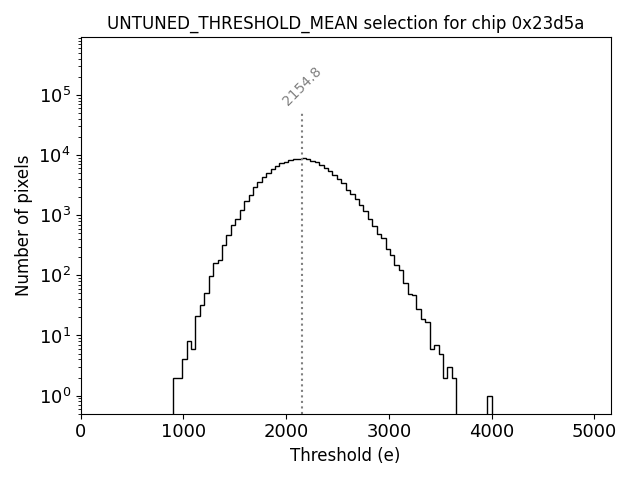

TUNING_UNTUNED_THRESHOLD_MEAN 2154.77
TUNING_UNTUNED_THRESHOLD_SIGMA 305

Attachments

Filename Contents
0x23d5a_L2_warm.json Download
output.log Download
0x23d5a.log Download
20UPGFC0146778_MODULE__INITIAL_WARM_TUNING.zip Download

ProductionDB Record

id68ded6b546c81c946f506c47
stateready
stateTs2025-10-02T19:47:01.732Z
stateUserIdentity4728-7541-1
date2025-10-02T19:44:00.000Z
testType
id6393a09015838700361eecc5
codeTUNING
nameTuning
stateactive
institution
id5d318624df98f200097386d5
codeANL
nameArgonne National Laboratory
user
id6526ef19d2e4250042313864
userIdentity4728-7541-1
firstNameDaniel
middleName
lastNameAceves
runNumber68ded60b12752b66da91071c
passedTrue
problemsFalse
properties
codenamedataTypevalueTyperequiredvaluerangeMinrangeMax
ANALYSIS_VERSIONTuning analysis versionstringNoneTrue2.6.4NoneNone
MEASUREMENT_DATEDate measurement performeddatetimeNoneFalse2025-10-02T19:04:19.000+00:00NoneNone
MEASUREMENT_DURATIONMeasurement durationintegerNoneFalse698NoneNone
MEASUREMENT_VERSIONMeasurement versionstringNoneFalseNoneNoneNone
YARR_VERSIONYarr VersionstringNoneFalsev1.5.5NoneNone
results
codenamedataTypevalueTypearrayDimensionsadditionalrangeMinrangeMaxvalueassociateChild
TUNING_TUNED_NOISE_95_HIGHTuned noise 95% highfloatsingleNoneNoneNoneNone121.847None
TUNING_TUNED_NOISE_95_LOWTuned noise 95% lowfloatsingleNoneNoneNoneNone82.04None
TUNING_TUNED_NOISE_MEANTuned noise meanfloatsingleNoneNoneNoneNone101.193None
TUNING_TUNED_NOISE_SIGMATuned noise sigmafloatsingleNoneNoneNoneNone10.6None
TUNING_TUNED_TDAC_MEANTuned TDAC meanfloatsingleNoneNoneNoneNone-0.8None
TUNING_TUNED_TDAC_SIGMATuned TDAC sigmafloatsingleNoneNoneNoneNone4.158None
TUNING_TUNED_THRESHOLD_95_HIGHTuned threshold 95% highfloatsingleNoneNoneNoneNone1561.913None
TUNING_TUNED_THRESHOLD_95_LOWTuned threshold 95% lowfloatsingleNoneNoneNoneNone1430.678None
TUNING_TUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the tuned threshold scanintegersingleNoneNoneNoneNone4None
TUNING_TUNED_THRESHOLD_MEANMean of the tuned threshold distributionfloatsingleNoneNoneNoneNone1499.3None
TUNING_TUNED_THRESHOLD_SIGMASigma of the tuned threshold distributionfloatsingleNoneNoneNoneNone35None
TUNING_TUNED_TOT_95_HIGHTuned ToT 95% highfloatsingleNoneNoneNoneNone10.2None
TUNING_TUNED_TOT_95_LOWTuned ToT 95% lowfloatsingleNoneNoneNoneNone5.12None
TUNING_TUNED_TOT_MEANMean of tuned ToT distributionfloatsingleNoneNoneNoneNone7.4None
TUNING_TUNED_TOT_SIGMASigma of tuned ToT distributionfloatsingleNoneNoneNoneNone0.3None
TUNING_UNTUNED_NOISE_95_HIGHUntuned noise 95% highfloatsingleNoneNoneNoneNone119.442None
TUNING_UNTUNED_NOISE_95_LOWNoise 95% lowfloatsingleNoneNoneNoneNone80.618None
TUNING_UNTUNED_NOISE_MEANUntuned noise meanfloatsingleNoneNoneNoneNone99.278None
TUNING_UNTUNED_NOISE_SIGMAUntuned noise sigmafloatsingleNoneNoneNoneNone10.722None
TUNING_UNTUNED_TDAC_MEANUntuned TDAC meanfloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_TDAC_SIGMAUntuned TDAC sigmafloatsingleNoneNoneNoneNone0None
TUNING_UNTUNED_THRESHOLD_95_HIGHUntuned threshold 95% highfloatsingleNoneNoneNoneNone2780.139None
TUNING_UNTUNED_THRESHOLD_95_LOWUntuned threshold 95% lowfloatsingleNoneNoneNoneNone1582.023None
TUNING_UNTUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the untuned threshold scanintegersingleNoneNoneNoneNone66None
TUNING_UNTUNED_THRESHOLD_MEANMean of the untuned threshold distributionfloatsingleNoneNoneNoneNone2154.77None
TUNING_UNTUNED_THRESHOLD_SIGMASigma of the untuned threshold distributionfloatsingleNoneNoneNoneNone305None
cts2025-10-02T19:47:01.732Z
sys
cts2025-10-02T19:47:01.732Z
mts2025-10-02T19:48:37.322Z
rev2
defects
commentsNone
attachments
codedateTimetitledescriptioncontentTypetypeurlurlCernboxfilenameuser
f5184a58530510f9c398597bdbd4e2962025-10-02T19:48:09.369Z0x23d5a_L2_warm.json{"_id":"68b21f3b8428c598c033597d","serialNumber":"20UPGFC0146778","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"68ded31bb1a569960ed7658a"}Noneeoshttps://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/f/5/1/f5184a58530510f9c398597bdbd4e296?authz=zteos64:MDAwMDAyZjZ4nO2RoU_DQBTGsxEmlkAIAjH1IAhM27u21_WeggSFQJC5pSHX3nVrtvWa7iaYwyHQOAgWS4IbweGAPwEEuGmCZCwIBBrFE0_88r0v78tXf63WK-XK_eTlsdZYzEyvkBvVcbFVcVuO0kNHmL743okq806pR4XMhj1HKmPN5E5RamnJ2Ekd5lAnZTT0BQuZRxglKU88HjLejGUsfeXyYG_TYwkRsa8sz2eJRWlKrZi5yhJ-nBLa5Ey6_OCp0m51R7BTlAAcXA-9AP0AXOIGEYwyidSnQUjb838j6HwRjzTb4yICk0mVGyy1NrbbDCkP0WcB324jprNBRm1KA5uHNiUR5GKgcG4DMkeYpTHYK2MGoigQunpo8PdDqQciy_EH6SiNMBxJjQRMKRKFoPNYdUU_xVW4uDk8qS6fLh3d9dZ39yfH9vnDGVkzl9704_jq7bnW-C_iL4qA2-n79cInjhXq3g%3d%3dhttps://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/f/5/1/f5184a58530510f9c398597bdbd4e296f5184a58530510f9c398597bdbd4e296
id6526ef19d2e4250042313864
userIdentity4728-7541-1
firstNameDaniel
middleName
lastNameAceves
786be8c45849b280e0a4b1140fd53cc32025-10-02T19:48:37.322ZTestRun_68ded6b546c81c946f506c47_Attachment_Pack.zip/home/data/viewer/static/cache/thumbnail/TestRun_68ded6b546c81c946f506c47_Attachment_Pack.zipNoneeoshttps://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/7/8/6/786be8c45849b280e0a4b1140fd53cc3?authz=zteos64:MDAwMDAyZjZ4nO2RsUrDUBSGaUWFoiCOdTmIiAhpcm9yb27OYrsIugjSLVRIcm_a0DY3prdLH8SX0M3NOjvqLohFpE_gA1iLg4Ozk2c4w8_3H87PX3uv1irl1sP97HGtvpqZfiF3q5PioELbttIjOzKD6Hsnqsy7pR4XMhv1bamMtcDtotTSkrHt28Lmti94rETiMeEFMRWOciIvJsRzUsncJHFP91yW0jTm1HI9lliEpMSKU8WtBZc6xA-YpMH5UyVs98bQKkqAAKiLLkfPB-pQ3oFxJpF4hAsSLv_tQPdLcR0_nBQdMJlUucFSa9Ogvi8ER0YJbYaI6WKQkQYhvBGIBnE6kEdDhcszIHOERRqD_TJmEBUFQk-PDP5ulHoYZTn-ULpKI4zGUqMDpowShaDzWPWiQYrbMJkenVzdHl-3wsP9jfXNs5fp5Zsv582dDzZ_vrsI6v9F_EUR8Dq_ma18AhHi6nQ%3dhttps://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/7/8/6/786be8c45849b280e0a4b1140fd53cc3786be8c45849b280e0a4b1140fd53cc3
id6526ef19d2e4250042313864
userIdentity4728-7541-1
firstNameDaniel
middleName
lastNameAceves
components
idcodestatestateTsstateUserIdentitydummycompletedcompletedTscompletedUserIdentitytrashedtrashedTstrashedUserIdentityserialNumberalternativeIdentifierancestorMapprojectsubprojectcomponentTypetypepropertiestestedAtStageinstitution
66100327ec873d00354f4fc02d3e63421f7772e7c08483bd6d778699ready2024-04-05T13:56:55.237Z5310-2637-1FalseFalseNoneNoneFalseNoneNone20UPGFC0146778None
parent
component
id6810f23e54aadc8e96c6f24d
code92d9a2640a95fa48498949ba97edaa5e
stateready
stateTs2025-04-29T15:37:34.257Z
stateUserIdentity23-6780-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGB43200364
alternativeIdentifierNone
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeBARE_MODULE
nameBare Module
type
codeQUAD_BARE_MODULE
nameQuad bare module
testedAtStage
codeMODULE/WIREBONDING
nameWire Bonding
highestLevelParent
component
id689ce4f6e945399df1ed713b
codee7fc973881c738c84c94246a4286c796
stateready
stateTs2025-08-13T19:18:14.270Z
stateUserIdentity1294-8027-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGM24210577
alternativeIdentifierANL_ITkPix_126
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeMODULE
nameModule
type
codeOUTER_SYSTEM_QUAD_MODULE
nameOuter system quad module
testedAtStage
codeMODULE/WIREBONDING
nameWire Bonding
codeP
namePixels
codePG
namePixel general
codeFE_CHIP
nameFront-end Chip
codeITKPIX_V2
nameITkpix_V2
None
codeMODULE/INITIAL_WARM
nameInitial Warm
order8
initialFalse
finalFalse
codeGL
nameGlasgow University
