20UPGFC0146117

MODULE/FINAL_COLD

Component Information

Serial Number	20UPGFC0146117
ProdDB ID	fddce8…d38918
LocalDB ID	660fbeb2ec873d00354e22e0
Component Type	fe_chip
Parents	20UPGM24211761 20UPGB43200441
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	9
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	660fbeb2ec873d00354e22e0
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	DavidJiang
ObjectId of this record	690d23574f9fcd332811a8a4
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-11-06T21:34:58.000+00:00
MEASUREMENT_DURATION	843
YARR_VERSION	v1.5.5

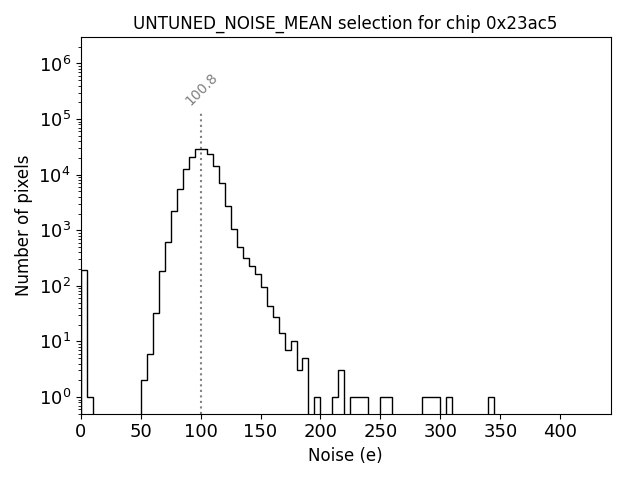

TUNING_TUNED_NOISE_95_HIGH	123.597
TUNING_TUNED_NOISE_95_LOW	81.47

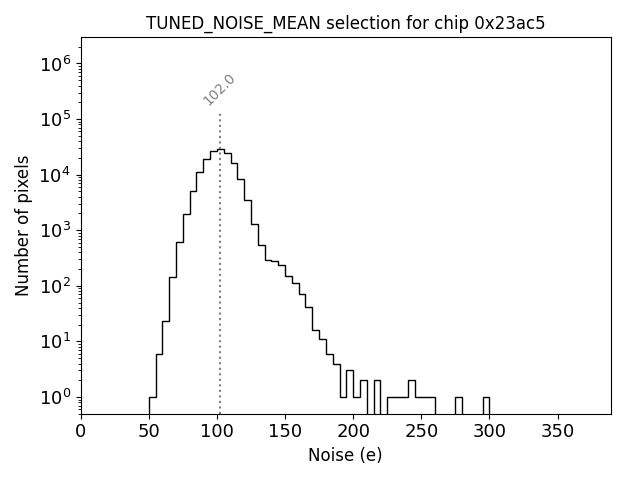

TUNING_TUNED_NOISE_MEAN	101.989
TUNING_TUNED_NOISE_SIGMA	11.111

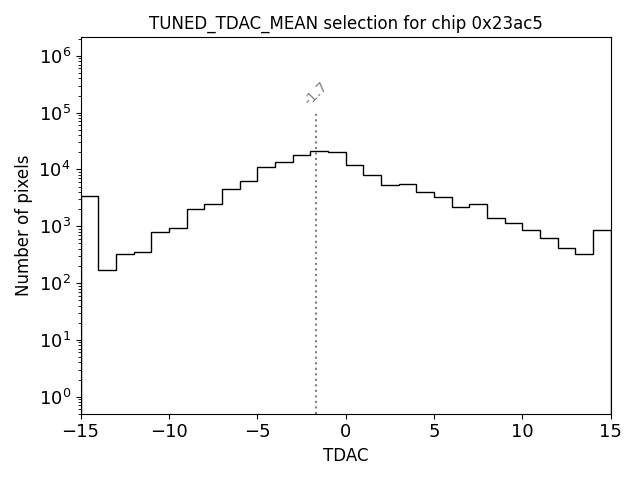

TUNING_TUNED_TDAC_MEAN	-1.7
TUNING_TUNED_TDAC_SIGMA	4.611
TUNING_TUNED_THRESHOLD_95_HIGH	1564.832
TUNING_TUNED_THRESHOLD_95_LOW	1437.643

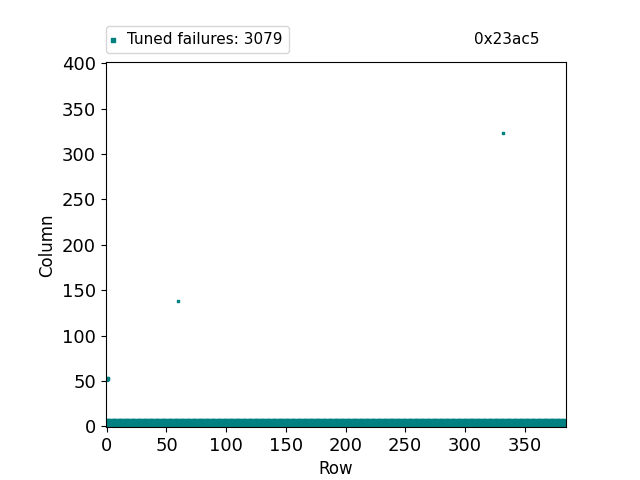

TUNING_TUNED_THRESHOLD_FAILED_FITS	3079

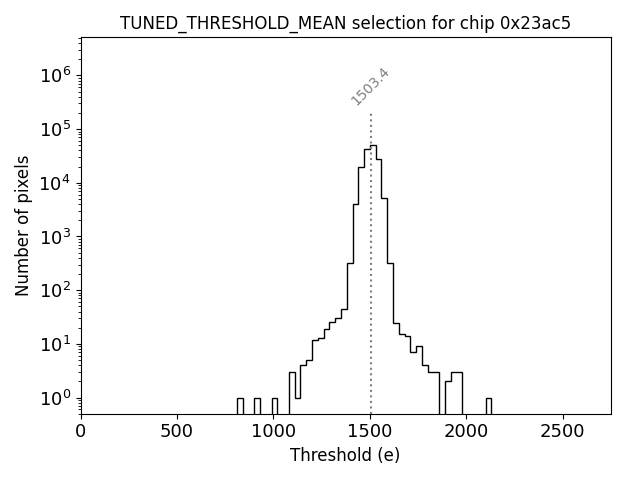

TUNING_TUNED_THRESHOLD_MEAN	1503.4
TUNING_TUNED_THRESHOLD_SIGMA	34
TUNING_TUNED_TOT_95_HIGH	10.29
TUNING_TUNED_TOT_95_LOW	5

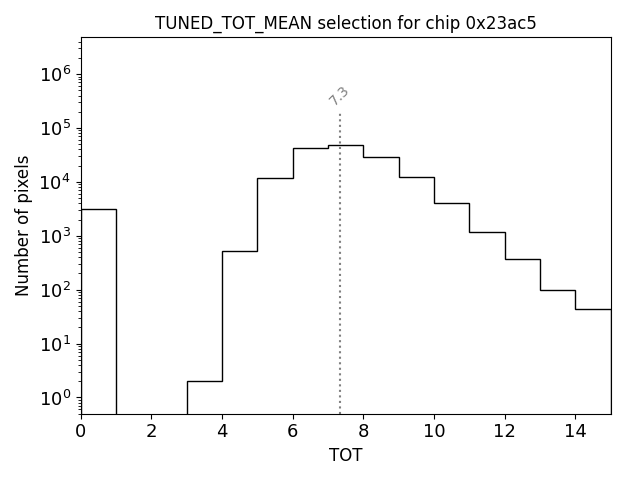

TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	122.001
TUNING_UNTUNED_NOISE_95_LOW	80.782
TUNING_UNTUNED_NOISE_MEAN	100.792
TUNING_UNTUNED_NOISE_SIGMA	11.303
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	3042.524
TUNING_UNTUNED_THRESHOLD_95_LOW	1790.468

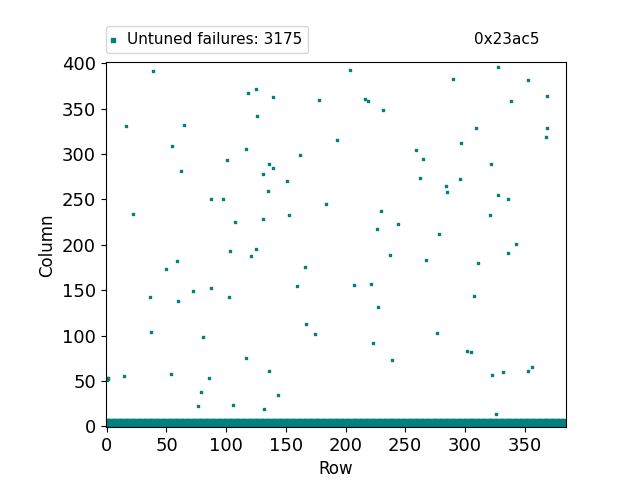

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3175

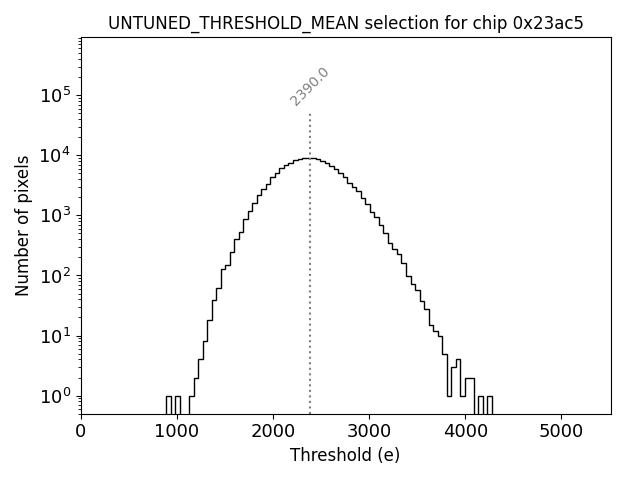

TUNING_UNTUNED_THRESHOLD_MEAN	2389.998
TUNING_UNTUNED_THRESHOLD_SIGMA	318

Attachments

Filename	Contents
0x23ac5_L2_warm.json	Download
output.log	Download
0x23ac5.log	Download
20UPGFC0146117_MODULE__INITIAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

69b8e9a68aae92e94d241662

state

ready

stateTs

2026-03-17T05:41:58.386Z

stateUserIdentity

3339-2662-1

date

2025-11-06T22:38:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	67ee104c69bd7fedf75bb0e4
userIdentity	3339-2662-1
firstName	David
middleName
lastName	Jiang

runNumber

690d23574f9fcd332811a8a4

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-11-06T21:34:58.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	843	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	123.597	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	81.47	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	101.989	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	11.111	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.7	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.611	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1564.832	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1437.643	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	3079	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1503.4	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	34	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.29	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.3	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	122.001	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	80.782	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	100.792	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	11.303	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	3042.524	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1790.468	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	3175	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2389.998	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	318	None

cts

2026-03-17T05:41:58.386Z

sys

cts	2026-03-17T05:41:58.386Z
mts	2026-03-17T05:42:25.728Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

66e68962f55dba302da30b08c544ec69

2026-03-17T05:42:12.086Z

0x23ac5_L2_warm.json

{"_id":"68b7131f8428c598c0336074","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"690d22fa4f9fcd332811a820"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/6/e/66e68962f55dba302da30b08c544ec69?authz=zteos64:MDAwMDAyZjR4nO1RsUrEQBDlTrQ4QcTSapArtMhld5Ndk0HB-rASQeFIsclu7sJpNuY2CGLlgYVWtrb-gSD4AdoeHAgWluJPWBnFwsLaynnDKx4zwzxe67XZapSLdxfj6dzybGaHhVppnhSrDbbrajNypT2Q35zoMu-XpipUNhq6SlunHneL0ihHxa6ooV0htAhCwVLOVSw9wlRNMQkS7vs6EWG3TcKQe3EQODyV0qE0pU7Ate9IP04JXQ-5YuHOpNHbHVTQrXIAHwhDWrcHjDARQZUppD4VAe19_RtB_1PxyHrvpIjAZkrnFktjbIcy5oXoCUq3eohpXchph1LRCYMOJRHk8lDj1xVQOUJtxuKwjDnIokAYmJHF3xeVOZRZjj-UvjYIo0oZJGBLmWgEk8d6IA9SXILnxbWnvc2Nle3rhfb99HT_5S17vGqevcfz46PG-cPx8n8Of5AD3FxObmc-AFvH580%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/6/e/66e68962f55dba302da30b08c544ec69

66e68962f55dba302da30b08c544ec69

id	67ee104c69bd7fedf75bb0e4
userIdentity	3339-2662-1
firstName	David
middleName
lastName	Jiang

09d475969d518f845cc35e1257783522

2026-03-17T05:42:25.728Z

TestRun_69b8e9a68aae92e94d241662_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_69b8e9a68aae92e94d241662_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/0/9/d/09d475969d518f845cc35e1257783522?authz=zteos64:MDAwMDAyZjR4nO1RLU8DQRRMS2hIExKCIlUvBIG57kdv7-MpdAWC1JWKvdu99tL29rjumTqC4EPxL_AkNf0FKBIMQYMgQVCNozQIBBrFy8sTk5nJm0z9pVqvFFuzq7OHWmM9tcNc7Van-X6Fd4g2EyLtSH7fWBdZvzBlrtLJkChtnSWd5IVRjooIJSFRhIbK9UXohUqwIAlcEcctoRkXvh-0BOftPRpGkfB07IhESoexhDmR8qgj3SihzA-F4uHRfaXbGZTQLjMAFyhHttwWcMq9HpSpQuYyL2Dd1b896H8hLep3p3kPbKp0ZrEwxjYZZ65AEQj3oIuYLAcFazLmNcOgyWgPMjnWuHIBlSEsw1gcFpEAmecIAzOx-LtQmbFMM_yB9LVBmJTKIAVbyFgjmCzSAzlKcBvii7fn-dNlu-EEw-P5x83GXfX6nSwON0_Gr4-3tZ3Gfw9_0APMFqfna5_xmuj2

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/0/9/d/09d475969d518f845cc35e1257783522

09d475969d518f845cc35e1257783522

id	67ee104c69bd7fedf75bb0e4
userIdentity	3339-2662-1
firstName	David
middleName
lastName	Jiang

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660fbeb2ec873d00354e22e0

fddce8b2baa3c6843d64584a65d38918

ready

2024-04-05T09:04:50.429Z

5310-2637-1

False

None

False

None

20UPGFC0146117

None

parent

component

683ecb8ad71df4c2775e1f29

code

88d0df7250a5743e1413669cfec92aa6

state

ready

stateTs

2025-06-03T10:16:42.959Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200441

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/POST_PARYLENE_COLD
name	Post-Parylene Cold

highestLevelParent

component

689ce9a34352ea8e9ff68678

code

da08d9a012077f1e54f8317419d64efb

state

ready

stateTs

2025-08-13T19:38:11.115Z

stateUserIdentity

1294-8027-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24211761

alternativeIdentifier

ANL_ITkPix_140

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/POST_PARYLENE_COLD
name	Post-Parylene Cold

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

code	name	dataType	required	default	value
TARGET_IREF_TRIM	Target Iref trim	integer	False	False	9
TARGET_IREF_TRIM_VERSION	Target Iref trim version	string	False	False	1

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Final Cold

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	TestRun Present
Analog Readback (ANALOG_READBACK)	TestRun Present
SLDO (SLDO)	TestRun Present
VCAL Calibration (VCAL_CALIBRATION)	TestRun Present
Injection Capacitance (INJECTION_CAPACITANCE)	TestRun Present
Low Power Mode (LP_MODE)	No TestRun!
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No TestRun!
Undershunt Protection (UNDERSHUNT_PROTECTION)	No TestRun!
Tuning (TUNING)	TestRun Present
Minimal Health Test (MIN_HEALTH_TEST)	TestRun Present
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	TestRun Present
Data Transmission (DATA_TRANSMISSION)	TestRun Present
Cold startup (COLD_STARTUP)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
690d23…11a97b	PIXEL_FAILURE_ANALYSIS	Pass	DavidJiang	N/A	3 months ago	2.6.4	No tags	Selected
690d23…11a8a4	TUNING	Pass	DavidJiang	N/A	3 months ago	2.6.4	No tags	Selected
690d22…11a6de	MIN_HEALTH_TEST	Pass	DavidJiang	N/A	3 months ago	2.6.4	No tags	Selected
690d22…11a818	INJECTION_CAPACITANCE	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d22…11a7c8	DATA_TRANSMISSION	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d23…11a843	LP_MODE	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d22…11a788	VCAL_CALIBRATION	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d22…11a6ab	SLDO	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d22…11a655	ANALOG_READBACK	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected
690d22…11a5a3	ADC_CALIBRATION	Pass	DavidJiang	7 months ago	3 months ago	2.6.4	No tags	Selected

Past QC Stages and Results

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6a2ae6…bbba2f	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	None	N/A	2 days ago	No tags	Selected
6a2ae5…9d18b6	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	None	N/A	2 days ago	No tags
6a2ae5…7458b2	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	None	N/A	2 days ago	No tags
6a2ae4…bbb9c0	MODULE/FINAL_COLD	MIN_HEALTH_TEST	None	N/A	2 days ago	No tags	Selected
6a2ae4…9d17bb	MODULE/FINAL_COLD	TUNING	None	N/A	2 days ago	No tags	Selected
6a2a56…8cd9ce	MODULE/FINAL_COLD	DATA_TRANSMISSION	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a56…74578f	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a3c…3e154e	MODULE/FINAL_COLD	VCAL_CALIBRATION	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a3a…bbb8e4	MODULE/FINAL_COLD	SLDO	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a32…8cd944	MODULE/FINAL_COLD	ANALOG_READBACK	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a17…3e1342	MODULE/FINAL_COLD	ADC_CALIBRATION	None	2 days ago	2 days ago	ganymede_3	Selected
6a2a10…3e12f0	MODULE/FINAL_COLD	ADC_CALIBRATION	None	2 days ago	2 days ago	ganymede_3
6a2a00…8cd7cc	MODULE/FINAL_WARM	TUNING	None	N/A	2 days ago	No tags	Selected
6a2a00…bbb4b0	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	None	N/A	2 days ago	No tags	Selected
6a2a00…8cd729	MODULE/FINAL_WARM	MIN_HEALTH_TEST	None	N/A	2 days ago	No tags	Selected
6a29e8…017c01	MODULE/FINAL_WARM	DATA_TRANSMISSION	None	3 days ago	3 days ago	ganymede_3	Selected
6a29b3…e92c77	MODULE/FINAL_WARM	TUNING	None	N/A	3 days ago	No tags
6a29b2…8e9898	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	None	N/A	3 days ago	No tags
6a29b1…e92bce	MODULE/FINAL_WARM	MIN_HEALTH_TEST	None	N/A	3 days ago	No tags
6a28cc…0177f3	MODULE/FINAL_WARM	LP_MODE	None	3 days ago	3 days ago	ganymede_3	Selected
6a28c7…01775c	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	None	3 days ago	3 days ago	ganymede_3	Selected
6a28c3…e926e9	MODULE/FINAL_WARM	VCAL_CALIBRATION	None	3 days ago	3 days ago	ganymede_3	Selected
6a28c0…8e9705	MODULE/FINAL_WARM	SLDO	None	3 days ago	3 days ago	ganymede_3	Selected
6a28b5…8e9647	MODULE/FINAL_WARM	ANALOG_READBACK	None	3 days ago	3 days ago	ganymede_3	Selected
6a289a…18999e	MODULE/FINAL_WARM	ADC_CALIBRATION	None	4 days ago	3 days ago	ganymede_3	Selected
6a2209…e52876	MODULE/QC_CROSSCHECK	PIXEL_FAILURE_ANALYSIS	None	N/A	a week ago	No tags	Selected
6a2209…fe5435	MODULE/QC_CROSSCHECK	TUNING	None	N/A	a week ago	No tags	Selected
6a2208…d1a27b	MODULE/QC_CROSSCHECK	MIN_HEALTH_TEST	None	N/A	a week ago	No tags	Selected
6a21fa…8ab64c	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	None	a week ago	a week ago	ganymede_3	Selected
6a21f5…f73d75	MODULE/QC_CROSSCHECK	LP_MODE	None	a week ago	a week ago	ganymede_3	Selected
6a21f4…e527f2	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	a week ago	a week ago	ganymede_3	Selected
6a21f3…fe52ba	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	a week ago	a week ago	ganymede_3	Selected
6a21f1…8ab608	MODULE/QC_CROSSCHECK	SLDO	None	a week ago	a week ago	ganymede_3	Selected
6a21eb…e5273a	MODULE/QC_CROSSCHECK	ANALOG_READBACK	None	a week ago	a week ago	ganymede_3	Selected
6a21d7…f73c6c	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a week ago	a week ago	ganymede_3	Selected
6a20a2…dad763	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	None	a week ago	a week ago	ganymede_3
6a20a1…dad6f5	MODULE/QC_CROSSCHECK	LP_MODE	None	a week ago	a week ago	ganymede_3
6a20a0…4161b3	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	a week ago	a week ago	ganymede_3
6a20a0…41615e	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a209e…9dae30	MODULE/QC_CROSSCHECK	SLDO	None	a week ago	a week ago	ganymede_3
6a208b…f71084	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1e1b…8bfb8c	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	None	a week ago	a week ago	ganymede_3
6a1e1a…8bfb68	MODULE/QC_CROSSCHECK	LP_MODE	None	a week ago	a week ago	ganymede_3
6a1e1a…8bfb44	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	a week ago	a week ago	ganymede_3
6a1e19…40849e	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1e18…acd15c	MODULE/QC_CROSSCHECK	SLDO	None	a week ago	a week ago	ganymede_3
6a1e15…8bfb10	MODULE/QC_CROSSCHECK	ANALOG_READBACK	None	a week ago	a week ago	ganymede_3
6a1e0b…8bfa78	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1dff…84105a	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1b95…9ca922	MODULE/QC_CROSSCHECK	DATA_TRANSMISSION	None	a week ago	a week ago	ganymede_3
6a1b95…1b63fc	MODULE/QC_CROSSCHECK	LP_MODE	None	a week ago	a week ago	ganymede_3
6a1b94…1b63d8	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	a week ago	a week ago	ganymede_3
6a1b93…0e5fa5	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1b92…9ca8fb	MODULE/QC_CROSSCHECK	SLDO	None	a week ago	a week ago	ganymede_3
6a1b8d…1b63a2	MODULE/QC_CROSSCHECK	ANALOG_READBACK	None	a week ago	a week ago	ganymede_3
6a1b7f…9ca8b4	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	a week ago	a week ago	ganymede_3
6a1a70…9ca804	MODULE/QC_CROSSCHECK	INJECTION_CAPACITANCE	None	2 weeks ago	2 weeks ago	ganymede_3
6a1a70…184ed8	MODULE/QC_CROSSCHECK	VCAL_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
6a1a6e…9ca78b	MODULE/QC_CROSSCHECK	SLDO	None	2 weeks ago	2 weeks ago	ganymede_3
6a1a6a…1b625e	MODULE/QC_CROSSCHECK	ANALOG_READBACK	None	2 weeks ago	2 weeks ago	ganymede_3
6a1a4e…9ca6ba	MODULE/QC_CROSSCHECK	ADC_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
6a18a6…652130	MODULE/THERMAL_CYCLES	ADC_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
6a1782…d957bd	MODULE/THERMAL_CYCLES	INJECTION_CAPACITANCE	None	2 weeks ago	2 weeks ago	ganymede_3
6a1781…bb4c9a	MODULE/THERMAL_CYCLES	VCAL_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
6a177f…d95784	MODULE/THERMAL_CYCLES	SLDO	None	2 weeks ago	2 weeks ago	ganymede_3
6a1779…bb4ba2	MODULE/THERMAL_CYCLES	ANALOG_READBACK	None	2 weeks ago	2 weeks ago	ganymede_3
6a1765…d9572f	MODULE/THERMAL_CYCLES	ADC_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
6a1756…c32ce0	MODULE/THERMAL_CYCLES	ADC_CALIBRATION	None	2 weeks ago	2 weeks ago	ganymede_3
699756…792551	MODULE/POST_PARYLENE_WARM	LP_MODE	DavidJiang	4 months ago	3 months ago	No tags	Selected
699768…64e780	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	DavidJiang	N/A	3 months ago	No tags	Selected
699768…64e6a9	MODULE/POST_PARYLENE_WARM	TUNING	DavidJiang	N/A	3 months ago	No tags	Selected
699768…64e5ec	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	DavidJiang	N/A	3 months ago	No tags	Selected
699755…792526	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	DavidJiang	4 months ago	3 months ago	No tags	Selected
699754…7924d6	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	DavidJiang	4 months ago	3 months ago	No tags	Selected
699754…792496	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	DavidJiang	4 months ago	3 months ago	No tags	Selected
699753…792436	MODULE/POST_PARYLENE_WARM	SLDO	DavidJiang	4 months ago	3 months ago	No tags	Selected
699750…7923e6	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	DavidJiang	4 months ago	3 months ago	No tags	Selected
699749…792336	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	DavidJiang	4 months ago	3 months ago	No tags	Selected
690d23…11a97b	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	DavidJiang	N/A	3 months ago	No tags	Selected
690d23…11a8a4	MODULE/INITIAL_WARM	TUNING	DavidJiang	N/A	3 months ago	No tags	Selected
690d22…11a6de	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	DavidJiang	N/A	3 months ago	No tags	Selected
690d22…11a818	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d22…11a7c8	MODULE/INITIAL_WARM	DATA_TRANSMISSION	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d23…11a843	MODULE/INITIAL_WARM	LP_MODE	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d22…11a788	MODULE/INITIAL_WARM	VCAL_CALIBRATION	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d22…11a6ab	MODULE/INITIAL_WARM	SLDO	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d22…11a655	MODULE/INITIAL_WARM	ANALOG_READBACK	DavidJiang	7 months ago	3 months ago	No tags	Selected
690d22…11a5a3	MODULE/INITIAL_WARM	ADC_CALIBRATION	DavidJiang	7 months ago	3 months ago	No tags	Selected
660fc0…149dc2	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Run	Date	Test Type	Stage	User	Site	Tags	Status
1999	2 days ago	std_mergedbumpscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1998	2 days ago	std_discbumpscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1997	2 days ago	std_noisescan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1996	2 days ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1995	2 days ago	std_thresholdscan_hd	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1994	2 days ago	std_analogscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1993	2 days ago	std_digitalscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1991	2 days ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1990	2 days ago	std_thresholdscan_hd	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1989	2 days ago	std_tune_pixelthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1988	2 days ago	std_tune_globalthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1987	2 days ago	std_tune_globalpreamp	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1986	2 days ago	std_tune_globalthreshold	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1985	2 days ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1984	2 days ago	std_thresholdscan_hr	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1982	2 days ago	std_totscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1981	2 days ago	std_thresholdscan_hr	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1980	2 days ago	std_analogscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1979	2 days ago	std_digitalscan	MODULE/FINAL_COLD	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1867	3 days ago	std_mergedbumpscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1864	3 days ago	std_discbumpscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1861	3 days ago	std_noisescan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1857	3 days ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1853	3 days ago	std_thresholdscan_hd	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1849	3 days ago	std_analogscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1845	3 days ago	std_digitalscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1836	3 days ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1832	3 days ago	std_thresholdscan_hd	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1829	3 days ago	std_tune_pixelthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1825	3 days ago	std_tune_globalthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1821	3 days ago	std_tune_globalpreamp	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1817	3 days ago	std_tune_globalthreshold	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1813	3 days ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1809	3 days ago	std_thresholdscan_hr	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1800	3 days ago	std_totscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1796	3 days ago	std_thresholdscan_hr	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1793	3 days ago	std_analogscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1789	3 days ago	std_digitalscan	MODULE/FINAL_WARM	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1709	a week ago	std_mergedbumpscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1708	a week ago	std_discbumpscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1707	a week ago	std_noisescan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1706	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1705	a week ago	std_thresholdscan_hd	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1704	a week ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1703	a week ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	PFA	Pass
1701	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1700	a week ago	std_thresholdscan_hd	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1699	a week ago	std_tune_pixelthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1698	a week ago	std_tune_globalthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1697	a week ago	std_tune_globalpreamp	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1696	a week ago	std_tune_globalthreshold	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1694	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1692	a week ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	TUN	Pass
1687	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1685	a week ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1683	a week ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1681	a week ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1625	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1624	a week ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1623	a week ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1622	a week ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1620	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1619	a week ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1618	a week ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1616	a week ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1610	a week ago	std_totscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1609	a week ago	std_thresholdscan_hr	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1608	a week ago	std_analogscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass
1607	a week ago	std_digitalscan	MODULE/QC_CROSSCHECK	pixqc	jittereel.dhcp.lbl.gov	MHT	Pass

Stage: MODULE/FINAL_COLD

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a2a...9d160b	2 days ago	downloaded from ITkPD : code = 6f16e6be6991e749a804e4cb61354bcf, description = {"_id":"6a2891e21b95443ad3794b6f","serialNumber":"20UPGFC0146117","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"6a29e80b66f3d07de1017c09"}
HEAD^1	6a2a...bbb66b	2 days ago	downloaded from ITkPD : code = 574cfb834f9f26120b7fdfafa9fdfb56, description = {"_id":"6a1f3b5e3728ff7b06582948","serialNumber":"20UPGFC0146117","stage":"MODULE/QC_CROSSCHECK","branch":"warm","current_revision_id":"6a2205c36f04e298c8e2e31f"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a2a...d1055d	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^1	6a2a...2f8d12	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a2a...9af3bd	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a2a...00c33d	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a2a...fbc514	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a2a...6bef31	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a2a...7b1aea	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a2a...79878e	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a2a...68bc68	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a2a...614c35	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a2a...6287ea	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a2a...57e1e2	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a2a...3d1704	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a2a...00a1b2	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a2a...fc7d1d	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a2a...7895d9	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a2a...f9bf20	2 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a2a...8cd9cf	2 days ago	config revision by DATA-TRANSMISSION with RAW data 6a2a563ba2083033ec8cd9c7 and analysis result 6a2a563ea2083033ec8cd9ce
HEAD^18	6a2a...745790	2 days ago	config revision by INJECTION-CAPACITANCE with RAW data 6a2a560c3437adbb7d745784 and analysis result 6a2a56103437adbb7d74578f
HEAD^19	6a2a...3e154f	2 days ago	config revision by VCAL-CALIBRATION with RAW data 6a2a3cb32da0f186923e153f and analysis result 6a2a3cb72da0f186923e154e
HEAD^20	6a2a...bbb8e5	2 days ago	config revision by SLDO with RAW data 6a2a3a494a7e8678e2bbb8d9 and analysis result 6a2a3a4e4a7e8678e2bbb8e4
HEAD^21	6a2a...8cd945	2 days ago	config revision by ANALOG-READBACK with RAW data 6a2a326ba2083033ec8cd921 and analysis result 6a2a3271a2083033ec8cd944
HEAD^22	6a2a...3e1343	2 days ago	config revision by ADC-CALIBRATION with RAW data 6a2a17e22da0f186923e133b and analysis result 6a2a17e52da0f186923e1342
HEAD^23	6a2a...3e12f1	2 days ago	config revision by ADC-CALIBRATION with RAW data 6a2a10c52da0f186923e12e9 and analysis result 6a2a10c82da0f186923e12f0
HEAD^24	6a2a...9d160c	2 days ago	downloaded from ITkPD : code = e3fde11ec84be08dfae394fca12c4acd, description = {"_id":"68b7131f8428c598c033607c","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b7131f8428c598c033607d"}
HEAD^25	6a2a...bbb66d	2 days ago	downloaded from ITkPD : code = e3fde11ec84be08dfae394fca12c4acd, description = {"_id":"68b7131f8428c598c033607c","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b7131f8428c598c033607d"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a2a...9d160d	2 days ago	downloaded from ITkPD : code = 859cf0bf544e79bea44d24bc376d7b77, description = {"_id":"68b7131f8428c598c0336084","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"690d23024f9fcd332811a844"}
HEAD^1	6a2a...bbb66f	2 days ago	downloaded from ITkPD : code = 859cf0bf544e79bea44d24bc376d7b77, description = {"_id":"68b7131f8428c598c0336084","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"690d23024f9fcd332811a844"}

Stage: MODULE/FINAL_WARM

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a29...017c09	3 days ago	config revision by DATA-TRANSMISSION with RAW data 6a29e80566f3d07de1017bfa and analysis result 6a29e80a66f3d07de1017c01
HEAD^1	6a28...78d11c	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a28...fbe5b0	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a28...87b8fe	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a28...a548c0	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a28...c57351	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a28...969188	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a28...0514f9	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a28...5c02e3	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a28...f20fbb	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a28...858e60	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a28...e1a817	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a28...7b0577	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a28...b8ad30	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a28...ff9fe7	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a28...94a157	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a28...207dfd	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a28...017785	3 days ago	config revision by INJECTION-CAPACITANCE with RAW data 6a28c6c966f3d07de1017724 and analysis result 6a28c7a266f3d07de101775c
HEAD^18	6a28...261789	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^19	6a28...a175a5	3 days ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^20	6a28...e926fa	3 days ago	config revision by VCAL-CALIBRATION with RAW data 6a28c36c3b97c76890e926c0 and analysis result 6a28c3d53b97c76890e926e9
HEAD^21	6a28...8e9710	3 days ago	config revision by SLDO with RAW data 6a28bf99e4d82762eb8e96f7 and analysis result 6a28c027e4d82762eb8e9705
HEAD^22	6a28...8e964f	3 days ago	config revision by ANALOG-READBACK with RAW data 6a28b576e4d82762eb8e9624 and analysis result 6a28b580e4d82762eb8e9647
HEAD^23	6a28...1899a6	3 days ago	config revision by ADC-CALIBRATION with RAW data 6a289ab6382a2f15c9189997 and analysis result 6a289abd382a2f15c918999e
HEAD^24	6a28...794b77	4 days ago	downloaded from ITkPD : code = 574cfb834f9f26120b7fdfafa9fdfb56, description = {"_id":"6a1f3b5e3728ff7b06582948","serialNumber":"20UPGFC0146117","stage":"MODULE/QC_CROSSCHECK","branch":"warm","current_revision_id":"6a2205c36f04e298c8e2e31f"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a28...794b79	4 days ago	downloaded from ITkPD : code = e3fde11ec84be08dfae394fca12c4acd, description = {"_id":"68b7131f8428c598c033607c","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b7131f8428c598c033607d"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a28...0177f4	3 days ago	config revision by LP-MODE with RAW data 6a28c98366f3d07de10177d4 and analysis result 6a28cc1066f3d07de10177f3
HEAD^1	6a28...794b7b	4 days ago	downloaded from ITkPD : code = 859cf0bf544e79bea44d24bc376d7b77, description = {"_id":"68b7131f8428c598c0336084","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"690d23024f9fcd332811a844"}

Stage: MODULE/QC_CROSSCHECK

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a22...e2e31f	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^1	6a22...b332a3	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^2	6a22...695bee	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^3	6a22...1e0dbb	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^4	6a22...e682ca	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^5	6a22...230282	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^6	6a22...f77f1b	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^7	6a22...d3fe6b	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^8	6a22...d95f86	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^9	6a22...3b25cd	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^10	6a22...499470	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^11	6a22...fa9839	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^12	6a22...fdae1f	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^13	6a21...847bf5	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^14	6a21...dbe054	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^15	6a21...75fd66	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^16	6a21...f64ec0	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^17	6a21...8ab653	a week ago	config revision by DATA-TRANSMISSION with RAW data 6a21fa5b094558da248ab645 and analysis result 6a21fa61094558da248ab64c
HEAD^18	6a21...e527f9	a week ago	config revision by INJECTION-CAPACITANCE with RAW data 6a21f4d03414dfb500e527e7 and analysis result 6a21f4d53414dfb500e527f2
HEAD^19	6a21...fe52c1	a week ago	config revision by VCAL-CALIBRATION with RAW data 6a21f3d8a9167d9dd0fe52ab and analysis result 6a21f3dea9167d9dd0fe52ba
HEAD^20	6a21...8ab60f	a week ago	config revision by SLDO with RAW data 6a21f1e9094558da248ab5fd and analysis result 6a21f1ef094558da248ab608
HEAD^21	6a21...e52741	a week ago	config revision by ANALOG-READBACK with RAW data 6a21ebcd3414dfb500e52717 and analysis result 6a21ebd53414dfb500e5273a
HEAD^22	6a21...f73c73	a week ago	config revision by ADC-CALIBRATION with RAW data 6a21d7c3ae36c5cf13f73c65 and analysis result 6a21d7c9ae36c5cf13f73c6c
HEAD^23	6a20...eca471	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^24	6a20...714722	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^25	6a20...61c7e1	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^26	6a20...293fdb	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^27	6a20...111ee3	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^28	6a20...63cf7c	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^29	6a20...1d9dcd	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^30	6a20...9b33f4	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^31	6a20...a0645c	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^32	6a20...5fce3a	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^33	6a20...c4971b	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^34	6a20...5f34bb	a week ago	Submitted by YARR-dbAccessor (hostname: jittereel.dhcp.lbl.gov, user: pixqc)
HEAD^35	6a20...dad779	a week ago	config revision by DATA-TRANSMISSION with RAW data 6a20a201785945eeb4dad74c and analysis result 6a20a237785945eeb4dad763
HEAD^36	6a20...4161bb	a week ago	config revision by INJECTION-CAPACITANCE with RAW data 6a20a0f168536ecf5c4161a8 and analysis result 6a20a0f768536ecf5c4161b3
HEAD^37	6a20...416166	a week ago	config revision by VCAL-CALIBRATION with RAW data 6a20a02168536ecf5c41614f and analysis result 6a20a02768536ecf5c41615e
HEAD^38	6a20...9dae38	a week ago	config revision by SLDO with RAW data 6a209ea6108389284b9dae25 and analysis result 6a209eac108389284b9dae30
HEAD^39	6a20...f7108c	a week ago	config revision by ADC-CALIBRATION with RAW data 6a208bacbc7ef76a51f7107d and analysis result 6a208bb2bc7ef76a51f71084
HEAD^40	6a1f...582950	a week ago	downloaded from ITkPD : code = 59b534f86abaddae7455792db572c7b9, description = {"_id":"69960035f6ae188f06791f9b","serialNumber":"20UPGFC0146117","stage":"MODULE/POST_PARYLENE_WARM","branch":"warm","current_revision_id":"6997dc929236ab1732677c75"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a1f...582952	a week ago	downloaded from ITkPD : code = e3fde11ec84be08dfae394fca12c4acd, description = {"_id":"68b7131f8428c598c033607c","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b7131f8428c598c033607d"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a21...f73d76	a week ago	config revision by LP-MODE with RAW data 6a21f5cdae36c5cf13f73d6e and analysis result 6a21f5d1ae36c5cf13f73d75
HEAD^1	6a20...dad6f6	a week ago	config revision by LP-MODE with RAW data 6a20a1ae785945eeb4dad6ee and analysis result 6a20a1b2785945eeb4dad6f5
HEAD^2	6a1f...582954	a week ago	downloaded from ITkPD : code = 859cf0bf544e79bea44d24bc376d7b77, description = {"_id":"68b7131f8428c598c0336084","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"690d23024f9fcd332811a844"}

Stage: MODULE/LONG_TERM_STABILITY_TEST

Mode: warm

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d6ce0	2 weeks ago	downloaded from ITkPD : code = 59b534f86abaddae7455792db572c7b9, description = {"_id":"69960035f6ae188f06791f9b","serialNumber":"20UPGFC0146117","stage":"MODULE/POST_PARYLENE_WARM","branch":"warm","current_revision_id":"6997dc929236ab1732677c75"}

Mode: cold

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d6ce2	2 weeks ago	downloaded from ITkPD : code = e3fde11ec84be08dfae394fca12c4acd, description = {"_id":"68b7131f8428c598c033607c","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"cold","current_revision_id":"68b7131f8428c598c033607d"}

Mode: LP

Index	Revision ID	Timestamp	Message
HEAD	6a15...3d6ce4	2 weeks ago	downloaded from ITkPD : code = 859cf0bf544e79bea44d24bc376d7b77, description = {"_id":"68b7131f8428c598c0336084","serialNumber":"20UPGFC0146117","stage":"MODULE/INITIAL_WARM","branch":"LP","current_revision_id":"690d23024f9fcd332811a844"}

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/GRAVEYARD
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0146117

MODULE/FINAL_COLD

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Final Cold

Candidate TestRuns of this Stage

Past QC Stages and Results

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

All YARR Scans

Config Revisions

Stage: MODULE/FINAL_COLD

Mode: warm

Mode: cold

Mode: LP

Stage: MODULE/FINAL_WARM

Mode: warm

Mode: cold

Mode: LP

Stage: MODULE/QC_CROSSCHECK

Mode: warm

Mode: cold

Mode: LP

Stage: MODULE/LONG_TERM_STABILITY_TEST

Mode: warm

Mode: cold

Mode: LP

Check QC Flow

Back to top page of this component
