20UPGFC0141764

MODULE/POST_PARYLENE_WARM

Component Information

Serial Number 20UPGFC0141764
ProdDB ID  2a8673…08496f
LocalDB ID 660d23675d9bdc0035fd9421
Component Type fe_chip
Parents 20UPGM23211302  20UPGB43200210 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None
Target Iref trim None
Target Iref trim version None

 Comments


Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 4 months ago
component ObjectId 660d23675d9bdc0035fd9421
Stage MODULE/INITIAL_WARM
Test Type TUNING
Institute ObjectId
User Name DavidJiang
ObjectId of this record 688cd6d8af82c43a0ce34a2d
ObjectId of RAW record None
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.6.4
MEASUREMENT_DATE 2025-07-31T17:16:41.000+00:00
MEASUREMENT_DURATION 1158
MEASUREMENT_VERSION None
YARR_VERSION v1.5.5
TUNING_TUNED_NOISE_95_HIGH 125.627
TUNING_TUNED_NOISE_95_LOW 83.782

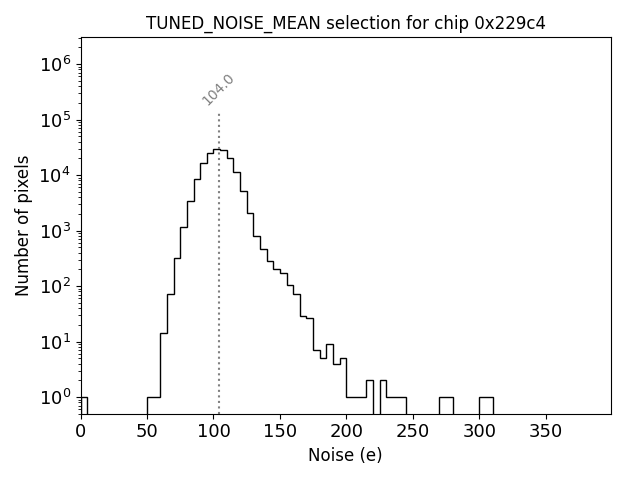

TUNING_TUNED_NOISE_MEAN 104.022
TUNING_TUNED_NOISE_SIGMA 11.009
TUNING_TUNED_TDAC_MEAN -0.9
TUNING_TUNED_TDAC_SIGMA 4.327
TUNING_TUNED_THRESHOLD_95_HIGH 1565.298
TUNING_TUNED_THRESHOLD_95_LOW 1434.839
TUNING_TUNED_THRESHOLD_FAILED_FITS 2

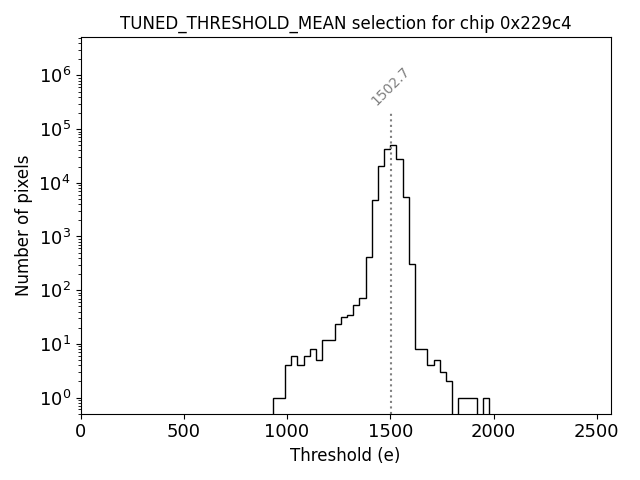

TUNING_TUNED_THRESHOLD_MEAN 1502.7
TUNING_TUNED_THRESHOLD_SIGMA 35
TUNING_TUNED_TOT_95_HIGH 9.96
TUNING_TUNED_TOT_95_LOW 5.25
TUNING_TUNED_TOT_MEAN 7.3
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_UNTUNED_NOISE_95_HIGH 124.059
TUNING_UNTUNED_NOISE_95_LOW 82.891

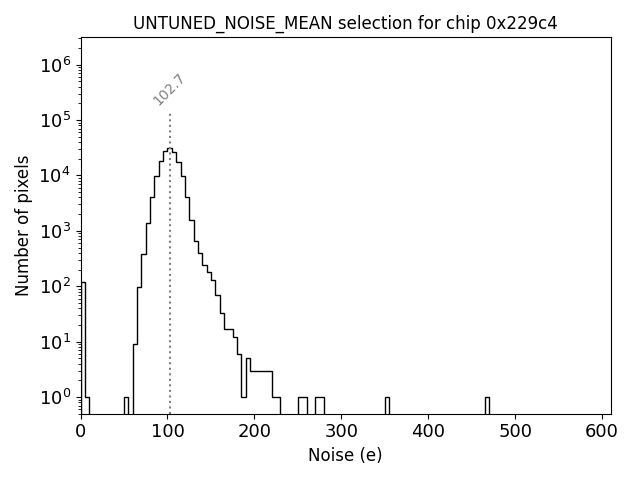

TUNING_UNTUNED_NOISE_MEAN 102.688
TUNING_UNTUNED_NOISE_SIGMA 11.154
TUNING_UNTUNED_TDAC_MEAN 0
TUNING_UNTUNED_TDAC_SIGMA 0
TUNING_UNTUNED_THRESHOLD_95_HIGH 2863.501
TUNING_UNTUNED_THRESHOLD_95_LOW 1617.652
TUNING_UNTUNED_THRESHOLD_FAILED_FITS 66

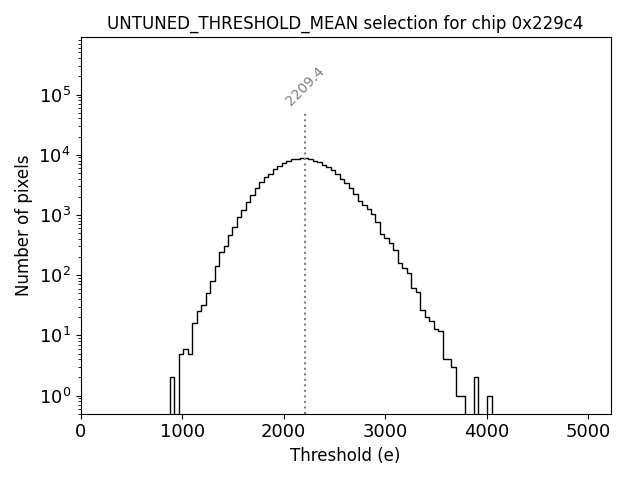

TUNING_UNTUNED_THRESHOLD_MEAN 2209.433
TUNING_UNTUNED_THRESHOLD_SIGMA 315

Attachments

Filename Contents
0x229c4_L2_warm.json Download
output.log Download
0x229c4.log Download
20UPGFC0141764_MODULE__INITIAL_WARM_TUNING.zip Download
