20UPGFC0141720

MODULE/QC_STATUS

Component Information

Serial Number	20UPGFC0141720
ProdDB ID	fb475e…ee95d8
LocalDB ID	660d232deeb7490035a47187
Component Type	fe_chip
Parents	20UPGM24211150 20UPGB43200224
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	6
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d232deeb7490035a47187
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	None
ObjectId of this record	6a03e4d90077847aebf6f7f8
ObjectId of RAW record	None
Tags	No tags
Tuning Config	Associated FE Config

Results

Key	Data
DCSdata	{}
QC_LAYER	L2

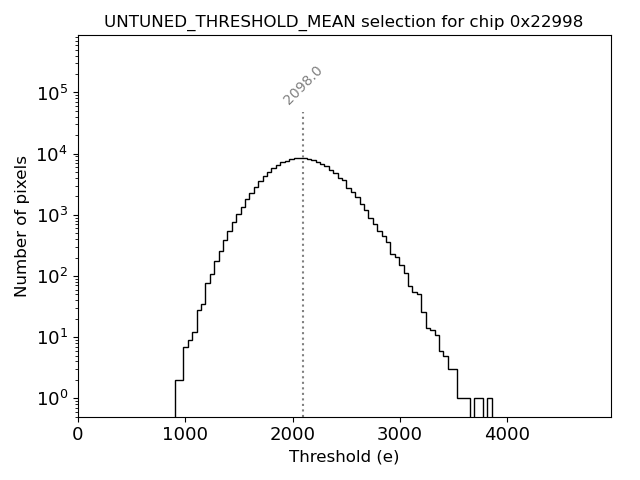

TUNING_UNTUNED_THRESHOLD_MEAN	2098.028
TUNING_UNTUNED_THRESHOLD_95_LOW	1531.411
TUNING_UNTUNED_THRESHOLD_95_HIGH	2708.742
TUNING_UNTUNED_THRESHOLD_SIGMA	299.454

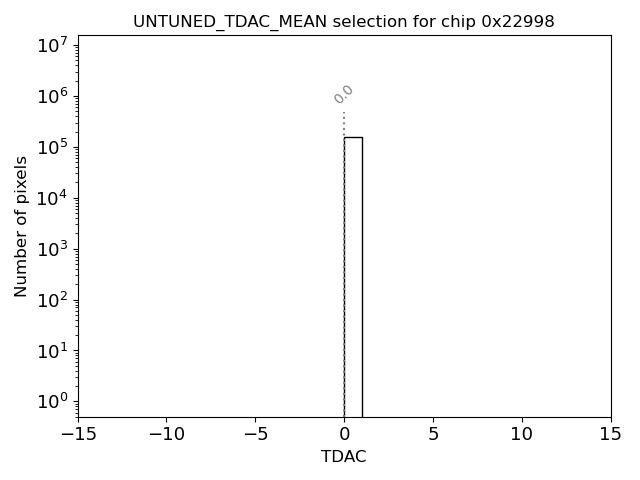

TUNING_UNTUNED_TDAC_MEAN	0.0
TUNING_UNTUNED_TDAC_SIGMA	0.0

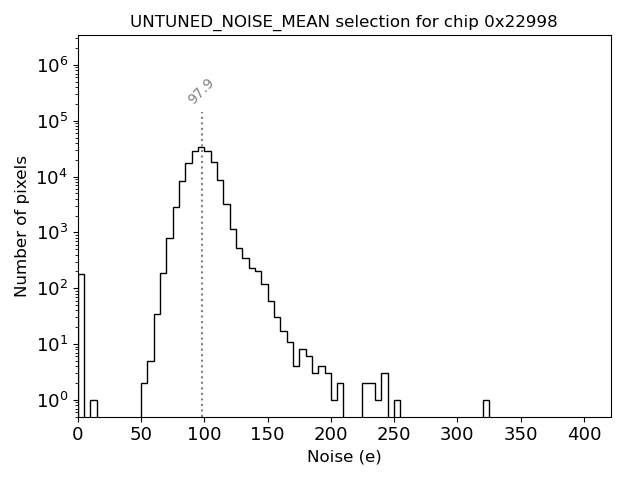

TUNING_UNTUNED_NOISE_MEAN	97.935
TUNING_UNTUNED_NOISE_SIGMA	10.496
TUNING_UNTUNED_NOISE_95_LOW	79.676
TUNING_UNTUNED_NOISE_95_HIGH	117.647

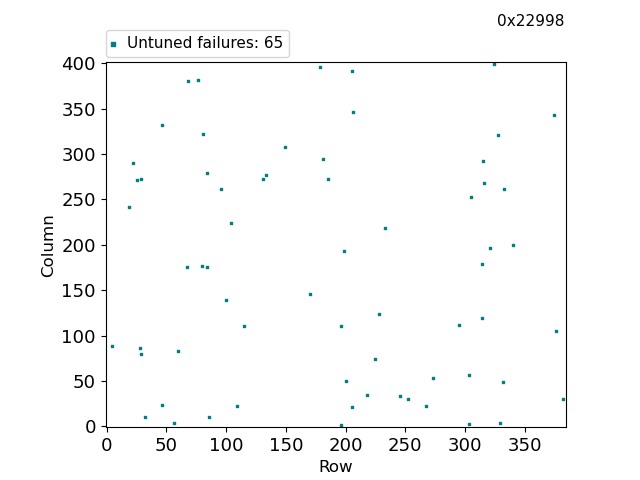

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	65

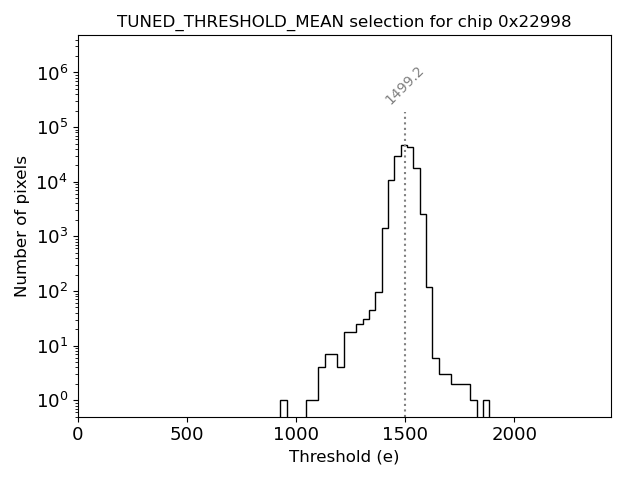

TUNING_TUNED_THRESHOLD_MEAN	1499.2
TUNING_TUNED_THRESHOLD_95_LOW	1431.603
TUNING_TUNED_THRESHOLD_95_HIGH	1561.949
TUNING_TUNED_THRESHOLD_SIGMA	35.0

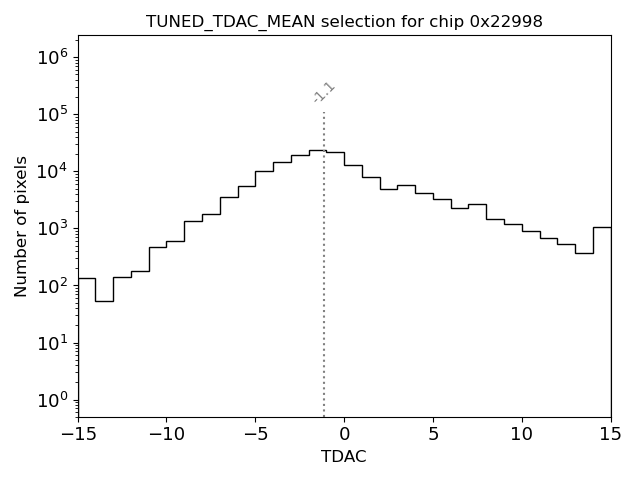

TUNING_TUNED_TDAC_MEAN	-1.1
TUNING_TUNED_TDAC_SIGMA	4.086
TUNING_TUNED_NOISE_MEAN	100.422
TUNING_TUNED_NOISE_SIGMA	10.887
TUNING_TUNED_NOISE_95_LOW	81.298
TUNING_TUNED_NOISE_95_HIGH	120.883
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.08
TUNING_TUNED_TOT_95_HIGH	10.13
TUNING_TUNED_THRESHOLD_FAILED_FITS	0

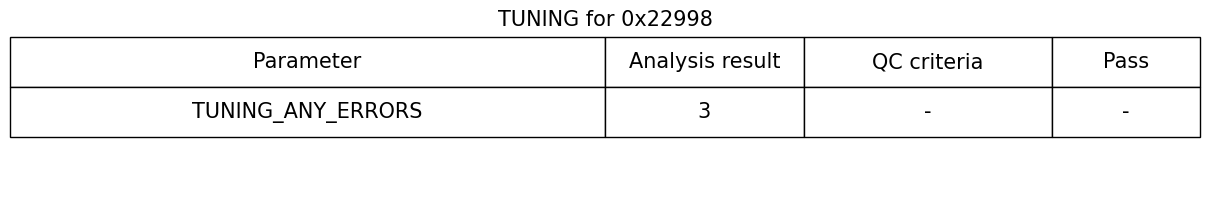

TUNING_ANY_ERRORS	{'tune_globalthreshold': 0, 'thresholdscan_hr': 3, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 0, 'totscan': 0, 'all': 3}
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.6
MEASUREMENT_DATE	2026-05-13T07:13:29.000+00:00
MEASUREMENT_DURATION	698

Attachments

Filename	Contents
output.log	Download
0x22998.log	Download
20UPGFC0141720_MODULE__FINAL_WARM_TUNING.zip	Download
