20UPGFC0141626

MODULE/QC_STATUS

Component Information

Serial Number	20UPGFC0141626
ProdDB ID	916777…b04f86
LocalDB ID	660d226e5d9bdc0035fd91e2
Component Type	fe_chip
Parents	20UPGM24211150 20UPGB43200224
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	7
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/QC_CROSSCHECK)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d226e5d9bdc0035fd91e2
Stage	MODULE/QC_CROSSCHECK
Test Type	TUNING
Institute ObjectId
User Name	None
ObjectId of this record	6a0263f31f68f7138e53e647
ObjectId of RAW record	None
Tags	No tags
Tuning Config	Associated FE Config

Results

Key	Data
DCSdata	{}
QC_LAYER	L2
TUNING_UNTUNED_THRESHOLD_MEAN	2373.199
TUNING_UNTUNED_THRESHOLD_95_LOW	1792.407
TUNING_UNTUNED_THRESHOLD_95_HIGH	3010.899
TUNING_UNTUNED_THRESHOLD_SIGMA	309.092
TUNING_UNTUNED_TDAC_MEAN	0.0
TUNING_UNTUNED_TDAC_SIGMA	0.0

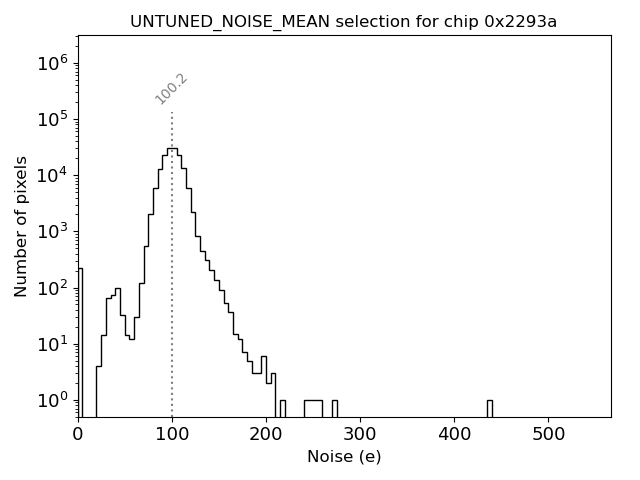

TUNING_UNTUNED_NOISE_MEAN	100.194
TUNING_UNTUNED_NOISE_SIGMA	11.38
TUNING_UNTUNED_NOISE_95_LOW	80.703
TUNING_UNTUNED_NOISE_95_HIGH	120.821

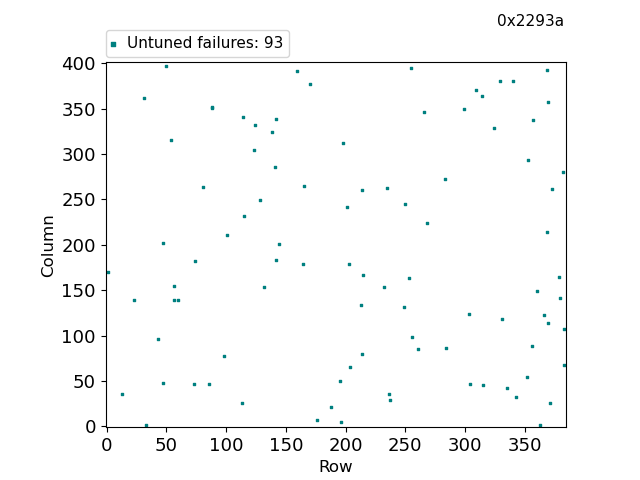

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	93

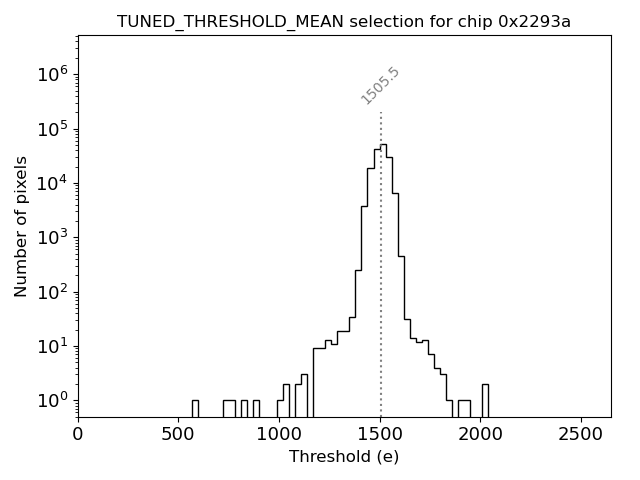

TUNING_TUNED_THRESHOLD_MEAN	1505.5
TUNING_TUNED_THRESHOLD_95_LOW	1439.131
TUNING_TUNED_THRESHOLD_95_HIGH	1567.893
TUNING_TUNED_THRESHOLD_SIGMA	34.0
TUNING_TUNED_TDAC_MEAN	-1.5
TUNING_TUNED_TDAC_SIGMA	4.079
TUNING_TUNED_NOISE_MEAN	101.937
TUNING_TUNED_NOISE_SIGMA	11.251
TUNING_TUNED_NOISE_95_LOW	81.824
TUNING_TUNED_NOISE_95_HIGH	123.172
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.23
TUNING_TUNED_TOT_95_HIGH	10.09
TUNING_TUNED_THRESHOLD_FAILED_FITS	3
TUNING_ANY_ERRORS	{'tune_globalthreshold': 1, 'thresholdscan_hr': 5, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 3, 'totscan': 0, 'all': 9}
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.6
MEASUREMENT_DATE	2026-05-12T04:14:06.000+00:00
MEASUREMENT_DURATION	696

Attachments

Filename	Contents
output.log	Download
0x2293a.log	Download
20UPGFC0141626_MODULE__QC_CROSSCHECK_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

6a038cb3d89d168bd747a23c

state

ready

stateTs

2026-05-12T20:25:23.067Z

stateUserIdentity

4567-7563-1

date

2026-05-11T23:19:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5f99e7c9ecd73e000a47d6de
code	LBNL_PIXEL_MODULES
name	Lawrence Berkeley National Lab - pixel modules

user

id	68dd53c646c81c946f43368b
userIdentity	4567-7563-1
firstName	Maria
middleName
lastName	Therese Satnik

runNumber

6a0263f31f68f7138e53e647

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.8.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-05-12T04:14:06.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	696	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.6	None	None

results

code

TUNING_ANY_ERRORS

name

TUNING_ANY_ERRORS

order

dataType

object

valueType

single

arrayDimensions

None

additional

False

rangeMin

None

rangeMax

None

value

tune_globalthreshold	1
thresholdscan_hr	5
tune_pixelthreshold	0
thresholdscan_hd	3
totscan	0
all	9

associateChild

None

code TUNING_TUNED_NOISE_95_HIGH
name Tuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 123.172
associateChild None
code TUNING_TUNED_NOISE_95_LOW
name Tuned noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 81.824
associateChild None
code TUNING_TUNED_NOISE_MEAN
name Tuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 101.937
associateChild None
code TUNING_TUNED_NOISE_SIGMA
name Tuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.251
associateChild None
code TUNING_TUNED_TDAC_MEAN
name Tuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value -1.5
associateChild None
code TUNING_TUNED_TDAC_SIGMA
name Tuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 4.079
associateChild None
code TUNING_TUNED_THRESHOLD_95_HIGH
name Tuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1567.893
associateChild None
code TUNING_TUNED_THRESHOLD_95_LOW
name Tuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1439.131
associateChild None

code	TUNING_TUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the tuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	3
associateChild	None

code TUNING_TUNED_THRESHOLD_MEAN
name Mean of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1505.5
associateChild None
code TUNING_TUNED_THRESHOLD_SIGMA
name Sigma of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 34
associateChild None
code TUNING_TUNED_TOT_95_HIGH
name Tuned ToT 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.09
associateChild None
code TUNING_TUNED_TOT_95_LOW
name Tuned ToT 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 5.23
associateChild None
code TUNING_TUNED_TOT_MEAN
name Mean of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.4
associateChild None
code TUNING_TUNED_TOT_SIGMA
name Sigma of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0.3
associateChild None
code TUNING_UNTUNED_NOISE_95_HIGH
name Untuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 120.821
associateChild None
code TUNING_UNTUNED_NOISE_95_LOW
name Noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 80.703
associateChild None
code TUNING_UNTUNED_NOISE_MEAN
name Untuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 100.194
associateChild None
code TUNING_UNTUNED_NOISE_SIGMA
name Untuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.38
associateChild None
code TUNING_UNTUNED_TDAC_MEAN
name Untuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_TDAC_SIGMA
name Untuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_HIGH
name Untuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 3010.899
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_LOW
name Untuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1792.407
associateChild None

code	TUNING_UNTUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the untuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	93
associateChild	None

code TUNING_UNTUNED_THRESHOLD_MEAN
name Mean of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2373.199
associateChild None
code TUNING_UNTUNED_THRESHOLD_SIGMA
name Sigma of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 309.092
associateChild None
