20UPGFC0132790

TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY

Component Information

Serial Number 20UPGFC0132790
ProdDB ID  e0cf15…68bf7c
LocalDB ID 65d8accc99608400427b8f71
Component Type fe_chip
Parents 20UPGM23210493  20UPGB43200013 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None
Target Iref trim None
Target Iref trim version None

 Comments


Test: TUNING QC Failed

(Stage: MODULE/FINAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date 9 months ago
component ObjectId 65d8accc99608400427b8f71
Stage MODULE/FINAL_WARM
Test Type TUNING
Institute ObjectId
User Name FrancescoCrescioli
ObjectId of this record 67d1478f2c3197d918bcf591
ObjectId of RAW record None
Tags No tags

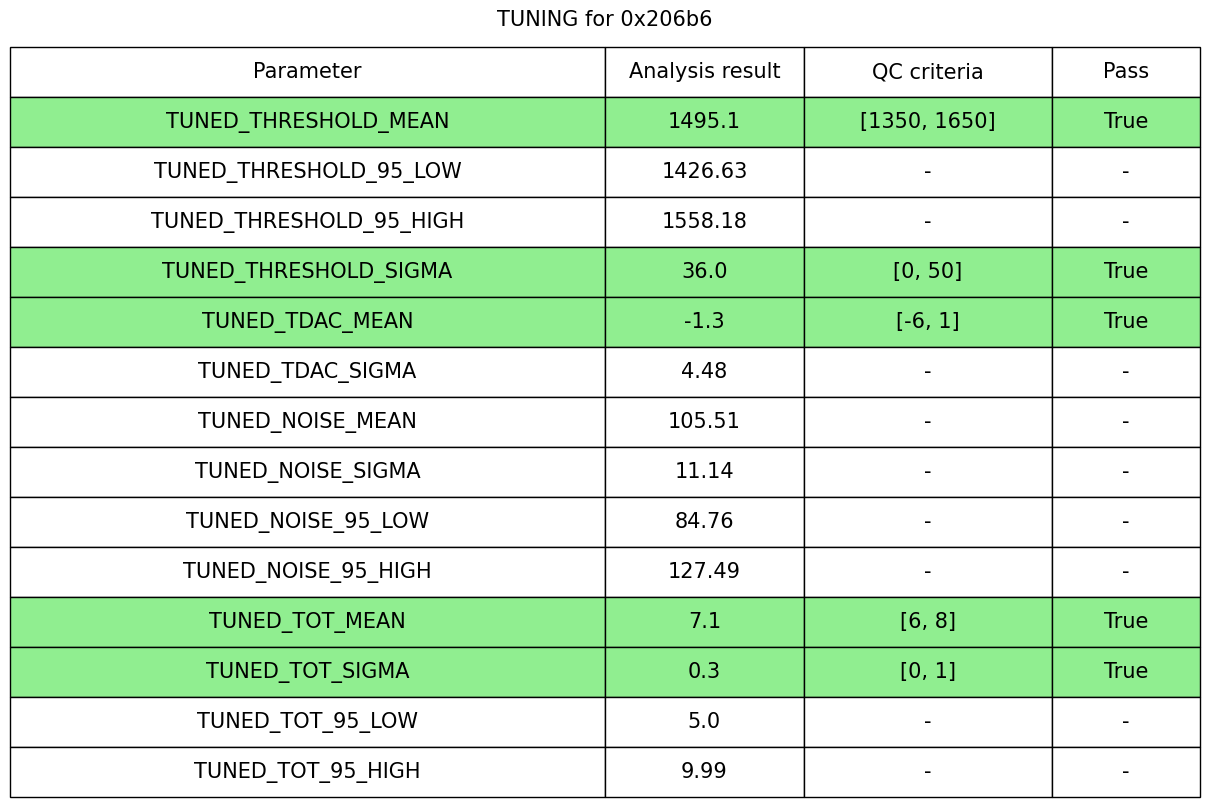

Results

Key Data
ANALYSIS_VERSION mqat v2.3.1rc4
MEASUREMENT_DATE 2025-03-11T15:35:14.000+00:00
MEASUREMENT_DURATION 839
MEASUREMENT_VERSION None
YARR_VERSION v1.5.2-3-g593135e1
TUNING_TUNED_NOISE_95_HIGH 127.493
TUNING_TUNED_NOISE_95_LOW 84.759

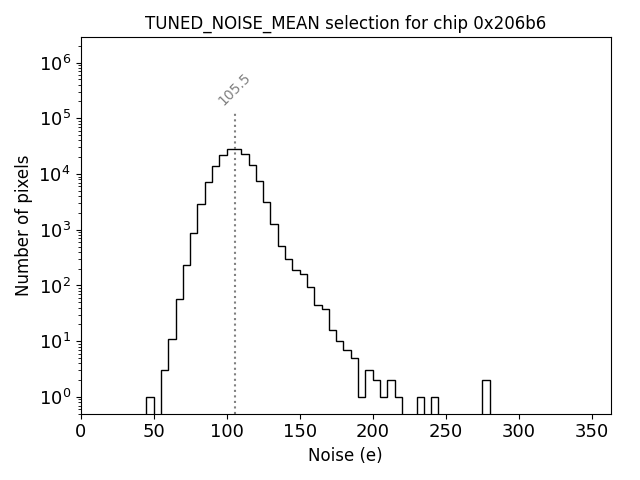

TUNING_TUNED_NOISE_MEAN 105.51
TUNING_TUNED_NOISE_SIGMA 11.143

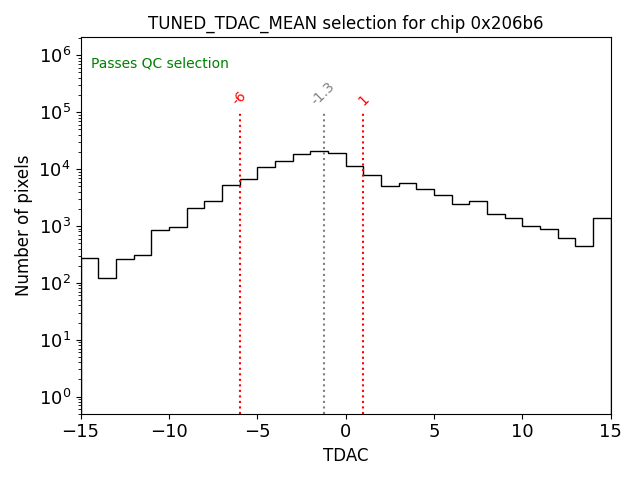

TUNING_TUNED_TDAC_MEAN -1.3
TUNING_TUNED_TDAC_SIGMA 4.484
TUNING_TUNED_THRESHOLD_95_HIGH 1558.177
TUNING_TUNED_THRESHOLD_95_LOW 1426.629
TUNING_TUNED_THRESHOLD_FAILED_FITS 10

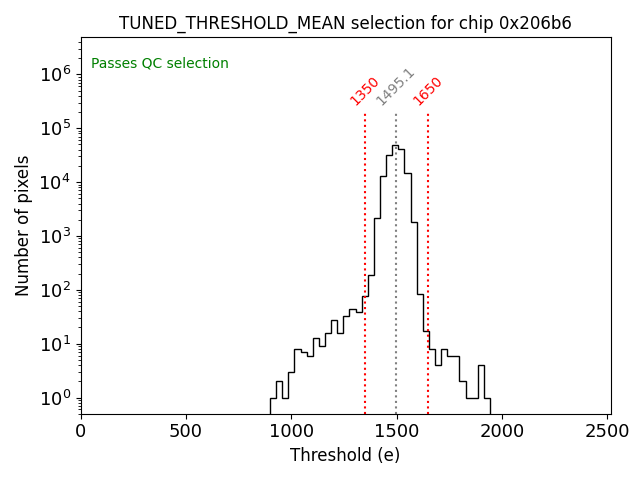

TUNING_TUNED_THRESHOLD_MEAN 1495.1
TUNING_TUNED_THRESHOLD_SIGMA 36
TUNING_TUNED_TOT_95_HIGH 9.99
TUNING_TUNED_TOT_95_LOW 5

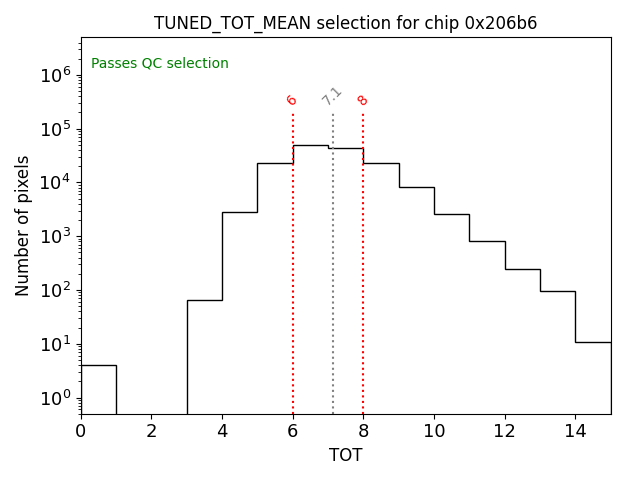

TUNING_TUNED_TOT_MEAN 7.1
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_UNTUNED_NOISE_95_HIGH 126.969
TUNING_UNTUNED_NOISE_95_LOW 84.479

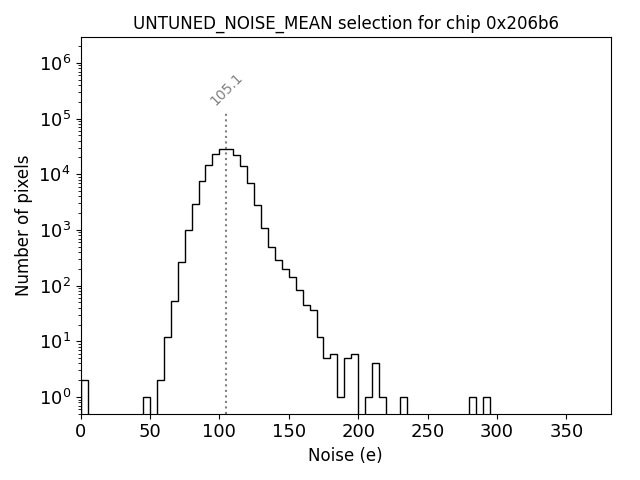

TUNING_UNTUNED_NOISE_MEAN 105.085
TUNING_UNTUNED_NOISE_SIGMA 11.066

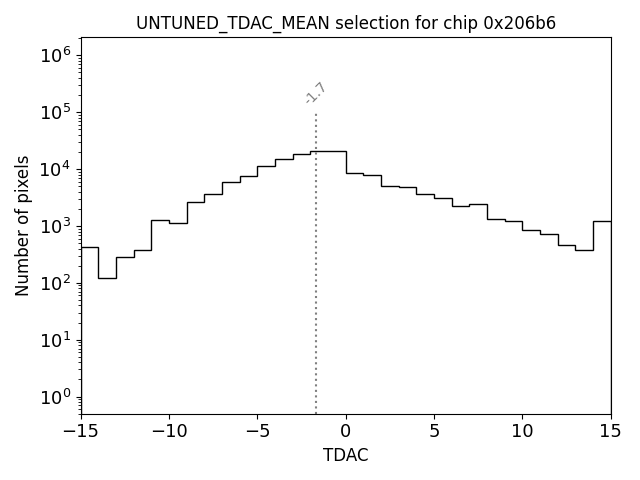

TUNING_UNTUNED_TDAC_MEAN -1.663
TUNING_UNTUNED_TDAC_SIGMA 4.441
TUNING_UNTUNED_THRESHOLD_95_HIGH 1536.905
TUNING_UNTUNED_THRESHOLD_95_LOW 1334.907

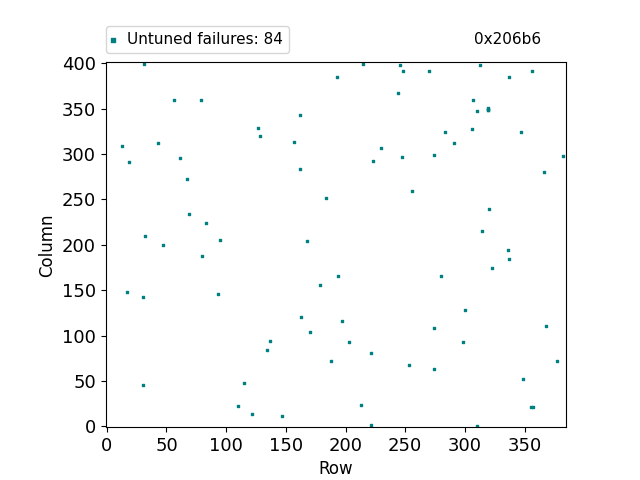

TUNING_UNTUNED_THRESHOLD_FAILED_FITS 84

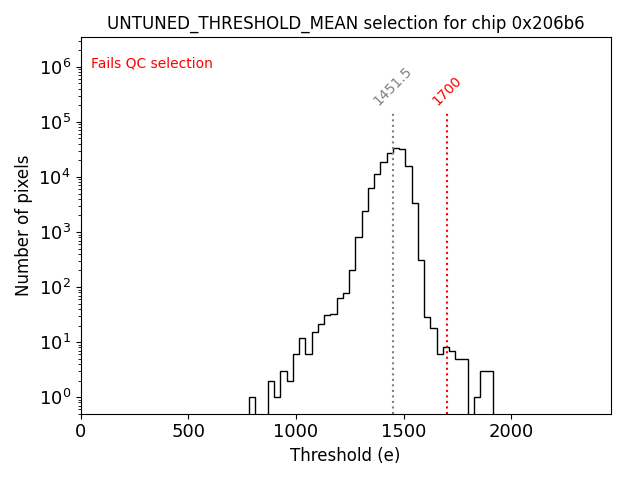

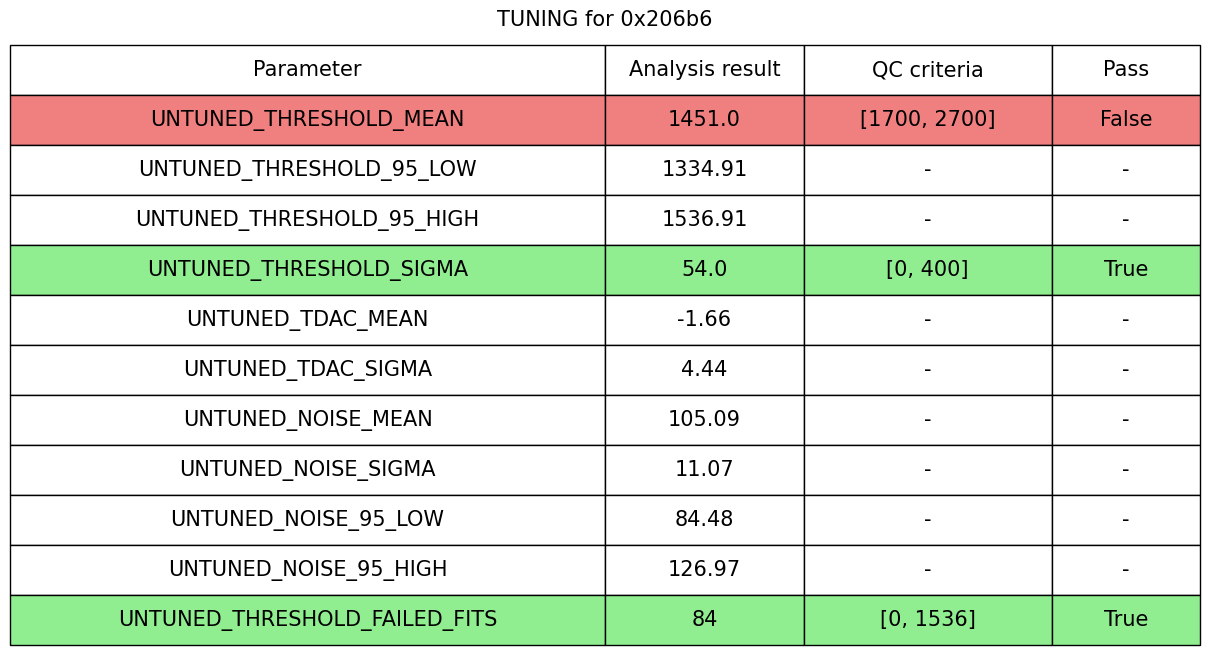

TUNING_UNTUNED_THRESHOLD_MEAN 1451
TUNING_UNTUNED_THRESHOLD_SIGMA 54

Attachments

Filename Contents
0x206b6_L2_warm.json Download
output.log Download
0x206b6.log Download
20UPGFC0132790_MODULE__FINAL_WARM_TUNING.zip Download

ProductionDB Record

id67d16bbd258daf889a16c701
stateready
stateTs2025-03-12T11:10:53.710Z
stateUserIdentity9086-39-1
date2025-03-12T08:36:00.000Z
testType
id6393a09015838700361eecc5
codeTUNING
nameTuning
stateactive
institution
id5d42fb891fd678000a409866
codeLPNHE
nameLaboratoire de Physique Nucléaire et de Hautes Energies
user
id5e98594f8bc0cb000ba8d3a8
userIdentity9086-39-1
firstNameFrancesco
middleName
lastNameCrescioli
runNumber67d1478f2c3197d918bcf591
passedFalse
problemsFalse
properties
codenamedataTypevalueTyperequiredvaluerangeMinrangeMax
ANALYSIS_VERSIONTuning analysis versionstringNoneTrue2.3.1rc4NoneNone
MEASUREMENT_DATEDate measurement performeddatetimeNoneFalse2025-03-11T15:35:14.000+00:00NoneNone
MEASUREMENT_DURATIONMeasurement durationintegerNoneFalse839NoneNone
MEASUREMENT_VERSIONMeasurement versionstringNoneFalseNoneNoneNone
YARR_VERSIONYarr VersionstringNoneFalsev1.5.2-3-g593135e1NoneNone
results
codenamedataTypevalueTypearrayDimensionsadditionalrangeMinrangeMaxvalueassociateChild
TUNING_TUNED_NOISE_95_HIGHTuned noise 95% highfloatsingleNoneNoneNoneNone127.493None
TUNING_TUNED_NOISE_95_LOWTuned noise 95% lowfloatsingleNoneNoneNoneNone84.759None
TUNING_TUNED_NOISE_MEANTuned noise meanfloatsingleNoneNoneNoneNone105.51None
TUNING_TUNED_NOISE_SIGMATuned noise sigmafloatsingleNoneNoneNoneNone11.143None
TUNING_TUNED_TDAC_MEANTuned TDAC meanfloatsingleNoneNoneNoneNone-1.3None
TUNING_TUNED_TDAC_SIGMATuned TDAC sigmafloatsingleNoneNoneNoneNone4.484None
TUNING_TUNED_THRESHOLD_95_HIGHTuned threshold 95% highfloatsingleNoneNoneNoneNone1558.177None
TUNING_TUNED_THRESHOLD_95_LOWTuned threshold 95% lowfloatsingleNoneNoneNoneNone1426.629None
TUNING_TUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the tuned threshold scanintegersingleNoneNoneNoneNone10None
TUNING_TUNED_THRESHOLD_MEANMean of the tuned threshold distributionfloatsingleNoneNoneNoneNone1495.1None
TUNING_TUNED_THRESHOLD_SIGMASigma of the tuned threshold distributionfloatsingleNoneNoneNoneNone36None
TUNING_TUNED_TOT_95_HIGHTuned ToT 95% highfloatsingleNoneNoneNoneNone9.99None
TUNING_TUNED_TOT_95_LOWTuned ToT 95% lowfloatsingleNoneNoneNoneNone5None
TUNING_TUNED_TOT_MEANMean of tuned ToT distributionfloatsingleNoneNoneNoneNone7.1None
TUNING_TUNED_TOT_SIGMASigma of tuned ToT distributionfloatsingleNoneNoneNoneNone0.3None
TUNING_UNTUNED_NOISE_95_HIGHUntuned noise 95% highfloatsingleNoneNoneNoneNone126.969None
TUNING_UNTUNED_NOISE_95_LOWNoise 95% lowfloatsingleNoneNoneNoneNone84.479None
TUNING_UNTUNED_NOISE_MEANUntuned noise meanfloatsingleNoneNoneNoneNone105.085None
TUNING_UNTUNED_NOISE_SIGMAUntuned noise sigmafloatsingleNoneNoneNoneNone11.066None
TUNING_UNTUNED_TDAC_MEANUntuned TDAC meanfloatsingleNoneNoneNoneNone-1.663None
TUNING_UNTUNED_TDAC_SIGMAUntuned TDAC sigmafloatsingleNoneNoneNoneNone4.441None
TUNING_UNTUNED_THRESHOLD_95_HIGHUntuned threshold 95% highfloatsingleNoneNoneNoneNone1536.905None
TUNING_UNTUNED_THRESHOLD_95_LOWUntuned threshold 95% lowfloatsingleNoneNoneNoneNone1334.907None
TUNING_UNTUNED_THRESHOLD_FAILED_FITSNumber of failed fits from the untuned threshold scanintegersingleNoneNoneNoneNone84None
TUNING_UNTUNED_THRESHOLD_MEANMean of the untuned threshold distributionfloatsingleNoneNoneNoneNone1451None
TUNING_UNTUNED_THRESHOLD_SIGMASigma of the untuned threshold distributionfloatsingleNoneNoneNoneNone54None
cts2025-03-12T11:10:53.711Z
sys
cts2025-03-12T11:10:53.711Z
mts2025-03-12T11:11:03.994Z
rev2
defects
commentsNone
attachments
codedateTimetitledescriptioncontentTypetypeurlurlCernboxfilenameuser
3905f402c99745a68593b2bf40f1d96f2025-03-12T11:10:59.548Z0x206b6_L2_warm.json{"_id":"67d057f5bb682d6b9fe1507f","serialNumber":"20UPGFC0132790","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"67d169b70a3ada6da0982bc6"}Noneeoshttps://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/3/9/0/3905f402c99745a68593b2bf40f1d96f?authz=zteos64:MDAwMDAyYmV4nO2QP0vDUBTFadEOHUQcHDpdxEGHNLlJX_7cQVwViuBaIrz0vbQhbV5IXgc7iDh1chBEXAQ3Rz-AuLgoDi66OPZjOFmLg4Ojo3c4XH6cezmc-mO1XimWT26n97XGYqLTXKxVx_lGxXZMqUqT6wH_1q4ssl6hRrlIytQUUhszu5kXShgiMh0zMK3d9S7D2GXMNyzH8wzE2DK4bAUGb0WxhV7genaw_1rptFUGbV4AemDb5DByArAtm4UwSgRhC10fO_M4IfS-iGN5nXEegk6EzDQVSukmC9C3kRAdl213iOLZEMMmotsM_CZaIWR8KGn-B0RGMEurKS0iBjzPCfqq1PT7oVBDnmT0g_SkIouhA-VIzDbQBe9KApVFss8HMa3As3n88nBxOXkvJ62j04OrcvVw6al2t7P5cb63dQNp47_svyobrt_OpgufWr_YuA%3d%3dhttps://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/3/9/0/3905f402c99745a68593b2bf40f1d96f3905f402c99745a68593b2bf40f1d96f
id5e98594f8bc0cb000ba8d3a8
userIdentity9086-39-1
firstNameFrancesco
middleName
lastNameCrescioli
5e1c889bd7bedd5810e6c7ea1b6fc42e2025-03-12T11:11:03.994ZTestRun_67d16bbd258daf889a16c701_Attachment_Pack.zip/home/data/viewer/static/cache/thumbnail/TestRun_67d16bbd258daf889a16c701_Attachment_Pack.zipNoneeoshttps://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/5/e/1/5e1c889bd7bedd5810e6c7ea1b6fc42e?authz=zteos64:MDAwMDAyYmV4nO1QPUsDQRQkITEQLMRKYuFDLGzuY2-zt7mtLEVIo41wHLiX3UuOJLfH3qZJqX9AwX-gIHZWoo21QkobsYt_wMbeM1hYWFr6iuEx894wTPOx2qzolZOb-cNSq56aYS42q9N8u-JhR6rC4WbEv7EnddbXapKLtBg6QhqrPHdyrYQlYoc40kF7Wz3SlhgnvuViSi2EEtfiElOLt-PERTTwqRfsP1fCrsqgyzUgCp7HMGE4AM_1SASTVDDURn4HhYs4EfS_GOzScJpHYFIhM8O0UsYmAepQr9SIh3ZCxpJyGEE2Qr4ddGzkRpDxsWQLHxAZgzKtYUMdE-B5zmCgCsN-fxRqzNOM_WD6UjGXIAzFRJQbGM17koHKYjngo4StwnvjcHZ7Xdt4WTudnd19LF_Wd88visb8QDxdzY5a663_sv-qbHi9fzuufQKcG9mMhttps://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/5/e/1/5e1c889bd7bedd5810e6c7ea1b6fc42e5e1c889bd7bedd5810e6c7ea1b6fc42e
id5e98594f8bc0cb000ba8d3a8
userIdentity9086-39-1
firstNameFrancesco
middleName
lastNameCrescioli
components
idcodestatestateTsstateUserIdentitydummycompletedcompletedTscompletedUserIdentitytrashedtrashedTstrashedUserIdentityserialNumberalternativeIdentifierancestorMapprojectsubprojectcomponentTypetypepropertiestestedAtStageinstitution
65d8accc99608400427b8f71e0cf15da4273690a726ee4fc5268bf7cready2024-02-23T14:33:48.909Z9024-6168-1FalseFalseNoneNoneFalseNoneNone20UPGFC0132790None
parent
component
id66fbb1b913e0b000433e019c
code79ce5a990327bcb634ee3a3efd24ab30
stateready
stateTs2024-10-01T08:24:25.915Z
stateUserIdentity23-6780-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGB43200013
alternativeIdentifierNone
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeBARE_MODULE
nameBare Module
type
codeQUAD_BARE_MODULE
nameQuad bare module
testedAtStage
codeMODULE/LONG_TERM_STABILITY_TEST
nameLong Term Stability Test
highestLevelParent
component
id6710b781eff9780043ad2f66
codea3408c805ec2e2d4c28203e1b408c43a
stateready
stateTs2024-10-17T07:06:41.688Z
stateUserIdentity9086-39-1
dummyFalse
completedFalse
completedTsNone
completedUserIdentityNone
trashedFalse
trashedTsNone
trashedUserIdentityNone
serialNumber20UPGM23210493
alternativeIdentifierPPPV2_09
project
codeP
namePixels
subproject
codePG
namePixel general
componentType
codeMODULE
nameModule
type
codeOUTER_SYSTEM_QUAD_MODULE
nameOuter system quad module
testedAtStage
codeMODULE/LONG_TERM_STABILITY_TEST
nameLong Term Stability Test
codeP
namePixels
codePG
namePixel general
codeFE_CHIP
nameFront-end Chip
codeITKPIX_V2
nameITkpix_V2
None
codeMODULE/FINAL_WARM
nameFinal Warm
order19
initialFalse
finalFalse
codeBONN
nameUniversity of Bonn

 Current Stage: Test after Loaded local support assembly

Test Type Local Result
OB:Loaded local support QC electrical connectivity
(OBLoadedLocalSupportQC_ElectricalConnectivity)		 No TestRun!
OB:Loaded local support QC electrical performance
(OBLoadedLocalSupportQC_ElectricalPerformance)		 No TestRun!
OB:Loaded local support reception at the integration site
(OBLoadedLocalSupport_IntegrationSite)		 No TestRun!
OB:Loaded local support QC electrical low power
(OBLoadedLocalSupport_QCElectricalLowPower)		 No TestRun!

 Candidate TestRuns of this Stage

LDB ID TestRun Code QC Passed Inspector Measurement Date Analysis Date Analysis Version Tags QC Registration
67d03d…bcf398 INJECTION_CAPACITANCE Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d057…664ca1 LP_MODE Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d147…bcf591 TUNING Fail FrancescoCrescioli N/A 9 months ago 2.3.1rc4 No tags Selected
67d147…2a7424 PIXEL_FAILURE_ANALYSIS Fail FrancescoCrescioli N/A 9 months ago 2.3.1rc4 No tags Selected
67d146…664dc9 MIN_HEALTH_TEST Pass FrancescoCrescioli N/A 9 months ago 2.3.1rc4 No tags Selected
67d057…ad99ed DATA_TRANSMISSION Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d03c…ad9956 VCAL_CALIBRATION Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d036…664b1a SLDO Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d02e…ad98e9 ANALOG_READBACK Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
67d011…3f4b7c ADC_CALIBRATION Pass FrancescoCrescioli 9 months ago 9 months ago 2.3.1rc4 No tags Selected
