Database for ITk Pixel Module

Serial Number	20UPGFC0085314
ProdDB ID	7e0cf4…de5e39
LocalDB ID	62224d7380e95c000a48a619
Component Type	fe_chip
Parents	20UPIR62102135 20UPGBS2985314
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000333

Key	Data
QC Passed	False
Date	a year ago
component ObjectId	62224d7380e95c000a48a619
Stage	MODULE/INITIAL_WARM
Test Type	SLDO
Institute ObjectId
User Name	None
ObjectId of this record	6705afc8024597e6b2bcc42d
ObjectId of RAW record	6705afc3024597e6b2bcc420
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.8.dev28
MEASUREMENT_VERSION	2.2.7.dev4
QC_LAYER	L0
INSTITUTION	LBNL_PIXEL_MODULES

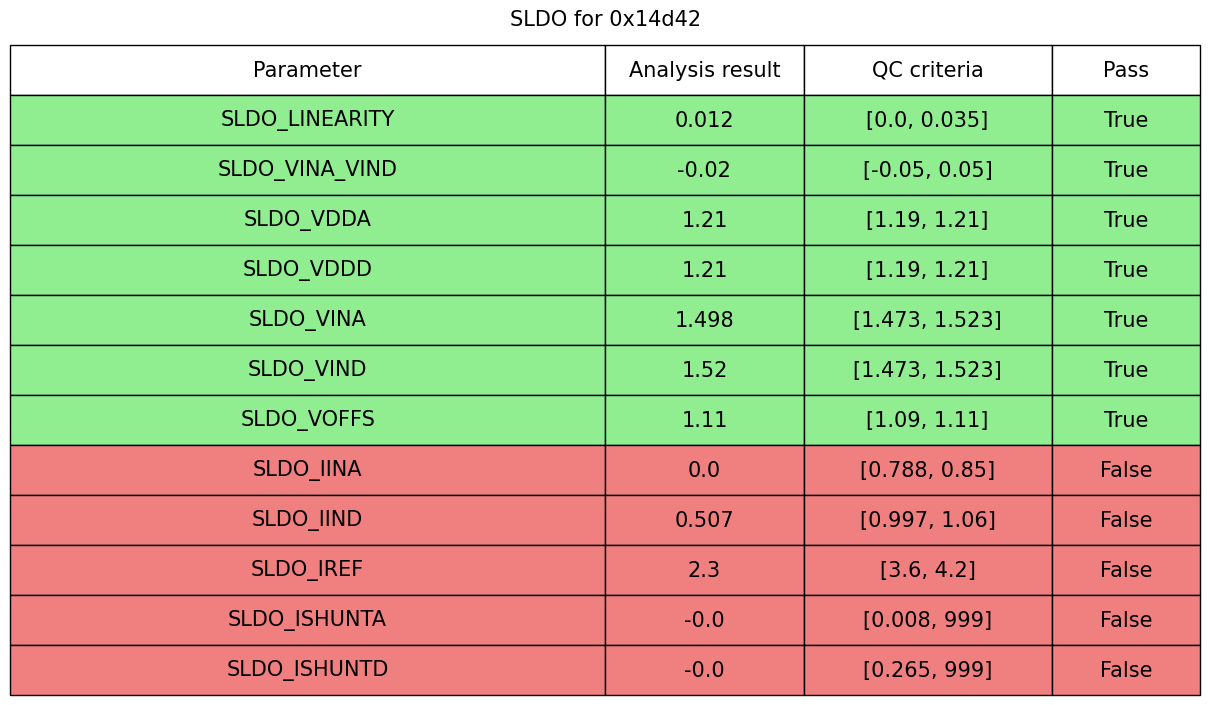

SLDO_LINEARITY	0.012

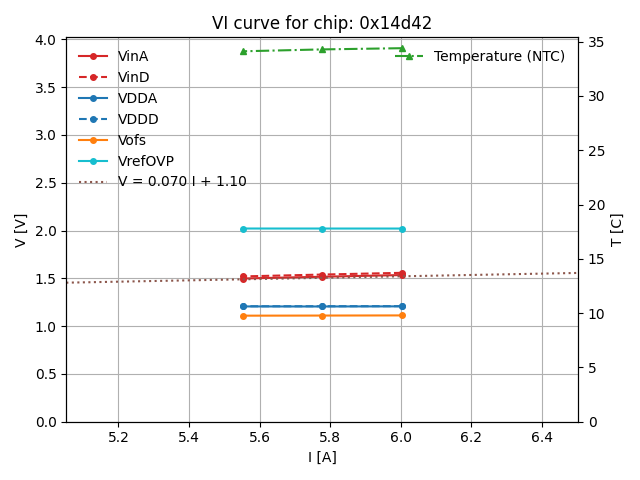

SLDO_VINA_VIND	-0.02
SLDO_VDDA	1.21
SLDO_VDDD	1.21
SLDO_VINA	1.498
SLDO_VIND	1.52
SLDO_VOFFS	1.11

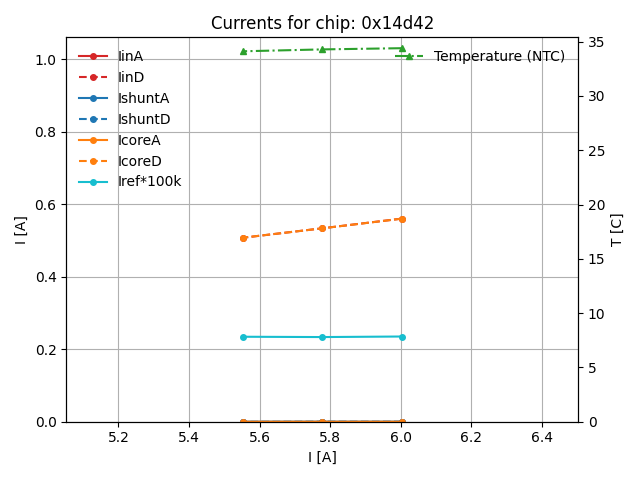

SLDO_IINA	0.0
SLDO_IIND	0.507
SLDO_IREF	2.3
SLDO_ISHUNTA	-0.0
SLDO_ISHUNTD	-0.0
SLDO_ANALOG_OVERHEAD	-0.979
SLDO_DIGITAL_OVERHEAD	-0.0

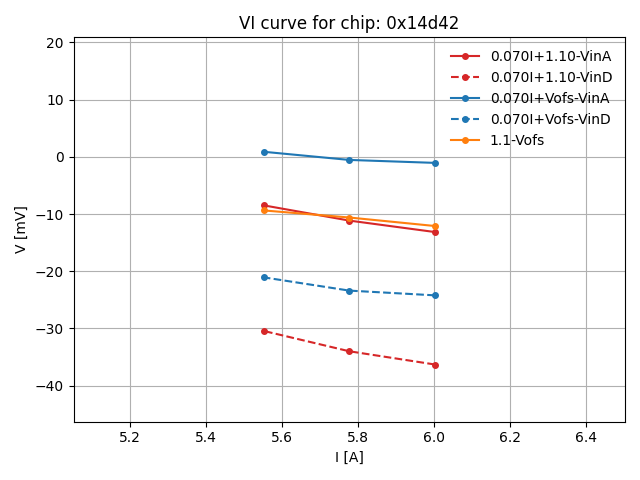

SLDO_VI_SLOPE	0.082
SLDO_VI_OFFSET	1.055
SLDO_NOM_INPUT_CURRENT	5.55

Filename	Contents
output.log	Download
0x14d42.log	Download

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	TestRun Present
Analog Readback (ANALOG_READBACK)	TestRun Present
SLDO (SLDO)	TestRun Present
VCAL Calibration (VCAL_CALIBRATION)	TestRun Present
Low Power Mode (LP_MODE)	TestRun Present
Data Transmission (DATA_TRANSMISSION)	TestRun Present
Injection Capacitance (INJECTION_CAPACITANCE)	TestRun Present
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
67e5a2…dc3a9c	SLDO	Fail	None	9 months ago	9 months ago	2.4.1rc0	No tags	Selected
67d37f…557a74	DATA_TRANSMISSION	Pass	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d37f…557a59	LP_MODE	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d37d…557a29	INJECTION_CAPACITANCE	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d37d…5579c3	VCAL_CALIBRATION	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d37c…bde8e4	SLDO	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d378…bde88d	ANALOG_READBACK	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d370…bde84d	ADC_CALIBRATION	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags	Selected
67d230…2d311d	INJECTION_CAPACITANCE	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d22f…2d30ef	VCAL_CALIBRATION	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d22e…2d30c6	SLDO	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d22b…2d3071	ANALOG_READBACK	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d222…2d3037	ADC_CALIBRATION	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67d20e…2d2fd5	ADC_CALIBRATION	Fail	None	9 months ago	9 months ago	2.4.0rc0	No tags
67cb88…f1f2d5	SLDO	Fail	None	9 months ago	9 months ago	2.3.1rc4	No tags
67cb60…f1f0f6	SLDO	Fail	None	9 months ago	9 months ago	2.3.1rc4	No tags
6705c0…1a0e7e	DATA_TRANSMISSION	Pass	None	a year ago	a year ago	2.2.8.dev36	No tags
6705c0…1a0e56	INJECTION_CAPACITANCE	Fail	None	a year ago	a year ago	2.2.8.dev36	No tags
6705c0…1a0e26	VCAL_CALIBRATION	Fail	None	a year ago	a year ago	2.2.8.dev36	No tags
6705bf…1a0df8	SLDO	Fail	None	a year ago	a year ago	2.2.8.dev36	No tags
6705bd…1a0db3	ANALOG_READBACK	Fail	None	a year ago	a year ago	2.2.8.dev36	No tags
6705b7…1a0c23	ADC_CALIBRATION	Fail	None	a year ago	a year ago	2.2.8.dev36	No tags
6705b5…1a0bbb	SLDO	Fail	pixel	a year ago	a year ago	2.2.8.dev36	No tags
6705b0…bcc45a	ADC_CALIBRATION	Fail	None	a year ago	a year ago	2.2.8.dev28	No tags
6705af…bcc42d	SLDO	Fail	None	a year ago	a year ago	2.2.8.dev28	No tags
66be7f…a253f6	ADC_CALIBRATION	Fail	None	a year ago	a year ago	2.2.6	No tags

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
67e5a2…dc3a9c	MODULE/INITIAL_WARM	SLDO	None	9 months ago	9 months ago	No tags	Selected
67d37f…557a74	MODULE/INITIAL_WARM	DATA_TRANSMISSION	None	9 months ago	9 months ago	No tags	Selected
67d37f…557a59	MODULE/INITIAL_WARM	LP_MODE	None	9 months ago	9 months ago	No tags	Selected
67d37d…557a29	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	None	9 months ago	9 months ago	No tags	Selected
67d37d…5579c3	MODULE/INITIAL_WARM	VCAL_CALIBRATION	None	9 months ago	9 months ago	No tags	Selected
67d37c…bde8e4	MODULE/INITIAL_WARM	SLDO	None	9 months ago	9 months ago	No tags
67d378…bde88d	MODULE/INITIAL_WARM	ANALOG_READBACK	None	9 months ago	9 months ago	No tags	Selected
67d370…bde84d	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	9 months ago	9 months ago	No tags	Selected
67d230…2d311d	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	None	9 months ago	9 months ago	No tags
67d22f…2d30ef	MODULE/INITIAL_WARM	VCAL_CALIBRATION	None	9 months ago	9 months ago	No tags
67d22e…2d30c6	MODULE/INITIAL_WARM	SLDO	None	9 months ago	9 months ago	No tags
67d22b…2d3071	MODULE/INITIAL_WARM	ANALOG_READBACK	None	9 months ago	9 months ago	No tags
67d222…2d3037	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	9 months ago	9 months ago	No tags
67d20e…2d2fd5	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	9 months ago	9 months ago	No tags
67cb88…f1f2d5	MODULE/INITIAL_WARM	SLDO	None	9 months ago	9 months ago	No tags
67cb60…f1f0f6	MODULE/INITIAL_WARM	SLDO	None	9 months ago	9 months ago	No tags
6705c0…1a0e7e	MODULE/INITIAL_WARM	DATA_TRANSMISSION	None	a year ago	a year ago	No tags
6705c0…1a0e56	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	None	a year ago	a year ago	No tags
6705c0…1a0e26	MODULE/INITIAL_WARM	VCAL_CALIBRATION	None	a year ago	a year ago	No tags
6705bf…1a0df8	MODULE/INITIAL_WARM	SLDO	None	a year ago	a year ago	No tags
6705bd…1a0db3	MODULE/INITIAL_WARM	ANALOG_READBACK	None	a year ago	a year ago	No tags
6705b7…1a0c23	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	a year ago	a year ago	No tags
6705b5…1a0bbb	MODULE/INITIAL_WARM	SLDO	pixel	a year ago	a year ago	No tags
6705b0…bcc45a	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	a year ago	a year ago	No tags
6705af…bcc42d	MODULE/INITIAL_WARM	SLDO	None	a year ago	a year ago	No tags
66be7f…a253f6	MODULE/INITIAL_WARM	ADC_CALIBRATION	None	a year ago	a year ago	No tags
62224e…48c6eb	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	3 years ago	No tags	Selected

Run	Date	Test Type	Stage	User	Site	Tags	Status
2902	9 months ago	std_mergedbumpscan	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2901	9 months ago	std_discbumpscan	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2900	9 months ago	std_noisescan	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2899	9 months ago	std_thresholdscan_hd	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2898	9 months ago	std_analogscan	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2897	9 months ago	std_digitalscan	MODULE/INITIAL_WARM	epianori	lbnl	PFA	Pass
2896	9 months ago	std_totscan	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2895	9 months ago	std_thresholdscan_hd	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2894	9 months ago	std_tune_pixelthreshold	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2893	9 months ago	std_tune_globalthreshold	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2892	9 months ago	std_totscan	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2891	9 months ago	std_thresholdscan_hr	MODULE/INITIAL_WARM	epianori	lbnl	TUN	Pass
2890	9 months ago	std_totscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2889	9 months ago	std_thresholdscan_hr	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2888	9 months ago	std_analogscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2887	9 months ago	std_digitalscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2811	a year ago	std_totscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2810	a year ago	std_thresholdscan_hr	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2809	a year ago	std_analogscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2808	a year ago	std_digitalscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
2750	a year ago	std_analogscan	MODULE/INITIAL_WARM	epianori	lbnl	MHT	Pass
