Database for ITk Pixel Module

Serial Number	20UPGFC0084904
ProdDB ID	1d97a1…4464d5
LocalDB ID	6222072180e95c000a45eb92
Component Type	fe_chip
Parents	No match.
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000331

Key	Data
QC Passed	True
Date	2 years ago
component ObjectId	6222072180e95c000a45eb92
Stage	MODULE/INITIAL_WARM
Test Type	ADC_CALIBRATION
Institute ObjectId
User Name	None
ObjectId of this record	6573715d35689ddfe79d0178
ObjectId of RAW record	6573715a35689ddfe79d016f
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.0
MEASUREMENT_VERSION	2.2.1rc1.dev27
QC_LAYER	L2
INSTITUTION	LBNL_PIXEL_MODULES

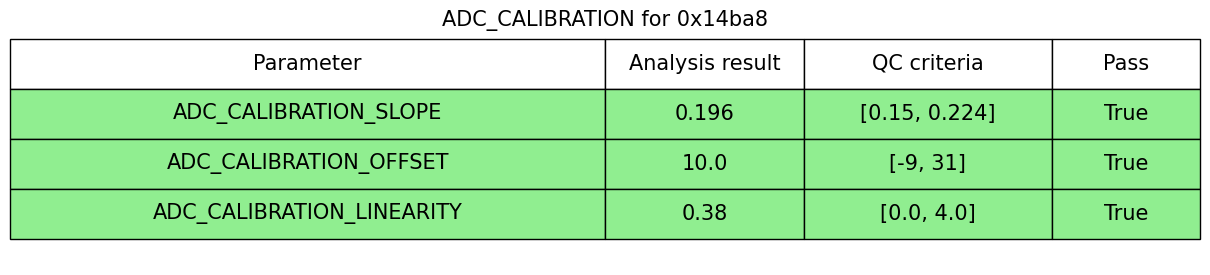

ADC_CALIBRATION_SLOPE	0.196
ADC_CALIBRATION_OFFSET	10.0
ADC_CALIBRATION_LINEARITY	0.38

Filename	Contents
output.log	Download
0x14ba8.log	Download

_id

6573715a35689ddfe79d016f

raw

serialNumber

testType

subtestType

results

stage

component

dbVersion

address

sys

20UPGFC0084904

ADC_CALIBRATION

property

ADC_CALIBRATION_MEASUREMENT_VERSION	2.2.1rc1.dev27

comment

Measurements

DACs_input

X	True
Unit	Count

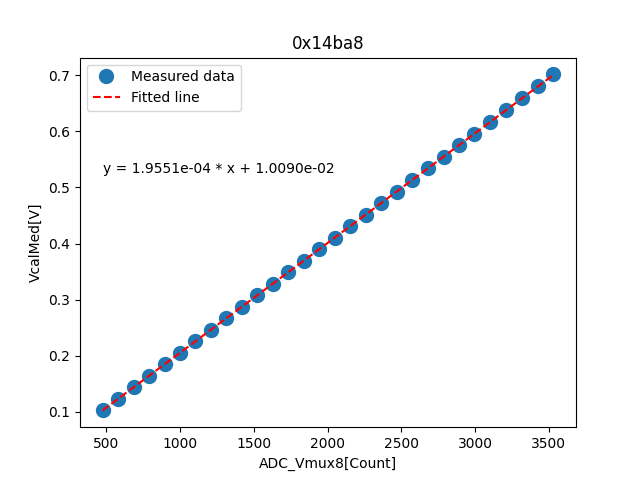

Values	500.0 600.0 700.0 800.0 900.0 1000.0 1100.0 1200.0 1300.0 1400.0 1500.0 1600.0 1700.0 1800.0 1900.0 2000.0 2100.0 2200.0 2300.0 2400.0 2500.0 2600.0 2700.0 2800.0 2900.0 3000.0 3100.0 3200.0 3300.0 3400.0

Vmux8

X	False
Unit	V
Values	0.14729 0.16797 0.18862 0.20918 0.22978 0.2504 0.27055 0.29106 0.31162 0.3322 0.3527 0.3731 0.3934 0.4145 0.4348 0.4552 0.4758 0.4965 0.5173 0.5375 0.558 0.5788 0.5999 0.62 0.6404 0.6619 0.6819 0.7042 0.7252 0.7466

Vmux30

X	False
Unit	V
Values	0.04446 0.04447 0.04448 0.0445 0.04452 0.04453 0.04453 0.04455 0.04457 0.04457 0.04458 0.04464 0.04476 0.04481 0.04476 0.04472 0.04473 0.04475 0.04476 0.04476 0.04477 0.04477 0.04475 0.04472 0.04469 0.04471 0.04473 0.04475 0.04487 0.04511

ADC_Vmux8

X	False
Unit	Count
Values	474 580 685 790 896 1001 1104 1208 1313 1419 1522 1630 1735 1837 1943 2051 2155 2261 2365 2471 2576 2680 2787 2893 2996 3105 3211 3319 3425 3532

ADC_Vmux30

X	False
Unit	Count
Values	0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

Metadata

ChipID

Name

0x14ba8

Institution

LBNL_PIXEL_MODULES

ModuleSN

20UPGM22110576

TimeStart

1702063623

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

RD53B

GlobalConfig

AuroraActiveLanes	1
CmlBias0	800
CmlBias1	400
CmlBias2	0
SerEnTap	1
SerInvTap	1
MonitorEnable	1
MonitorI	63
MonitorV	1
ServiceBlockEn	1
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffVff	60
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
DataMergeOutMux0	2
DataMergeOutMux1	3
DataMergeOutMux2	0
DataMergeOutMux3	1
SerEnLane	4
SldoTrimA	6
SldoTrimD	9
InjVcalRange	1

Parameter

ADCcalPar	10.0 0.195 10000.0
Name	0x14ba8
ChipId	12
InjCap	7.8100000000000005
NfDSLDO	1.28708001110426
NfASLDO	1.2865933158134537
NfACB	1.2840882665225395
VcalPar	3.559 0.208
IrefTrim	15
KSenseInA	21067.071
KSenseInD	22245.396
KSenseShuntA	26083.040285714287
KSenseShuntD	27541.918857142857
KShuntA	1087.518
KShuntD	1080.234

SoftwareType

TimeEnd

1702064472

MODULE/INITIAL_WARM

6222072180e95c000a45eb92

1.01

64657cef8d79bac1f3f00578

mts	2023-12-08 19:41:14.793000
cts	2023-12-08 19:41:14.793000
rev	0

rawHash

ea572961d87185250df6cf808d321d89

stage

MODULE/INITIAL_WARM
