20UPGM24211044 (ANL_ITkPix_119)

MODULE/COMPLETE

View QC Summary

Component Information

Serial Number 20UPGM24211044
ProdDB ID  99174c…3c9db7
LocalDB ID 6892546e0f647c459cade103
Component Type MODULE
Parents No match.
Children 20UPGB43200222 Bare Module 20UPGFC0141702 FE Chip 20UPGFC0141672 FE Chip 20UPGFC0141723 FE Chip 20UPGFC0141785 FE Chip 20UPGPQ4211044 PCB
Flags
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal False
Alternative ID ANL_ITkPix_119
Wirebond protection roof presence None
Rank None
Is preproduction module None

 Comments


Test: IV_MEASURE QC Passed

(Stage: MODULE/QC_CROSSCHECK)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date a month ago
component ObjectId 6892546e0f647c459cade103
Stage MODULE/QC_CROSSCHECK
Test Type IV_MEASURE
Institute ObjectId
User Name None
ObjectId of this record 69effe8b393bdda29033e7a5
ObjectId of RAW record 69effe86393bdda29033e79e
Tags ganymede_2

Results

Key Data
DCSdata {}
MEASUREMENT_VERSION 2.8.1.dev0
QC_LAYER L2
INSTITUTION LBNL_PIXEL_MODULES
MODULE_SN 20UPGM24211044

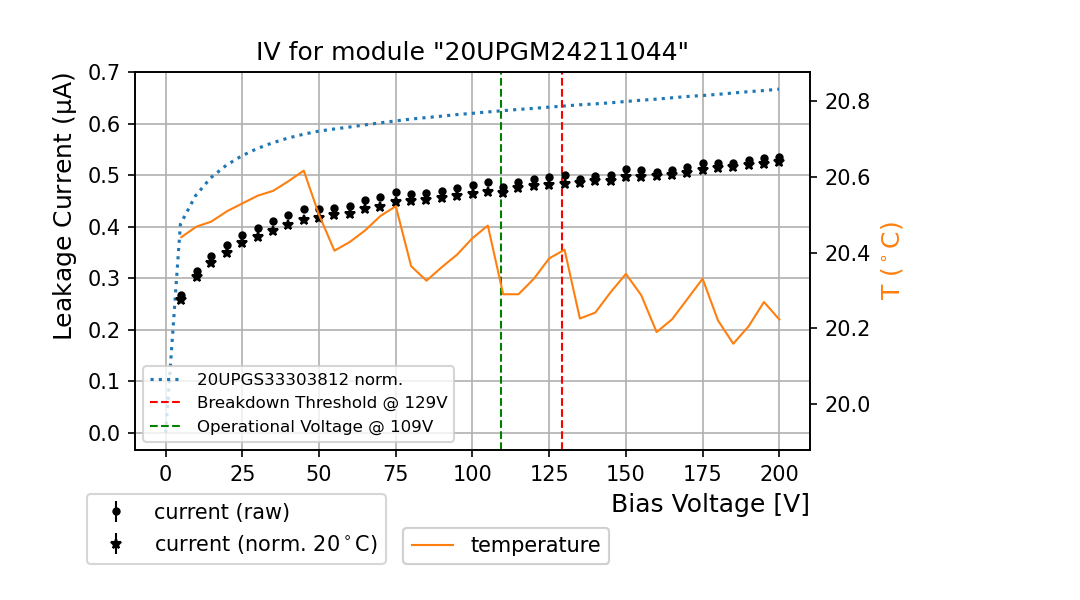

IV_ARRAY {'time': [3.05173397064209, 9.958908319473267, 16.39002752304077, 22.815181970596313, 29.22691011428833, 35.65894103050232, 42.11170840263367, 48.53125476837158, 54.97138547897339, 61.414379358291626, 67.84202861785889, 74.50249123573303, 80.94446063041687, 87.36105251312256, 93.78204035758972, 100.22291207313538, 106.70798873901367, 113.15282154083252, 119.60097146034241, 126.04788637161255, 132.46786999702454, 139.09381413459778, 145.52892303466797, 151.97597885131836, 158.4114272594452, 164.8446536064148, 171.2705113887787, 177.69907760620117, 184.14005088806152, 190.57406067848206, 197.02557039260864, 203.64223885536194, 210.08225202560425, 216.53005266189575, 222.96197891235352, 229.37565803527832, 235.8120403289795, 242.28681659698486, 248.71575498580933, 255.1579988002777, 261.56597805023193], 'voltage': [0.022, 5.066, 10.08, 14.81, 20.056, 25.0, 30.006, 35.01, 40.0, 45.008, 49.996, 55.006, 60.0, 65.006, 70.006, 75.008, 80.004, 85.002, 90.004, 95.0, 100.006, 104.998, 110.004, 114.996, 120.006, 125.0, 130.008, 135.004, 140.006, 145.008, 150.012, 155.01, 160.02, 165.008, 170.024, 175.014, 180.018, 185.006, 190.012, 195.004, 200.012], 'current': [0.036, 0.268, 0.314, 0.343, 0.36450000000000005, 0.38450000000000006, 0.398, 0.41100000000000003, 0.42300000000000004, 0.4345, 0.4345, 0.43650000000000005, 0.44000000000000006, 0.45200000000000007, 0.457, 0.4675, 0.4645, 0.465, 0.4695000000000001, 0.476, 0.48050000000000004, 0.487, 0.4775, 0.4875, 0.49250000000000005, 0.497, 0.5, 0.49350000000000005, 0.49900000000000005, 0.5010000000000001, 0.5115000000000001, 0.5095, 0.507, 0.5105000000000001, 0.5165000000000001, 0.5245000000000001, 0.523, 0.523, 0.5295, 0.5335, 0.5355], 'sigma current': [0.0, 0.0, 0.0, 0.0, 0.0, 5.293955920339377e-17, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 5.293955920339377e-17, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0], 'temperature': [20.427977152, 20.440755837, 20.468856525, 20.481623927, 20.509699827, 20.530107984, 20.55050716, 20.563252092, 20.588731458, 20.616742622, 20.499492378, 20.404966614, 20.427977152, 20.458640067, 20.496940164, 20.522455978, 20.364030676, 20.325620237, 20.361470974, 20.39473603, 20.438200382, 20.471410287, 20.289741608, 20.289741608, 20.330743477, 20.38450318, 20.407523907, 20.225603035, 20.241004445, 20.294868836, 20.343549088, 20.287177779, 20.189646341, 20.223035632, 20.276921039, 20.330743477, 20.220468086, 20.15880391, 20.205059796, 20.269226984, 20.223035632], 'humidity': []}
BREAKDOWN_VOLTAGE -999
BREAKDOWN_REDUCTION 0
NO_BREAKDOWN_VOLTAGE_OBSERVED True
MAXIMUM_VOLTAGE 200.012
LEAK_CURRENT 0.4661817250585935
LEAK_INCREASE_FACTOR 0.75
LEAK_PER_AREA 0.029
ANALYSIS_VERSION mqat v2.8.0rc1.dev12
TEMP 20.38
HUM 0
MEASUREMENT_DATE 2026-04-28T00:19:02.000+00:00
MEASUREMENT_DURATION 395
