20UPGM24211289 (ANL_ITkPix_103)

MODULE/THERMAL_CYCLES

View QC Summary

Component Information

Serial Number 20UPGM24211289
ProdDB ID  18b1be…87037e
LocalDB ID 688be4cda114c368961e0be4
Component Type MODULE
Parents No match.
Children 20UPGB43200206 Bare Module 20UPGFC0142490 FE Chip 20UPGFC0142507 FE Chip 20UPGFC0142478 FE Chip 20UPGFC0142508 FE Chip 20UPGPQ2211289 PCB
Flags • Core Column issue
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal True
Alternative ID ANL_ITkPix_103
Wirebond protection roof presence None
Rank None
Is preproduction module None

 Comments

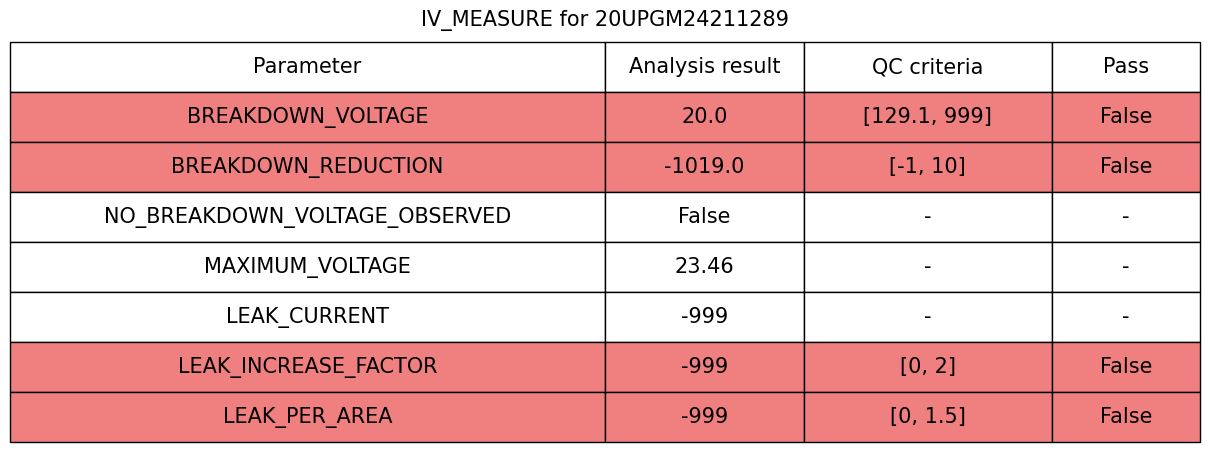

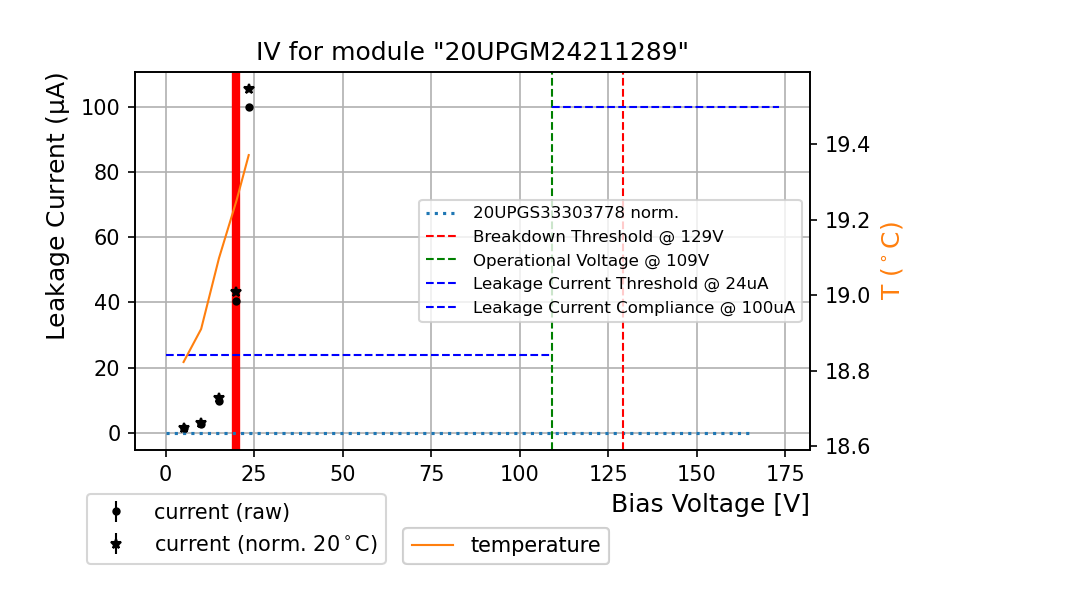

Test: IV_MEASURE QC Failed

(Stage: MODULE/POST_PARYLENE_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date a day ago
component ObjectId 688be4cda114c368961e0be4
Stage MODULE/POST_PARYLENE_WARM
Test Type IV_MEASURE
Institute ObjectId
User Name None
ObjectId of this record 69431cca894ba8a8f72060de
ObjectId of RAW record 69431cc5894ba8a8f72060d7
Tags ganymede_4

Results

Key Data
DCSdata {}
MEASUREMENT_VERSION 2.7.2.dev0
QC_LAYER L2
INSTITUTION LBNL_PIXEL_MODULES
MODULE_SN 20UPGM24211289
IV_ARRAY {'time': [3.06554913520813, 9.843182563781738, 16.54964590072632, 25.28267002105713, 32.01760411262512, 38.74157428741455], 'voltage': [0.0, 5.052, 10.016, 15.052, 20.004, 23.46], 'current': [0.0335, 1.472, 2.722, 9.8345, 40.46, 100.00200000000001], 'sigma current': [0.0, 2.1175823681357508e-16, 0.0, 0.0, 0.0, 1.3552527156068805e-14], 'temperature': [19.079101519, 18.822956929, 18.910264394, 19.097529383, 19.249926182, 19.37042555], 'humidity': []}
BREAKDOWN_VOLTAGE 20.0
BREAKDOWN_REDUCTION -1019.0
NO_BREAKDOWN_VOLTAGE_OBSERVED False
MAXIMUM_VOLTAGE 23.46
LEAK_CURRENT -999
LEAK_INCREASE_FACTOR -999
LEAK_PER_AREA -999
ANALYSIS_VERSION mqat v2.7.0
TEMP 19.09
HUM 0
MEASUREMENT_DATE 2025-12-17T21:11:17.000+00:00
MEASUREMENT_DURATION 77
