20UPGM24211330 (ANL_ITkPix_104)

MODULE/PARYLENE_MASKING

View QC Summary

Component Information

Serial Number 20UPGM24211330
ProdDB ID  6291e0…8cffff
LocalDB ID 68659ea6207cb9964861d639
Component Type MODULE
Parents No match.
Children 20UPGB43200207 Bare Module 20UPGFC0141681 FE Chip 20UPGFC0141619 FE Chip 20UPGFC0141716 FE Chip 20UPGFC0141747 FE Chip 20UPGPQ2211330 PCB
Flags
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal True
Alternative ID ANL_ITkPix_104
Wirebond protection roof presence None
Rank None
Is preproduction module None

 Comments

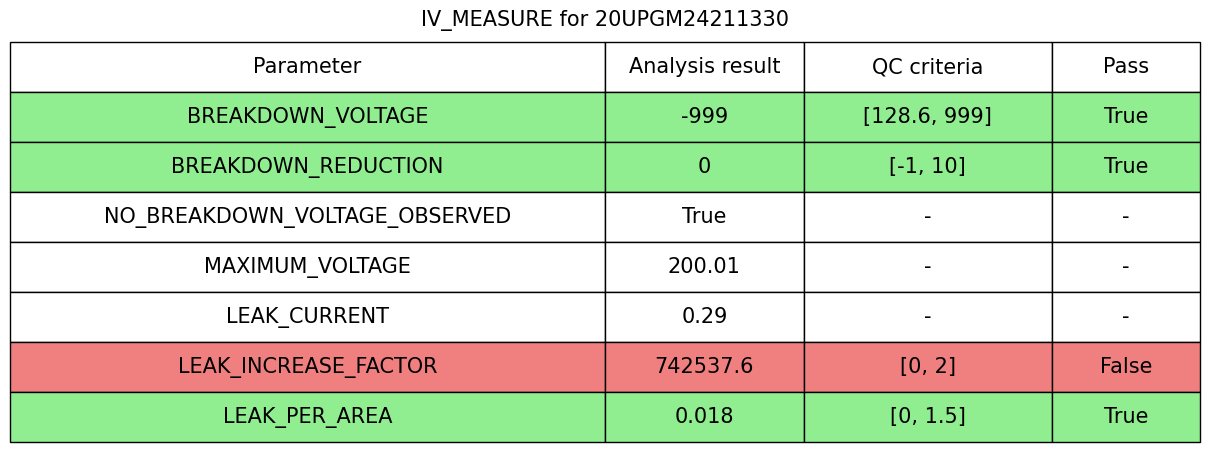

Test: IV_MEASURE QC Failed

(Stage: MODULE/INITIAL_COLD)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date 2 months ago
component ObjectId 68659ea6207cb9964861d639
Stage MODULE/INITIAL_COLD
Test Type IV_MEASURE
Institute ObjectId
User Name ElisabettaPianori
ObjectId of this record 69d69b83e8b698fa68c48467
ObjectId of RAW record 69d69b81e8b698fa68c48460
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.8.1
HUM 0
MEASUREMENT_DATE 2025-09-04T00:12:37.000+00:00
MEASUREMENT_DURATION 397
TEMP 18.87
BREAKDOWN_REDUCTION 0
BREAKDOWN_VOLTAGE -999

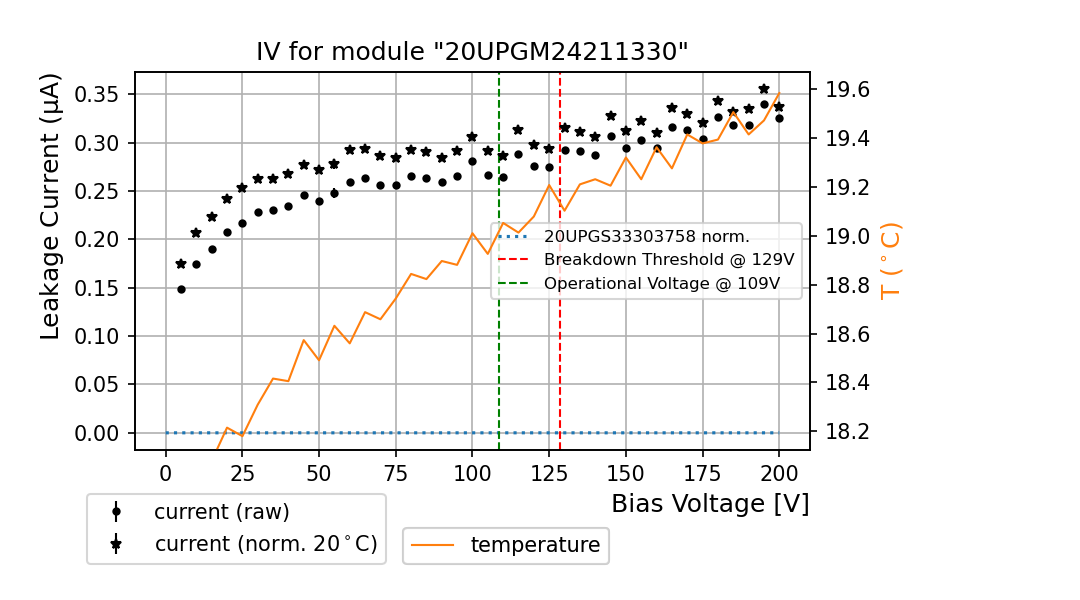

IV_ARRAY {'time': [3.128070592880249, 50.89871430397034, 57.842710733413696, 66.54729580879211, 73.27471017837524, 79.97312903404236, 86.60889601707458, 93.26472878456116, 99.93165302276611, 106.49470901489258, 113.16479659080505, 119.98178911209106, 126.67076778411865, 133.3320391178131, 140.07606506347656, 146.74656414985657, 153.47916722297668, 161.03672981262207, 169.34671688079834, 177.31972789764404, 184.58482551574707, 191.82938599586487, 199.07379269599915, 206.31271147727966, 213.54784870147705, 220.7827136516571, 227.9751009941101, 235.21138429641724, 242.57381796836853, 249.85720205307007, 257.0637562274933, 266.13123655319214, 275.53415846824646, 284.8687267303467, 294.18581676483154, 302.07279443740845, 309.8136591911316, 317.5357015132904, 325.2581057548523, 332.98578453063965, 340.7206976413727], 'voltage': [0.014, 5.02, 9.998, 15.064, 19.994, 25.026, 29.992, 34.99, 39.99, 44.99, 49.986, 54.986, 59.992, 64.988, 69.992, 74.99, 79.99, 84.988, 89.99, 94.98, 99.99, 104.986, 109.992, 114.99, 119.996, 124.998, 130.008, 135.002, 140.008, 145.002, 150.004, 155.006, 160.004, 165.008, 170.004, 175.01, 180.014, 185.014, 190.016, 195.014, 200.01], 'current': [0.031, 0.14850000000000002, 0.175, 0.1905, 0.20800000000000005, 0.217, 0.228, 0.23, 0.2345, 0.24550000000000002, 0.24, 0.248, 0.2595, 0.263, 0.256, 0.256, 0.2655, 0.263, 0.2595, 0.265, 0.28150000000000003, 0.2665, 0.2645, 0.28850000000000003, 0.276, 0.275, 0.29200000000000004, 0.2915, 0.28700000000000003, 0.3065, 0.2945, 0.30250000000000005, 0.29400000000000004, 0.31600000000000006, 0.3135, 0.30400000000000005, 0.326, 0.3185, 0.3185, 0.33999999999999997, 0.325], 'sigma current': [0, 0, 0, 0, 2.6469779601696886e-17, 0, 0, 0, 2.6469779601696886e-17, 0, 0, 0.004949747468305831, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0], 'temperature': [17.9456, 18.0509, 18.0374, 18.0805, 18.215, 18.1801, 18.3089, 18.4159, 18.4052, 18.5733, 18.4907, 18.6319, 18.56, 18.6877, 18.6585, 18.7434, 18.8441, 18.823, 18.897, 18.8812, 19.0106, 18.9261, 19.0528, 19.0132, 19.0791, 19.2079, 19.1028, 19.2106, 19.2316, 19.2053, 19.3207, 19.2316, 19.3626, 19.2761, 19.4149, 19.3783, 19.394, 19.5063, 19.4149, 19.4723, 19.5844], 'humidity': []}
LEAK_CURRENT 0.2861739896706993
LEAK_INCREASE_FACTOR 742537.6
LEAK_PER_AREA 0.018
MAXIMUM_VOLTAGE 200.01
NO_BREAKDOWN_VOLTAGE_OBSERVED True

Attachments

Filename Contents
output.log Download

RAW Results Record

Download RAW
_id69d69b81e8b698fa68c48460
raw
serialNumbertestTyperunNumberresultssubtestTypestagecomponentdbVersionaddresssys
20UPGM24211330IV_MEASURE68b8db024c0958e333ac6a60
DCSdata
