20UPGM23211331 (ANL_ITkPix_105)

MODULE/THERMAL_CYCLES

View QC Summary

Component Information

Serial Number 20UPGM23211331
ProdDB ID  e038e5…5321e9
LocalDB ID 68543d2ae85f5d0f12e54a9e
Component Type MODULE
Parents No match.
Children 20UPGB43200208 Bare Module 20UPGFC0141634 FE Chip 20UPGPQ2211331 PCB 20UPGFC0141635 FE Chip 20UPGFC0141732 FE Chip 20UPGFC0141620 FE Chip
Flags
Distribution of chips on wafer

 Properties

Item Value
PCB-Bare Orientation isNormal True
FE chip version 3
Wirebond protection roof presence False
Alternative ID ANL_ITkPix_105
IS_PRODUCTION_MODULE deleted False
Is preproduction module True
Rank None

 Comments


Test: IV_MEASURE QC Failed

(Stage: MODULE/POST_PARYLENE_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date a month ago
component ObjectId 68543d2ae85f5d0f12e54a9e
Stage MODULE/POST_PARYLENE_WARM
Test Type IV_MEASURE
Institute ObjectId
User Name None
ObjectId of this record 69014589fb15341973b89f58
ObjectId of RAW record 69014587fb15341973b89f51
Tags ganymede_4

Results

Key Data
DCSdata {}
MEASUREMENT_VERSION 2.7.0rc1.dev3
QC_LAYER L2
INSTITUTION LBNL_PIXEL_MODULES
MODULE_SN 20UPGM23211331

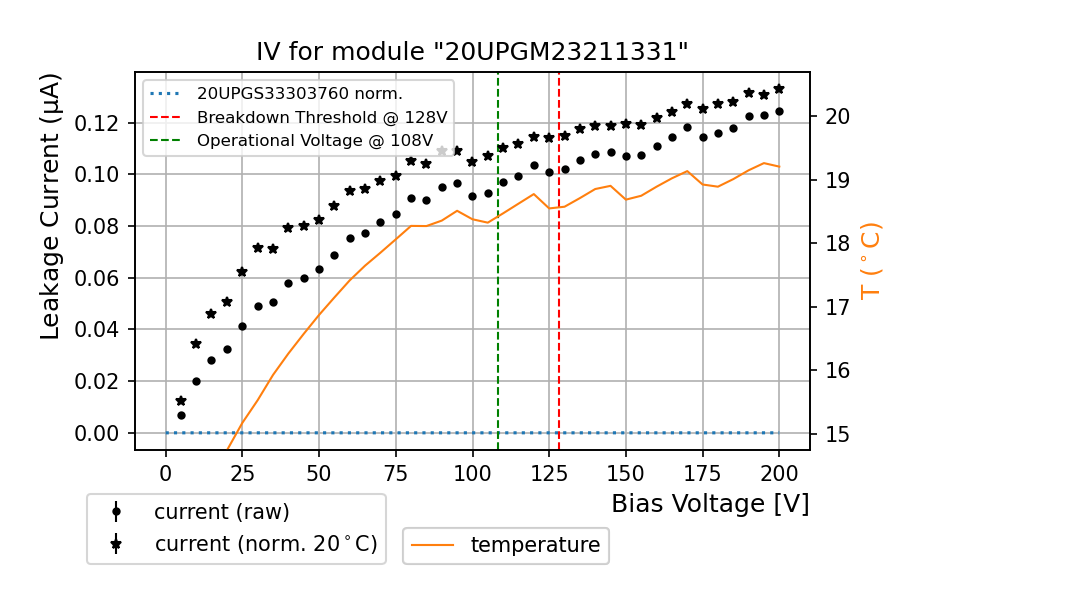

IV_ARRAY {'time': [3.0680501461029053, 9.743541717529297, 16.400935649871826, 23.004230260849, 31.62663507461548, 38.29196524620056, 44.87844705581665, 51.49620294570923, 58.1091685295105, 64.7157654762268, 71.39720439910889, 77.98948431015015, 84.59220933914185, 91.22789168357849, 97.83224415779114, 104.43357610702515, 111.04960656166077, 117.62935781478882, 124.22068762779236, 130.83033061027527, 137.43520164489746, 144.04748797416687, 150.65367794036865, 157.26766777038574, 163.85270524024963, 170.42819046974182, 177.02720546722412, 183.71469831466675, 190.31326866149902, 196.91659545898438, 203.53552341461182, 210.13619422912598, 216.70125317573547, 223.33328580856323, 229.81547927856445, 236.4134485721588, 243.01310205459595, 249.5291771888733, 256.0292363166809, 262.60104846954346, 269.1383957862854], 'voltage': [0.008, 4.956, 10.026, 14.902, 19.978, 24.958, 29.978, 34.988, 39.978, 44.992, 49.976, 54.984, 59.972, 64.982, 69.976, 74.98, 79.974, 84.978, 89.978, 94.984, 99.982, 104.982, 109.98, 114.974, 119.984, 124.99, 129.996, 134.994, 139.994, 144.99, 149.992, 154.99, 160.0, 164.994, 170.002, 174.99, 179.99, 184.982, 189.994, 194.982, 199.994], 'current': [0.0405, 0.007, 0.020000000000000004, 0.028, 0.0325, 0.0415, 0.049, 0.0505, 0.057999999999999996, 0.06, 0.06350000000000001, 0.069, 0.0755, 0.0775, 0.0815, 0.0845, 0.091, 0.09, 0.095, 0.0965, 0.09150000000000001, 0.093, 0.097, 0.0995, 0.1035, 0.101, 0.10200000000000001, 0.1055, 0.10800000000000001, 0.1085, 0.10700000000000001, 0.1075, 0.11100000000000002, 0.11449999999999999, 0.1185, 0.11449999999999999, 0.11599999999999999, 0.11800000000000002, 0.1225, 0.12300000000000001, 0.12450000000000001], 'sigma current': [0.0, 0.0, 3.3087224502121107e-18, 0.0, 0.0, 0.0, 0.0, 0.0, 6.6174449004242214e-18, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.3234889800848443e-17, 1.3234889800848443e-17, 1.3234889800848443e-17, 0.0, 1.3234889800848443e-17, 1.3234889800848443e-17, 1.3234889800848443e-17, 0.0, 0.0, 0.0], 'temperature': [13.513, 13.3049, 13.6692, 14.1398, 14.7363, 15.1658, 15.525, 15.9236, 16.2595, 16.5703, 16.8678, 17.1439, 17.4128, 17.6447, 17.8483, 18.059, 18.2713, 18.2687, 18.3544, 18.5094, 18.3758, 18.3223, 18.4693, 18.6212, 18.7726, 18.5467, 18.5733, 18.7089, 18.8521, 18.9023, 18.685, 18.7461, 18.8891, 19.0211, 19.1344, 18.9235, 18.8891, 19.008, 19.1475, 19.2604, 19.2053], 'humidity': []}

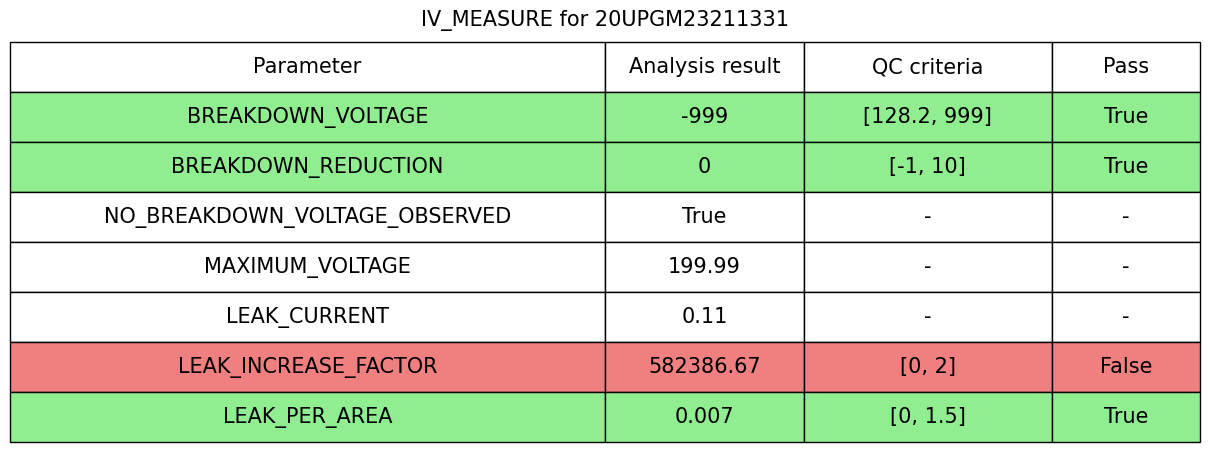

BREAKDOWN_VOLTAGE -999
BREAKDOWN_REDUCTION 0
NO_BREAKDOWN_VOLTAGE_OBSERVED True
MAXIMUM_VOLTAGE 199.994
LEAK_CURRENT 0.1101943513630189
LEAK_INCREASE_FACTOR 582386.67
LEAK_PER_AREA 0.007
ANALYSIS_VERSION mqat v2.7.0rc3
TEMP 17.62
HUM 0
MEASUREMENT_DATE 2025-10-28T22:30:15.000+00:00
MEASUREMENT_DURATION 398
