20UPGM23210861 (ANL_ITkPix_97)

MODULE/FINAL_METROLOGY

View QC Summary

Component Information

Serial Number 20UPGM23210861
ProdDB ID  ed41ac…a0073c
LocalDB ID 6850812de85f5d0f12b345ce
Component Type MODULE
Parents No match.
Children 20UPGB43200172 Bare Module 20UPGFC0142155 FE Chip 20UPGFC0142188 FE Chip 20UPGFC0142202 FE Chip 20UPGFC0142168 FE Chip 20UPGPQ2210861 PCB
Flags
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal True
Alternative ID ANL_ITkPix_97
Is preproduction module True
Wirebond protection roof presence None
Rank None

 Comments

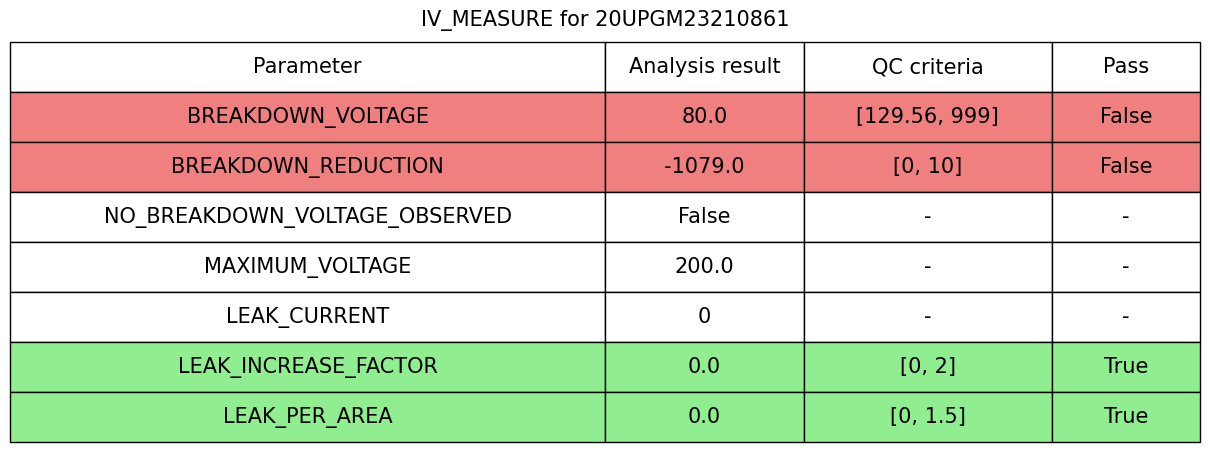

Test: IV_MEASURE QC Failed

(Stage: MODULE/POST_PARYLENE_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date 2 months ago
component ObjectId 6850812de85f5d0f12b345ce
Stage MODULE/POST_PARYLENE_WARM
Test Type IV_MEASURE
Institute ObjectId
User Name GiordonStark
ObjectId of this record 68bf267b4620977c2530dc8a
ObjectId of RAW record 68bf26794620977c2530dc83
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.6.4
HUM 0
MEASUREMENT_DATE 2025-09-08T18:31:18.000+00:00
MEASUREMENT_DURATION 1109
TEMP 20
BREAKDOWN_REDUCTION -1079
BREAKDOWN_VOLTAGE 80

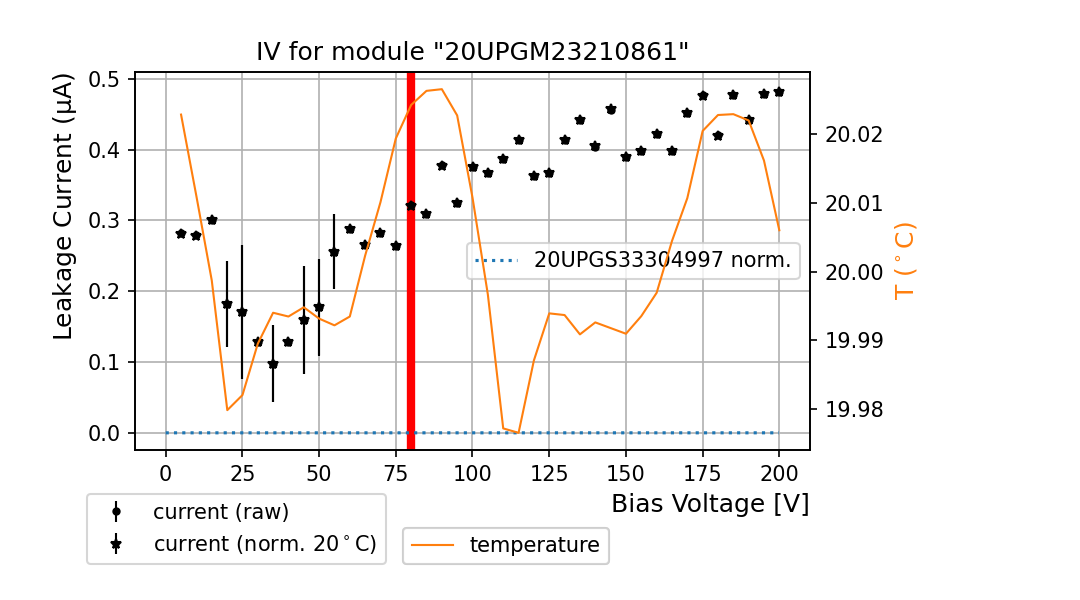

IV_ARRAY {'time': [12.072179079055786, 36.76036286354065, 61.44012999534607, 86.17110204696655, 115.89130473136902, 140.6030285358429, 165.26400780677795, 189.9497938156128, 214.62095832824707, 239.3035271167755, 263.99090051651, 288.75636315345764, 313.4492275714874, 338.12403750419617, 362.7724058628082, 387.49832034111023, 412.1265141963959, 436.7551460266113, 461.3994495868683, 486.12482810020447, 510.744749546051, 535.3964793682098, 560.0050268173218, 584.6509776115417, 609.3783235549927, 634.1544506549835, 658.8592026233673, 683.5940277576447, 708.216778755188, 732.8262994289398, 757.5104243755341, 782.1639404296875, 806.7788422107697, 831.4806191921234, 856.1871020793915, 880.8703827857971, 905.5453858375549, 930.2379610538483, 954.9476692676544, 979.5993881225586, 1004.243718624115], 'voltage': [0.052, 5.012, 10.016, 15.02, 20.082, 25.03, 30.01, 35.008, 40.01, 45.012, 50.012, 55.01, 60.014, 65.008, 70.012, 75.002, 80.008, 85.002, 90.008, 95.002, 100.008, 105.004, 110.014, 115.02, 120.016, 125.018, 130.018, 135.018, 140.018, 145.018, 150.018, 155.02, 160.022, 165.02, 170.016, 175.014, 180.01, 185.014, 190.012, 195.004, 200.002], 'current': [0.02883333333333334, 0.2816666666666666, 0.2786666666666666, 0.3006666666666667, 0.18150000000000002, 0.1703333333333333, 0.128, 0.09733333333333336, 0.12766666666666665, 0.15866666666666668, 0.17716666666666667, 0.2556666666666667, 0.28816666666666674, 0.2655, 0.2826666666666667, 0.26449999999999996, 0.32133333333333336, 0.309, 0.37766666666666665, 0.325, 0.3751666666666667, 0.36750000000000005, 0.38650000000000007, 0.4131666666666667, 0.36300000000000004, 0.36716666666666664, 0.41333333333333333, 0.44133333333333336, 0.4041666666666667, 0.4565, 0.389, 0.398, 0.42183333333333334, 0.3983333333333333, 0.4523333333333333, 0.4771666666666667, 0.4206666666666667, 0.4775, 0.44200000000000006, 0.4786666666666667, 0.48183333333333334], 'sigma current': [0.00023570226039551644, 0.004515405728048015, 0.0019293061504650438, 0.004696334267868464, 0.060466244026453855, 0.09503098909770902, 0.0014142135623731015, 0.05424993599586598, 0.002054804667656328, 0.07625214022497263, 0.06800040849550505, 0.05316065796766962, 0.004365266951236263, 0.002449489742783189, 0.0013123346456686196, 0.004636809247747849, 0.00224845626053867, 0.0028577380332470616, 0.003566822426505448, 0.0033416562759605757, 0.002094967514996091, 0.0017795130420052133, 0.0017795130420052133, 0.004129837231121287, 0.0028577380332470274, 0.0032998316455372205, 0.0013123346456686352, 0.0031180478223116308, 0.0015456030825826098, 0.0029439202887759424, 0.0046007245806140955, 0.002857738033247043, 0.002094967514996091, 0.0028963578661637948, 0.0020138409955990978, 0.002357022603955161, 0.00379326889224703, 0.004415880433163919, 0.0012247448713915946, 0.002321398046197372, 0.003472111109333278], 'temperature': [20.035614013671875, 20.0228271484375, 20.010955810546875, 19.99871826171875, 19.9798583984375, 19.9820556640625, 19.989501953125, 19.9940185546875, 19.99346923828125, 19.99481201171875, 19.9931640625, 19.9921875, 19.99346923828125, 20.0023193359375, 20.010101318359375, 20.01934814453125, 20.02423095703125, 20.026275634765625, 20.026519775390625, 20.022705078125, 20.0107421875, 19.996673583984375, 19.977203369140625, 19.9765625, 19.987091064453125, 19.993927001953125, 19.993682861328125, 19.990875244140625, 19.99261474609375, 19.991790771484375, 19.990966796875, 19.9935302734375, 19.996917724609375, 20.00445556640625, 20.01068115234375, 20.02044677734375, 20.02276611328125, 20.02288818359375, 20.02197265625, 20.016143798828125, 20.006011962890625], 'humidity': []}
LEAK_CURRENT 0
LEAK_INCREASE_FACTOR 0
LEAK_PER_AREA 0
MAXIMUM_VOLTAGE 200.002
NO_BREAKDOWN_VOLTAGE_OBSERVED False
