20UPIM13710377 (ANL_ITkPix_74)

MODULE/FINAL_METROLOGY

View QC Summary

Component Information

Serial Number 20UPIM13710377
ProdDB ID  bd134c…bd607b
LocalDB ID 681b93a3d25f28d40e6a9e81
Component Type MODULE
Parents No match.
Children 20UPGB43000042 Bare Module 20UPGFC0156310 FE Chip 20UPGFC0156311 FE Chip 20UPGFC0156313 FE Chip 20UPGFC0156312 FE Chip 20UPGPQ3710377 PCB
Flags
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal True
Alternative ID ANL_ITkPix_74
Is preproduction module True
Wirebond protection roof presence None
Rank None

 Comments

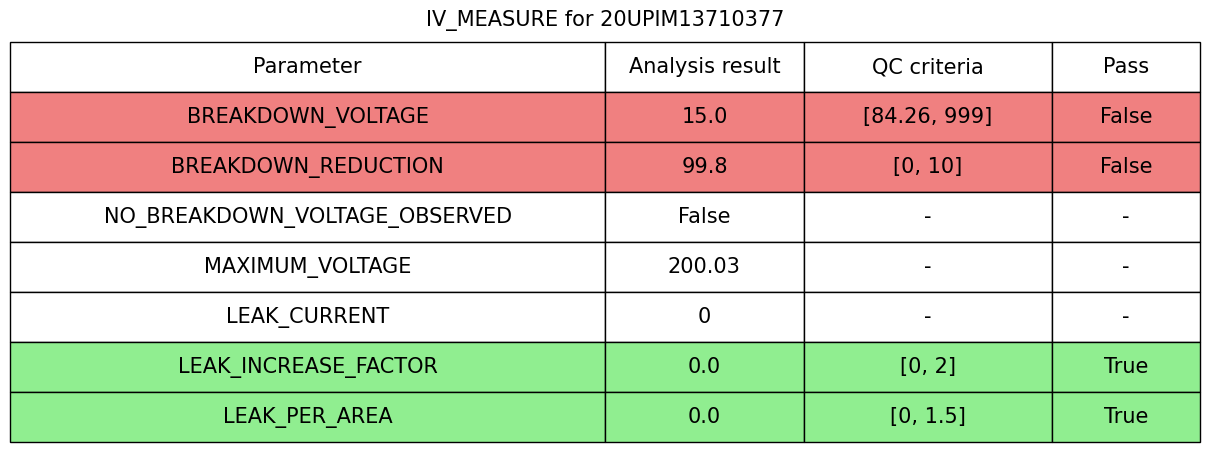

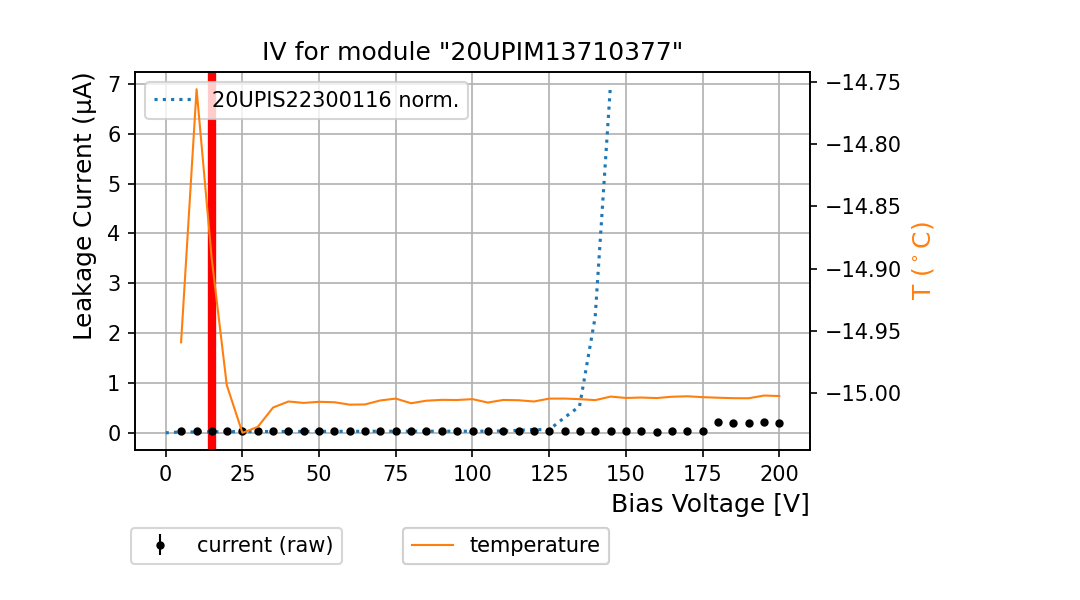

Test: IV_MEASURE QC Failed

(Stage: MODULE/FINAL_COLD)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed False
Date 4 months ago
component ObjectId 681b93a3d25f28d40e6a9e81
Stage MODULE/FINAL_COLD
Test Type IV_MEASURE
Institute ObjectId
User Name GiordonStark
ObjectId of this record 68892757674bb85714b5bb95
ObjectId of RAW record 68892756674bb85714b5bb8e
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.6.4
HUM 0
MEASUREMENT_DATE 2025-07-29T19:35:04.000+00:00
MEASUREMENT_DURATION 1101
TEMP -15.02
BREAKDOWN_REDUCTION 99.8
BREAKDOWN_VOLTAGE 15
IV_ARRAY {'time': [12.082700252532959, 37.45899748802185, 62.093817472457886, 91.7489960193634, 121.40716648101807, 146.050963640213, 170.69456338882446, 195.3661081790924, 220.02540946006775, 244.68972826004028, 269.3179965019226, 293.9476628303528, 318.59841418266296, 343.19537806510925, 367.8681228160858, 392.52955079078674, 417.20778250694275, 441.8193345069885, 466.48226952552795, 491.1307191848755, 515.8133609294891, 540.4184055328369, 565.0967311859131, 589.729336977005, 614.3582317829132, 639.0059909820557, 663.6038491725922, 688.2128496170044, 712.8628334999084, 737.5482499599457, 762.2089762687683, 786.8353271484375, 811.4602565765381, 836.1447553634644, 860.7984573841095, 885.4284820556641, 910.0393705368042, 934.659764289856, 959.3628346920013, 984.0035970211029, 1008.5868139266968], 'voltage': [0.038, 5.018, 10.07, 14.996, 19.912, 25.016, 30.01, 35.008, 40.002, 45.004, 50.004, 55.004, 59.998, 64.996, 69.992, 75.004, 80.002, 85, 90.008, 95.01, 100.014, 105.02, 110.03, 115.032, 120.04, 125.036, 130.05, 135.042, 140.046, 145.04, 150.04, 155.038, 160.04, 165.03, 170.036, 175.034, 180.042, 185.03, 190.034, 195.026, 200.026], 'current': [0.03950000000000001, 0.043166666666666666, 0.035333333333333335, 0.042499999999999996, 0.03283333333333334, 0.037000000000000005, 0.036666666666666674, 0.043666666666666666, 0.031, 0.04416666666666667, 0.03866666666666667, 0.037000000000000005, 0.03416666666666667, 0.02733333333333333, 0.04416666666666667, 0.042, 0.03133333333333333, 0.042499999999999996, 0.029333333333333336, 0.03483333333333333, 0.028833333333333336, 0.032, 0.0415, 0.034666666666666665, 0.035666666666666666, 0.03833333333333334, 0.02666666666666667, 0.03233333333333334, 0.036833333333333336, 0.027833333333333335, 0.0415, 0.03783333333333334, 0.022833333333333334, 0.028, 0.04116666666666667, 0.03516666666666667, 0.20733333333333334, 0.19416666666666668, 0.20433333333333334, 0.21316666666666667, 0.20583333333333334], 'sigma current': [0, 0.0006236095644623232, 0.0006236095644623239, 0.00040824829046386395, 0.000849836585598797, 0.0004082482904638613, 0.0004714045207910329, 0.0006236095644623239, 0.0008164965809277279, 0.0006236095644623239, 0.00023570226039551482, 0.0004082482904638613, 0.00047140452079102963, 0.0012472191289246474, 0.000849836585598797, 0.0007071067811865477, 0.0010274023338281636, 0.0008164965809277253, 0.0008498365855987979, 0.0004714045207910329, 0.0006236095644623239, 0.00040824829046386395, 0.001080123449734644, 0.000235702260395518, 0.00047140452079102963, 0.0011785113019775805, 0.0006236095644623239, 0.00047140452079102963, 0.0006236095644623239, 0.0006236095644623236, 0.001080123449734644, 0.0006236095644623239, 0.0010274023338281623, 0.0007071067811865477, 0.001027402333828161, 0.00023570226039551482, 0.0557738489098809, 0.005720334100576846, 0.006637435917246626, 0.005169354139756947, 0.004496912521077341], 'temperature': [-15.81201171875, -14.958984375, -14.756011962890625, -14.891632080078125, -14.9932861328125, -15.03155517578125, -15.026824951171875, -15.011260986328125, -15.006439208984375, -15.007568359375, -15.006683349609375, -15.007049560546875, -15.00897216796875, -15.0087890625, -15.005584716796875, -15.004119873046875, -15.007843017578125, -15.00579833984375, -15.005126953125, -15.0052490234375, -15.004547119140625, -15.007293701171875, -15.00518798828125, -15.00543212890625, -15.006439208984375, -15.004119873046875, -15.00408935546875, -15.00457763671875, -15.005340576171875, -15.00250244140625, -15.00360107421875, -15.003265380859375, -15.003692626953125, -15.00262451171875, -15.00225830078125, -15.002960205078125, -15.00341796875, -15.0037841796875, -15.00384521484375, -15.001678466796875, -15.002044677734375], 'humidity': []}
LEAK_CURRENT 0
LEAK_INCREASE_FACTOR 0
LEAK_PER_AREA 0
MAXIMUM_VOLTAGE 200.026
NO_BREAKDOWN_VOLTAGE_OBSERVED False
