20UPGFC0226984

MODULE/UNHAPPY

Component Information

Serial Number	20UPGFC0226984
ProdDB ID	c38fae…a37a71
LocalDB ID	67a229fc3d425b3252e03f11
Component Type	fe_chip
Parents	20UPGM24220565 20UPGB43000593
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	11
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	67a229fc3d425b3252e03f11
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	69cd8d39d362c4ad254e8c10
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.6
MEASUREMENT_DATE	2026-04-01T23:55:56.000+00:00
MEASUREMENT_DURATION	3514

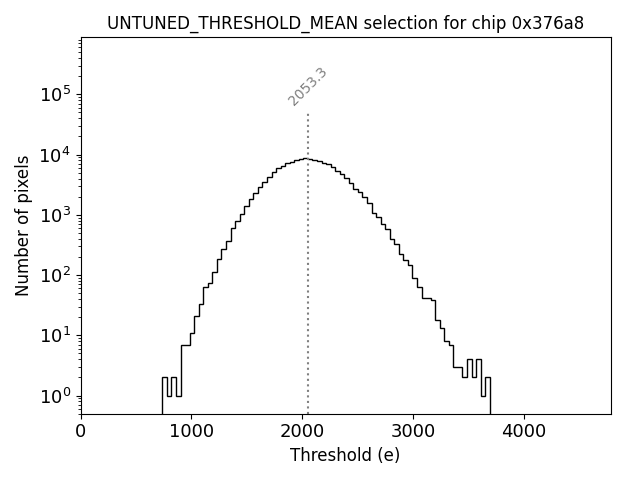

TUNING_UNTUNED_THRESHOLD_MEAN	2053.284
TUNING_UNTUNED_THRESHOLD_95_LOW	1484.425
TUNING_UNTUNED_THRESHOLD_95_HIGH	2664.428
TUNING_UNTUNED_THRESHOLD_SIGMA	299.639
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

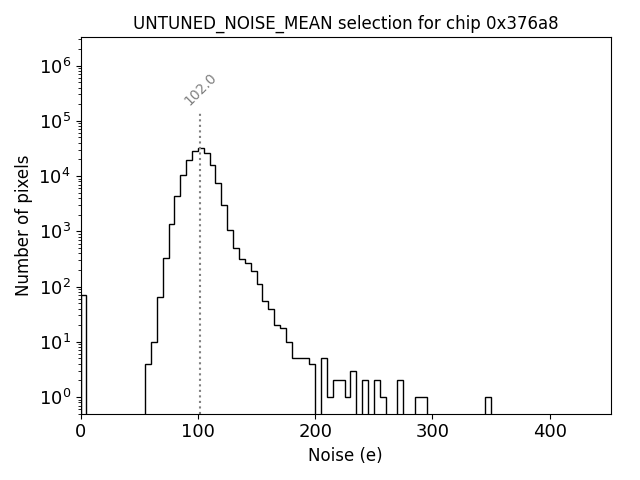

TUNING_UNTUNED_NOISE_MEAN	101.982
TUNING_UNTUNED_NOISE_SIGMA	10.601
TUNING_UNTUNED_NOISE_95_LOW	83.069
TUNING_UNTUNED_NOISE_95_HIGH	122.3
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	81

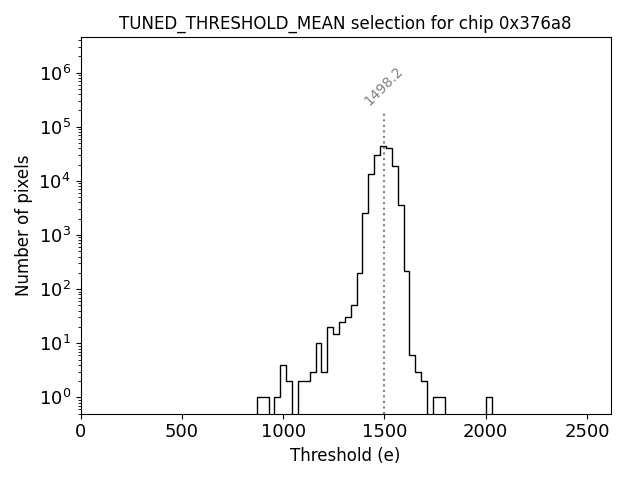

TUNING_TUNED_THRESHOLD_MEAN	1498.2
TUNING_TUNED_THRESHOLD_95_LOW	1424.756
TUNING_TUNED_THRESHOLD_95_HIGH	1565.925
TUNING_TUNED_THRESHOLD_SIGMA	37

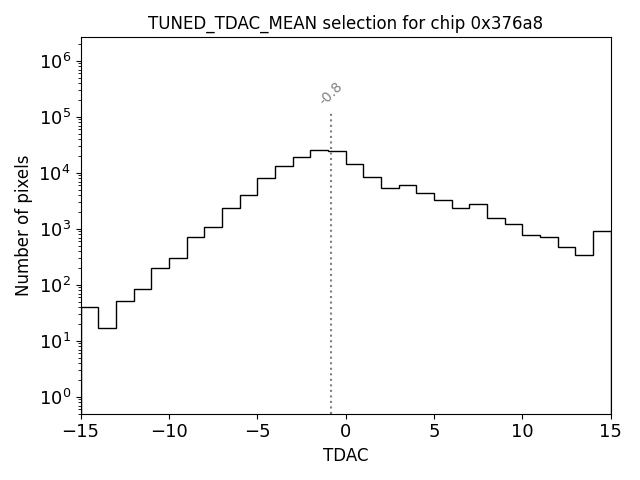

TUNING_TUNED_TDAC_MEAN	-0.8
TUNING_TUNED_TDAC_SIGMA	3.827

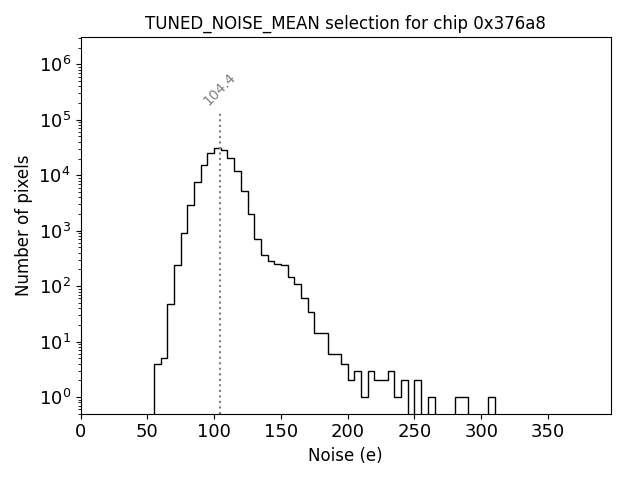

TUNING_TUNED_NOISE_MEAN	104.441
TUNING_TUNED_NOISE_SIGMA	10.951
TUNING_TUNED_NOISE_95_LOW	84.691
TUNING_TUNED_NOISE_95_HIGH	125.66
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.06
TUNING_TUNED_TOT_95_HIGH	10.29
TUNING_TUNED_THRESHOLD_FAILED_FITS	6
TUNING_ANY_ERRORS	{'tune_globalthreshold': 0, 'thresholdscan_hr': 0, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 0, 'totscan': 0, 'all': 0}

Attachments

Filename	Contents
0x376a8_L2_warm.json	Download
output.log	Download
0x376a8.log	Download
20UPGFC0226984_MODULE__INITIAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

69cde665d1f44f4d2492986c

state

ready

stateTs

2026-04-02T03:45:41.521Z

stateUserIdentity

4728-7541-1

date

2026-04-01T21:25:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

runNumber

69cd8d39d362c4ad254e8c10

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.8.1	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.6	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-04-01T23:55:56.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	3514	None	None

results

code TUNING_UNTUNED_THRESHOLD_MEAN
name Mean of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2053.284
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_LOW
name Untuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1484.425
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_HIGH
name Untuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2664.428
associateChild None
code TUNING_UNTUNED_THRESHOLD_SIGMA
name Sigma of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 299.639
associateChild None
code TUNING_UNTUNED_TDAC_MEAN
name Untuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_TDAC_SIGMA
name Untuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_NOISE_MEAN
name Untuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 101.982
associateChild None
code TUNING_UNTUNED_NOISE_SIGMA
name Untuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.601
associateChild None
code TUNING_UNTUNED_NOISE_95_LOW
name Noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 83.069
associateChild None
code TUNING_UNTUNED_NOISE_95_HIGH
name Untuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 122.3
associateChild None

code	TUNING_UNTUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the untuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	81
associateChild	None

code TUNING_TUNED_THRESHOLD_MEAN
name Mean of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1498.2
associateChild None
code TUNING_TUNED_THRESHOLD_95_LOW
name Tuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1424.756
associateChild None
code TUNING_TUNED_THRESHOLD_95_HIGH
name Tuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1565.925
associateChild None
code TUNING_TUNED_THRESHOLD_SIGMA
name Sigma of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 37
associateChild None
code TUNING_TUNED_TDAC_MEAN
name Tuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value -0.8
associateChild None
code TUNING_TUNED_TDAC_SIGMA
name Tuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 3.827
associateChild None
code TUNING_TUNED_NOISE_MEAN
name Tuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 104.441
associateChild None
code TUNING_TUNED_NOISE_SIGMA
name Tuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.951
associateChild None
code TUNING_TUNED_NOISE_95_LOW
name Tuned noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 84.691
associateChild None
code TUNING_TUNED_NOISE_95_HIGH
name Tuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 125.66
associateChild None
code TUNING_TUNED_TOT_MEAN
name Mean of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.4
associateChild None
code TUNING_TUNED_TOT_SIGMA
name Sigma of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0.3
associateChild None
code TUNING_TUNED_TOT_95_LOW
name Tuned ToT 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 5.06
associateChild None
code TUNING_TUNED_TOT_95_HIGH
name Tuned ToT 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.29
associateChild None

code	TUNING_TUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the tuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	6
associateChild	None

code

TUNING_ANY_ERRORS

name

TUNING_ANY_ERRORS

order

dataType

object

valueType

single

arrayDimensions

None

additional

False

rangeMin

None

rangeMax

None

value

tune_globalthreshold	0
thresholdscan_hr	0
tune_pixelthreshold	0
thresholdscan_hd	0
totscan	0
all	0

associateChild

None

cts

2026-04-02T03:45:41.521Z

sys

cts	2026-04-02T03:45:41.521Z
mts	2026-04-02T03:46:07.644Z
rev	2

defects

comments

None
