20UPGFC0223315

MODULE/POST_PARYLENE_WARM

Component Information

Serial Number	20UPGFC0223315
ProdDB ID	aac57d…240c9f
LocalDB ID	67a21f5989d864a1f4115bf1
Component Type	fe_chip
Parents	20UPGM24220303 20UPGB43000389
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	12
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	67a21f5989d864a1f4115bf1
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	Simpson,Liana Rae
ObjectId of this record	69dff884d697fe9f34e8f3ee
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.6
MEASUREMENT_DATE	2026-04-15T19:11:33.000+00:00
MEASUREMENT_DURATION	1582

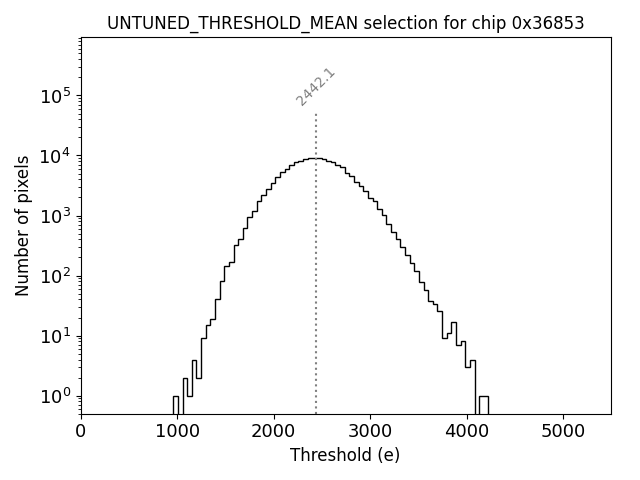

TUNING_UNTUNED_THRESHOLD_MEAN	2442.128
TUNING_UNTUNED_THRESHOLD_95_LOW	1819.459
TUNING_UNTUNED_THRESHOLD_95_HIGH	3117.446
TUNING_UNTUNED_THRESHOLD_SIGMA	329.88
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

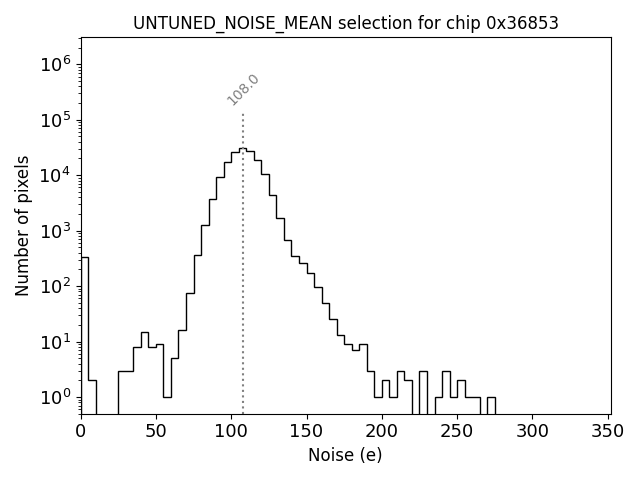

TUNING_UNTUNED_NOISE_MEAN	107.968
TUNING_UNTUNED_NOISE_SIGMA	11.789
TUNING_UNTUNED_NOISE_95_LOW	87.881
TUNING_UNTUNED_NOISE_95_HIGH	129.125
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	152

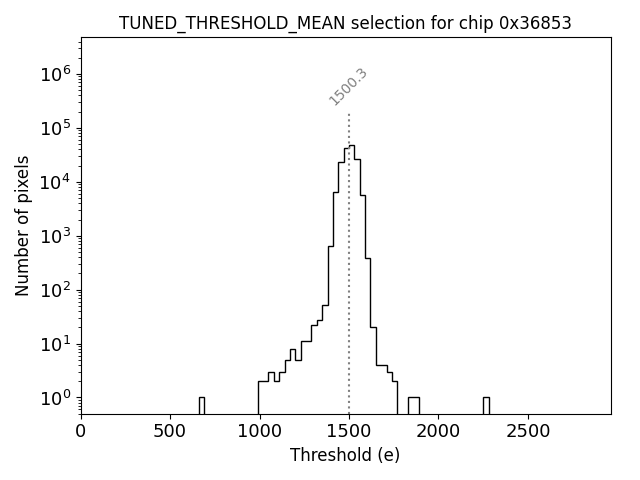

TUNING_TUNED_THRESHOLD_MEAN	1500.3
TUNING_TUNED_THRESHOLD_95_LOW	1430.063
TUNING_TUNED_THRESHOLD_95_HIGH	1565.876
TUNING_TUNED_THRESHOLD_SIGMA	36
TUNING_TUNED_TDAC_MEAN	-1.2
TUNING_TUNED_TDAC_SIGMA	3.926

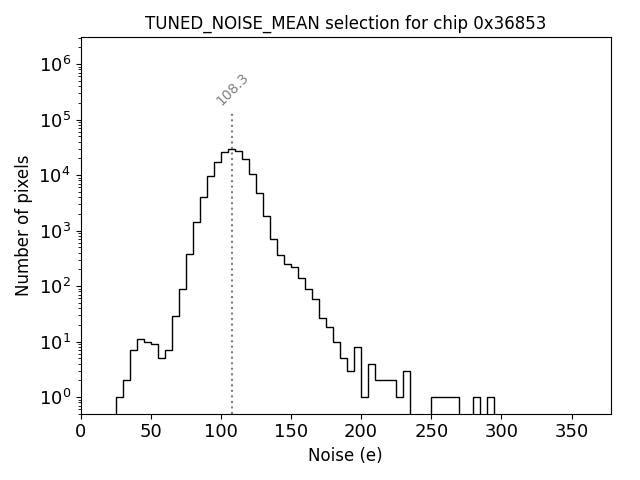

TUNING_TUNED_NOISE_MEAN	108.272
TUNING_TUNED_NOISE_SIGMA	11.065
TUNING_TUNED_NOISE_95_LOW	87.775
TUNING_TUNED_NOISE_95_HIGH	129.852

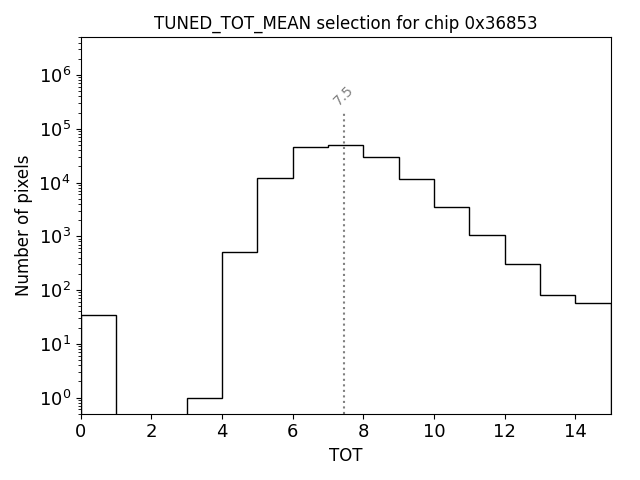

TUNING_TUNED_TOT_MEAN	7.5
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.32
TUNING_TUNED_TOT_95_HIGH	10.18

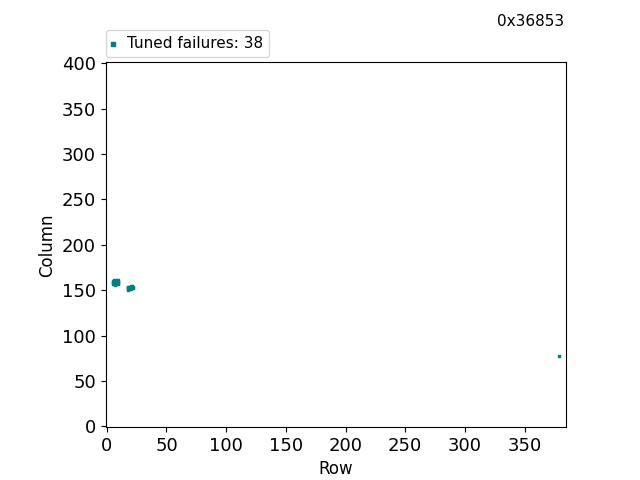

TUNING_TUNED_THRESHOLD_FAILED_FITS	38
TUNING_ANY_ERRORS	{'tune_globalthreshold': 0, 'thresholdscan_hr': 0, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 0, 'totscan': 0, 'all': 0}

Attachments

Filename	Contents
0x36853_L2_warm.json	Download
output.log	Download
0x36853.log	Download
20UPGFC0223315_MODULE__INITIAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

69f2bd90b3d4daa62ce40c6d

state

ready

stateTs

2026-04-30T02:25:20.997Z

stateUserIdentity

1294-8027-1

date

2026-04-15T20:43:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6797ca0f2ffbf908f24868f9
userIdentity	1294-8027-1
firstName	Simpson,
middleName
lastName	Liana Rae

runNumber

69dff884d697fe9f34e8f3ee

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.8.1	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.6	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-04-15T19:11:33.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	1582	None	None

results

code TUNING_UNTUNED_THRESHOLD_MEAN
name Mean of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2442.128
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_LOW
name Untuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1819.459
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_HIGH
name Untuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 3117.446
associateChild None
code TUNING_UNTUNED_THRESHOLD_SIGMA
name Sigma of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 329.88
associateChild None
code TUNING_UNTUNED_TDAC_MEAN
name Untuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_TDAC_SIGMA
name Untuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_NOISE_MEAN
name Untuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 107.968
associateChild None
code TUNING_UNTUNED_NOISE_SIGMA
name Untuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.789
associateChild None
code TUNING_UNTUNED_NOISE_95_LOW
name Noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 87.881
associateChild None
code TUNING_UNTUNED_NOISE_95_HIGH
name Untuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 129.125
associateChild None

code	TUNING_UNTUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the untuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	152
associateChild	None

code TUNING_TUNED_THRESHOLD_MEAN
name Mean of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1500.3
associateChild None
code TUNING_TUNED_THRESHOLD_95_LOW
name Tuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1430.063
associateChild None
code TUNING_TUNED_THRESHOLD_95_HIGH
name Tuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1565.876
associateChild None
code TUNING_TUNED_THRESHOLD_SIGMA
name Sigma of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 36
associateChild None
code TUNING_TUNED_TDAC_MEAN
name Tuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value -1.2
associateChild None
code TUNING_TUNED_TDAC_SIGMA
name Tuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 3.926
associateChild None
code TUNING_TUNED_NOISE_MEAN
name Tuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 108.272
associateChild None
code TUNING_TUNED_NOISE_SIGMA
name Tuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 11.065
associateChild None
code TUNING_TUNED_NOISE_95_LOW
name Tuned noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 87.775
associateChild None
code TUNING_TUNED_NOISE_95_HIGH
name Tuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 129.852
associateChild None
code TUNING_TUNED_TOT_MEAN
name Mean of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.5
associateChild None
code TUNING_TUNED_TOT_SIGMA
name Sigma of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0.3
associateChild None
code TUNING_TUNED_TOT_95_LOW
name Tuned ToT 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 5.32
associateChild None
code TUNING_TUNED_TOT_95_HIGH
name Tuned ToT 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.18
associateChild None

code	TUNING_TUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the tuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	38
associateChild	None

code

TUNING_ANY_ERRORS

name

TUNING_ANY_ERRORS

order

dataType

object

valueType

single

arrayDimensions

None

additional

False

rangeMin

None

rangeMax

None

value

tune_globalthreshold	0
thresholdscan_hr	0
tune_pixelthreshold	0
thresholdscan_hd	0
totscan	0
all	0

associateChild

None

cts

2026-04-30T02:25:20.997Z

sys

cts	2026-04-30T02:25:20.997Z
mts	2026-04-30T02:27:10.763Z
