20UPGFC0223324

MODULE/POST_PARYLENE_WARM

Component Information

Serial Number	20UPGFC0223324
ProdDB ID	5e35cf…8b90f0
LocalDB ID	67a21f5789d864a1f4115bd7
Component Type	fe_chip
Parents	20UPGM24220303 20UPGB43000389
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	5
Target Iref trim version	1
Wafer serial number	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	67a21f5789d864a1f4115bd7
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	Simpson,Liana Rae
ObjectId of this record	69dff884d697fe9f34e8f3ef
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.8.1
MEASUREMENT_DATE	2026-04-15T19:11:33.000+00:00
MEASUREMENT_DURATION	1582
YARR_VERSION	v1.5.6
TUNING_ANY_ERRORS	{'tune_globalthreshold': 0, 'thresholdscan_hr': 0, 'tune_pixelthreshold': 0, 'thresholdscan_hd': 0, 'totscan': 0, 'all': 0}
TUNING_TUNED_NOISE_95_HIGH	124.528
TUNING_TUNED_NOISE_95_LOW	83.739
TUNING_TUNED_NOISE_MEAN	103.607
TUNING_TUNED_NOISE_SIGMA	10.808

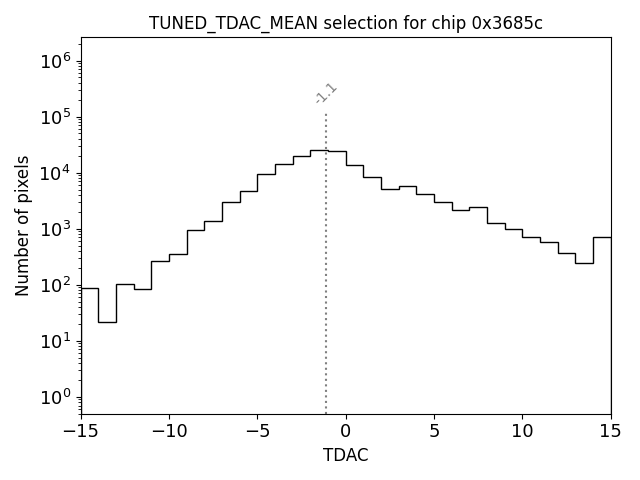

TUNING_TUNED_TDAC_MEAN	-1.1
TUNING_TUNED_TDAC_SIGMA	3.741
TUNING_TUNED_THRESHOLD_95_HIGH	1569.503
TUNING_TUNED_THRESHOLD_95_LOW	1434.216

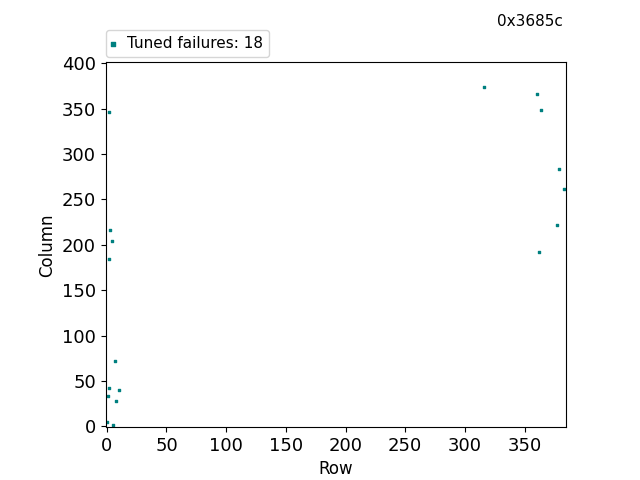

TUNING_TUNED_THRESHOLD_FAILED_FITS	18

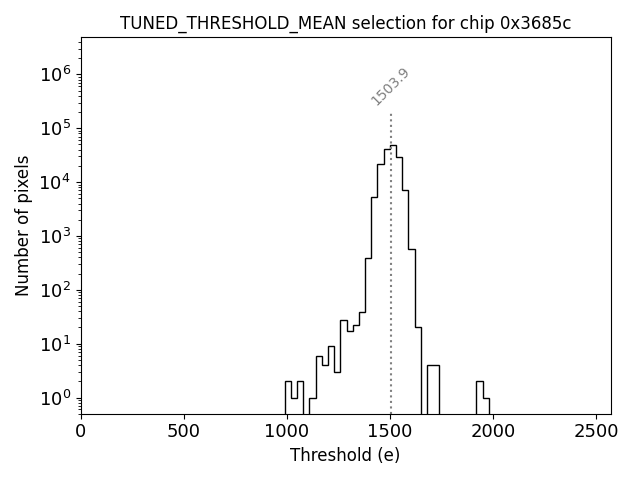

TUNING_TUNED_THRESHOLD_MEAN	1503.9
TUNING_TUNED_THRESHOLD_SIGMA	36
TUNING_TUNED_TOT_95_HIGH	10.06
TUNING_TUNED_TOT_95_LOW	5.1
TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	122.821
TUNING_UNTUNED_NOISE_95_LOW	83.51

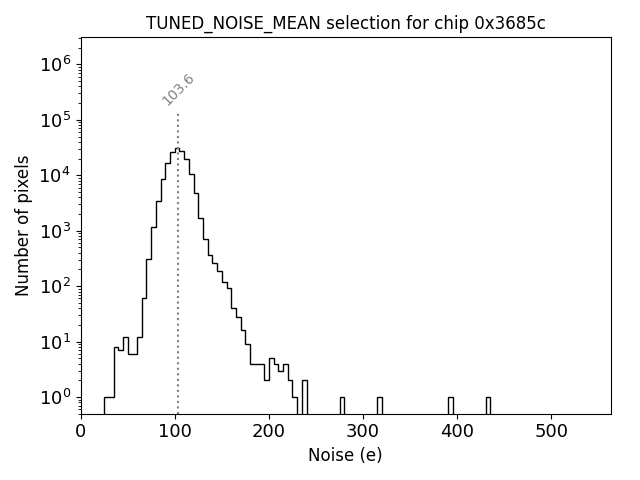

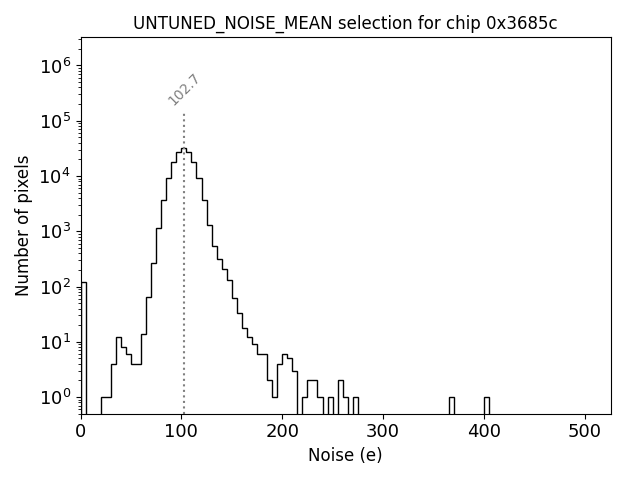

TUNING_UNTUNED_NOISE_MEAN	102.728
TUNING_UNTUNED_NOISE_SIGMA	10.687
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2845.203
TUNING_UNTUNED_THRESHOLD_95_LOW	1657.413

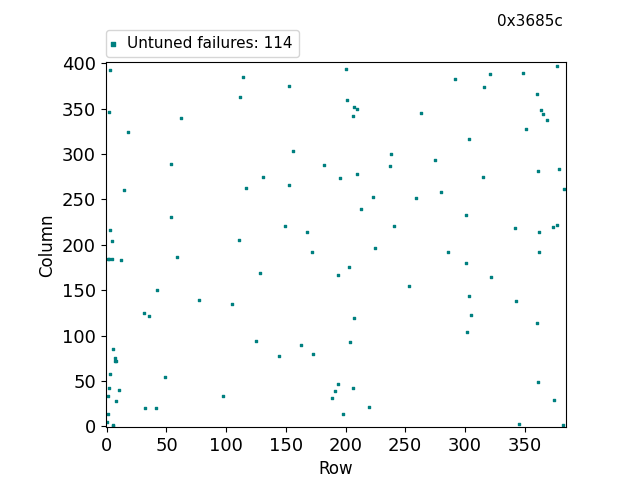

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	114

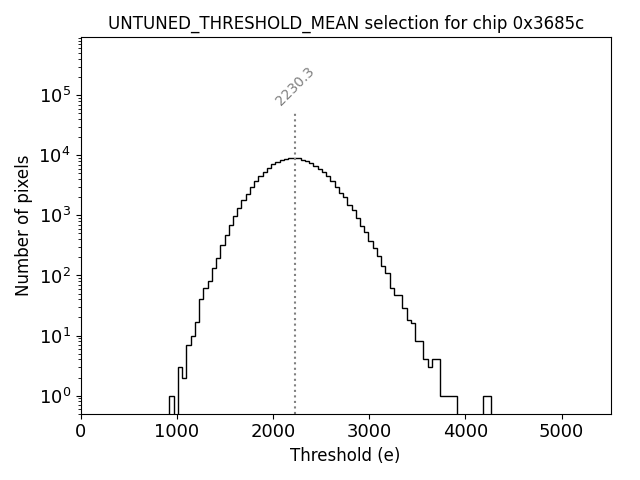

TUNING_UNTUNED_THRESHOLD_MEAN	2230.271
TUNING_UNTUNED_THRESHOLD_SIGMA	302.223

Attachments

Filename	Contents
0x3685c_L2_warm.json	Download
output.log	Download
0x3685c.log	Download
20UPGFC0223324_MODULE__INITIAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

69f2bd90ffb99db4b637befa

state

ready

stateTs

2026-04-30T02:25:20.885Z

stateUserIdentity

1294-8027-1

date

2026-04-15T20:43:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6797ca0f2ffbf908f24868f9
userIdentity	1294-8027-1
firstName	Simpson,
middleName
lastName	Liana Rae

runNumber

69dff884d697fe9f34e8f3ef

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.8.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2026-04-15T19:11:33.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	1582	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.6	None	None

results

code

TUNING_ANY_ERRORS

name

TUNING_ANY_ERRORS

order

dataType

object

valueType

single

arrayDimensions

None

additional

False

rangeMin

None

rangeMax

None

value

tune_globalthreshold	0
thresholdscan_hr	0
tune_pixelthreshold	0
thresholdscan_hd	0
totscan	0
all	0

associateChild

None

code TUNING_TUNED_NOISE_95_HIGH
name Tuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 124.528
associateChild None
code TUNING_TUNED_NOISE_95_LOW
name Tuned noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 83.739
associateChild None
code TUNING_TUNED_NOISE_MEAN
name Tuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 103.607
associateChild None
code TUNING_TUNED_NOISE_SIGMA
name Tuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.808
associateChild None
code TUNING_TUNED_TDAC_MEAN
name Tuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value -1.1
associateChild None
code TUNING_TUNED_TDAC_SIGMA
name Tuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 3.741
associateChild None
code TUNING_TUNED_THRESHOLD_95_HIGH
name Tuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1569.503
associateChild None
code TUNING_TUNED_THRESHOLD_95_LOW
name Tuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1434.216
associateChild None

code	TUNING_TUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the tuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	18
associateChild	None

code TUNING_TUNED_THRESHOLD_MEAN
name Mean of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1503.9
associateChild None
code TUNING_TUNED_THRESHOLD_SIGMA
name Sigma of the tuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 36
associateChild None
code TUNING_TUNED_TOT_95_HIGH
name Tuned ToT 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.06
associateChild None
code TUNING_TUNED_TOT_95_LOW
name Tuned ToT 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 5.1
associateChild None
code TUNING_TUNED_TOT_MEAN
name Mean of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.3
associateChild None
code TUNING_TUNED_TOT_SIGMA
name Sigma of tuned ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0.3
associateChild None
code TUNING_UNTUNED_NOISE_95_HIGH
name Untuned noise 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 122.821
associateChild None
code TUNING_UNTUNED_NOISE_95_LOW
name Noise 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 83.51
associateChild None
code TUNING_UNTUNED_NOISE_MEAN
name Untuned noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 102.728
associateChild None
code TUNING_UNTUNED_NOISE_SIGMA
name Untuned noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.687
associateChild None
code TUNING_UNTUNED_TDAC_MEAN
name Untuned TDAC mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_TDAC_SIGMA
name Untuned TDAC sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_HIGH
name Untuned threshold 95% high
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2845.203
associateChild None
code TUNING_UNTUNED_THRESHOLD_95_LOW
name Untuned threshold 95% low
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1657.413
associateChild None

code	TUNING_UNTUNED_THRESHOLD_FAILED_FITS
name	Number of failed fits from the untuned threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	114
associateChild	None

code TUNING_UNTUNED_THRESHOLD_MEAN
name Mean of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2230.271
associateChild None
code TUNING_UNTUNED_THRESHOLD_SIGMA
name Sigma of the untuned threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 302.223
associateChild None

cts

2026-04-30T02:25:20.885Z

sys

cts	2026-04-30T02:25:20.885Z
mts	2026-04-30T02:27:10.761Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

654f8c13262c4b7dcf90e70b0e3afb43

2026-04-30T02:26:03.494Z

0x3685c_L2_warm.json

{"_id":"69d6e383b57f87a5b57532f2","serialNumber":"20UPGFC0223324","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"69dfee0d9b9db6687918cc20"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/5/4/654f8c13262c4b7dcf90e70b0e3afb43?authz=zteos64:MDAwMDAyZmF4nO1RsUoDQRQkiilSqWWqh1jY3N3u3t4m-woRS8FGBJFwxd7tXnLE3B6XDaKVreBfWGihX2EhWCkoVilstLaxE43BwsLaylc8HsPM8IZpPM80atX8xcfjbb05l7t-qZdmDsuVGtsOjB0Gyu2p752aquhWdlTqfNgPtHHehB6UldWeTgIRRAEPRMSzdkpDJljKk5ZOM0lMiyTEhCpLeLixLBLGstBwL5Kh8SjNqKdkyDzFk4zQlow0k1t3tc72yMCmOgAmgDEkAjkHRpiIYZRrpJyKNu1M_42h-4WEpNU5LGNwuTaFw8pa5zPZJpSGSOXkWOsgZpPBiPqUCl-2fUpiKNTA4NQIdIEwyeOwXyURqLJE6Nmhw9-F2g5UXuAPpGsswnCkLRJwlUoNgi0S01N7GS7Cyqs8ep_dGe8_3Lzdn708nfSu4vOthfraxlher6_uNv-r-Jsq4PL0-Kr2CZDM7TY%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/5/4/654f8c13262c4b7dcf90e70b0e3afb43

654f8c13262c4b7dcf90e70b0e3afb43

id	6797ca0f2ffbf908f24868f9
userIdentity	1294-8027-1
firstName	Simpson,
middleName
lastName	Liana Rae

45caf32004bd07713c8398cd28f2122a

2026-04-30T02:27:10.761Z

TestRun_69f2bd90ffb99db4b637befa_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_69f2bd90ffb99db4b637befa_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/5/c/45caf32004bd07713c8398cd28f2122a?authz=zteos64:MDAwMDAyZjh4nO2RoU7EQBCGc5dw4jAEiRoIAtPr7nbbbgcBmoAhF8ylYtvd3jUH3abdE6AQPAKGBIElITwAAgMJkhMkPAH3DhASOC4IBBrFiBFf_vkzf_72S7PdqBauPp7HraW53A5LtdI8KtcarOtqU7vS7svvneqq6FdmVKq8HrpKW2cqd8vKKEclLnd9N3W5n8rMY4TwRJEwpF4qvEikiomMUcbk1mqQ8FRyJhw_8rRDaUadJBTckTzJCA0jX7Fod9zodUcaduQhsAAYQxIg58AIC2IY5Qopp4Ggvdm_MfS_iEfC3lEZg82VLixWxtgOiwSjIsAwZP5mDzGbDvq0Q2nQiUSHkhgKeaBx5gOqQJjGsTisEh9kWSIMTG3x90NlDmRe4A_S1wahHimDBGwlU41gikQP5H6Gi7C8vU7y5_u589uNveP3-cnJ28nN66R8eDy9uOtm3urSfxN_0gRcnj1dtz4BzcDsbQ%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/5/c/45caf32004bd07713c8398cd28f2122a

45caf32004bd07713c8398cd28f2122a

id	6797ca0f2ffbf908f24868f9
userIdentity	1294-8027-1
firstName	Simpson,
middleName
lastName	Liana Rae

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

67a21f5789d864a1f4115bd7

5e35cfb2eb3240d0d4e472d54e8b90f0

ready

2025-02-04T14:08:23.320Z

5310-2637-1

False

None

False

None

20UPGFC0223324

None

parent

component

68f231de46c81c946f08c32d

code

add640e80d568216ffad124ed16dba4b

state

ready

stateTs

2025-10-17T12:09:02.419Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43000389

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	BAREMODULERECEPTION
name	Reception at ITk institute

highestLevelParent

component

69c57a7b94cbc6ecfb52afd3

code

0e22d6accb6ae0d66e2899fa4f3f5e50

state

ready

stateTs

2026-03-26T18:27:07.129Z

stateUserIdentity

3339-2662-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24220303

alternativeIdentifier

ANL_ITkPix_246

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

code	name	dataType	required	default	value
TARGET_IREF_TRIM	Target Iref trim	integer	False	False	5
TARGET_IREF_TRIM_VERSION	Target Iref trim version	string	False	False	1

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Post-Parylene Warm

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No TestRun!
Undershunt Protection (UNDERSHUNT_PROTECTION)	No TestRun!
SLDO (SLDO)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
Data Transmission (DATA_TRANSMISSION)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!
Low Power Mode (LP_MODE)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
69dff8…e8f4ed	PIXEL_FAILURE_ANALYSIS	Pass	Simpson,Liana Rae	N/A	a month ago	2.8.1	No tags	Selected
69dff8…e8f3ef	TUNING	Pass	Simpson,Liana Rae	N/A	a month ago	2.8.1	No tags	Selected
69dff8…e8f2bb	MIN_HEALTH_TEST	Pass	Simpson,Liana Rae	N/A	a month ago	2.8.1	No tags	Selected
69dfdf…e8e8b9	INJECTION_CAPACITANCE	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfdf…e8e821	DATA_TRANSMISSION	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfe0…e8e915	LP_MODE	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfdf…e8e7f5	VCAL_CALIBRATION	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfde…e8e77b	SLDO	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfdb…e8e5b5	ANALOG_READBACK	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected
69dfd3…e8e22d	ADC_CALIBRATION	Pass	Simpson,Liana Rae	2 months ago	a month ago	2.8.1	No tags	Selected

Past QC Stages and Results

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
69dff8…e8f4ed	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
69dff8…e8f3ef	MODULE/INITIAL_WARM	TUNING	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
69dff8…e8f2bb	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
69dfdf…e8e8b9	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfdf…e8e821	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfe0…e8e915	MODULE/INITIAL_WARM	LP_MODE	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfdf…e8e7f5	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfde…e8e77b	MODULE/INITIAL_WARM	SLDO	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfdb…e8e5b5	MODULE/INITIAL_WARM	ANALOG_READBACK	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
69dfd3…e8e22d	MODULE/INITIAL_WARM	ADC_CALIBRATION	Simpson,Liana Rae	2 months ago	a month ago	No tags	Selected
67a21f…1162eb	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/GRAVEYARD
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0223324

MODULE/POST_PARYLENE_WARM

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Post-Parylene Warm

Candidate TestRuns of this Stage

Past QC Stages and Results

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
