20UPGFC0223158

MODULE/POST_PARYLENE_COLD

Component Information

Serial Number	20UPGFC0223158
ProdDB ID	64a6e8…76b8bd
LocalDB ID	67a21eb189d864a1f4114974
Component Type	fe_chip
Parents	20UPGM24830264 20UPGB43000296
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	12
Target Iref trim version	1
Wafer serial number	None

Comments

Test: PIXEL_FAILURE_ANALYSIS QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	67a21eb189d864a1f4114974
Stage	MODULE/POST_PARYLENE_WARM
Test Type	PIXEL_FAILURE_ANALYSIS
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	69bc5aaef97f394ea371e693
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.8.1
MEASUREMENT_DATE	2026-03-19T19:02:11.000+00:00
MEASUREMENT_DURATION	481
YARR_VERSION	v1.5.6
PIXEL_FAILURE_ANY_ERRORS	{'digitalscan': 0, 'analogscan': 0, 'thresholdscan_hd': 0, 'noisescan': 0, 'mergedbumpscan': 0, 'discbumpscan': 0, 'all': 0}
PIXEL_FAILURE_BAD_ANALOG	0
PIXEL_FAILURE_BAD_DIGITAL	0
PIXEL_FAILURE_COLUMN_DISABLED	0
PIXEL_FAILURE_DEAD_ANALOG	0
PIXEL_FAILURE_DEAD_DIGITAL	0
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN	-1

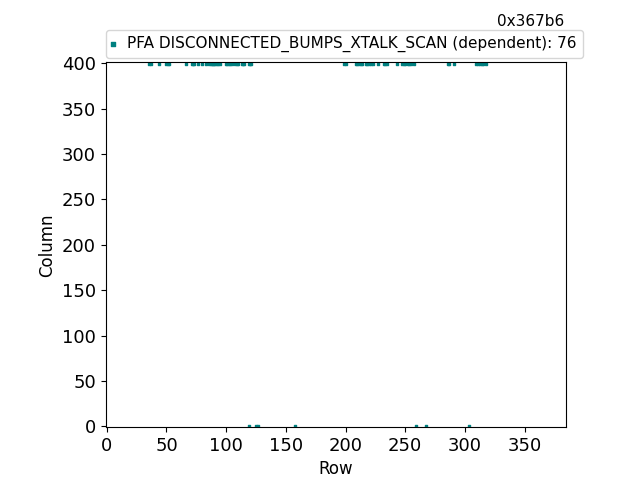

PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN	76
PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN	-1

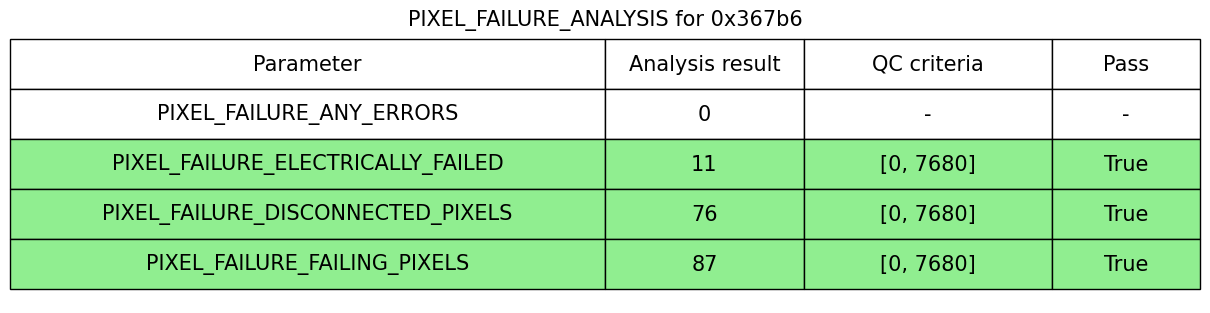

PIXEL_FAILURE_DISCONNECTED_PIXELS	76
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC	77

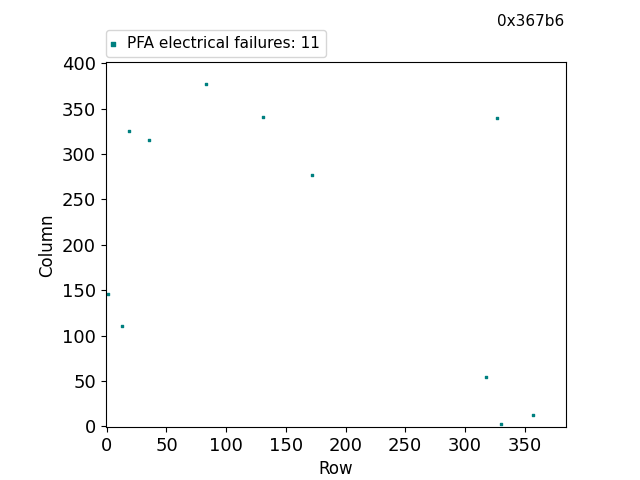

PIXEL_FAILURE_ELECTRICALLY_FAILED	11

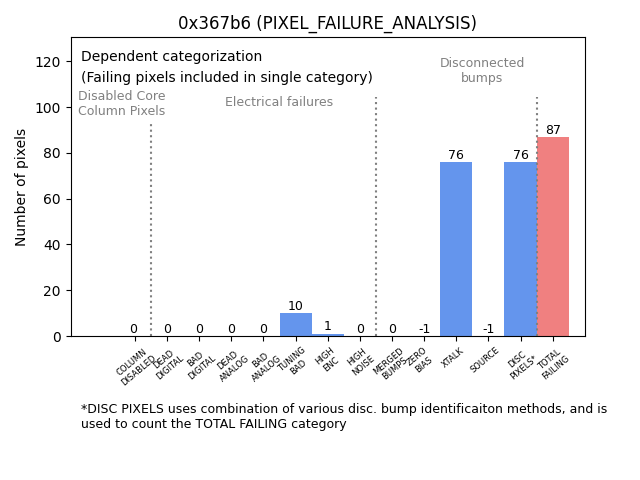

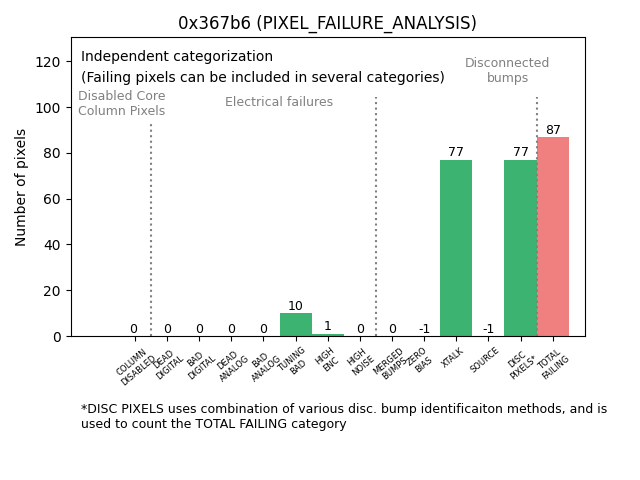

PIXEL_FAILURE_FAILING_PIXELS	87

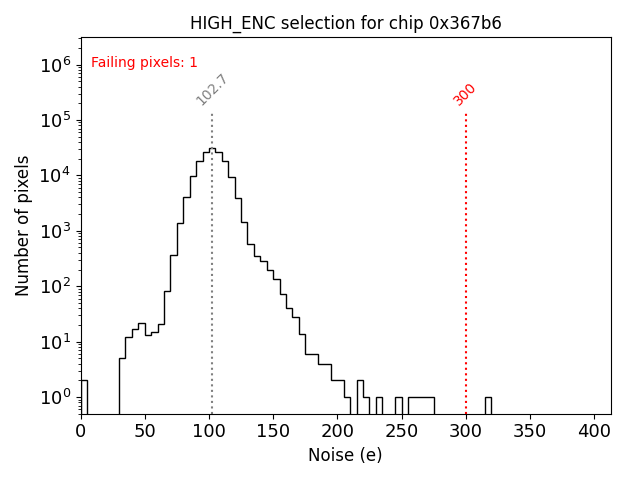

PIXEL_FAILURE_HIGH_ENC	1
PIXEL_FAILURE_HIGH_NOISE	0
PIXEL_FAILURE_MERGED_BUMPS	0
PIXEL_FAILURE_SOURCE_SCAN_DONE	False

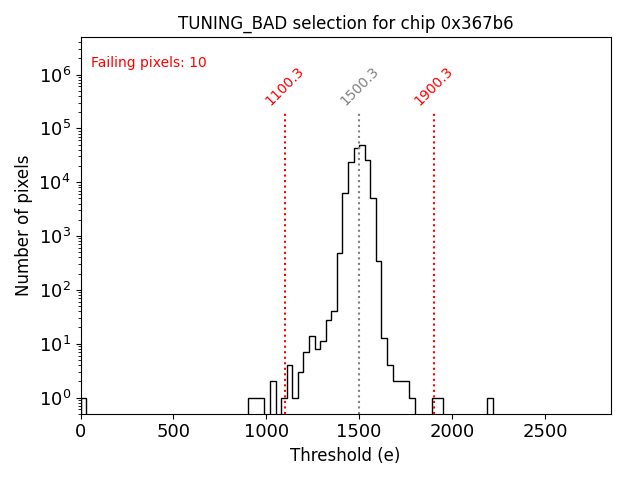

PIXEL_FAILURE_TUNING_BAD	10

Attachments

Filename	Contents
output.log	Download
0x367b6.log	Download
20UPGFC0223158_MODULE__POST_PARYLENE_WARM_PIXEL-FAILURE-ANALYSIS.zip	Download
