20UPGM23211208

MODULE/TAB_CUTTING

View QC Summary

Component Information

Serial Number 20UPGM23211208
ProdDB ID  d84b34…9f0438
LocalDB ID 67506ad04457d9315d982a1e
Component Type MODULE
Parents No match.
Children 20UPGB43200031 Bare Module 20UPGPQ2211208 PCB 20UPGFC0133432 FE Chip 20UPGFC0133417 FE Chip 20UPGFC0133515 FE Chip 20UPGFC0133466 FE Chip
Flags
Distribution of chips on wafer

 Properties

Item Value
FE chip version 3
PCB-Bare Orientation isNormal True
Is preproduction module True
Wirebond protection roof presence None
Alternative ID None
Rank None

 Comments

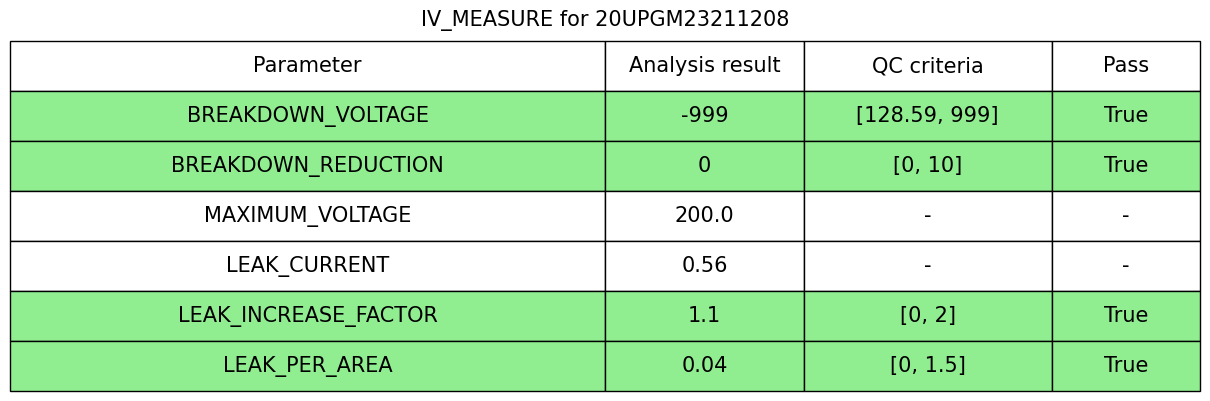

Test: IV_MEASURE QC Passed

(Stage: MODULE/FINAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 8 months ago
component ObjectId 67506ad04457d9315d982a1e
Stage MODULE/FINAL_WARM
Test Type IV_MEASURE
Institute ObjectId
User Name GiuseppeCarratta
ObjectId of this record 67d2d5dc1153a0dd04b9f562
ObjectId of RAW record 67d2d5da1153a0dd04b9f55b
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.3.1rc3
HUM 0
MEASUREMENT_DATE 2025-03-13T10:49:22.000+00:00
MEASUREMENT_DURATION 810
TEMP 19.42
BREAKDOWN_REDUCTION 0
BREAKDOWN_VOLTAGE -999

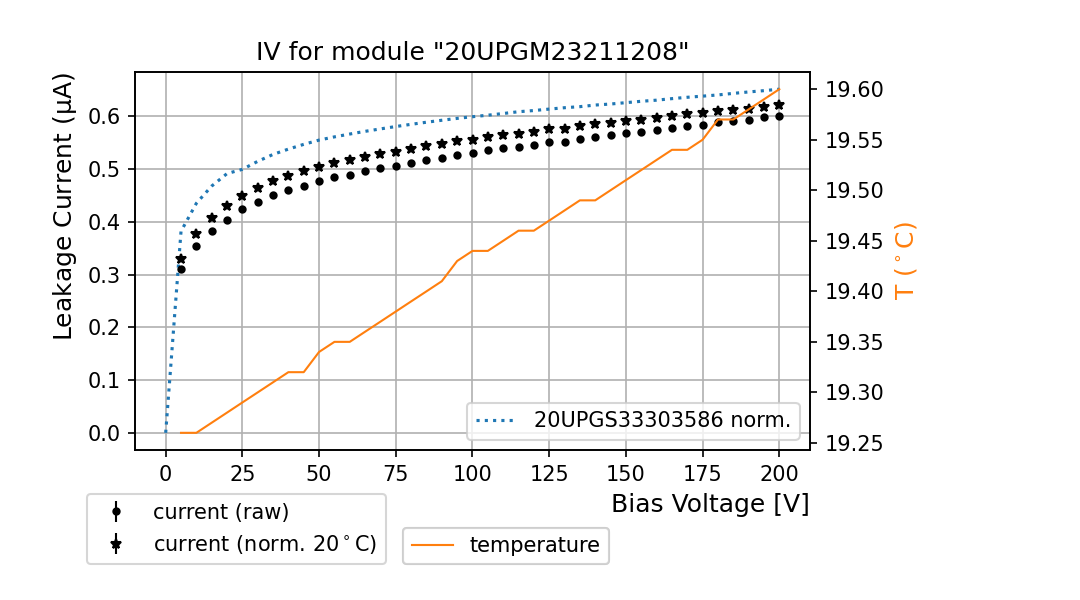

IV_ARRAY {'time': [5.0231146812438965, 18.78135848045349, 31.28602147102356, 43.82610774040222, 56.95612025260925, 72.56395411491394, 86.55246210098267, 99.45372986793518, 110.59505486488342, 125.09436655044556, 142.43054127693176, 154.2625036239624, 169.71508860588074, 183.54104280471802, 195.6781051158905, 211.7587432861328, 227.53246998786926, 241.0629653930664, 254.99418544769287, 270.2083685398102, 285.29710721969604, 295.56118059158325, 306.9089639186859, 320.0469207763672, 330.3445498943329, 341.19999504089355, 352.48232555389404, 363.0779447555542, 375.0039689540863, 388.0885865688324, 399.00803208351135, 409.3382716178894, 422.1968991756439, 432.3043348789215, 443.91085839271545, 457.90789914131165, 470.4483687877655, 481.04000997543335, 492.2750973701477, 505.28388142585754, 514.8231074810028], 'voltage': [0.00037752778735011816, 5.000157833099365, 10.000089645385742, 15.000100135803223, 19.999610900878906, 24.985340118408203, 29.998689651489258, 34.994319915771484, 39.98843002319336, 44.99338150024414, 49.98994064331055, 55.002479553222656, 59.996131896972656, 64.98934936523438, 70.00128173828125, 74.99607849121094, 79.99038696289062, 85.00479125976562, 89.99787139892578, 94.99308013916016, 100.00409698486328, 104.99749755859375, 110.00879669189453, 115.00540161132812, 119.99420166015625, 125.00769805908203, 130.002197265625, 134.99349975585938, 140.00469970703125, 144.99989318847656, 149.99380493164062, 155.00660705566406, 160.0019073486328, 165.0128936767578, 170.00929260253906, 175.00100708007812, 180.01300048828125, 185.00669860839844, 190.0019073486328, 195.00950622558594, 200.00230407714844], 'current': [4.157183278175047e-06, 0.31002272748992254, 0.354693620844652, 0.38344950326063554, 0.4044915253113383, 0.4240322558265082, 0.4380138989290572, 0.45035516412402404, 0.4598679386920897, 0.46889036298125575, 0.4770048368148613, 0.4850131366159379, 0.4897200180190945, 0.49597734156729223, 0.5019105249933394, 0.506526873778057, 0.5118814669913263, 0.517011111848357, 0.5218563880286334, 0.5268855716167309, 0.5303382598261427, 0.5355394894953255, 0.5396840757991109, 0.5417503151268951, 0.5450106831024945, 0.5508817177239204, 0.5520496226078345, 0.5570339756862571, 0.5606441770093321, 0.5636970096626707, 0.5680081092881059, 0.570422097704674, 0.5741920858781668, 0.5781008098892926, 0.5817067858515657, 0.5836062465884121, 0.58853178567612, 0.5906291562496335, 0.5937120780193558, 0.5978507147119672, 0.6007802729376029], 'sigma current': [7.091841295743158e-05, 0.0007290742092089722, 0.00034007114057652547, 0.00035567995307245377, 0.0003678657804606517, 0.001680014894752162, 0.0007236593824292527, 0.0007740899148195309, 9.705599804335163e-05, 0.000962614893901254, 0.0009008600120932893, 0.00064055531120003, 0.0003119383466219979, 0.0003391302612347498, 0.0003527725605302938, 0.0001306316925624901, 0.0006794455787927176, 4.426739612579151e-05, 9.247384021192889e-05, 0.000676268360805742, 0.0011095029704401933, 0.00023144008784405074, 0.000768770246967079, 0.00042083793781228526, 0.000396343254295752, 0.00017720356572630707, 8.124621371271178e-05, 0.0010202672696892356, 0.0003445997059186918, 0.00036237145365069573, 0.00013588375650961792, 0.0008779814749778898, 0.0010137564209971633, 0.0005862067354374594, 0.0001895566344999087, 0.00036180289496999817, 0.00029090003168377276, 0.0010796716616039588, 0.00028307552825233747, 0, 0.001169730336560045], 'temperature': [19.25, 19.26, 19.26, 19.27, 19.28, 19.29, 19.3, 19.31, 19.32, 19.32, 19.34, 19.35, 19.35, 19.36, 19.37, 19.38, 19.39, 19.4, 19.41, 19.43, 19.44, 19.44, 19.45, 19.46, 19.46, 19.47, 19.48, 19.49, 19.49, 19.5, 19.51, 19.52, 19.53, 19.54, 19.54, 19.55, 19.57, 19.57, 19.58, 19.59, 19.6], 'humidity': []}
LEAK_CURRENT 0.564902333894695
LEAK_INCREASE_FACTOR 1.1
LEAK_PER_AREA 0.04
MAXIMUM_VOLTAGE 200.00230407714844
NO_BREAKDOWN_VOLTAGE_OBSERVED True

Attachments
