20UPGFC0146826

MODULE/THERMAL_CYCLES

Component Information

Serial Number	20UPGFC0146826
ProdDB ID	5c096e…00ebc9
LocalDB ID	661003832fc9f2003515ace1
Component Type	fe_chip
Parents	20UPGM24210580 20UPGB43200367
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	661003832fc9f2003515ace1
Stage	MODULE/POST_PARYLENE_WARM
Test Type	TUNING
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	690b82874f9fcd33281199d7
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-11-04T15:32:12.000+00:00
MEASUREMENT_DURATION	2855
YARR_VERSION	v1.5.5

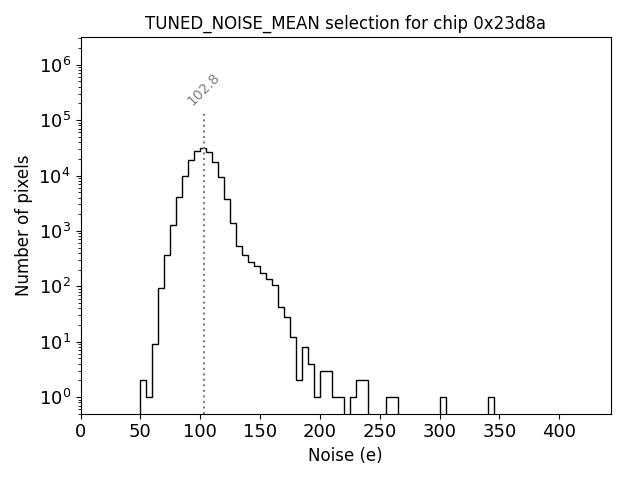

TUNING_TUNED_NOISE_95_HIGH	123.998
TUNING_TUNED_NOISE_95_LOW	83.108
TUNING_TUNED_NOISE_MEAN	102.764
TUNING_TUNED_NOISE_SIGMA	10.877
TUNING_TUNED_TDAC_MEAN	-1.2
TUNING_TUNED_TDAC_SIGMA	3.971

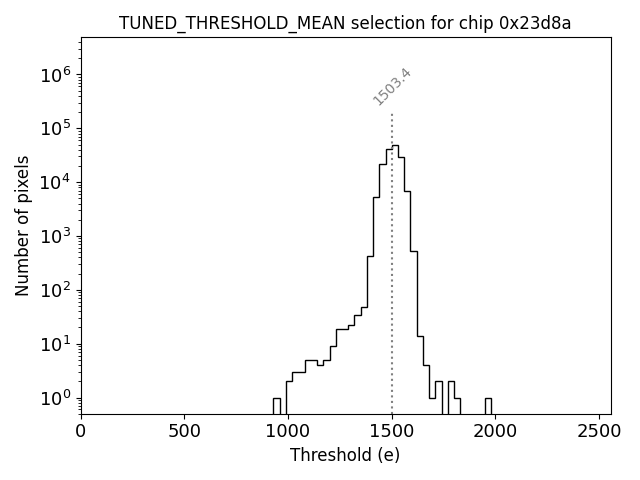

TUNING_TUNED_THRESHOLD_95_HIGH	1568.852
TUNING_TUNED_THRESHOLD_95_LOW	1433.339
TUNING_TUNED_THRESHOLD_FAILED_FITS	5
TUNING_TUNED_THRESHOLD_MEAN	1503.4
TUNING_TUNED_THRESHOLD_SIGMA	36
TUNING_TUNED_TOT_95_HIGH	10.08
TUNING_TUNED_TOT_95_LOW	5.14
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3

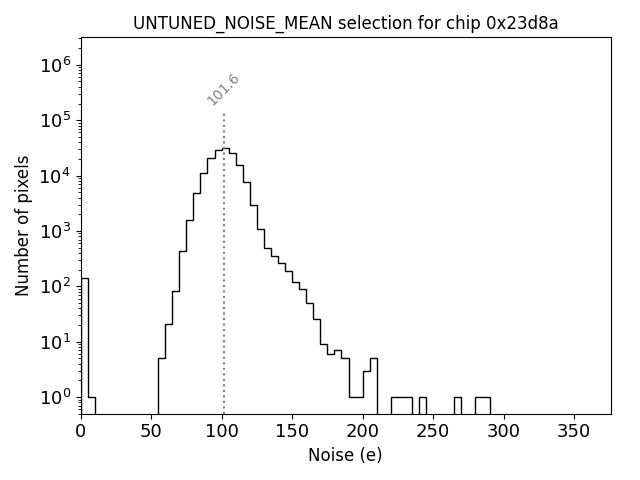

TUNING_UNTUNED_NOISE_95_HIGH	122.452
TUNING_UNTUNED_NOISE_95_LOW	82.206
TUNING_UNTUNED_NOISE_MEAN	101.579
TUNING_UNTUNED_NOISE_SIGMA	10.958
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

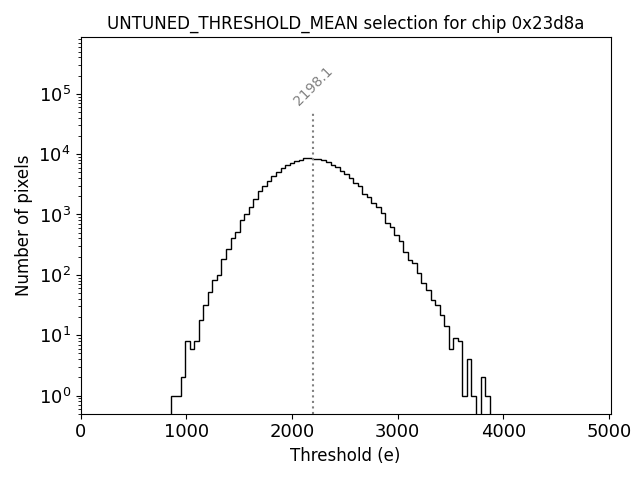

TUNING_UNTUNED_THRESHOLD_95_HIGH	2849.665
TUNING_UNTUNED_THRESHOLD_95_LOW	1602.757
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	74
TUNING_UNTUNED_THRESHOLD_MEAN	2198.071
TUNING_UNTUNED_THRESHOLD_SIGMA	317

Attachments

Filename	Contents
0x23d8a_L2_warm.json	Download
output.log	Download
0x23d8a.log	Download
20UPGFC0146826_MODULE__POST_PARYLENE_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

695ecca2443fc79a1e2dae99

state

ready

stateTs

2026-01-07T21:14:10.423Z

stateUserIdentity

4728-7541-1

date

2025-11-05T16:59:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

runNumber

690b82874f9fcd33281199d7

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-11-04T15:32:12.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	2855	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	123.998	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	83.108	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	102.764	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.877	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.2	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	3.971	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1568.852	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1433.339	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	5	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1503.4	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	36	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.08	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.14	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.4	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	122.452	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	82.206	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	101.579	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	10.958	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2849.665	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1602.757	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	74	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2198.071	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	317	None

cts

2026-01-07T21:14:10.424Z

sys

cts	2026-01-07T21:14:10.424Z
mts	2026-01-07T21:15:14.881Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

28cf7d057de9ef1ad5987d38e5fc58a6

2026-01-07T21:14:50.523Z

0x23d8a_L2_warm.json

{"_id":"68fa808564f873154cba9647","serialNumber":"20UPGFC0146826","stage":"MODULE/POST_PARYLENE_WARM","branch":"warm","current_revision_id":"690a2daecb804247adfd10d5"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/2/8/c/28cf7d057de9ef1ad5987d38e5fc58a6?authz=zteos64:MDAwMDAyZjZ4nO2Rr0sEQRTHuQMNJjFafPgDLHu7b-52Z_clgyAIFrEtG2Z3Zu7W051lb66IYBJB8IpZbILBKB4YbGIR_wKbmAwWq3iKwWA2-cILH77vy_vynXiqT9SqycP9k_vx6bHcdks5W98pF2tsw1Wm5wq7Jb53pqqiXZl-KfNe15XKOiO5W1ZGOjJ1mRu6mcvCTHPp-VyqSGkU0o9CLpuh8nXmhyJYnfdaUcgyrRzkTekganREKrgjWqn2kEe-ZNH6Qy3e6CtYExVAExgSesQCYB4LEujnkrCFQYjx178JtD9J0-PxTpmAzaUqLFXG2EbEOEekVhTwpZhIj4Z8bCAGjShsoJdAIbYVfdmALAhGaSx1q9QHUZYEHdOz9PuhNNsiL-gHaStD0OtLQx7YSmSKwBSp6ogtTVOwcB4n78-Pg5Xd69uDq9ezZb05dzP072aGe8dLg4u36f8i_qIIeDk9uqx_AEah7aU%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/2/8/c/28cf7d057de9ef1ad5987d38e5fc58a6

28cf7d057de9ef1ad5987d38e5fc58a6

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

9a61b9023722b2006257569bf33ae4b2

2026-01-07T21:15:14.881Z

TestRun_695ecca2443fc79a1e2dae99_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_695ecca2443fc79a1e2dae99_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/9/a/6/9a61b9023722b2006257569bf33ae4b2?authz=zteos64:MDAwMDAyZjZ4nO2RMUsDQRCFSUDBVCJokWoQBZvL7e7l9rJTWQsWStAiBNzN7iVnktvjbtOkFCwUe7HwrwiWgmInKNjZ2VgqWhiDhYW1lVNM8fHmMY9XeSpXSvn88eH5zWx1JnH9TC-Xx9laiTV9YwtfuoH83h2Tp93cjjKdFH1fG-dN5H6WW-1p5Qtf-twXklMlCAsixhQjhLMwCrlQcRBIU1dsY4XUlY46MfNoFGiP0ph6ImoQT9ZVTGgkQs3E9m2p1RwZ2JQ5QACMIiXIODDCeBtGiUZap7xBW9N_29D9IgGJWuOsDS7RJnWYW-tqgkWEhMgpY-stxHgyGNIapbwmGjVK2pDKocGpDegUYZLGYT9XIcgsQ-jZwuHvh9oOZZLiD9I1FqEYaYsEXC47BsGmyvTkIMYFODEPBx_ufnHHrF5dvhy9FtnjXuV0a39uafdMuvfr6n8Rf1EEXNy9PZc_AVa36Zw%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/9/a/6/9a61b9023722b2006257569bf33ae4b2

9a61b9023722b2006257569bf33ae4b2

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

661003832fc9f2003515ace1

5c096edd31b91ee08213c15ebd00ebc9

ready

2024-04-05T13:58:27.172Z

5310-2637-1

False

None

False

None

20UPGFC0146826

None

parent

component

6810f23ea61e7625af0608b6

code

7a90d45988477ed61ba93d41456e6358

state

ready

stateTs

2025-04-29T15:37:34.558Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200367

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/WIREBOND_PROTECTION
name	Wirebond Protection (alt)

highestLevelParent

component

689ce5b7e945399df1ed7ade

code

7597d42fb96e97ed06bdc49ec535251d

state

ready

stateTs

2025-08-13T19:21:27.142Z

stateUserIdentity

1294-8027-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24210580

alternativeIdentifier

ANL_ITkPix_129

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/WIREBOND_PROTECTION
name	Wirebond Protection (alt)

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/POST_PARYLENE_WARM
name	Post-Parylene Warm
order	15
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Thermal Cycles

Test Type	Local Result
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!
Tuning (TUNING)	No TestRun!
Data Transmission (DATA_TRANSMISSION)	No TestRun!
SLDO (SLDO)	No TestRun!
ADC Calibration (ADC_CALIBRATION)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!
Low Power Mode (LP_MODE)	No TestRun!
Cold startup (COLD_STARTUP)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
69052c…bae5c9	LP_MODE	Fail	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
690b82…119a95	PIXEL_FAILURE_ANALYSIS	Pass	DanielAceves	N/A	3 months ago	2.6.4	No tags	Selected
690b82…1199d7	TUNING	Pass	DanielAceves	N/A	3 months ago	2.6.4	No tags	Selected
690b82…119909	MIN_HEALTH_TEST	Pass	DanielAceves	N/A	3 months ago	2.6.4	No tags	Selected
69052b…bae588	INJECTION_CAPACITANCE	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
69052a…bae53f	DATA_TRANSMISSION	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
69052a…bae4ee	VCAL_CALIBRATION	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
690529…bae495	SLDO	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
690527…bae2dd	ANALOG_READBACK	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected
69051f…badd03	ADC_CALIBRATION	Pass	DanielAceves	6 months ago	3 months ago	2.6.4	No tags	Selected

Past QC Stages and Results

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
69052c…bae5c9	MODULE/POST_PARYLENE_WARM	LP_MODE	DanielAceves	6 months ago	3 months ago	No tags	Selected
690b82…119a95	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	3 months ago	No tags	Selected
690b82…1199d7	MODULE/POST_PARYLENE_WARM	TUNING	DanielAceves	N/A	3 months ago	No tags	Selected
690b82…119909	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	DanielAceves	N/A	3 months ago	No tags	Selected
69052b…bae588	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	DanielAceves	6 months ago	3 months ago	No tags	Selected
69052a…bae53f	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	DanielAceves	6 months ago	3 months ago	No tags	Selected
69052a…bae4ee	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	DanielAceves	6 months ago	3 months ago	No tags	Selected
690529…bae495	MODULE/POST_PARYLENE_WARM	SLDO	DanielAceves	6 months ago	3 months ago	No tags	Selected
690527…bae2dd	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	DanielAceves	6 months ago	3 months ago	No tags	Selected
69051f…badd03	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	DanielAceves	6 months ago	3 months ago	No tags	Selected
68e015…911231	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	6 months ago	No tags	Selected
68e015…911166	MODULE/INITIAL_WARM	TUNING	DanielAceves	N/A	6 months ago	No tags	Selected
68e015…91107b	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	DanielAceves	N/A	6 months ago	No tags	Selected
68e00a…910f6f	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	DanielAceves	6 months ago	6 months ago	No tags	Selected
68e009…910f43	MODULE/INITIAL_WARM	DATA_TRANSMISSION	DanielAceves	6 months ago	6 months ago	No tags	Selected
68e00b…910f9b	MODULE/INITIAL_WARM	LP_MODE	DanielAceves	6 months ago	6 months ago	No tags	Selected
68e009…910f0f	MODULE/INITIAL_WARM	VCAL_CALIBRATION	DanielAceves	6 months ago	6 months ago	No tags	Selected
68e008…910ed3	MODULE/INITIAL_WARM	SLDO	DanielAceves	6 months ago	6 months ago	No tags	Selected
68e005…910e6f	MODULE/INITIAL_WARM	ANALOG_READBACK	DanielAceves	6 months ago	6 months ago	No tags	Selected
68dffd…910e13	MODULE/INITIAL_WARM	ADC_CALIBRATION	DanielAceves	6 months ago	6 months ago	No tags	Selected
661004…15bfdb	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0146826

MODULE/THERMAL_CYCLES

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Thermal Cycles

Candidate TestRuns of this Stage

Past QC Stages and Results

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
