20UPGFC0146019

MODULE/POST_PARYLENE_COLD

Component Information

Serial Number 20UPGFC0146019
ProdDB ID  c91001…e3a285
LocalDB ID 660fbe0aec873d00354e2178
Component Type fe_chip
Parents 20UPGM24211492  20UPGB43200436 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Target Iref trim 8
Target Iref trim version 1
Wafer serial number None

 Comments


Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date a month ago
component ObjectId 660fbe0aec873d00354e2178
Stage MODULE/INITIAL_WARM
Test Type TUNING
Institute ObjectId
User Name DanielAceves
ObjectId of this record 6994e537f6ae188f06791b50
ObjectId of RAW record None
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.7.3
MEASUREMENT_DATE 2026-02-17T21:27:31.000+00:00
MEASUREMENT_DURATION 669
YARR_VERSION v1.5.5
TUNING_TUNED_NOISE_95_HIGH 124.677
TUNING_TUNED_NOISE_95_LOW 83.606

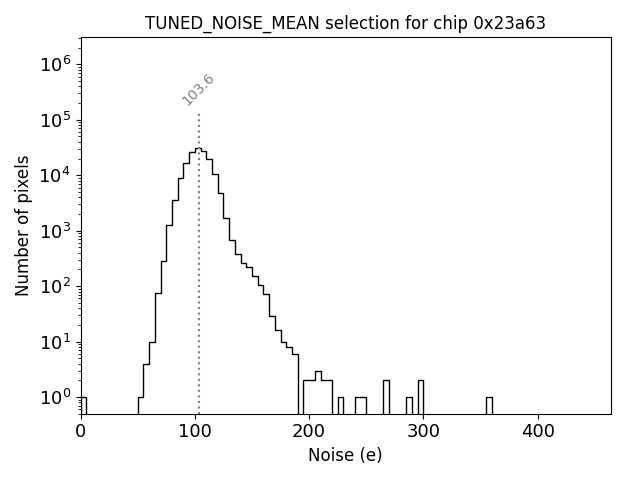

TUNING_TUNED_NOISE_MEAN 103.563
TUNING_TUNED_NOISE_SIGMA 10.859
TUNING_TUNED_TDAC_MEAN -1.4
TUNING_TUNED_TDAC_SIGMA 4.124
TUNING_TUNED_THRESHOLD_95_HIGH 1559.436
TUNING_TUNED_THRESHOLD_95_LOW 1430.67
TUNING_TUNED_THRESHOLD_FAILED_FITS 2

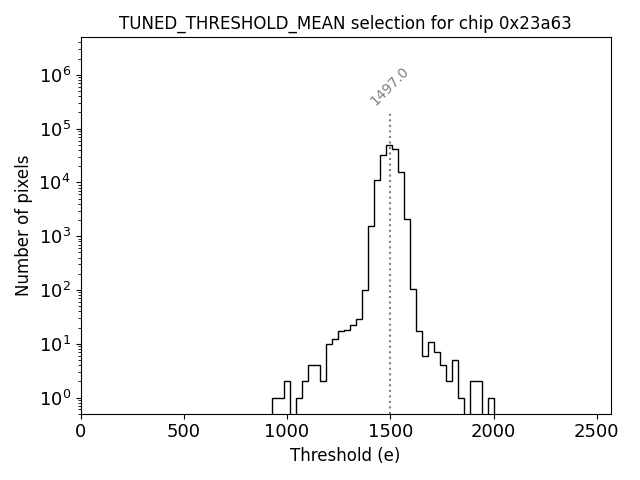

TUNING_TUNED_THRESHOLD_MEAN 1497
TUNING_TUNED_THRESHOLD_SIGMA 34
TUNING_TUNED_TOT_95_HIGH 10.08
TUNING_TUNED_TOT_95_LOW 5.41
TUNING_TUNED_TOT_MEAN 7.4
TUNING_TUNED_TOT_SIGMA 0.3
TUNING_UNTUNED_NOISE_95_HIGH 122.52
TUNING_UNTUNED_NOISE_95_LOW 82.55

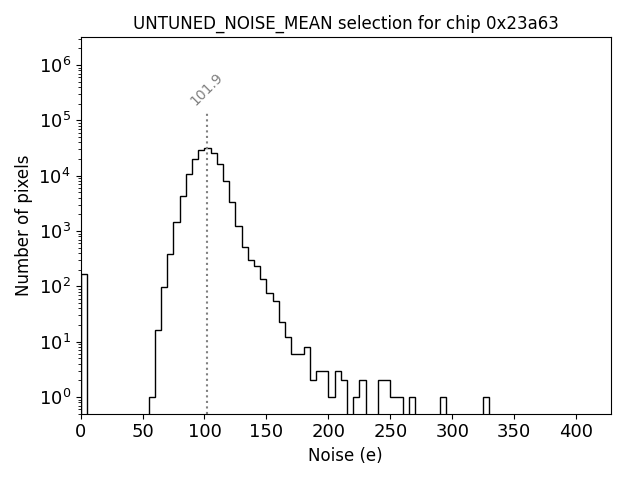

TUNING_UNTUNED_NOISE_MEAN 101.947
TUNING_UNTUNED_NOISE_SIGMA 10.91
TUNING_UNTUNED_TDAC_MEAN 0
TUNING_UNTUNED_TDAC_SIGMA 0
TUNING_UNTUNED_THRESHOLD_95_HIGH 2966.564
TUNING_UNTUNED_THRESHOLD_95_LOW 1758.41

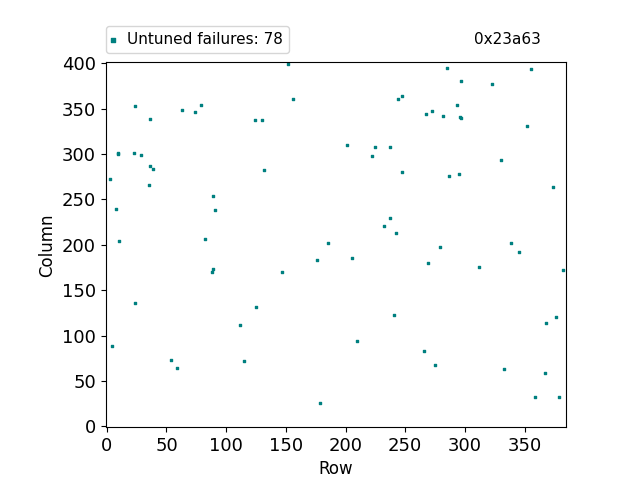

TUNING_UNTUNED_THRESHOLD_FAILED_FITS 78

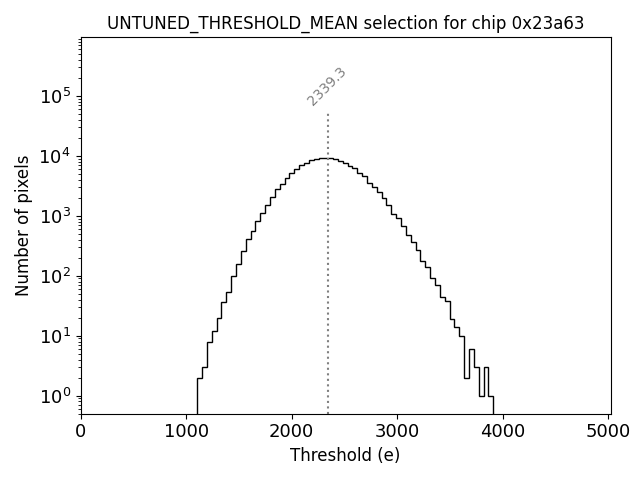

TUNING_UNTUNED_THRESHOLD_MEAN 2339.291
TUNING_UNTUNED_THRESHOLD_SIGMA 306.981

Attachments

Filename Contents
0x23a63_L2_warm.json Download
output.log Download
0x23a63.log Download
20UPGFC0146019_MODULE__INITIAL_WARM_TUNING.zip Download
