20UPGFC0143992

MODULE/UNHAPPY

Component Information

Serial Number	20UPGFC0143992
ProdDB ID	c740eb…0096bb
LocalDB ID	660ed8ffec873d00354842fc
Component Type	fe_chip
Parents	20UPGM24830473 20UPGB43200663
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Target Iref trim	7
Target Iref trim version	1
Wafer serial number	None

Comments

Test: DATA_TRANSMISSION QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	660ed8ffec873d00354842fc
Stage	MODULE/INITIAL_WARM
Test Type	DATA_TRANSMISSION
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	69c41251f97f394ea372a384
ObjectId of RAW record	69c4124ff97f394ea372a37d
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.8.1
YARR_VERSION	v1.5.5
MEASUREMENT_DATE	2026-03-25T16:49:50.000+00:00
MEASUREMENT_DURATION	19
MEASUREMENT_VERSION	2.8.0

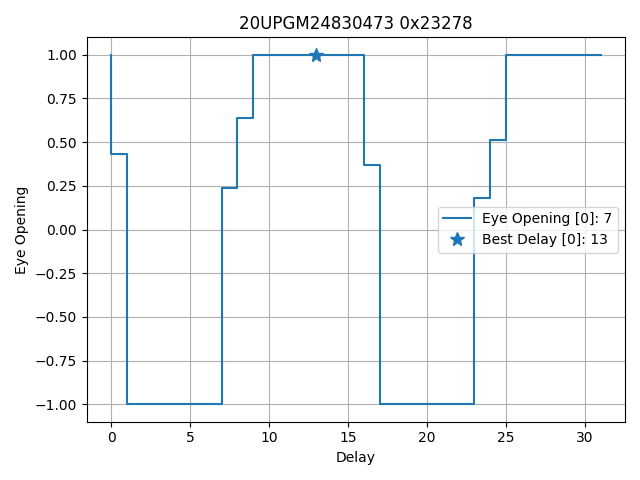

EYE_WIDTH0	7
4_TO_1	1
2_TO_1	1

Attachments

Filename	Contents
output.log	Download

RAW Results Record

Download RAW

_id

69c4124ff97f394ea372a37d

raw

serialNumber

testType

runNumber

results

subtestType

stage

component

dbVersion

address

sys

20UPGFC0143992

DATA_TRANSMISSION

69c412408fe2f29d6e4ae342

DCSdata

SensorVoltage	-120.0
SensorCurrent	2.3699999999999996e-07
ModuleNTC	19.97

Measurements

Delay

X	True
Unit
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

EyeOpening0

X	False
Unit
Values	1.0 0.43 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 0.24 0.64 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.37 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 0.18 0.51 1.0 1.0 1.0 1.0 1.0 1.0

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

ITKPIXV2

GlobalConfig

AuroraActiveLanes	1
CdrClkSel	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
SerEnTap	1
SerInvTap	1
MonitorEnable	1
MonitorI	63
MonitorV	32
ServiceBlockEn	1
ServiceBlockPeriod	50
DiffLcc	200
DiffLccEn	1
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffVff	60
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
DataMergeOutMux0	0
DataMergeOutMux1	1
DataMergeOutMux2	2
DataMergeOutMux3	3
SerEnLane	15
SerSelOut0	1
SerSelOut1	3
SerSelOut2	3
SerSelOut3	3
SldoTrimA	10
SldoTrimD	11

Parameter

ADCcalPar	7.0 0.18 10000.0
InjCap	7.624
KSenseInA	21393.552
KSenseInD	21529.171
Name	0x23278
ChipId	13
NfDSLDO	1.2685749807143603
NfASLDO	1.2689606352787228
NfACB	1.267260898495051
VcalPar	-3.0 0.19
IrefTrim	7
KSenseShuntA	22005.0
KSenseShuntD	22144.0
KShuntA	1006.013
KShuntD	975.985

SoftwareType

ChipID

Name

0x23278

Institution

ANL_PIXEL_MODULES

ModuleSN

20UPGM24830473

AverageTemperature

19.91

EyeWidth0

DelaySetting0

TimeStart

1774457375

TimeEnd

1774457390

comment

property

YARR_VERSION	v1.5.5
DATA_TRANSMISSION_MEASUREMENT_VERSION	2.8.0

DT_EYE

MODULE/INITIAL_WARM

660ed8ffec873d00354842fc

1.01

64657cef8d79bac1f3f00578

mts	2026-03-25 16:50:23.643000
cts	2026-03-25 16:50:23.643000
rev	0

20UPGFC0143992

DATA_TRANSMISSION

69c412408fe2f29d6e4ae343

DCSdata

SensorVoltage	-120.0
SensorCurrent	2.38e-07
ModuleNTC	20.0

Measurements

4-to-1

X	False
Unit
Values	1

2-to-1

X	False
Unit
Values	1

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

ITKPIXV2

GlobalConfig

AuroraActiveLanes	1
CdrClkSel	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
SerEnTap	1
SerInvTap	1
MonitorEnable	1
MonitorI	63
MonitorV	32
ServiceBlockEn	1
ServiceBlockPeriod	50
DiffLcc	200
DiffLccEn	1
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffVff	60
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
DataMergeOutMux0	0
DataMergeOutMux1	1
DataMergeOutMux2	2
DataMergeOutMux3	3
SerEnLane	15
SerSelOut0	1
SerSelOut1	3
SerSelOut2	3
SerSelOut3	3
SldoTrimA	10
SldoTrimD	11

Parameter

ADCcalPar	7.0 0.18 10000.0
InjCap	7.624
KSenseInA	21393.552
KSenseInD	21529.171
Name	0x23278
ChipId	13
NfDSLDO	1.2685749807143603
NfASLDO	1.2689606352787228
NfACB	1.267260898495051
VcalPar	-3.0 0.19
IrefTrim	7
KSenseShuntA	22005.0
KSenseShuntD	22144.0
KShuntA	1006.013
KShuntD	975.985

SoftwareType

ChipID

Name

0x23278

Institution

ANL_PIXEL_MODULES

ModuleSN

20UPGM24830473

AverageTemperature

19.97

TimeStart

1774457390

TimeEnd

1774457409

comment

property

YARR_VERSION	v1.5.5
DATA_TRANSMISSION_MEASUREMENT_VERSION	2.8.0

DT_MERGE

MODULE/INITIAL_WARM

660ed8ffec873d00354842fc

1.01

64657cef8d79bac1f3f00578

mts	2026-03-25 16:50:23.643000
cts	2026-03-25 16:50:23.643000
rev	0

rawHash

6311274426c41b22a246559f439f89ce

stage

MODULE/INITIAL_WARM
