20UPGFC0142972

MODULE/TAB_CUTTING

Component Information

Serial Number	20UPGFC0142972
ProdDB ID	8ab8ff…e895ab
LocalDB ID	660ddf8aec873d003545e773
Component Type	fe_chip
Parents	20UPGM23210890 20UPGB43200152
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	8 months ago
component ObjectId	660ddf8aec873d003545e773
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	AnnaRaquel Petri
ObjectId of this record	67ded4ef37f5f3101f0a3d57
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.4.0
MEASUREMENT_DATE	2025-03-22T13:51:53.000+00:00
MEASUREMENT_DURATION	1065
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.3

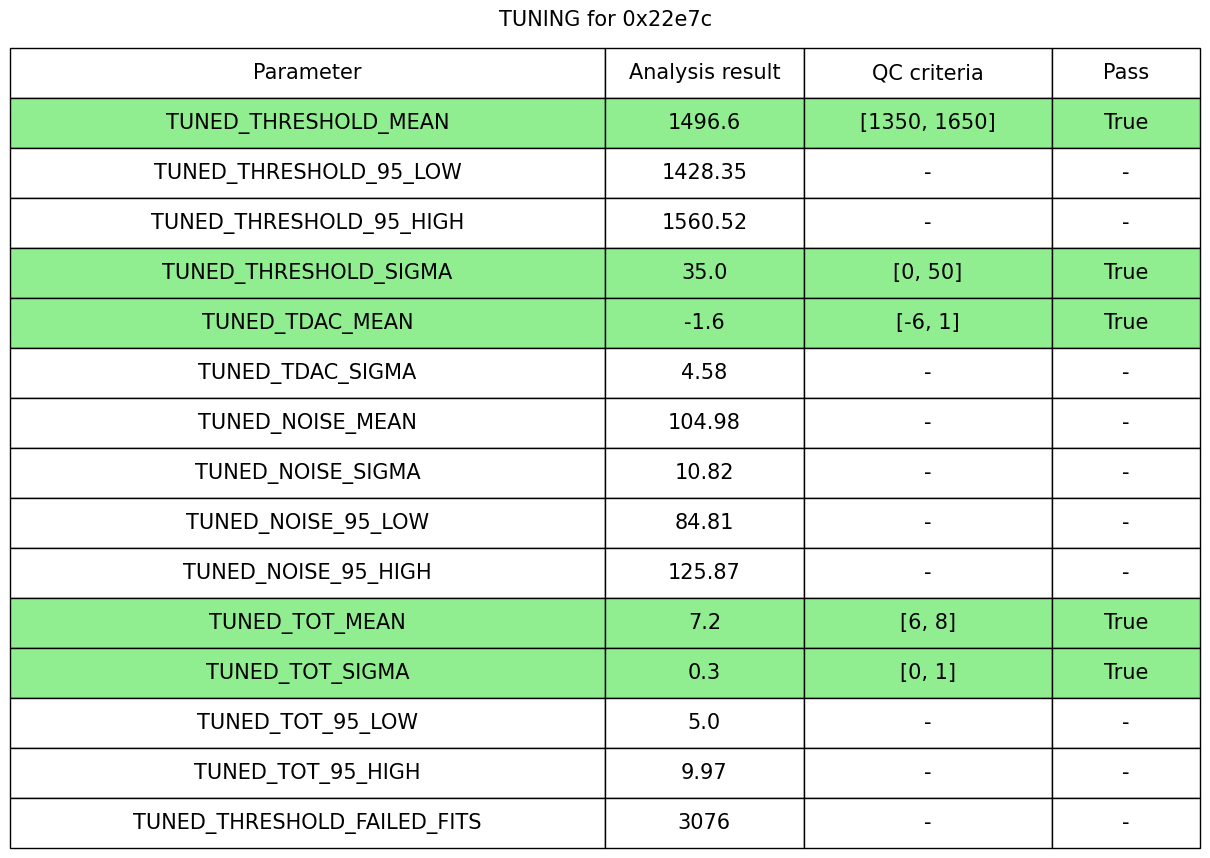

TUNING_TUNED_NOISE_95_HIGH	125.873
TUNING_TUNED_NOISE_95_LOW	84.815

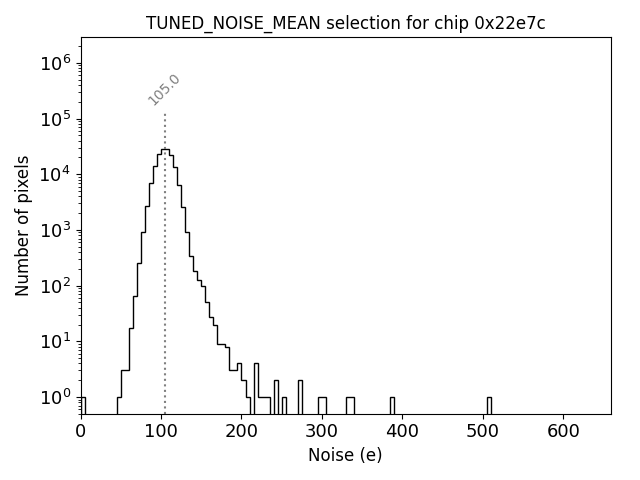

TUNING_TUNED_NOISE_MEAN	104.984
TUNING_TUNED_NOISE_SIGMA	10.822

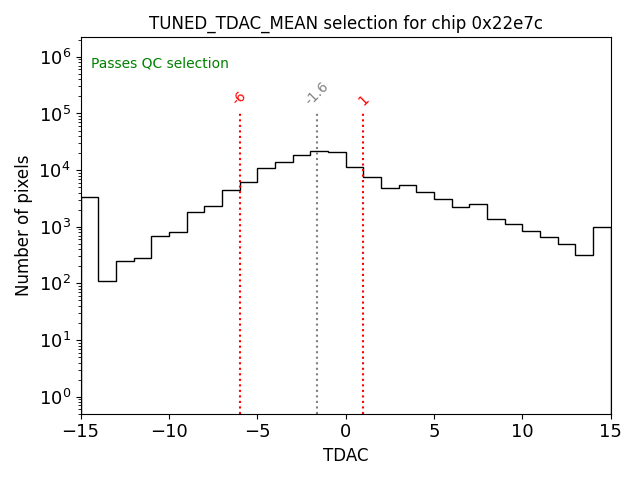

TUNING_TUNED_TDAC_MEAN	-1.6
TUNING_TUNED_TDAC_SIGMA	4.576
TUNING_TUNED_THRESHOLD_95_HIGH	1560.519
TUNING_TUNED_THRESHOLD_95_LOW	1428.354

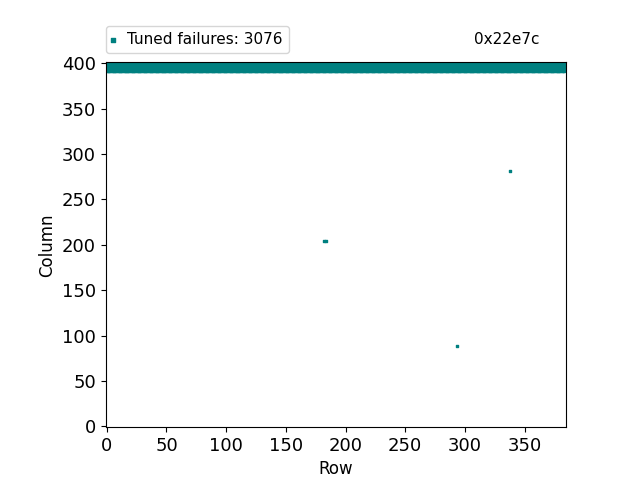

TUNING_TUNED_THRESHOLD_FAILED_FITS	3076
TUNING_TUNED_THRESHOLD_MEAN	1496.6
TUNING_TUNED_THRESHOLD_SIGMA	35

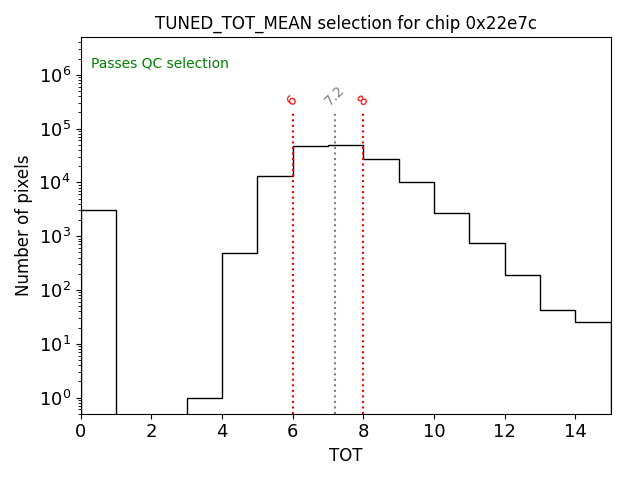

TUNING_TUNED_TOT_95_HIGH	9.97
TUNING_TUNED_TOT_95_LOW	5
TUNING_TUNED_TOT_MEAN	7.2
TUNING_TUNED_TOT_SIGMA	0.3

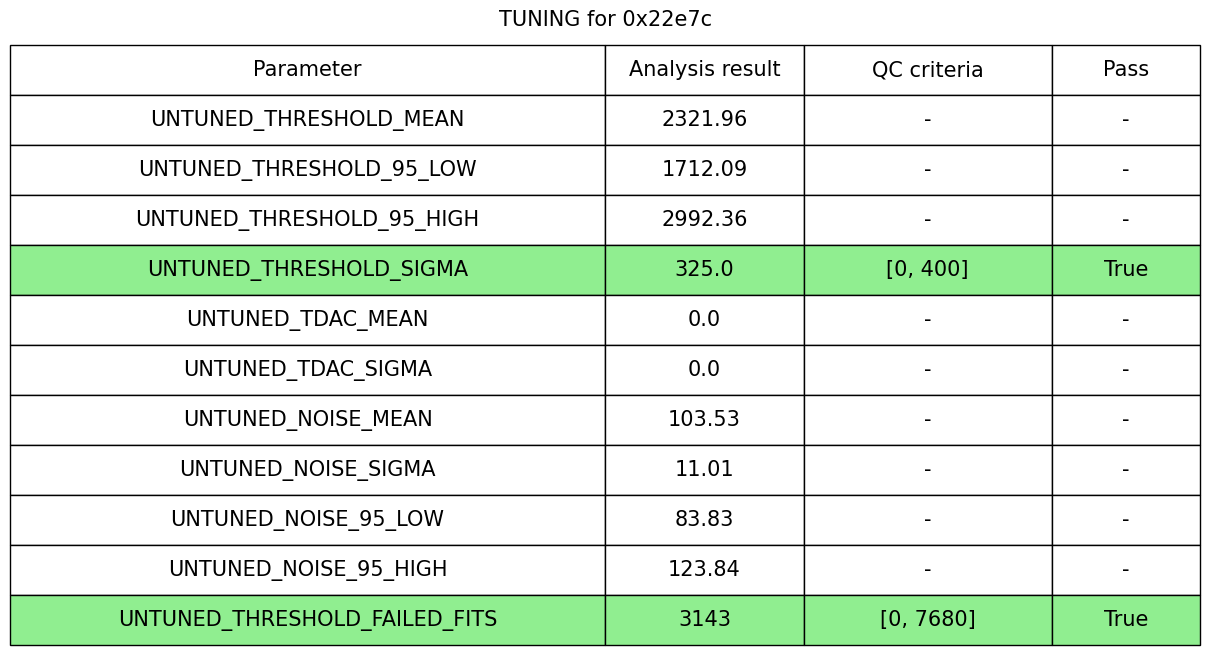

TUNING_UNTUNED_NOISE_95_HIGH	123.837
TUNING_UNTUNED_NOISE_95_LOW	83.83

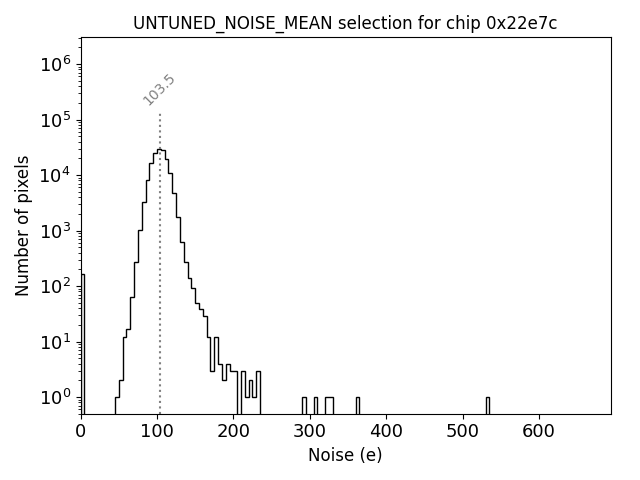

TUNING_UNTUNED_NOISE_MEAN	103.531
TUNING_UNTUNED_NOISE_SIGMA	11.006
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2992.361
TUNING_UNTUNED_THRESHOLD_95_LOW	1712.09

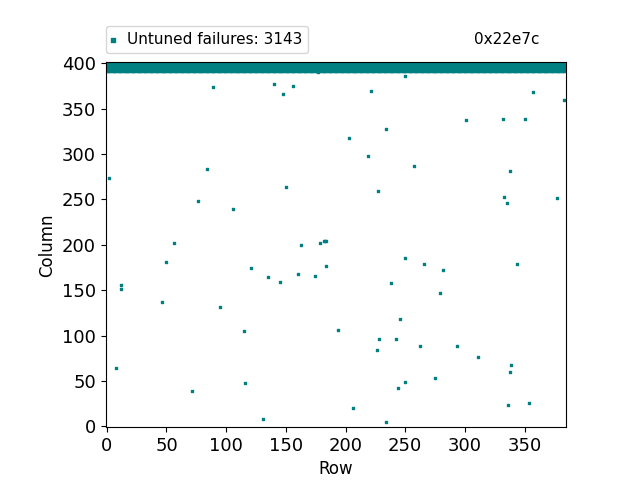

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3143

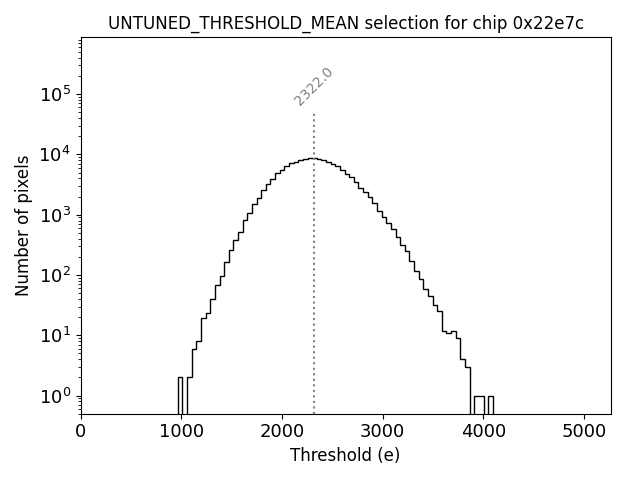

TUNING_UNTUNED_THRESHOLD_MEAN	2321.959
TUNING_UNTUNED_THRESHOLD_SIGMA	325

Attachments

Filename	Contents
0x22e7c_L2_warm.json	Download
output.log	Download
0x22e7c.log	Download
20UPGFC0142972_MODULE__INITIAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

67efcaf52136f4c256fb7371

state

ready

stateTs

2025-04-04T12:05:09.732Z

stateUserIdentity

3182-7646-1

date

2025-03-22T15:19:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d41d8ddf6e07b000a559aee
code	INFN_MILANO
name	INFN Milano

user

id	60e59f40049e18000a3aec94
userIdentity	3182-7646-1
firstName	Anna
middleName	Raquel
lastName	Petri

runNumber

67ded4ef37f5f3101f0a3d57

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.4.0	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-03-22T13:51:53.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	1065	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.3	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	125.873	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	84.815	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	104.984	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.822	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.6	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.576	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1560.519	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1428.354	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	3076	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1496.6	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	9.97	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.2	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	123.837	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	83.83	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	103.531	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	11.006	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2992.361	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1712.09	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	3143	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2321.959	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	325	None

cts

2025-04-04T12:05:09.732Z

sys

cts	2025-04-04T12:05:09.732Z
mts	2025-04-04T12:05:16.682Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

b39b7658c5c1c77c2b78fc6b5e75eb3c

2025-04-04T12:05:14.053Z

0x22e7c_L2_warm.json

{"_id":"67dc0bbd18d1531779eae661","serialNumber":"20UPGFC0142972","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"67e130be4c29115cddb29176"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/b/3/9/b39b7658c5c1c77c2b78fc6b5e75eb3c?authz=zteos64:MDAwMDAyYjR4nO1QvUoDQRg0ARViI2Jjqg8JYnM_u_f_FSF1GkHSyHHF3u1eciS5PS57TbAUa_EZ9AVECFhqqoBYSR7CzsLaGCwsLC2dYophZhim8VRv1Mrdi8vb-VZzM1PDgh_Wp8VxjVqGkBODqRH75kSUeb-UVcGzydDgQmkru1GUkms8NmLDMoJuizInDZjFNDdJHI2Q1NR83w80ZsepSbzA9Whw-lILe5WAbjUCGgC10LaRUKAmdSKoMo7EJq5PwvWcCPpfimV64bSIQGVc5ApLKZVuedTzqIsk8DohYroCOkQnxNUDXydmBDkbC1zXAM8RVmMVDsvYAVYUCAM5Ufh7kMsxy3L8ofSFRJhUXKIJqmSJQJB5LAZslOIevLXvbja69yezZef8oH3d2n9-dOeLnVnv6l0_8j_Omv8__8HP8PqwXGx_Ak_k11k%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/b/3/9/b39b7658c5c1c77c2b78fc6b5e75eb3c

b39b7658c5c1c77c2b78fc6b5e75eb3c

id	60e59f40049e18000a3aec94
userIdentity	3182-7646-1
firstName	Anna
middleName	Raquel
lastName	Petri

dc9ec2522ee3f22801c5c2accede29ac

2025-04-04T12:05:16.682Z

TestRun_67efcaf52136f4c256fb7371_Attachment_Pack.zip

/home/atlasmi/Workdir/localdb-tools/viewer/static/cache/thumbnail/TestRun_67efcaf52136f4c256fb7371_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/d/c/9/dc9ec2522ee3f22801c5c2accede29ac?authz=zteos64:MDAwMDAyYjZ4nO1QvUoDQRjkIrFIJZapPsTC5n52c79fZaFIUoogcgTZu91Ljlxuj7u9RizFQi0jiJ2CYCO-gGVEbMTGV7D1FYzBwsLS0immGGaGYVrTRksrl46Ob6aL7WaqRgVfaRwUaxrtmEJWJlMZ--ZYlPmglHXB02pkcqH0md0sSsl1HpncjM2gt0qZL0gimO7GsaMTklg68x1fZ3aUWMQLXI8G269auFML6NUZ0ABoB20bCQVqUacPdcqR2MT1STif04fBl9KxvPCg6INKucgVllIqo-NRz7Mpejax1kPEZAZ0iEGIawS-Qaw-5GwscN4DPEeYrVU4KiMHWFEgDGWl8Pcgl2OW5vhDGQiJUNVcogWqZLFAkHkkhixLcBmudi_PF56eDzf2Jt33j9utx-TldF-bXDcfsrPu22bd_j_6L46G-7uLE-0T-lLZKQ%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/d/c/9/dc9ec2522ee3f22801c5c2accede29ac

dc9ec2522ee3f22801c5c2accede29ac

id	60e59f40049e18000a3aec94
userIdentity	3182-7646-1
firstName	Anna
middleName	Raquel
lastName	Petri

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660ddf8aec873d003545e773

8ab8fff6ae5f6810212c704e2de895ab

ready

2024-04-03T23:00:26.957Z

5310-2637-1

False

None

False

None

20UPGFC0142972

None

parent

component

67a227eb3d425b3252e00828

code

8f165e091a377e765004596b9c404936

state

ready

stateTs

2025-02-04T14:44:59.542Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200152

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

highestLevelParent

component

67d2e84e2717b3491d94934d

code

8e61100a54e79bc44ff8773734a63050

state

ready

stateTs

2025-03-13T14:14:38.242Z

stateUserIdentity

3182-7646-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM23210890

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Module PCB tab cutting

Test Type	Local Result
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
67e136…0a3e58	PIXEL_FAILURE_ANALYSIS	Pass	AnnaRaquel Petri	N/A	8 months ago	2.4.0	No tags	Selected
67ded4…0a3d57	TUNING	Pass	AnnaRaquel Petri	N/A	8 months ago	2.4.0	No tags	Selected
67ded3…0a3cb3	MIN_HEALTH_TEST	Pass	AnnaRaquel Petri	N/A	8 months ago	2.4.0	No tags	Selected
67dec2…0a3c15	INJECTION_CAPACITANCE	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67dec5…0a3c5d	DATA_TRANSMISSION	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67dec4…0a3c39	LP_MODE	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67debd…0a3be1	VCAL_CALIBRATION	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67deb8…0a3b9d	SLDO	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67ddae…0a3b66	ANALOG_READBACK	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected
67dd9f…0a3ad2	ADC_CALIBRATION	Pass	AnnaRaquel Petri	9 months ago	8 months ago	2.4.0	No tags	Selected

Past QC Stages and Results

Module reception (MODULE/RECEPTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A

Module Complete (MODULE/COMPLETE)

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Modules failed test, needs investigation (MODULE/UNHAPPY)

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
Tuning (TUNING)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
684aa3…678fa9	MODULE/RECEPTION	DATA_TRANSMISSION	GabrieleChiodini	6 months ago	6 months ago	No tags	Selected
684aa3…679002	MODULE/RECEPTION	SLDO	GabrieleChiodini	6 months ago	6 months ago	No tags	Selected
684aa5…67915d	MODULE/RECEPTION	PIXEL_FAILURE_ANALYSIS	GabrieleChiodini	N/A	6 months ago	No tags	Selected
684aa5…67904a	MODULE/RECEPTION	MIN_HEALTH_TEST	GabrieleChiodini	N/A	6 months ago	No tags	Selected
6824b5…5930fb	MODULE/FINAL_COLD	DATA_TRANSMISSION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b7…593458	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	SimoneMonzani	N/A	7 months ago	No tags	Selected
6824b6…593249	MODULE/FINAL_COLD	MIN_HEALTH_TEST	SimoneMonzani	N/A	7 months ago	No tags	Selected
6824b6…593320	MODULE/FINAL_COLD	TUNING	SimoneMonzani	N/A	7 months ago	No tags	Selected
6824b5…59317e	MODULE/FINAL_COLD	LP_MODE	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b5…59314b	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b5…593227	MODULE/FINAL_COLD	VCAL_CALIBRATION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b5…5931c7	MODULE/FINAL_COLD	SLDO	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b5…5930bb	MODULE/FINAL_COLD	ANALOG_READBACK	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
6824b5…59300b	MODULE/FINAL_COLD	ADC_CALIBRATION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236d…5926a6	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236d…5926d9	MODULE/FINAL_WARM	LP_MODE	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
682370…5928cf	MODULE/FINAL_WARM	TUNING	SimoneMonzani	N/A	7 months ago	No tags	Selected
682371…59295d	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	SimoneMonzani	N/A	7 months ago	No tags	Selected
682370…5927e1	MODULE/FINAL_WARM	MIN_HEALTH_TEST	SimoneMonzani	N/A	7 months ago	No tags	Selected
68236d…592656	MODULE/FINAL_WARM	DATA_TRANSMISSION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236d…592782	MODULE/FINAL_WARM	VCAL_CALIBRATION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236d…592722	MODULE/FINAL_WARM	SLDO	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236d…592616	MODULE/FINAL_WARM	ANALOG_READBACK	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68236c…592566	MODULE/FINAL_WARM	ADC_CALIBRATION	SimoneMonzani	7 months ago	7 months ago	No tags	Selected
68235c…92a2e1	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	SimoneMonzani	N/A	7 months ago	No tags	Selected
68235c…92a24c	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	SimoneMonzani	N/A	7 months ago	No tags	Selected
67f7b7…f48485	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67f7b7…f483b8	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67f519…d2d391	MODULE/POST_PARYLENE_COLD	INJECTION_CAPACITANCE	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f52a…d2d739	MODULE/POST_PARYLENE_COLD	PIXEL_FAILURE_ANALYSIS	CarlaSbarra	N/A	8 months ago	No tags	Selected
67f52a…d2d604	MODULE/POST_PARYLENE_COLD	TUNING	CarlaSbarra	N/A	8 months ago	No tags	Selected
67f529…d2d582	MODULE/POST_PARYLENE_COLD	MIN_HEALTH_TEST	CarlaSbarra	N/A	8 months ago	No tags	Selected
67f519…d2d321	MODULE/POST_PARYLENE_COLD	SLDO	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f519…d2d3b2	MODULE/POST_PARYLENE_COLD	DATA_TRANSMISSION	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f519…d2d3d2	MODULE/POST_PARYLENE_COLD	LP_MODE	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f519…d2d361	MODULE/POST_PARYLENE_COLD	VCAL_CALIBRATION	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f519…d2d2f1	MODULE/POST_PARYLENE_COLD	ANALOG_READBACK	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67f519…d2d261	MODULE/POST_PARYLENE_COLD	ADC_CALIBRATION	CarlaSbarra	8 months ago	8 months ago	No tags	Selected
67ed73…800e18	MODULE/POST_PARYLENE_WARM	LP_MODE	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ee4a…8010db	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67ed83…800fc1	MODULE/POST_PARYLENE_WARM	TUNING	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67ed80…800f23	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67ed72…800df5	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ed73…800e39	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ed71…800dc5	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ed70…800d85	MODULE/POST_PARYLENE_WARM	SLDO	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ed68…800d25	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67ed5a…800c80	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	AnnaRaquel Petri	8 months ago	8 months ago	No tags	Selected
67e136…0a3e58	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67ded4…0a3d57	MODULE/INITIAL_WARM	TUNING	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67ded3…0a3cb3	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	AnnaRaquel Petri	N/A	8 months ago	No tags	Selected
67dec2…0a3c15	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67dec5…0a3c5d	MODULE/INITIAL_WARM	DATA_TRANSMISSION	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67dec4…0a3c39	MODULE/INITIAL_WARM	LP_MODE	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67debd…0a3be1	MODULE/INITIAL_WARM	VCAL_CALIBRATION	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67deb8…0a3b9d	MODULE/INITIAL_WARM	SLDO	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67ddae…0a3b66	MODULE/INITIAL_WARM	ANALOG_READBACK	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
67dd9f…0a3ad2	MODULE/INITIAL_WARM	ADC_CALIBRATION	AnnaRaquel Petri	9 months ago	8 months ago	No tags	Selected
660de0…45f835	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0142972

MODULE/TAB_CUTTING

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Module PCB tab cutting

Candidate TestRuns of this Stage

Past QC Stages and Results

Module reception (MODULE/RECEPTION)

Module Complete (MODULE/COMPLETE)

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Modules failed test, needs investigation (MODULE/UNHAPPY)

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
