20UPGFC0142740

MODULE/QC_STATUS

Component Information

Serial Number	20UPGFC0142740
ProdDB ID	0d8e47…80c6ee
LocalDB ID	660dd139ec873d003545c9a7
Component Type	fe_chip
Parents	20UPGM23211222 20UPGB43200113
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	9 months ago
component ObjectId	660dd139ec873d003545c9a7
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	Iconomidou-FayardLydia
ObjectId of this record	6863a688edfb79ff528a6d9f
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.1
MEASUREMENT_DATE	2025-07-01T07:21:58.000+00:00
MEASUREMENT_DURATION	1105
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.4
TUNING_TUNED_NOISE_95_HIGH	113.45
TUNING_TUNED_NOISE_95_LOW	72.854

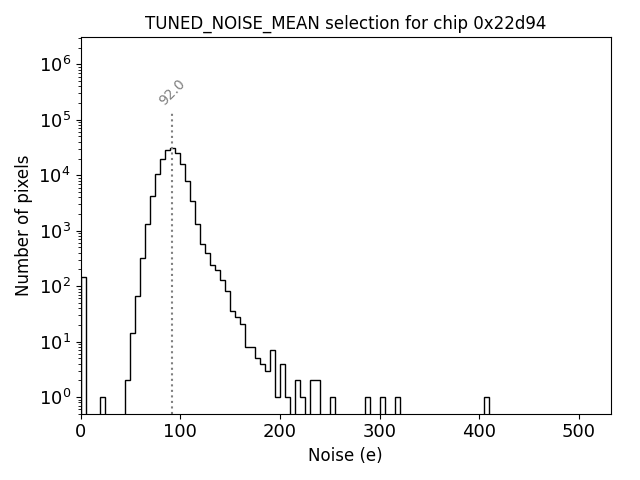

TUNING_TUNED_NOISE_MEAN	92.04
TUNING_TUNED_NOISE_SIGMA	11.081

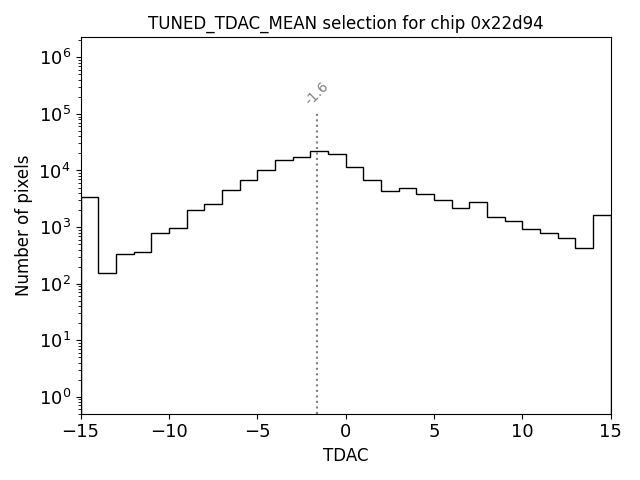

TUNING_TUNED_TDAC_MEAN	-1.6
TUNING_TUNED_TDAC_SIGMA	4.831
TUNING_TUNED_THRESHOLD_95_HIGH	1561.698
TUNING_TUNED_THRESHOLD_95_LOW	1426.758

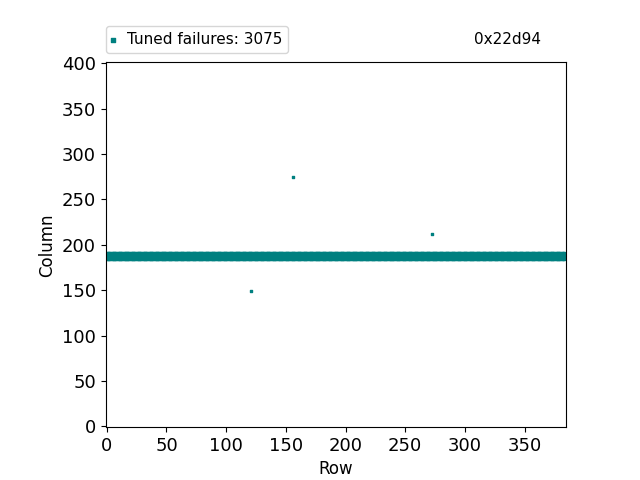

TUNING_TUNED_THRESHOLD_FAILED_FITS	3075

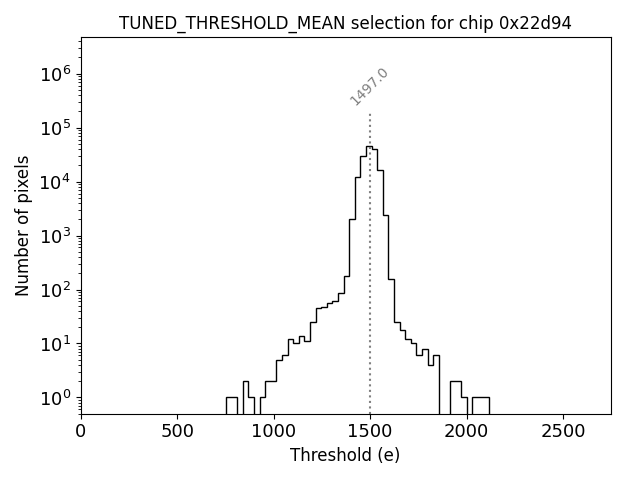

TUNING_TUNED_THRESHOLD_MEAN	1497
TUNING_TUNED_THRESHOLD_SIGMA	37
TUNING_TUNED_TOT_95_HIGH	11.2
TUNING_TUNED_TOT_95_LOW	4.07

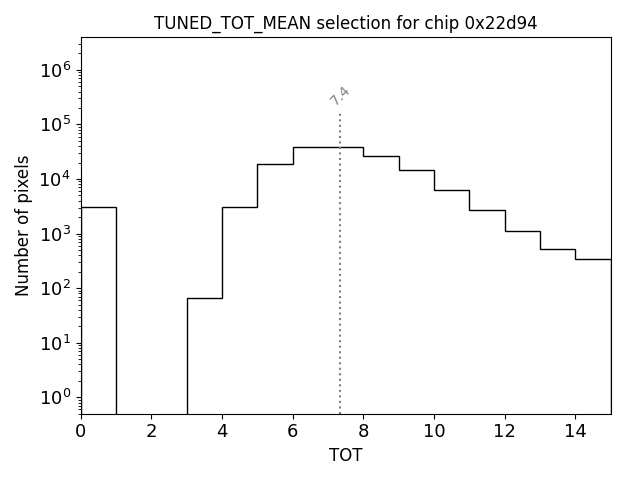

TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	113.043
TUNING_UNTUNED_NOISE_95_LOW	72.535

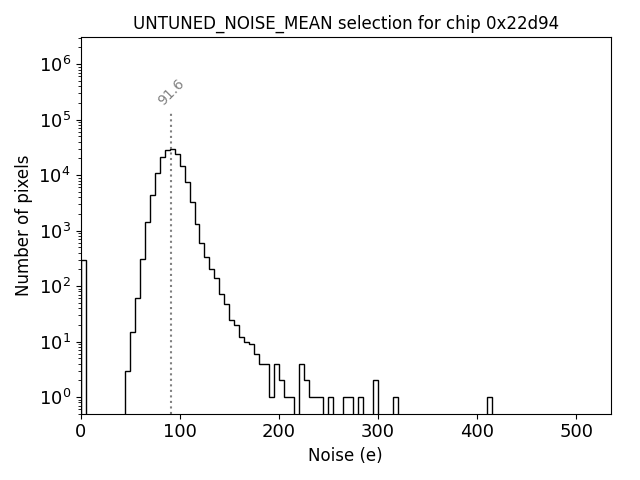

TUNING_UNTUNED_NOISE_MEAN	91.56
TUNING_UNTUNED_NOISE_SIGMA	11.323
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	3124.269
TUNING_UNTUNED_THRESHOLD_95_LOW	1638.527

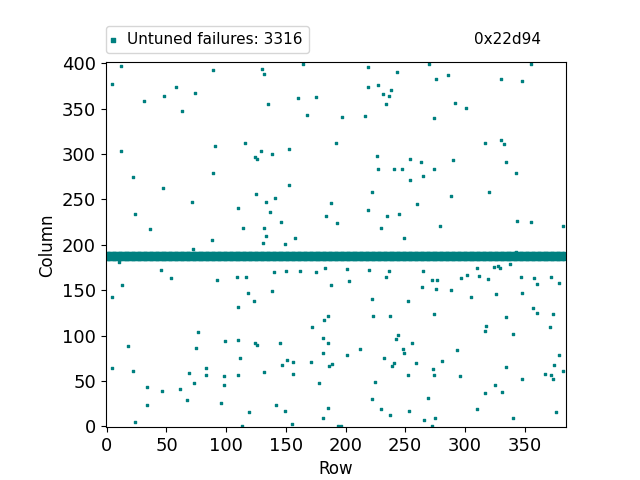

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3316

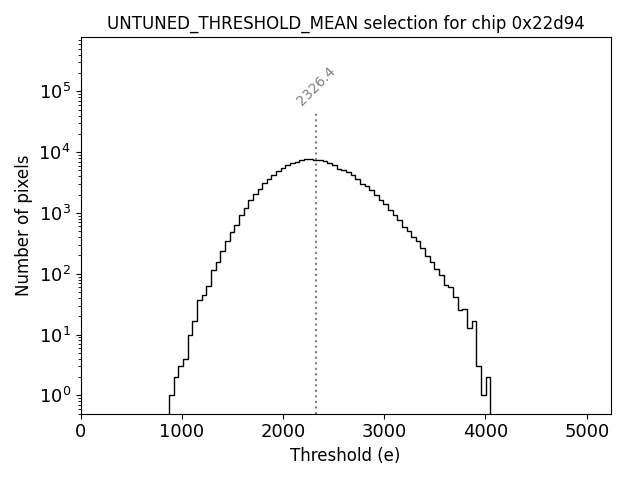

TUNING_UNTUNED_THRESHOLD_MEAN	2326.403
TUNING_UNTUNED_THRESHOLD_SIGMA	377

Attachments

Filename	Contents
0x22d94_L2_cold.json	Download
output.log	Download
0x22d94.log	Download
20UPGFC0142740_MODULE__FINAL_COLD_TUNING.zip	Download
