20UPGFC0142659

MODULE/QC_STATUS

Component Information

Serial Number	20UPGFC0142659
ProdDB ID	84cadb…aa5fe3
LocalDB ID	660dd0b8ec873d003545c8ee
Component Type	fe_chip
Parents	20UPGM23211222 20UPGB43200113
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	9 months ago
component ObjectId	660dd0b8ec873d003545c8ee
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	Iconomidou-FayardLydia
ObjectId of this record	685c029e8df41128cf8a249e
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.1
MEASUREMENT_DATE	2025-06-25T13:21:41.000+00:00
MEASUREMENT_DURATION	714
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.4
TUNING_TUNED_NOISE_95_HIGH	120.776
TUNING_TUNED_NOISE_95_LOW	80.749

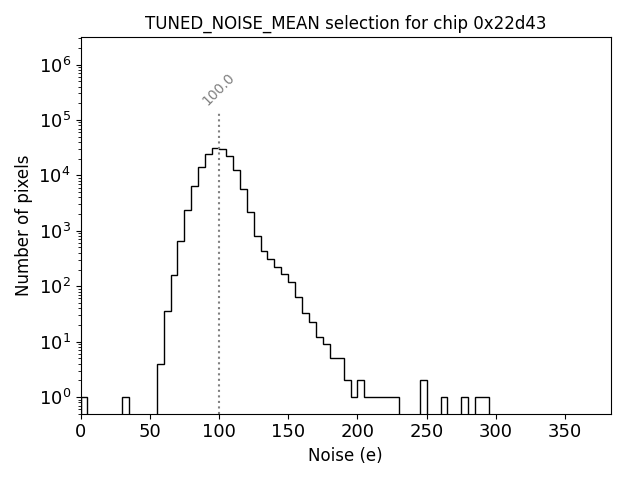

TUNING_TUNED_NOISE_MEAN	100.032
TUNING_TUNED_NOISE_SIGMA	10.556
TUNING_TUNED_TDAC_MEAN	-0.9
TUNING_TUNED_TDAC_SIGMA	4.044
TUNING_TUNED_THRESHOLD_95_HIGH	1560.657
TUNING_TUNED_THRESHOLD_95_LOW	1428.226
TUNING_TUNED_THRESHOLD_FAILED_FITS	1

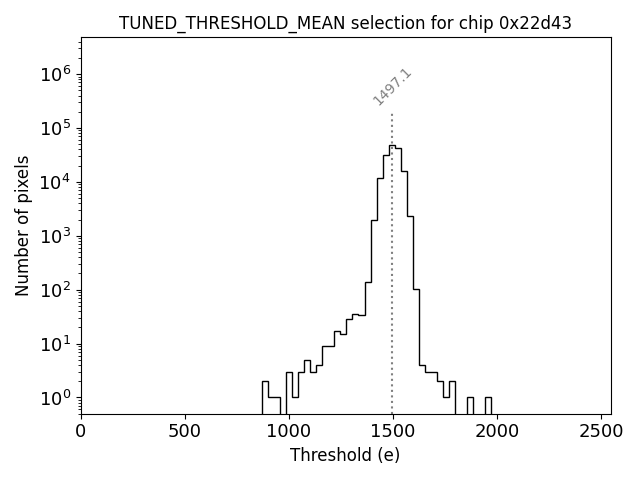

TUNING_TUNED_THRESHOLD_MEAN	1497.1
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	10.34
TUNING_TUNED_TOT_95_LOW	5.09
TUNING_TUNED_TOT_MEAN	7.5
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	118.041
TUNING_UNTUNED_NOISE_95_LOW	79.376

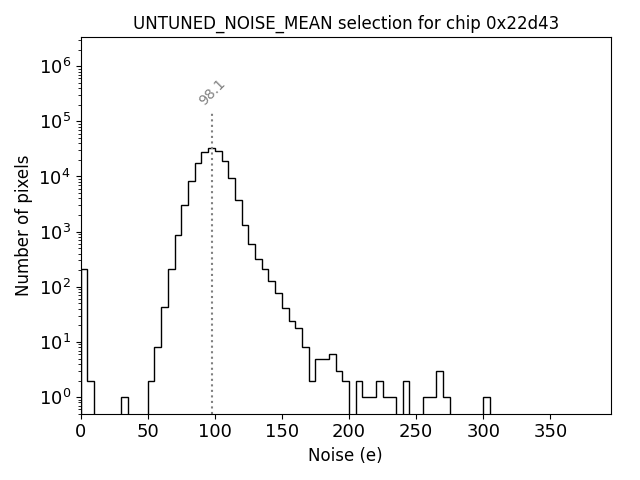

TUNING_UNTUNED_NOISE_MEAN	98.097
TUNING_UNTUNED_NOISE_SIGMA	10.678

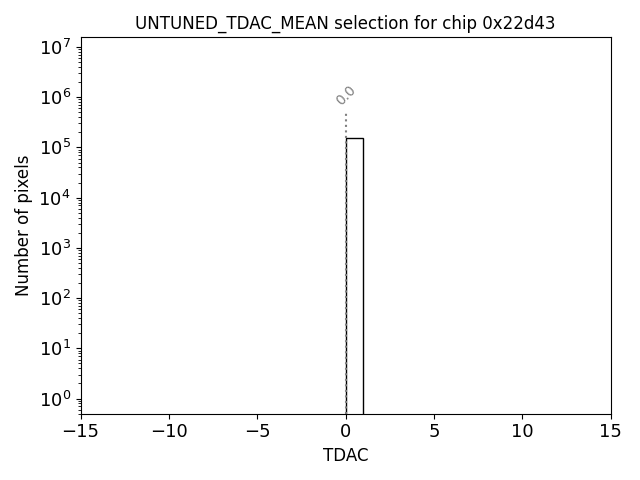

TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2886.126
TUNING_UNTUNED_THRESHOLD_95_LOW	1670.888

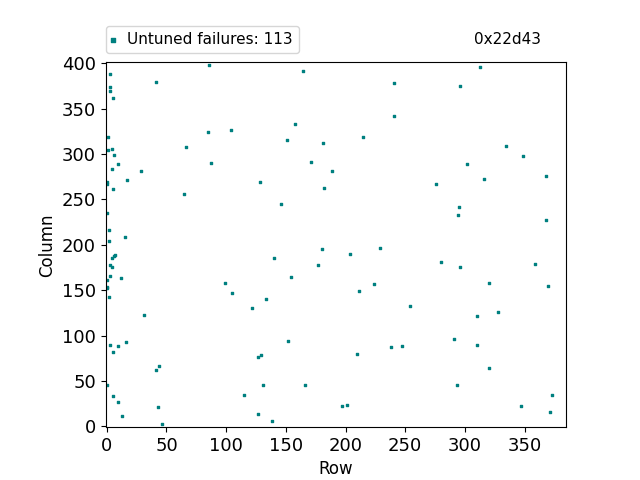

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	113

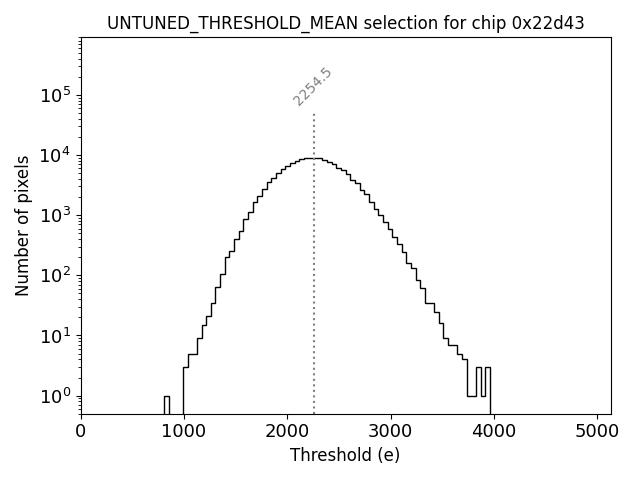

TUNING_UNTUNED_THRESHOLD_MEAN	2254.514
TUNING_UNTUNED_THRESHOLD_SIGMA	309

Attachments

Filename	Contents
0x22d43_L2_warm.json	Download
output.log	Download
0x22d43.log	Download
20UPGFC0142659_MODULE__FINAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

6863aec02cb2a5e981b0b7bd

state

ready

stateTs

2025-07-01T09:47:44.402Z

stateUserIdentity

24-7729-1

date

2025-06-25T14:07:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d372a3becb4750009835557
code	IJCLAB
name	Laboratoire de Physique des 2 Infinis Irène Joliot-Curie (IJCLab)

user

id	5d42f9eb1fd678000a409728
userIdentity	24-7729-1
firstName	Iconomidou-Fayard
middleName	None
lastName	Lydia

runNumber

685c029e8df41128cf8a249e

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-06-25T13:21:41.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	714	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.4	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	120.776	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	80.749	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	100.032	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.556	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-0.9	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.044	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1560.657	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1428.226	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	1	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1497.1	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.34	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.09	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.5	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	118.041	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	79.376	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	98.097	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	10.678	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2886.126	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1670.888	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	113	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2254.514	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	309	None

cts

2025-07-01T09:47:44.402Z

sys

cts	2025-07-01T09:47:44.402Z
mts	2025-07-01T09:47:49.967Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

cca51095c521978112c9b8a7f6713033

2025-07-01T09:47:47.964Z

0x22d43_L2_warm.json

{"_id":"685bef2ae3b49673000df577","serialNumber":"20UPGFC0142659","stage":"MODULE/FINAL_WARM","branch":"warm","current_revision_id":"685cf9b786a8a7e51bb9658f"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/c/c/a/cca51095c521978112c9b8a7f6713033?authz=zteos64:MDAwMDAyZjZ4nO1RPUsDQRA1AS1iodhpIYNY2FxuZ-97LLSysBIVQUKKvdu9eERvz8umSSs2gq3in7CwtdFSEIIgFoJW6f0JeoqFhbWV82CKN28eM7zGqN6oldPXbxf3E3PjmekWcqE-KJZqfNtWumcLsy--e6LKvFPqfiGzXteWyliV3C5KLS0Z20kFYSeJ8JBFXuJxjIIQkSdRHIog9QN0mOOsL3o8TVx0hcWcGC3EFK2IS2kJN04ZBpEf8GhzWGttCQNrKgYIgDFCTo4PnHG_Df1MErroh9j6urcNnU_GYUFrULTBZFLlhkqtTdP1_NBxqRo5qy2itCrysInoN6OwiawNuThQ9GUDMieovjHULWMPRFEQ7Omeod8XpT4QWU4_mI7SBL2-1MTAlCJRBDqP1Z7YT2kGDoc7Z9fz50eXKyfLp6PX7t3p5MbN88Pu7OPL8Vg41Zj7D-IvgoCnq9v3-geAluob

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/c/c/a/cca51095c521978112c9b8a7f6713033

cca51095c521978112c9b8a7f6713033

id	5d42f9eb1fd678000a409728
userIdentity	24-7729-1
firstName	Iconomidou-Fayard
middleName	None
lastName	Lydia

1592e933e9fe44420f4ea38465e1f263

2025-07-01T09:47:49.967Z

TestRun_6863aec02cb2a5e981b0b7bd_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_6863aec02cb2a5e981b0b7bd_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/1/5/9/1592e933e9fe44420f4ea38465e1f263?authz=zteos64:MDAwMDAyZjZ4nO2Rv2obQRDGI0EMURXiTtVgUgTMaXd291Z3U6nJH1ImARdC2HvePemQdHvcrRo1JnkCtxKkSl4gXQh6hEBeIJVx4c4vYINl48JF6lSe4is-vt8ww9c5b3da9fPN5er3TvdpEaaV3Wsvq1ct8Yk53zATZuZej11djmu_qGzRTJl1IdrGWVV7G9mMIYtZyjBOhUuldGnulFKC58oZmSgdO8yFlu9fxlLwLJcq4jLDCDHHyBjUkVFZzrGf6r5IP_xpDT-aAG9cBtAHzgkFSQ2CCz2CRWEJFeoEh3f3jmB860jeHy6rEYTCujJQ7X3oqVgn8ZbWCgdDonw7FGMPUffSpId8BKWZO7pbA7Yk2H4TaFpnMZiqIpj4JtC_QevnpijpgTN2nqBZWE8cQm2OHYEvMzcxs5xewN-j_cPX1Jw8-3J68Pbd2erJt531Z__1ajNYs92L9Lr7WMT_KAK-__zxq30Dp5bnZQ%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/1/5/9/1592e933e9fe44420f4ea38465e1f263

1592e933e9fe44420f4ea38465e1f263

id	5d42f9eb1fd678000a409728
userIdentity	24-7729-1
firstName	Iconomidou-Fayard
middleName	None
lastName	Lydia

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660dd0b8ec873d003545c8ee

84cadbd149e80d9616077158a6aa5fe3

ready

2024-04-03T21:57:12.438Z

5310-2637-1

False

None

False

None

20UPGFC0142659

None

parent

component

6787cdf538efa70a43c85cac

code

8f822b727c2da06893b7c1ff5f2c695b

state

ready

stateTs

2025-01-15T15:02:13.083Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200113

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

highestLevelParent

component

67bed29d5cfcdd14473055e2

code

977e46ac3d8f2613c6b051509ae72593

state

ready

stateTs

2025-02-26T08:36:45.248Z

stateUserIdentity

4951-6346-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM23211222

alternativeIdentifier

Paris1003

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/FINAL_WARM
name	Final Warm
order	19
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Ranking of the module

No tests are allocated for this stage.

Past QC Stages and Results

Final flatness measurement (MODULE/FINAL_METROLOGY)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
685bba…b2857d	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685bbc…8a0c7f	MODULE/FINAL_WARM	LP_MODE	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685c02…8a249e	MODULE/FINAL_WARM	TUNING	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
685d27…65af96	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
685c02…3252b9	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
685bbc…b4b0f0	MODULE/FINAL_WARM	DATA_TRANSMISSION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685bb9…8a0c1d	MODULE/FINAL_WARM	VCAL_CALIBRATION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685bb7…324d44	MODULE/FINAL_WARM	SLDO	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685baf…0de3a3	MODULE/FINAL_WARM	ANALOG_READBACK	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685ab8…2c97bc	MODULE/FINAL_WARM	ADC_CALIBRATION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685d49…b4e031	MODULE/FINAL_COLD	DATA_TRANSMISSION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
6863a6…e4929a	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
6863a6…da2363	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
6863a6…8a6d27	MODULE/FINAL_COLD	TUNING	Iconomidou-FayardLydia	N/A	9 months ago	No tags	Selected
685d49…5cd469	MODULE/FINAL_COLD	LP_MODE	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685d47…5cd434	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685d46…b4df98	MODULE/FINAL_COLD	VCAL_CALIBRATION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685d44…44ac29	MODULE/FINAL_COLD	SLDO	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685d2c…affbdf	MODULE/FINAL_COLD	ADC_CALIBRATION	Iconomidou-FayardLydia	10 months ago	9 months ago	No tags	Selected
685cf1…aff8d0	MODULE/PARYLENE_UNMASKING	TUNING	Iconomidou-FayardLydia	N/A	10 months ago	No tags	Selected
68481e…548252	MODULE/PARYLENE_UNMASKING	PIXEL_FAILURE_ANALYSIS	Iconomidou-FayardLydia	N/A	10 months ago	No tags	Selected
6847ff…5481a5	MODULE/PARYLENE_UNMASKING	MIN_HEALTH_TEST	Iconomidou-FayardLydia	N/A	10 months ago	No tags	Selected
67ee42…bd3e0b	MODULE/INITIAL_COLD	DATA_TRANSMISSION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ee42…fed32d	MODULE/INITIAL_COLD	LP_MODE	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ee5c…bd4603	MODULE/INITIAL_COLD	PIXEL_FAILURE_ANALYSIS	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ee4f…fed372	MODULE/INITIAL_COLD	MIN_HEALTH_TEST	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ee57…847312	MODULE/INITIAL_COLD	TUNING	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ee3c…846e44	MODULE/INITIAL_COLD	INJECTION_CAPACITANCE	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ee3b…846e04	MODULE/INITIAL_COLD	VCAL_CALIBRATION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ee39…fed2fd	MODULE/INITIAL_COLD	SLDO	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ed64…fed281	MODULE/INITIAL_COLD	ANALOG_READBACK	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ed57…222dec	MODULE/INITIAL_COLD	ADC_CALIBRATION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebdc…222acf	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ebdc…bd3c91	MODULE/INITIAL_WARM	TUNING	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ebd3…f2491f	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Iconomidou-FayardLydia	N/A	a year ago	No tags	Selected
67ebcc…bd3b15	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebce…bd3b75	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebce…bd3b51	MODULE/INITIAL_WARM	LP_MODE	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebcb…bd3ac9	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebc9…bd3a87	MODULE/INITIAL_WARM	SLDO	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebc4…f11c31	MODULE/INITIAL_WARM	ANALOG_READBACK	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
67ebb7…846880	MODULE/INITIAL_WARM	ADC_CALIBRATION	Iconomidou-FayardLydia	a year ago	a year ago	No tags	Selected
660dd1…45cda7	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/WIREBOND_PROTECTION
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0142659

MODULE/QC_STATUS

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Ranking of the module

Past QC Stages and Results

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
