20UPGFC0142659

MODULE/QC_STATUS

Component Information

Serial Number 20UPGFC0142659
ProdDB ID  84cadb…aa5fe3
LocalDB ID 660dd0b8ec873d003545c8ee
Component Type fe_chip
Parents 20UPGM23211222  20UPGB43200113 
Children No match.
Flags
Wafer
  Wafer Probing

 Properties

Item Value
Wafer serial number None
Target Iref trim None
Target Iref trim version None

 Comments


Test: PIXEL_FAILURE_ANALYSIS QC Passed

(Stage: MODULE/INITIAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date a year ago
component ObjectId 660dd0b8ec873d003545c8ee
Stage MODULE/INITIAL_WARM
Test Type PIXEL_FAILURE_ANALYSIS
Institute ObjectId
User Name Iconomidou-FayardLydia
ObjectId of this record 67ebdcfb642d03b230222acf
ObjectId of RAW record None
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.4.1
MEASUREMENT_DATE 2025-04-01T12:07:47.000+00:00
MEASUREMENT_DURATION 761
MEASUREMENT_VERSION None
YARR_VERSION v1.5.2-408-gee61268

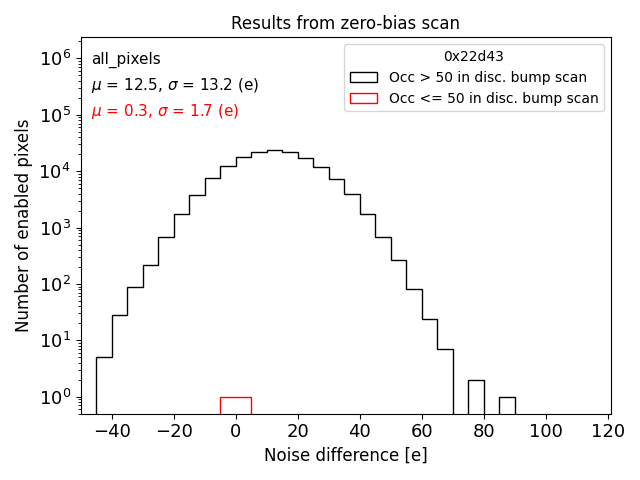

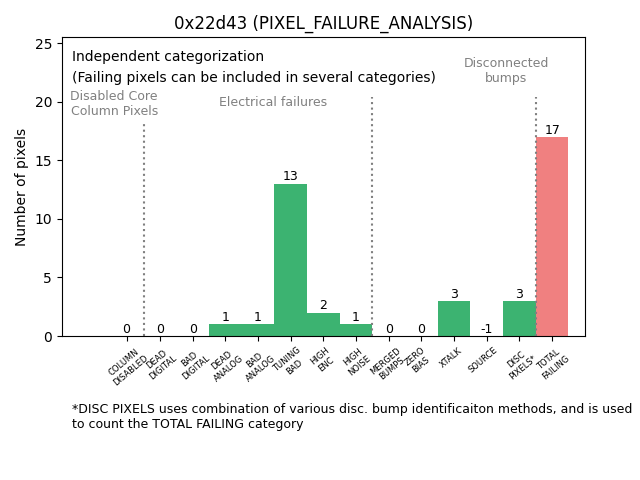

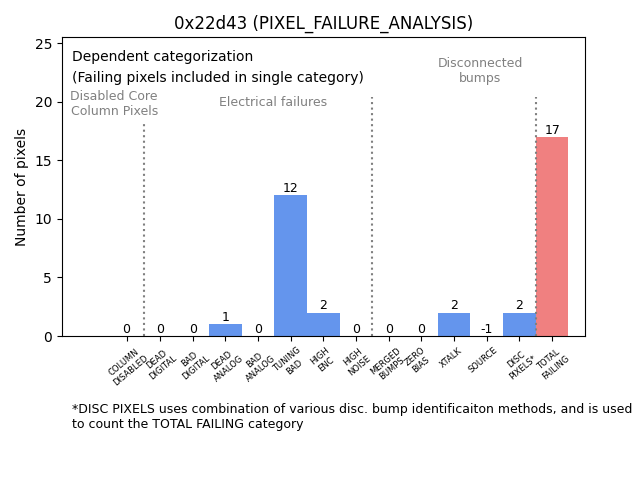

PIXEL_FAILURE_BAD_ANALOG 0
PIXEL_FAILURE_BAD_DIGITAL 0
PIXEL_FAILURE_COLUMN_DISABLED 0
PIXEL_FAILURE_DEAD_ANALOG 1
PIXEL_FAILURE_DEAD_DIGITAL 0
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN -1

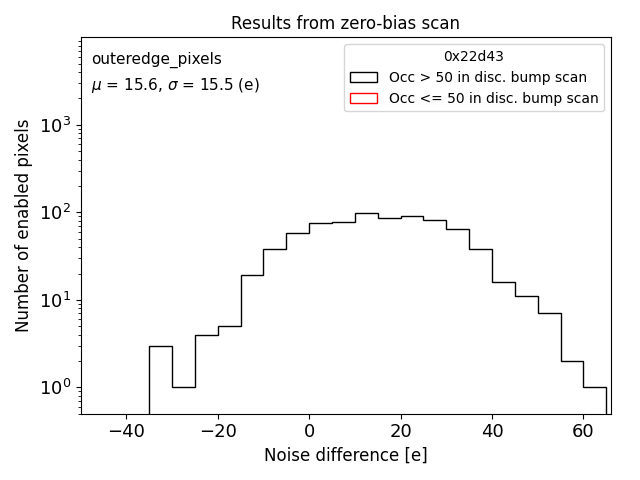

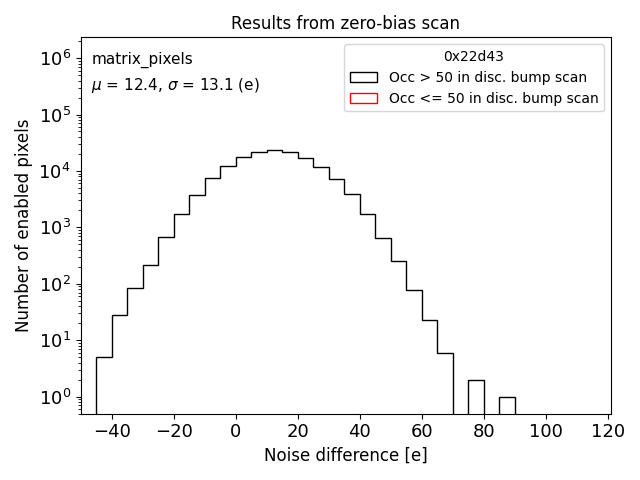

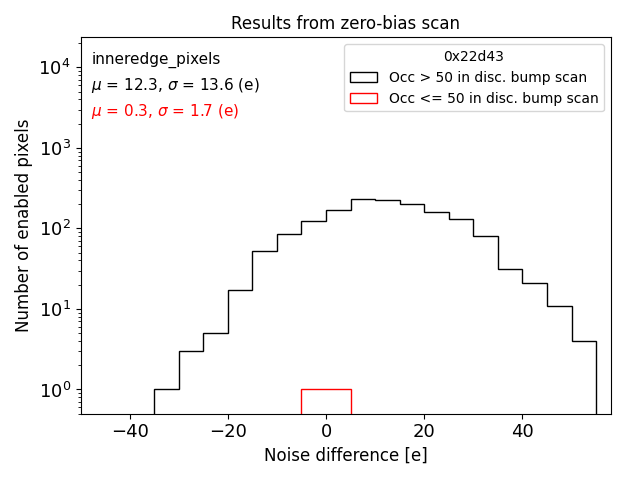

PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN 2
PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN 0
PIXEL_FAILURE_DISCONNECTED_PIXELS 2
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC 3
PIXEL_FAILURE_ELECTRICALLY_FAILED 15
PIXEL_FAILURE_FAILING_PIXELS 17

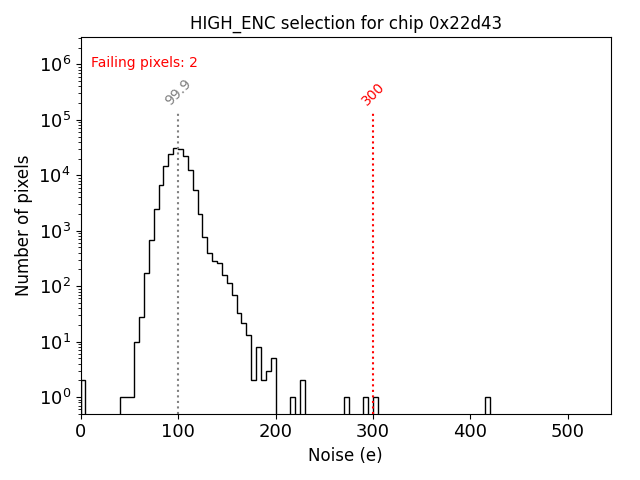

PIXEL_FAILURE_HIGH_ENC 2
PIXEL_FAILURE_HIGH_NOISE 0
PIXEL_FAILURE_MERGED_BUMPS 0
PIXEL_FAILURE_SOURCE_SCAN_DONE False

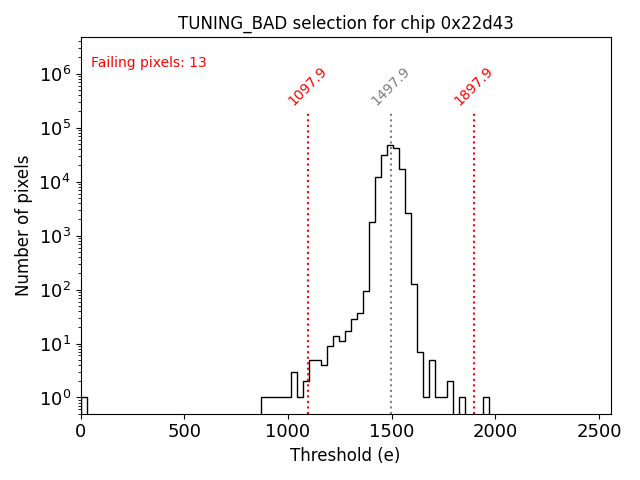

PIXEL_FAILURE_TUNING_BAD 12

Attachments

Filename Contents
output.log Download
0x22d43.log Download
20UPGFC0142659_MODULE__INITIAL_WARM_PIXEL-FAILURE-ANALYSIS.zip Download
