20UPGFC0142516

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142516
ProdDB ID	6d4987…5aa076
LocalDB ID	660dc8bc2fc9f200350c0847
Component Type	fe_chip
Parents	20UPGM23210863 20UPGB43200173
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660dc8bc2fc9f200350c0847
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	GiordonStark
ObjectId of this record	68dee8c195403e048c93ec6f
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-10-02T20:47:10.000+00:00
MEASUREMENT_DURATION	728
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5
TUNING_TUNED_NOISE_95_HIGH	130.717
TUNING_TUNED_NOISE_95_LOW	87.327

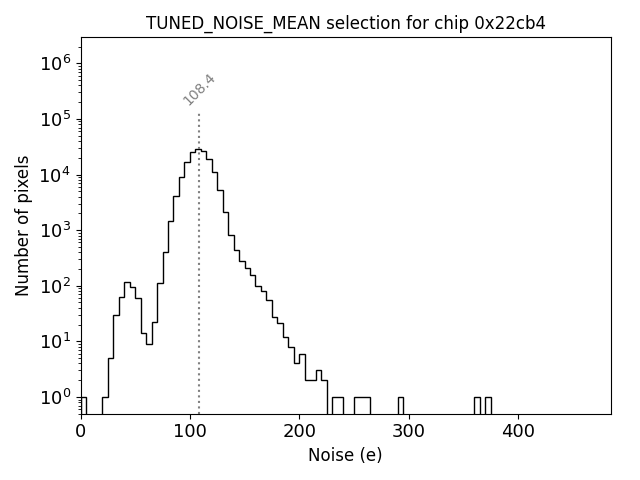

TUNING_TUNED_NOISE_MEAN	108.447
TUNING_TUNED_NOISE_SIGMA	11.785

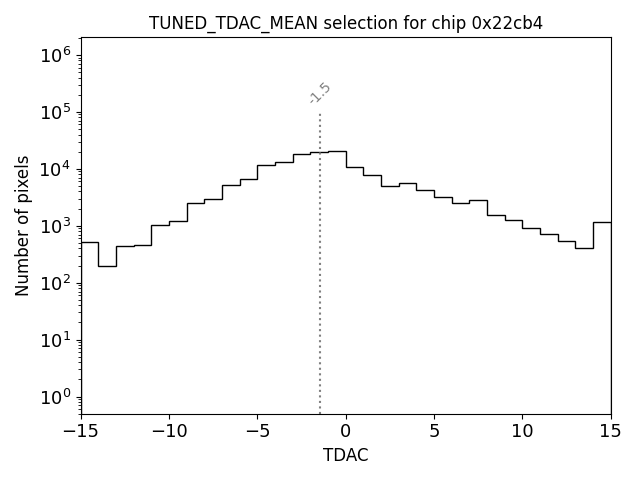

TUNING_TUNED_TDAC_MEAN	-1.5
TUNING_TUNED_TDAC_SIGMA	4.5
TUNING_TUNED_THRESHOLD_95_HIGH	1563.401
TUNING_TUNED_THRESHOLD_95_LOW	1434.465

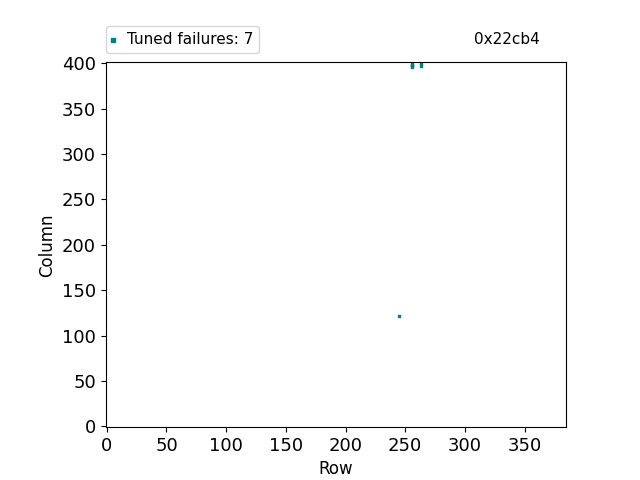

TUNING_TUNED_THRESHOLD_FAILED_FITS	7

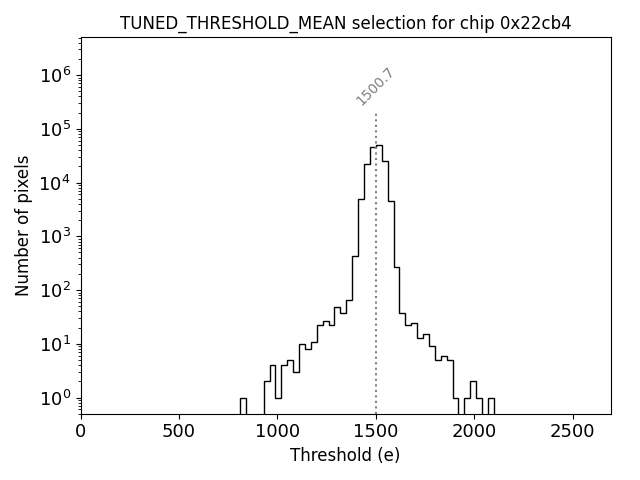

TUNING_TUNED_THRESHOLD_MEAN	1500.7
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	10.28
TUNING_TUNED_TOT_95_LOW	5.6
TUNING_TUNED_TOT_MEAN	7.6
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	125.617
TUNING_UNTUNED_NOISE_95_LOW	84.247

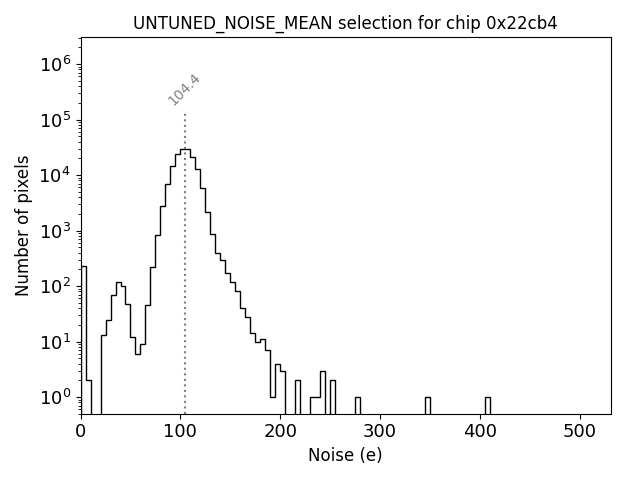

TUNING_UNTUNED_NOISE_MEAN	104.412
TUNING_UNTUNED_NOISE_SIGMA	11.855
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2918.566
TUNING_UNTUNED_THRESHOLD_95_LOW	1686.23

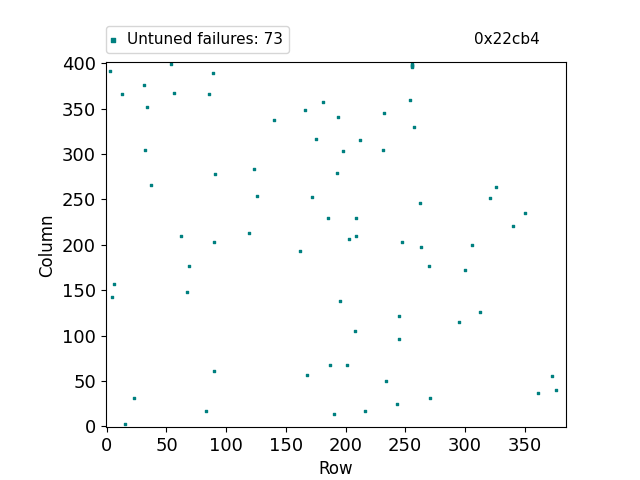

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	73
TUNING_UNTUNED_THRESHOLD_MEAN	2280.281
TUNING_UNTUNED_THRESHOLD_SIGMA	313

Attachments

Filename	Contents
0x22cb4_L2_warm.json	Download
output.log	Download
0x22cb4.log	Download
20UPGFC0142516_MODULE__FINAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

68e061a5b5f1d1f55afec2cb

state

ready

stateTs

2025-10-03T23:52:05.816Z

stateUserIdentity

23-2145-1

date

2025-10-02T21:03:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	5beaa5e7e3bfc00009b9ab7a
userIdentity	23-2145-1
firstName	Giordon
middleName	None
lastName	Stark

runNumber

68dee8c195403e048c93ec6f

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-10-02T20:47:10.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	728	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	130.717	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	87.327	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	108.447	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	11.785	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.5	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.5	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1563.401	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1434.465	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	7	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1500.7	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	10.28	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.6	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.6	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	125.617	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	84.247	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	104.412	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	11.855	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2918.566	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1686.23	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	73	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2280.281	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	313	None
