20UPGFC0142449

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142449
ProdDB ID	2f1598…ce6563
LocalDB ID	660dc8692fc9f200350c07d2
Component Type	fe_chip
Parents	20UPGM23210863 20UPGB43200173
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660dc8692fc9f200350c07d2
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	GiordonStark
ObjectId of this record	68dee8d295403e048c93ece8
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-10-02T20:47:10.000+00:00
MEASUREMENT_DURATION	728
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

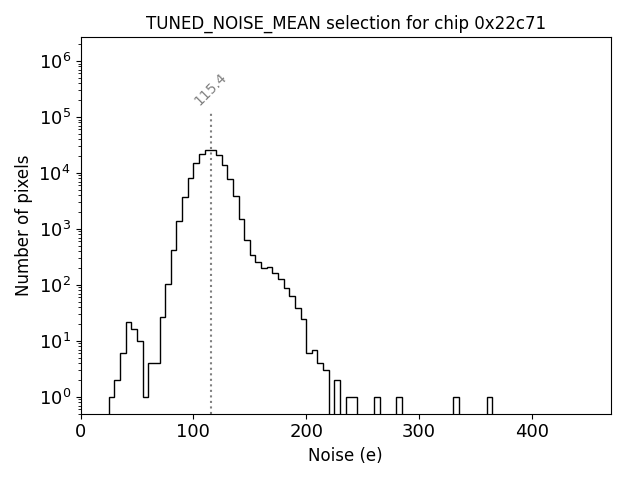

TUNING_TUNED_NOISE_95_HIGH	139.732
TUNING_TUNED_NOISE_95_LOW	92.971
TUNING_TUNED_NOISE_MEAN	115.396
TUNING_TUNED_NOISE_SIGMA	12.493

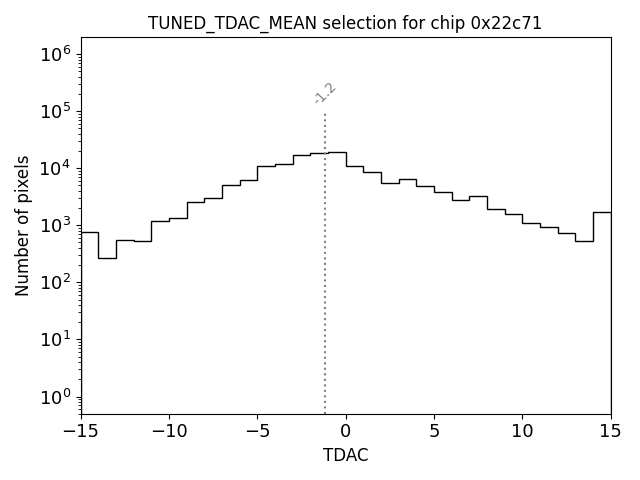

TUNING_TUNED_TDAC_MEAN	-1.2
TUNING_TUNED_TDAC_SIGMA	4.845
TUNING_TUNED_THRESHOLD_95_HIGH	1565.336
TUNING_TUNED_THRESHOLD_95_LOW	1430.87
TUNING_TUNED_THRESHOLD_FAILED_FITS	6
TUNING_TUNED_THRESHOLD_MEAN	1499.9
TUNING_TUNED_THRESHOLD_SIGMA	38
TUNING_TUNED_TOT_95_HIGH	10.32
TUNING_TUNED_TOT_95_LOW	5.56
TUNING_TUNED_TOT_MEAN	7.6
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	135.851
TUNING_UNTUNED_NOISE_95_LOW	90.716

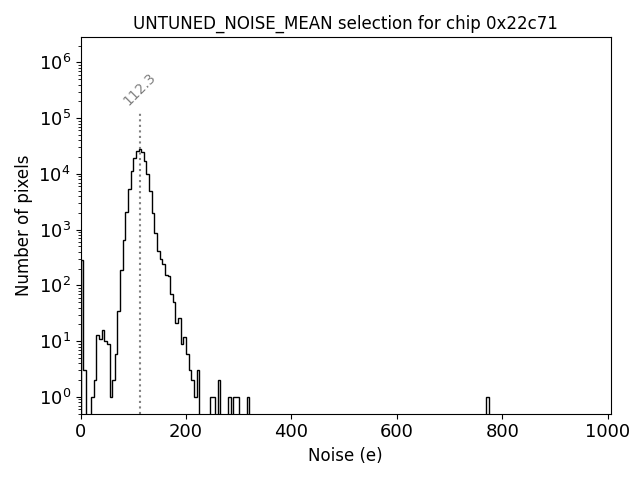

TUNING_UNTUNED_NOISE_MEAN	112.331
TUNING_UNTUNED_NOISE_SIGMA	12.875
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	3040.309
TUNING_UNTUNED_THRESHOLD_95_LOW	1708.489
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	78

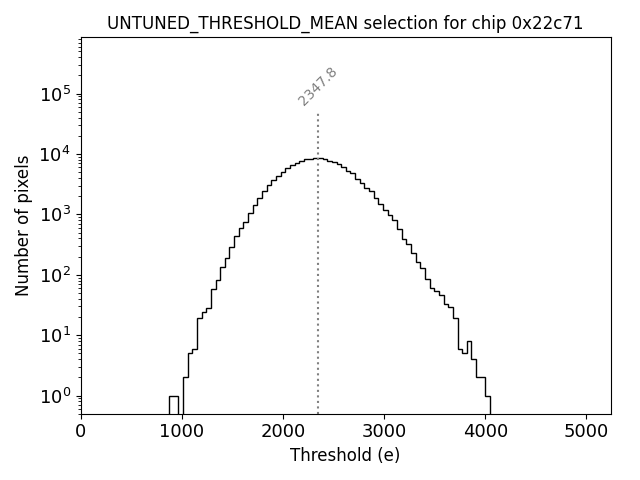

TUNING_UNTUNED_THRESHOLD_MEAN	2347.783
TUNING_UNTUNED_THRESHOLD_SIGMA	338
