20UPGFC0142268

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142268
ProdDB ID	0a5bb9…8b5191
LocalDB ID	660d7ce7ec873d00354510b4
Component Type	fe_chip
Parents	20UPGM23210545 20UPGB43200165
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660d7ce7ec873d00354510b4
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	SamuelRoberts
ObjectId of this record	68cdda2d4620977c2530f8d2
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-09-19T22:13:49.000+00:00
MEASUREMENT_DURATION	876
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5
TUNING_TUNED_NOISE_95_HIGH	117.725
TUNING_TUNED_NOISE_95_LOW	76.81

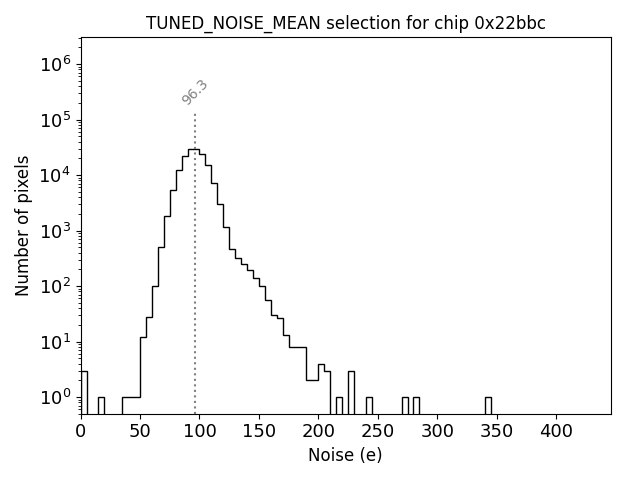

TUNING_TUNED_NOISE_MEAN	96.3
TUNING_TUNED_NOISE_SIGMA	10.857

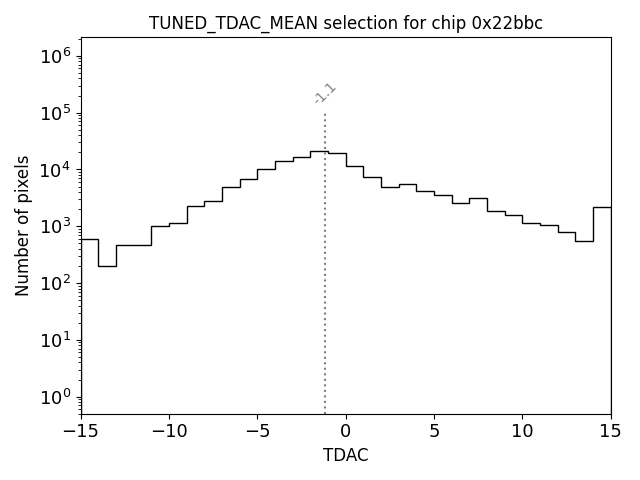

TUNING_TUNED_TDAC_MEAN	-1.1
TUNING_TUNED_TDAC_SIGMA	4.83
TUNING_TUNED_THRESHOLD_95_HIGH	1560.767
TUNING_TUNED_THRESHOLD_95_LOW	1428.185
TUNING_TUNED_THRESHOLD_FAILED_FITS	13

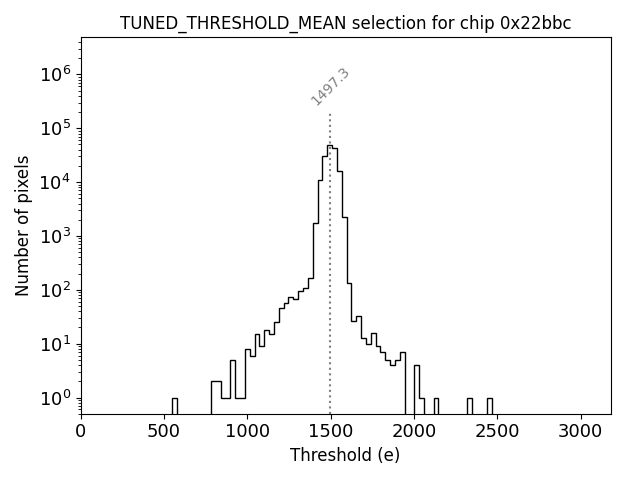

TUNING_TUNED_THRESHOLD_MEAN	1497.3
TUNING_TUNED_THRESHOLD_SIGMA	38
TUNING_TUNED_TOT_95_HIGH	10.81
TUNING_TUNED_TOT_95_LOW	5
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	117.603
TUNING_UNTUNED_NOISE_95_LOW	75.951

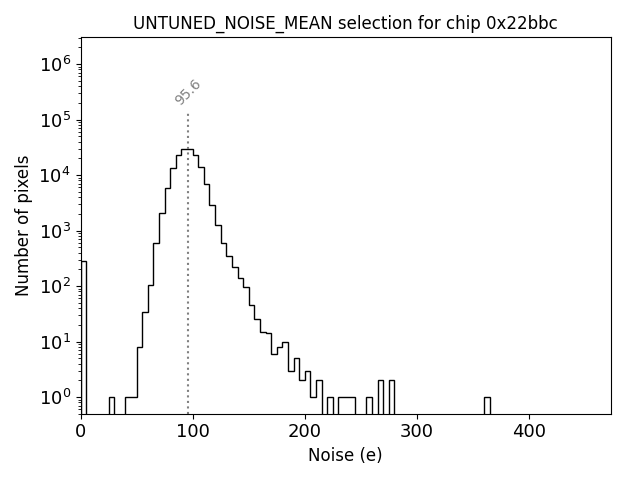

TUNING_UNTUNED_NOISE_MEAN	95.632
TUNING_UNTUNED_NOISE_SIGMA	11.527
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	3178.639
TUNING_UNTUNED_THRESHOLD_95_LOW	1653.405

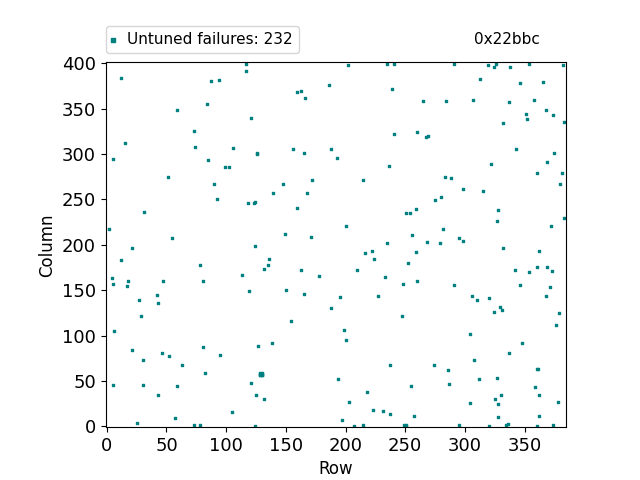

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	232

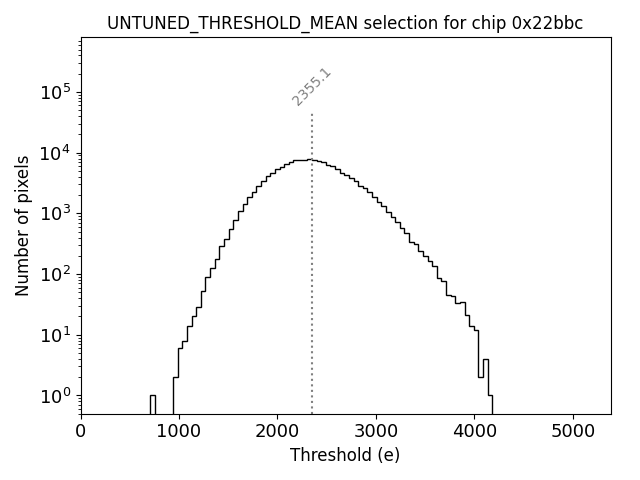

TUNING_UNTUNED_THRESHOLD_MEAN	2355.07
TUNING_UNTUNED_THRESHOLD_SIGMA	387

Attachments

Filename	Contents
0x22bbc_L2_cold.json	Download
output.log	Download
0x22bbc.log	Download
20UPGFC0142268_MODULE__FINAL_COLD_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record
