20UPGFC0142268

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142268
ProdDB ID	0a5bb9…8b5191
LocalDB ID	660d7ce7ec873d00354510b4
Component Type	fe_chip
Parents	20UPGM23210545 20UPGB43200165
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: MIN_HEALTH_TEST QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660d7ce7ec873d00354510b4
Stage	MODULE/POST_PARYLENE_WARM
Test Type	MIN_HEALTH_TEST
Institute ObjectId
User Name	SamuelRoberts
ObjectId of this record	68a76b0317e04f08cfbe910a
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-08-21T18:41:47.000+00:00
MEASUREMENT_DURATION	453
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

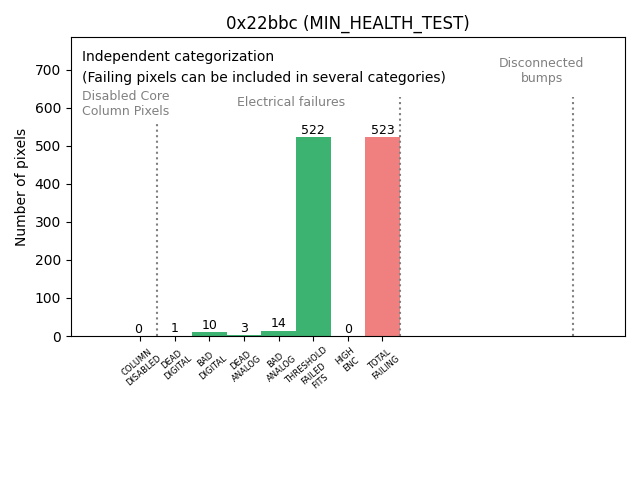

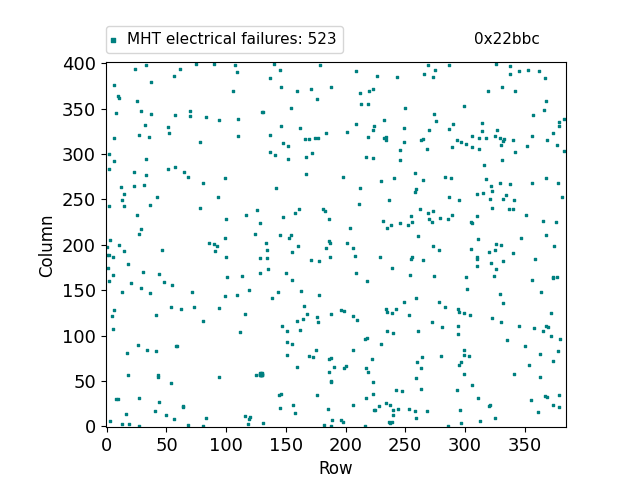

MIN_HEALTH_BAD_ANALOG	2
MIN_HEALTH_BAD_ANALOG_INTEGRATED	14
MIN_HEALTH_BAD_DIGITAL	9
MIN_HEALTH_COLUMN_DISABLED	0
MIN_HEALTH_DEAD_ANALOG	2
MIN_HEALTH_DEAD_DIGITAL	1

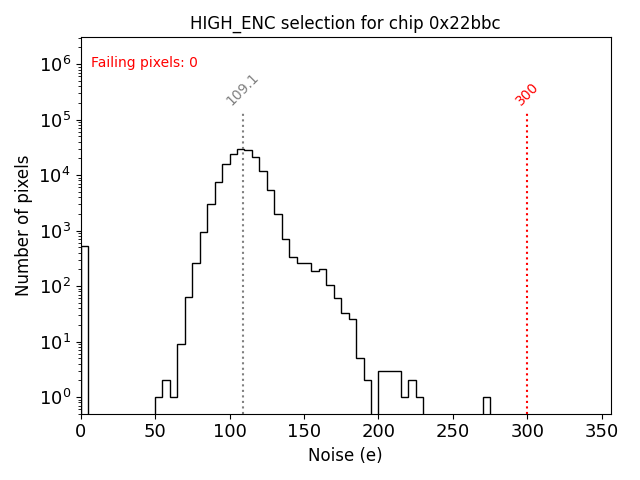

MIN_HEALTH_HIGH_ENC	0
MIN_HEALTH_HIGH_ENC_INDEPENDENT	0
MIN_HEALTH_NOISE_MEAN	109.48
MIN_HEALTH_NOISE_SIGMA	10.95
MIN_HEALTH_THRESHOLD_FAILED_FITS	509
MIN_HEALTH_THRESHOLD_FAILED_FITS_INDEPENDENT	522

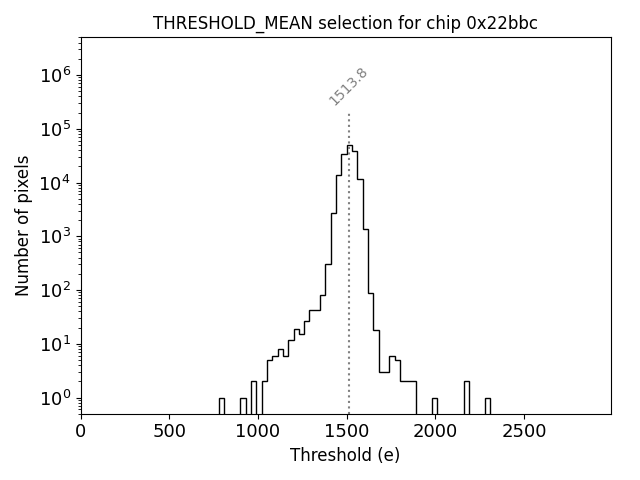

MIN_HEALTH_THRESHOLD_MEAN	1513.77
MIN_HEALTH_THRESHOLD_SIGMA	36.63
MIN_HEALTH_TOT_MEAN	7.12
MIN_HEALTH_TOT_SIGMA	1.1

Attachments

Filename	Contents
output.log	Download
0x22bbc.log	Download
20UPGFC0142268_MODULE__POST_PARYLENE_WARM_MIN-HEALTH-TEST.zip	Download

ProductionDB Record

Expand ProductionDB Record

68e04264ecbbcc3f84c875d0

state

ready

stateTs

2025-10-03T21:38:44.120Z

stateUserIdentity

8486-7458-1

date

2025-08-21T18:52:00.000Z

testType

id	6393a08a15838700361eec84
code	MIN_HEALTH_TEST
name	Minimal Health Test
state	active

institution

id	5a6c3d23352cec0005eb5d5e
code	UCSC
name	SCIPP, UC Santa Cruz

user

id	63f8f4226b1f27003678f7c7
userIdentity	8486-7458-1
firstName	Samuel
middleName
lastName	Roberts

runNumber

68a76b0317e04f08cfbe910a

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Min Health Test Analysis Version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-08-21T18:41:47.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	453	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code MIN_HEALTH_BAD_ANALOG
name Number of bad pixels from analog scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2
associateChild None
code MIN_HEALTH_BAD_ANALOG_INTEGRATED
name MIN_HEALTH_BAD_ANALOG_INTEGRATED
order 16
dataType float
valueType single
arrayDimensions None
additional False
rangeMin None
rangeMax None
value 14
associateChild None
code MIN_HEALTH_BAD_DIGITAL
name Number of bad pixels from digital scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 9
associateChild None
code MIN_HEALTH_COLUMN_DISABLED
name Number of pixels in disabled core columns
order 1
dataType integer
valueType single
arrayDimensions None
additional False
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_DEAD_ANALOG
name Number of dead pixels from analog scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2
associateChild None
code MIN_HEALTH_DEAD_DIGITAL
name Number of dead pixels from digital scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1
associateChild None
code MIN_HEALTH_HIGH_ENC
name Number of pixels with High ENC
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_HIGH_ENC_INDEPENDENT
name Number of pixels with High ENC
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_NOISE_MEAN
name Noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 109.48
associateChild None
code MIN_HEALTH_NOISE_SIGMA
name Noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.95
associateChild None
code MIN_HEALTH_THRESHOLD_FAILED_FITS
name Number of failed fits from threshold scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 509
associateChild None

code	MIN_HEALTH_THRESHOLD_FAILED_FITS_INDEPENDENT
name	Number of failed fits from threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	522
associateChild	None

code MIN_HEALTH_THRESHOLD_MEAN
name Mean of threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1513.77
associateChild None
code MIN_HEALTH_THRESHOLD_SIGMA
name Sigma of threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 36.63
associateChild None
code MIN_HEALTH_TOT_MEAN
name Mean of ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.12
associateChild None
code MIN_HEALTH_TOT_SIGMA
name Sigma of ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1.1
associateChild None

cts

2025-10-03T21:38:44.120Z

sys

cts	2025-10-03T21:38:44.120Z
mts	2025-10-03T21:38:44.661Z
rev	1

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

be2bfcdcbb8cb6311b0314f568ae1b17

2025-10-03T21:38:44.661Z

TestRun_68e04264ecbbcc3f84c875d0_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_68e04264ecbbcc3f84c875d0_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/b/e/2/be2bfcdcbb8cb6311b0314f568ae1b17?authz=zteos64:MDAwMDAyYjZ4nO2QP0jDQBTGaUGHTiJOxeEhBV3S3F2SNnk4ODmIILiGDJfcpU3_5EJyWdzERdzEyV2kOLg4uDoICi5uopOgu2NXY3FwcHT0DW_4vu89fnyN23qjli9cvn_czTfnEj3MxEp9L1urMcuUqjC5HvHvHck87eWqzERSDE0htVHFzSxXwhChGZrSZFstr8u5E1rcCCkjBqUxMTwWOQa3w5jQrtfpMm_3seZv5gnsRBqYDcxC5qHjASPMCaBMBFKbdlzqz3AC6H0pFun6e1kAOhEy1ZgrpduuS12bVB513Q0fMa4GHdqmtNP23DYlAaR8LHH2B0SKUNFqHOahAzzLEPqq0Pj7oVBjnqT4Q-lJhVCUQiEBnfNIIqg0lH0-inERllpvV4NgcLN9v3q6_Hy-PnmZnhzvT8uz1-vDp6OCNP-L_oui4WJy8FD_BMaH26A%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/b/e/2/be2bfcdcbb8cb6311b0314f568ae1b17

be2bfcdcbb8cb6311b0314f568ae1b17

id	63f8f4226b1f27003678f7c7
userIdentity	8486-7458-1
firstName	Samuel
middleName
lastName	Roberts

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660d7ce7ec873d00354510b4

0a5bb9b3e67c9486d7dcc550dd8b5191

ready

2024-04-03T15:59:35.885Z

5310-2637-1

False

None

False

None

20UPGFC0142268

None

parent

component

67c71484ccae83c989e5da93

code

17a1ae56a2bda662bc5a700587bf4652

state

ready

stateTs

2025-03-04T14:56:04.974Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200165

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/PARYLENE_UNMASKING
name	Parylene Unmasking

highestLevelParent

component

68507ed36734e5702671eb39

code

5ab7d00db6bab33f4a9fb0473020c931

state

ready

stateTs

2025-06-16T20:30:11.235Z

stateUserIdentity

1294-8027-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM23210545

alternativeIdentifier

ANL_ITkPix_90

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/PARYLENE_UNMASKING
name	Parylene Unmasking

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/POST_PARYLENE_WARM
name	Post-Parylene Warm
order	15
initial	False
final	False

code	GL
name	Glasgow University

Current Stage: Final flatness measurement

Test Type	Local Result
Data Transmission (DATA_TRANSMISSION)	No TestRun!
ADC Calibration (ADC_CALIBRATION)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
SLDO (SLDO)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
68a767…be90af	LP_MODE	Fail	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a77a…be92ae	PIXEL_FAILURE_ANALYSIS	Pass	SamuelRoberts	N/A	2 months ago	2.6.4	No tags	Selected
68a776…be91c1	TUNING	Pass	SamuelRoberts	N/A	2 months ago	2.6.4	No tags	Selected
68a76b…be910a	MIN_HEALTH_TEST	Pass	SamuelRoberts	N/A	2 months ago	2.6.4	No tags	Selected
68a751…be9060	INJECTION_CAPACITANCE	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a767…be90eb	DATA_TRANSMISSION	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a65e…be9010	VCAL_CALIBRATION	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a65a…be8fb0	SLDO	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a651…be8f5c	ANALOG_READBACK	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected
68a627…be8de4	ADC_CALIBRATION	Pass	SamuelRoberts	4 months ago	2 months ago	2.6.4	No tags	Selected

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Cold startup (COLD_STARTUP)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
68cdb2…30f792	MODULE/FINAL_COLD	DATA_TRANSMISSION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cde5…30f9a5	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cdd5…30f81e	MODULE/FINAL_COLD	MIN_HEALTH_TEST	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cdda…30f8d2	MODULE/FINAL_COLD	TUNING	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cdb1…30f76e	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cdb0…30f73a	MODULE/FINAL_COLD	VCAL_CALIBRATION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cdad…30f6f5	MODULE/FINAL_COLD	SLDO	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cda5…30f6c1	MODULE/FINAL_COLD	ANALOG_READBACK	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc99…30f5d4	MODULE/FINAL_COLD	ADC_CALIBRATION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc84…30f2f9	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc86…30f324	MODULE/FINAL_WARM	LP_MODE	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc8d…30f41d	MODULE/FINAL_WARM	TUNING	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cc91…30f562	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cc88…30f38e	MODULE/FINAL_WARM	MIN_HEALTH_TEST	SamuelRoberts	N/A	2 months ago	No tags	Selected
68cc86…30f360	MODULE/FINAL_WARM	DATA_TRANSMISSION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc82…30f281	MODULE/FINAL_WARM	VCAL_CALIBRATION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc6b…30f21e	MODULE/FINAL_WARM	SLDO	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc63…30f1c7	MODULE/FINAL_WARM	ANALOG_READBACK	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68cc50…30f106	MODULE/FINAL_WARM	ADC_CALIBRATION	SamuelRoberts	3 months ago	2 months ago	No tags	Selected
68a767…be90af	MODULE/POST_PARYLENE_WARM	LP_MODE	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a77a…be92ae	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	SamuelRoberts	N/A	2 months ago	No tags	Selected
68a776…be91c1	MODULE/POST_PARYLENE_WARM	TUNING	SamuelRoberts	N/A	2 months ago	No tags	Selected
68a76b…be910a	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	SamuelRoberts	N/A	2 months ago	No tags	Selected
68a751…be9060	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a767…be90eb	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a65e…be9010	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a65a…be8fb0	MODULE/POST_PARYLENE_WARM	SLDO	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a651…be8f5c	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
68a627…be8de4	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	SamuelRoberts	4 months ago	2 months ago	No tags	Selected
689270…32bc00	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Simpson,Liana Rae	N/A	4 months ago	No tags	Selected
689270…32bb11	MODULE/INITIAL_WARM	TUNING	Simpson,Liana Rae	N/A	4 months ago	No tags	Selected
689270…32bab1	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Simpson,Liana Rae	N/A	4 months ago	No tags	Selected
68926e…32ba42	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926e…32ba0e	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926e…32ba66	MODULE/INITIAL_WARM	LP_MODE	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926e…32b9ea	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926d…32b9a6	MODULE/INITIAL_WARM	SLDO	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926d…32b972	MODULE/INITIAL_WARM	ANALOG_READBACK	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
68926d…32b8de	MODULE/INITIAL_WARM	ADC_CALIBRATION	Simpson,Liana Rae	4 months ago	4 months ago	No tags	Selected
660d7e…452c74	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0142268

MODULE/FINAL_METROLOGY

Component Information

Wafer

Properties

Comments

Test: MIN_HEALTH_TEST QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Final flatness measurement

Candidate TestRuns of this Stage

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
