20UPGFC0142214

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142214
ProdDB ID	607f03…411a8f
LocalDB ID	660d7cafec873d0035450fe5
Component Type	fe_chip
Parents	20UPGM23210791 20UPGB43200170
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d7cafec873d0035450fe5
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	GiordonStark
ObjectId of this record	68dc73ac95403e048c93e21b
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-10-01T00:02:42.000+00:00
MEASUREMENT_DURATION	757
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

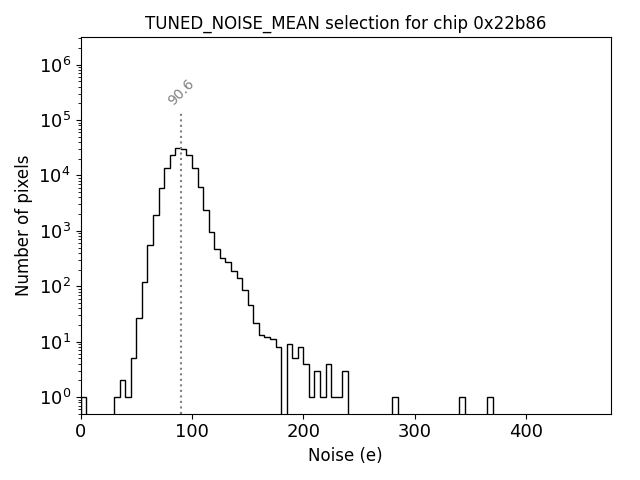

TUNING_TUNED_NOISE_95_HIGH	111.854
TUNING_TUNED_NOISE_95_LOW	71.498
TUNING_TUNED_NOISE_MEAN	90.605
TUNING_TUNED_NOISE_SIGMA	10.782
TUNING_TUNED_TDAC_MEAN	-1.1
TUNING_TUNED_TDAC_SIGMA	4.345

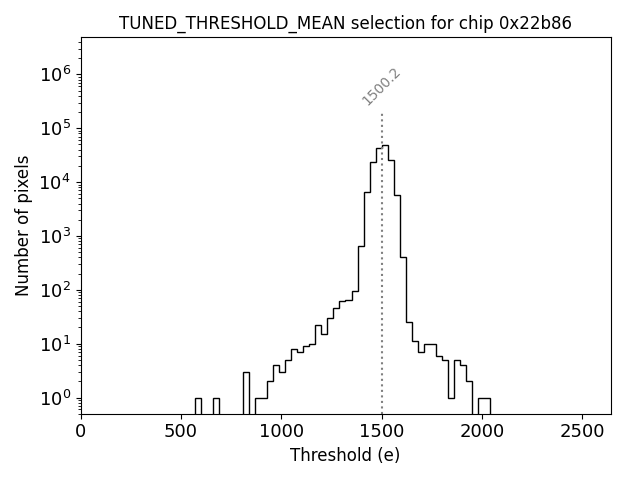

TUNING_TUNED_THRESHOLD_95_HIGH	1566.609
TUNING_TUNED_THRESHOLD_95_LOW	1428.945
TUNING_TUNED_THRESHOLD_FAILED_FITS	9
TUNING_TUNED_THRESHOLD_MEAN	1500.2
TUNING_TUNED_THRESHOLD_SIGMA	38

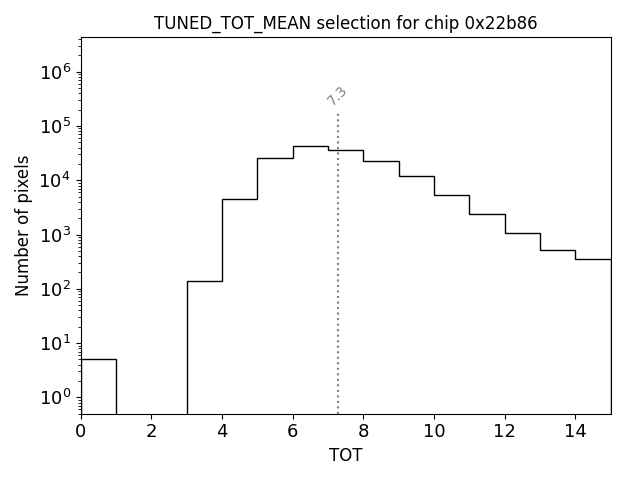

TUNING_TUNED_TOT_95_HIGH	11.12
TUNING_TUNED_TOT_95_LOW	4.97
TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3

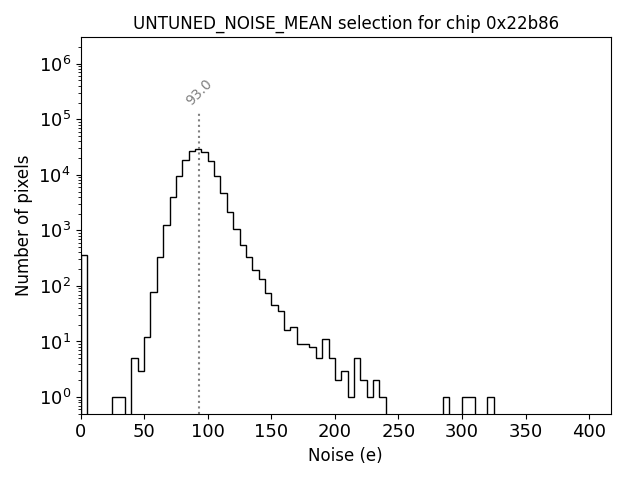

TUNING_UNTUNED_NOISE_95_HIGH	116.5
TUNING_UNTUNED_NOISE_95_LOW	72.818
TUNING_UNTUNED_NOISE_MEAN	92.988
TUNING_UNTUNED_NOISE_SIGMA	12.082
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

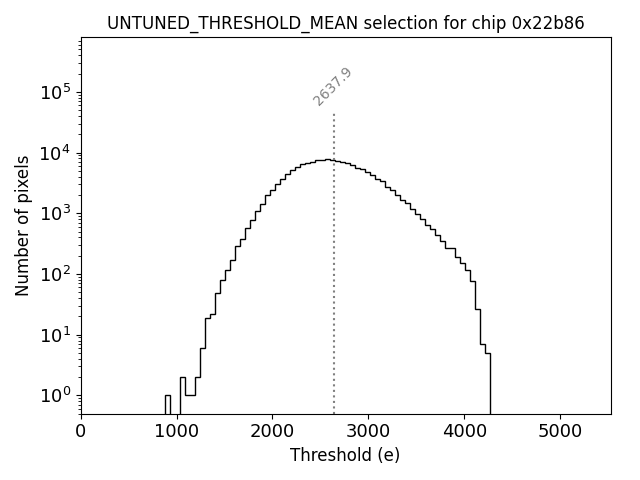

TUNING_UNTUNED_THRESHOLD_95_HIGH	3540.466
TUNING_UNTUNED_THRESHOLD_95_LOW	1882.004
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	702
TUNING_UNTUNED_THRESHOLD_MEAN	2637.885
TUNING_UNTUNED_THRESHOLD_SIGMA	421

Attachments

Filename	Contents
0x22b86_L2_cold.json	Download
0x22b86.log	Download
output.log	Download
20UPGFC0142214_MODULE__FINAL_COLD_TUNING.zip	Download
