20UPGFC0142214

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142214
ProdDB ID	607f03…411a8f
LocalDB ID	660d7cafec873d0035450fe5
Component Type	fe_chip
Parents	20UPGM23210791 20UPGB43200170
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	660d7cafec873d0035450fe5
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	68c87cd47bead952f36c3f35
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-09-10T23:02:31.000+00:00
MEASUREMENT_DURATION	669
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

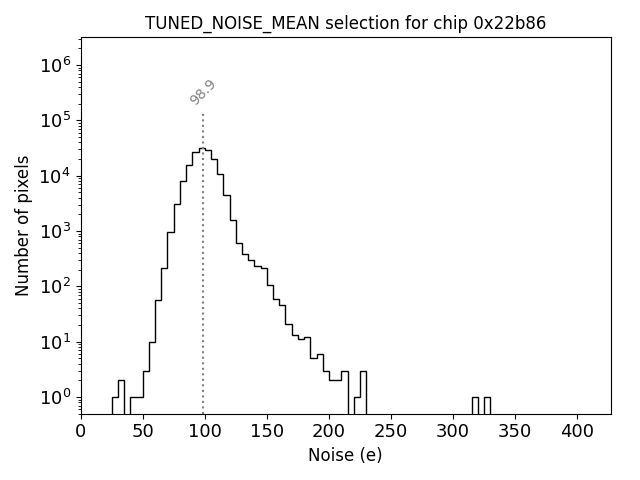

TUNING_TUNED_NOISE_95_HIGH	119.565
TUNING_TUNED_NOISE_95_LOW	79.545
TUNING_TUNED_NOISE_MEAN	98.91
TUNING_TUNED_NOISE_SIGMA	10.65
TUNING_TUNED_TDAC_MEAN	-1
TUNING_TUNED_TDAC_SIGMA	4.003
TUNING_TUNED_THRESHOLD_95_HIGH	1563.355
TUNING_TUNED_THRESHOLD_95_LOW	1431.616
TUNING_TUNED_THRESHOLD_FAILED_FITS	7
TUNING_TUNED_THRESHOLD_MEAN	1499.9
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	10.15
TUNING_TUNED_TOT_95_LOW	5
TUNING_TUNED_TOT_MEAN	7.2
TUNING_TUNED_TOT_SIGMA	0.3

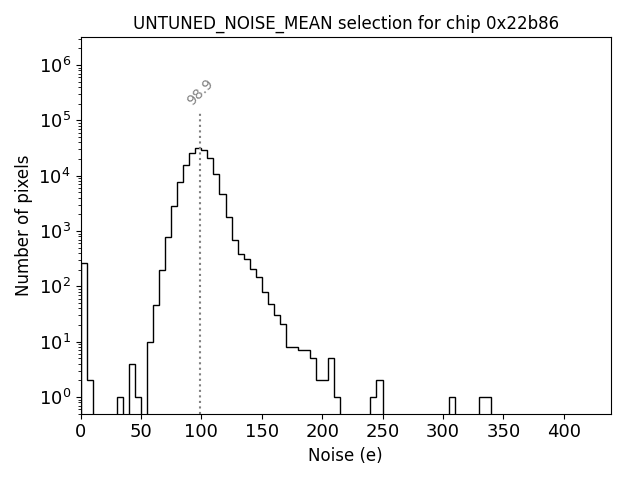

TUNING_UNTUNED_NOISE_95_HIGH	119.868
TUNING_UNTUNED_NOISE_95_LOW	79.645
TUNING_UNTUNED_NOISE_MEAN	98.938
TUNING_UNTUNED_NOISE_SIGMA	11.266
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

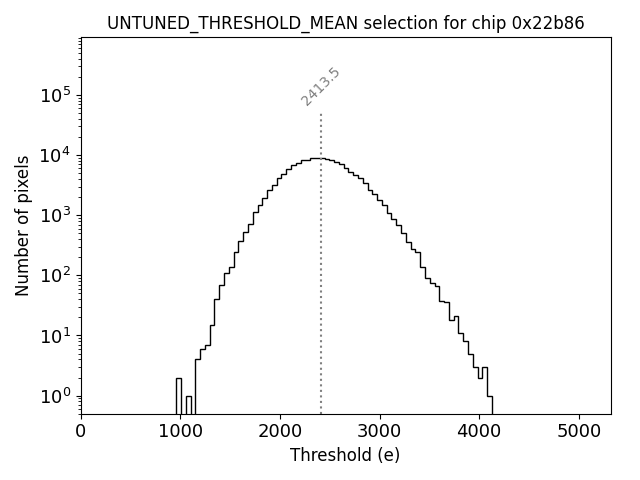

TUNING_UNTUNED_THRESHOLD_95_HIGH	3101.883
TUNING_UNTUNED_THRESHOLD_95_LOW	1793.25

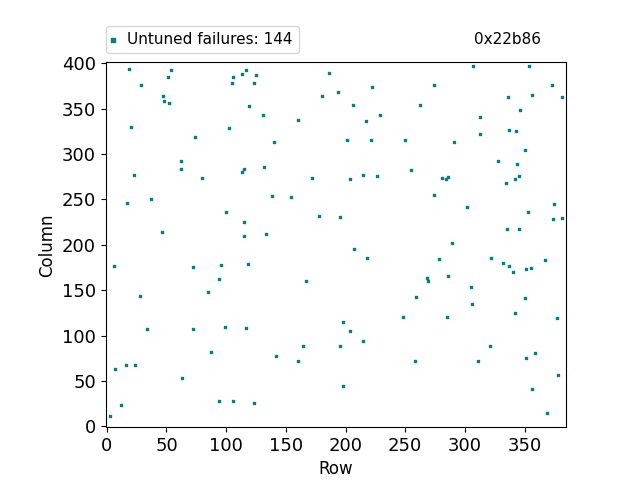

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	144
TUNING_UNTUNED_THRESHOLD_MEAN	2413.504
TUNING_UNTUNED_THRESHOLD_SIGMA	333

Attachments

Filename	Contents
0x22b86_L2_warm.json	Download
output.log	Download
0x22b86.log	Download
20UPGFC0142214_MODULE__INITIAL_WARM_TUNING.zip	Download
