20UPGFC0142186

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142186
ProdDB ID	c8fb15…241f69
LocalDB ID	660d7c84ec873d0035450ef3
Component Type	fe_chip
Parents	20UPGM23210545 20UPGB43200165
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660d7c84ec873d0035450ef3
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	SamuelRoberts
ObjectId of this record	68cc8dae4620977c2530f4b1
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-09-18T22:37:24.000+00:00
MEASUREMENT_DURATION	718
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5
TUNING_TUNED_NOISE_95_HIGH	161.068
TUNING_TUNED_NOISE_95_LOW	109.873

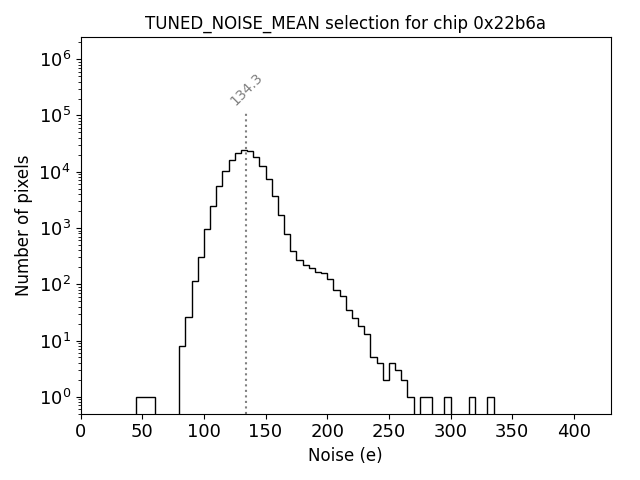

TUNING_TUNED_NOISE_MEAN	134.3
TUNING_TUNED_NOISE_SIGMA	13.653

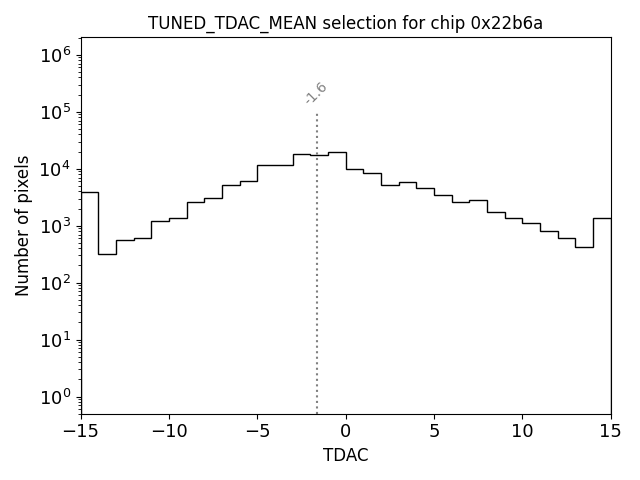

TUNING_TUNED_TDAC_MEAN	-1.6
TUNING_TUNED_TDAC_SIGMA	5.068

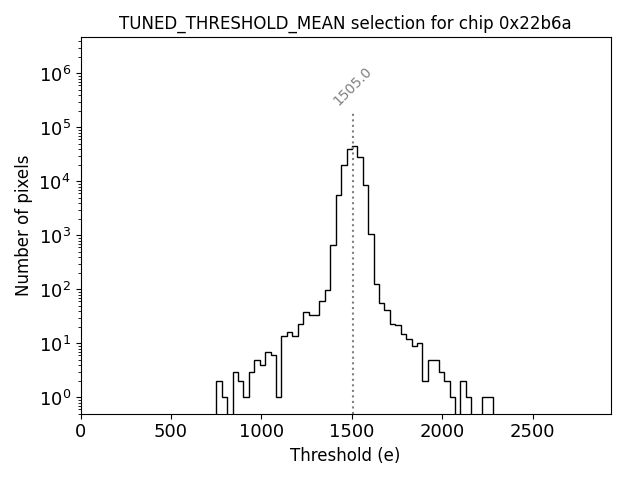

TUNING_TUNED_THRESHOLD_95_HIGH	1575.794
TUNING_TUNED_THRESHOLD_95_LOW	1430.313
TUNING_TUNED_THRESHOLD_FAILED_FITS	3084
TUNING_TUNED_THRESHOLD_MEAN	1505
TUNING_TUNED_THRESHOLD_SIGMA	40
TUNING_TUNED_TOT_95_HIGH	10.19
TUNING_TUNED_TOT_95_LOW	5

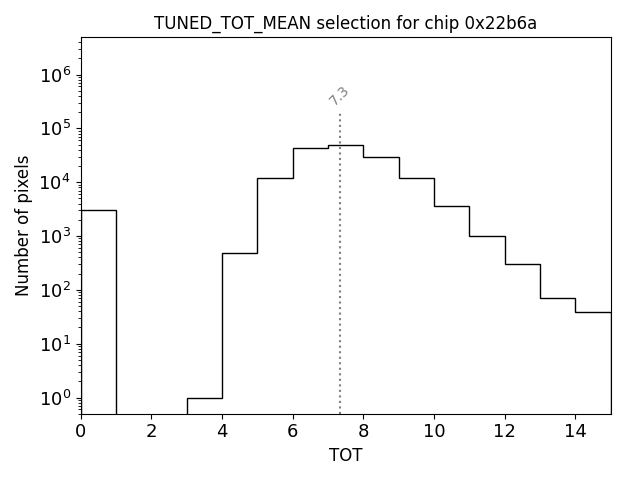

TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.4

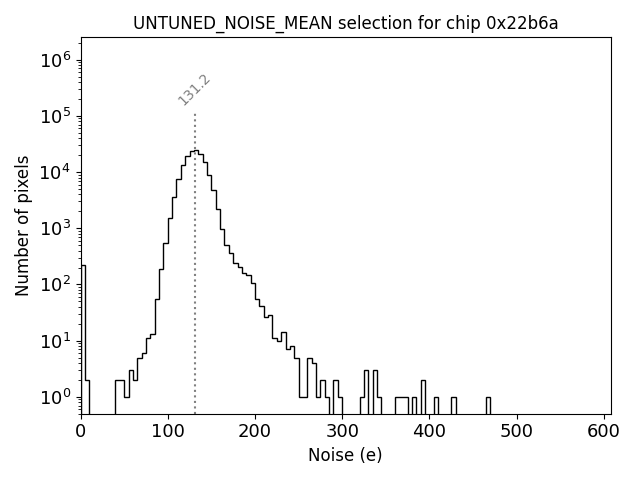

TUNING_UNTUNED_NOISE_95_HIGH	157.496
TUNING_UNTUNED_NOISE_95_LOW	107.177
TUNING_UNTUNED_NOISE_MEAN	131.209
TUNING_UNTUNED_NOISE_SIGMA	14.412
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

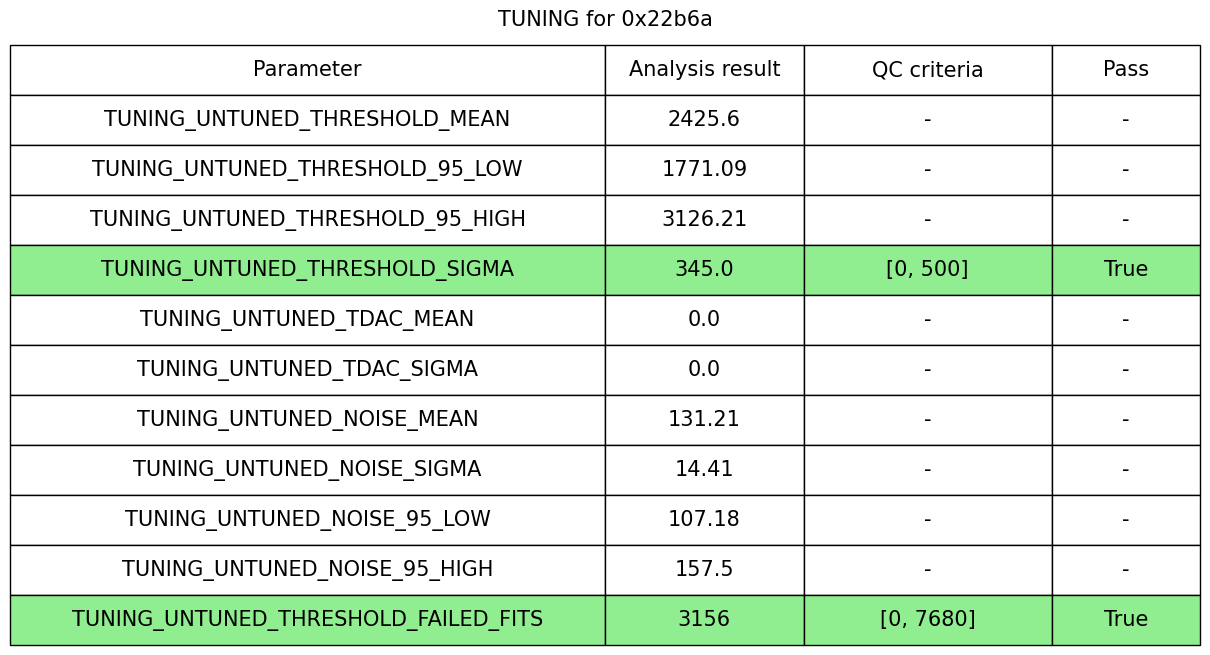

TUNING_UNTUNED_THRESHOLD_95_HIGH	3126.211
TUNING_UNTUNED_THRESHOLD_95_LOW	1771.091

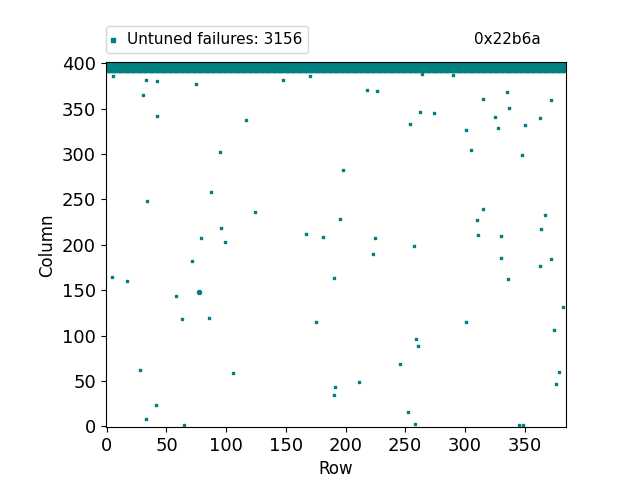

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3156

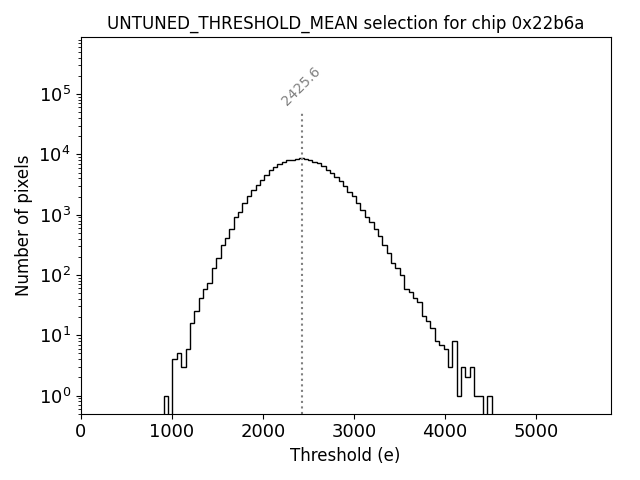

TUNING_UNTUNED_THRESHOLD_MEAN	2425.599
TUNING_UNTUNED_THRESHOLD_SIGMA	345

Attachments

Filename	Contents
0x22b6a_L2_warm.json	Download
output.log	Download
0x22b6a.log	Download
20UPGFC0142186_MODULE__FINAL_WARM_TUNING.zip	Download
