20UPGFC0142156

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142156
ProdDB ID	6346e9…4af68d
LocalDB ID	660d7c5dec873d0035450e67
Component Type	fe_chip
Parents	20UPGM23210791 20UPGB43200170
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d7c5dec873d0035450e67
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	GiordonStark
ObjectId of this record	68dc73aa95403e048c93e1e0
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-10-01T00:02:42.000+00:00
MEASUREMENT_DURATION	757
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

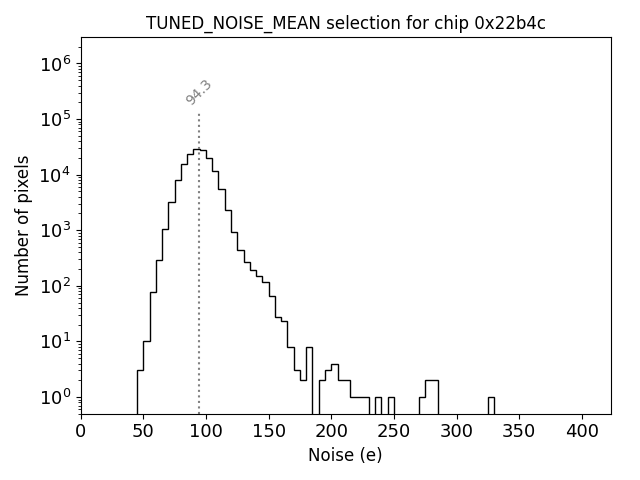

TUNING_TUNED_NOISE_95_HIGH	116.184
TUNING_TUNED_NOISE_95_LOW	74.039
TUNING_TUNED_NOISE_MEAN	94.33
TUNING_TUNED_NOISE_SIGMA	11.08

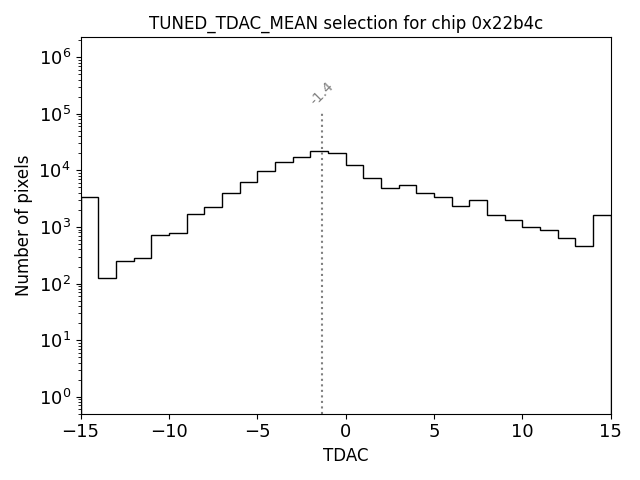

TUNING_TUNED_TDAC_MEAN	-1.4
TUNING_TUNED_TDAC_SIGMA	4.82

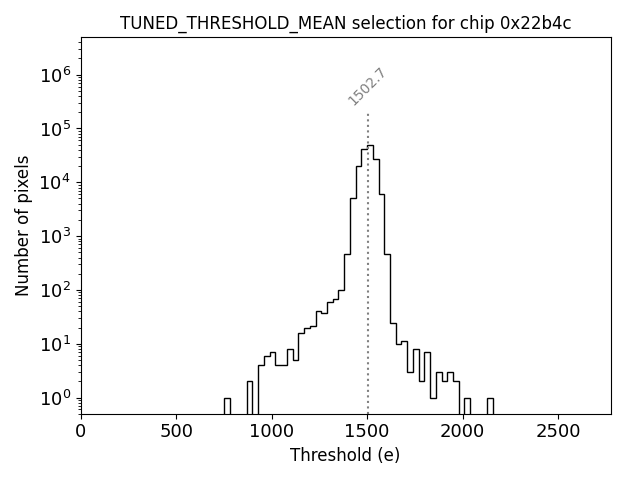

TUNING_TUNED_THRESHOLD_95_HIGH	1567.306
TUNING_TUNED_THRESHOLD_95_LOW	1433.021

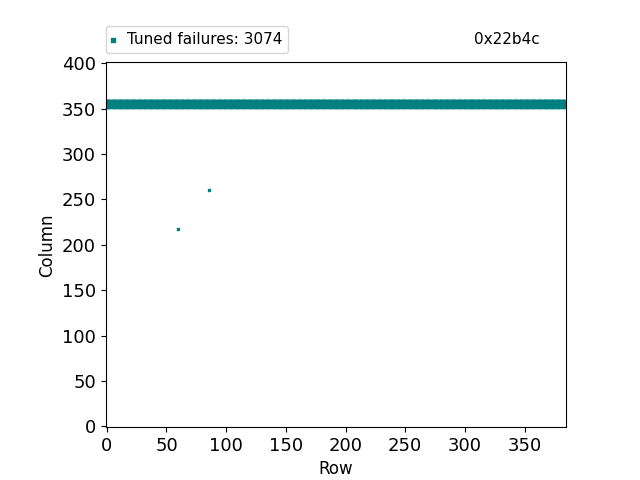

TUNING_TUNED_THRESHOLD_FAILED_FITS	3074
TUNING_TUNED_THRESHOLD_MEAN	1502.7
TUNING_TUNED_THRESHOLD_SIGMA	37

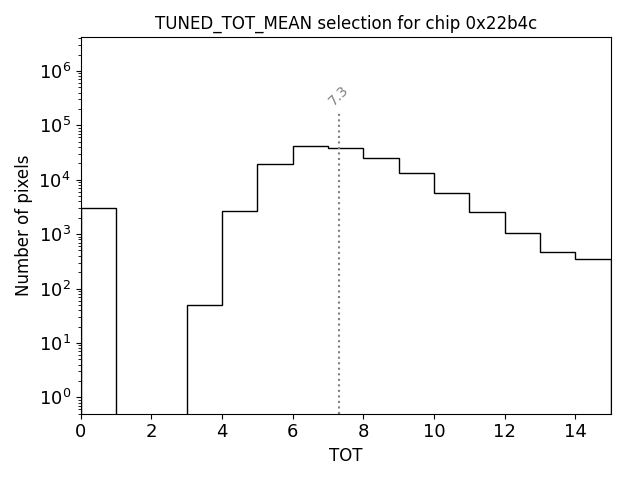

TUNING_TUNED_TOT_95_HIGH	11.12
TUNING_TUNED_TOT_95_LOW	4.15
TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	115.923
TUNING_UNTUNED_NOISE_95_LOW	74.182

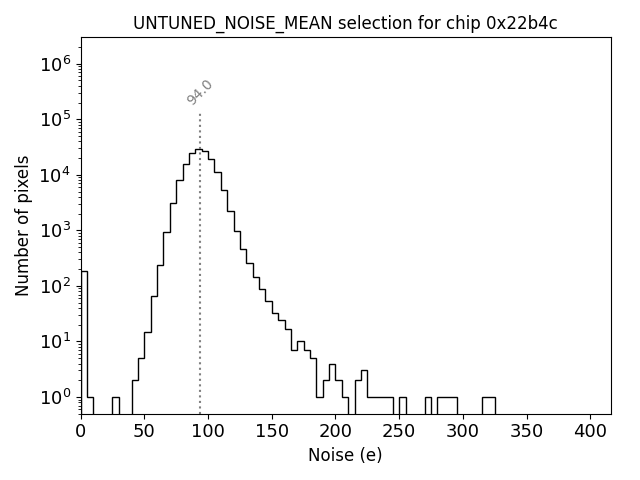

TUNING_UNTUNED_NOISE_MEAN	94.046
TUNING_UNTUNED_NOISE_SIGMA	11.354
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	3192.366
TUNING_UNTUNED_THRESHOLD_95_LOW	1712.461

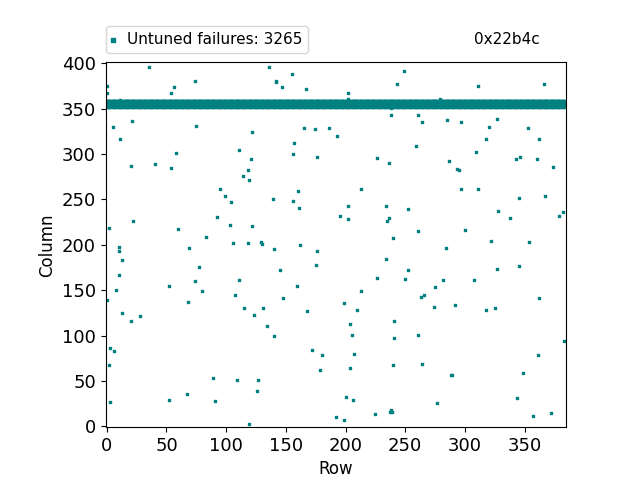

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3265

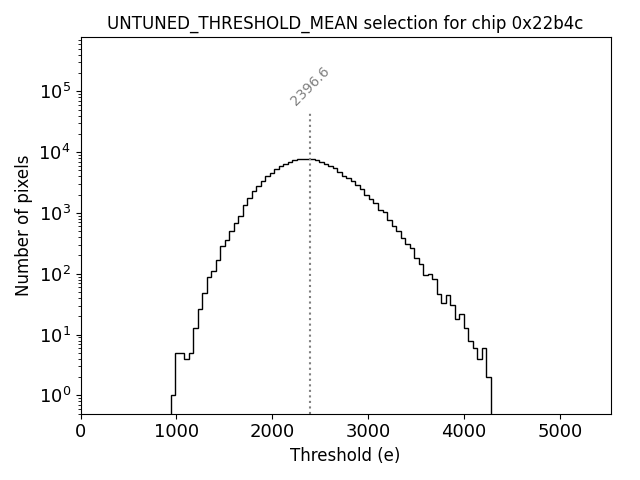

TUNING_UNTUNED_THRESHOLD_MEAN	2396.643
TUNING_UNTUNED_THRESHOLD_SIGMA	377

Attachments

Filename	Contents
0x22b4c_L2_cold.json	Download
0x22b4c.log	Download
output.log	Download
20UPGFC0142156_MODULE__FINAL_COLD_TUNING.zip	Download
