20UPGFC0142155

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0142155
ProdDB ID	b4f5c1…a770b5
LocalDB ID	660d7c5a2fc9f200350b6d38
Component Type	fe_chip
Parents	20UPGM23210861 20UPGB43200172
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660d7c5a2fc9f200350b6d38
Stage	MODULE/FINAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	GiordonStark
ObjectId of this record	68d1d10e736dd67ef24a8284
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-09-22T22:26:37.000+00:00
MEASUREMENT_DURATION	749
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5

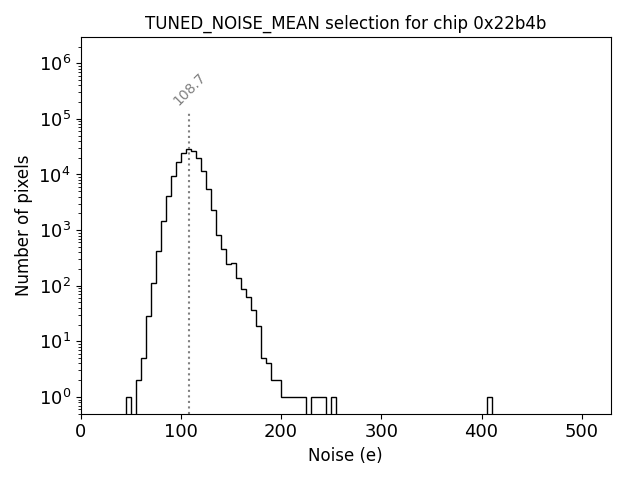

TUNING_TUNED_NOISE_95_HIGH	130.923
TUNING_TUNED_NOISE_95_LOW	87.722
TUNING_TUNED_NOISE_MEAN	108.68
TUNING_TUNED_NOISE_SIGMA	11.263
TUNING_TUNED_TDAC_MEAN	-1.1
TUNING_TUNED_TDAC_SIGMA	3.912

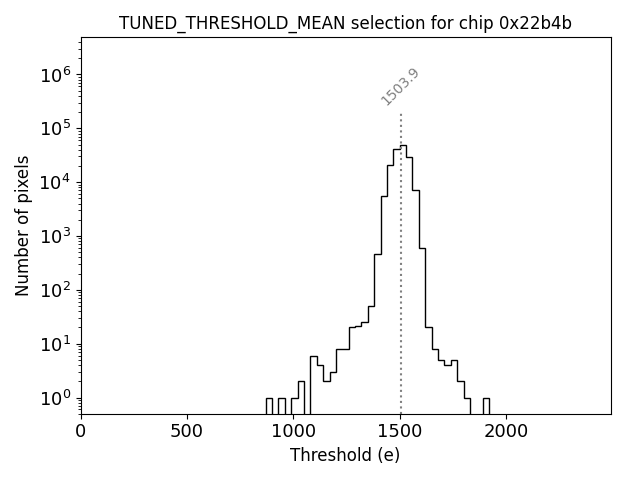

TUNING_TUNED_THRESHOLD_95_HIGH	1569.851
TUNING_TUNED_THRESHOLD_95_LOW	1432.949
TUNING_TUNED_THRESHOLD_FAILED_FITS	2
TUNING_TUNED_THRESHOLD_MEAN	1503.9
TUNING_TUNED_THRESHOLD_SIGMA	36
TUNING_TUNED_TOT_95_HIGH	9.99
TUNING_TUNED_TOT_95_LOW	5.04
TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3

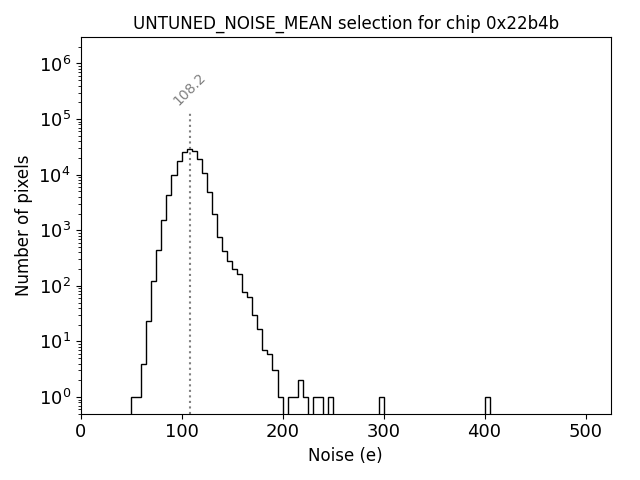

TUNING_UNTUNED_NOISE_95_HIGH	130.232
TUNING_UNTUNED_NOISE_95_LOW	87.564
TUNING_UNTUNED_NOISE_MEAN	108.218
TUNING_UNTUNED_NOISE_SIGMA	11.122
TUNING_UNTUNED_TDAC_MEAN	-1.238
TUNING_UNTUNED_TDAC_SIGMA	3.822

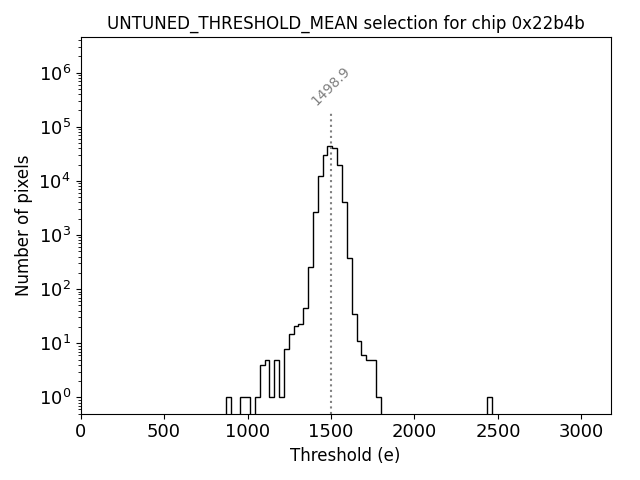

TUNING_UNTUNED_THRESHOLD_95_HIGH	1567.99
TUNING_UNTUNED_THRESHOLD_95_LOW	1424.342
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	2
TUNING_UNTUNED_THRESHOLD_MEAN	1498.873
TUNING_UNTUNED_THRESHOLD_SIGMA	38

Attachments

Filename	Contents
0x22b4b_L2_warm.json	Download
0x22b4b.log	Download
output.log	Download
20UPGFC0142155_MODULE__FINAL_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

68e05af9ecbbcc3f84c8af73

state

ready

stateTs

2025-10-03T23:23:37.357Z

stateUserIdentity

23-2145-1

date

2025-09-22T22:43:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5a6c3d23352cec0005eb5d5e
code	UCSC
name	SCIPP, UC Santa Cruz

user

id	5beaa5e7e3bfc00009b9ab7a
userIdentity	23-2145-1
firstName	Giordon
middleName	None
lastName	Stark

runNumber

68d1d10e736dd67ef24a8284

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-09-22T22:26:37.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	749	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	130.923	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	87.722	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	108.68	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	11.263	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1.1	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	3.912	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1569.851	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1432.949	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	2	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1503.9	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	36	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	9.99	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.04	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.3	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	130.232	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	87.564	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	108.218	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	11.122	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	-1.238	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	3.822	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	1567.99	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1424.342	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	2	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	1498.873	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	38	None

cts

2025-10-03T23:23:37.357Z

sys

cts	2025-10-03T23:23:37.357Z
mts	2025-10-03T23:24:59.251Z
rev	2

defects

comments
