Database for ITk Pixel Module

Serial Number	20UPGFC0142103
ProdDB ID	49dbbb…6bff95
LocalDB ID	660d7c2a2fc9f200350b6c97
Component Type	fe_chip
Parents	20UPGM23210402 20UPGB43200198
Children	No match.
Flags

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	660d7c2a2fc9f200350b6c97
Stage	MODULE/POST_PARYLENE_WARM
Test Type	PIXEL_FAILURE_ANALYSIS
Institute ObjectId
User Name	JonTaylor
ObjectId of this record	68b6b93c109cc5c44d7ded22
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-09-02T08:17:45.000+00:00
MEASUREMENT_DURATION	539
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5
PIXEL_FAILURE_BAD_ANALOG	1
PIXEL_FAILURE_BAD_DIGITAL	3
PIXEL_FAILURE_COLUMN_DISABLED	0
PIXEL_FAILURE_DEAD_ANALOG	3
PIXEL_FAILURE_DEAD_DIGITAL	1
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN	-1
PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN	3
PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN	-1
PIXEL_FAILURE_DISCONNECTED_PIXELS	3
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC	6
PIXEL_FAILURE_ELECTRICALLY_FAILED	21
PIXEL_FAILURE_FAILING_PIXELS	24

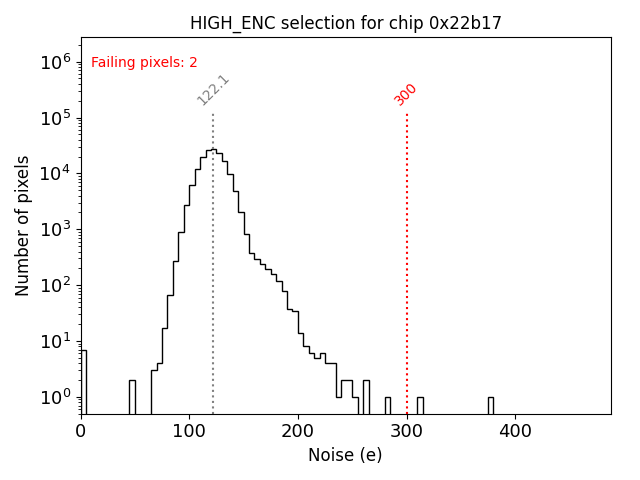

PIXEL_FAILURE_HIGH_ENC	2
PIXEL_FAILURE_HIGH_NOISE	1
PIXEL_FAILURE_MERGED_BUMPS	0
PIXEL_FAILURE_SOURCE_SCAN_DONE	False

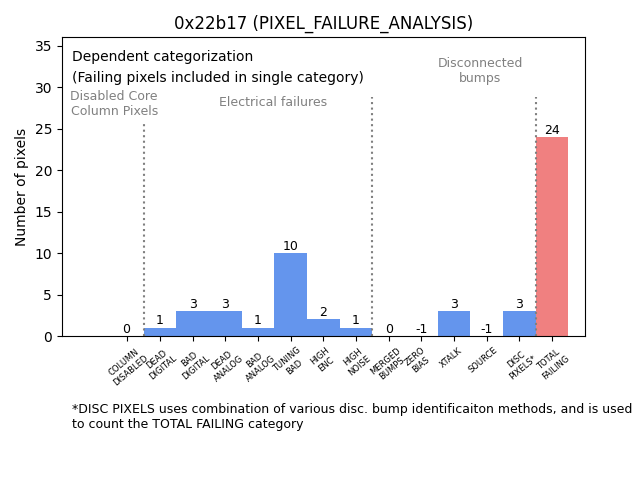

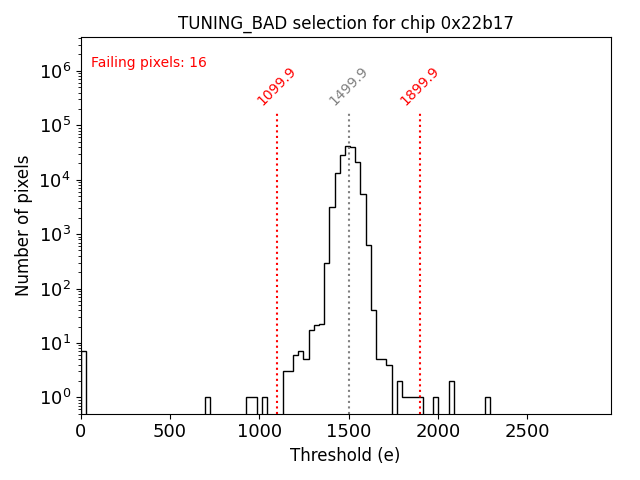

PIXEL_FAILURE_TUNING_BAD	10

Filename	Contents
output.log	Download
0x22b17.log	Download
20UPGFC0142103_MODULE__POST_PARYLENE_WARM_PIXEL-FAILURE-ANALYSIS.zip	Download

Expand ProductionDB Record

68c418121a8dab767bdcd9ad

state

ready

stateTs

2025-09-12T12:54:42.945Z

stateUserIdentity

24-7183-1

date

2025-09-02T09:30:00.000Z

testType

id	6393a09615838700361eed0a
code	PIXEL_FAILURE_ANALYSIS
name	Pixel Failure Analysis
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	5d317963df98f2000973842f
userIdentity	24-7183-1
firstName	Jon
middleName	None
lastName	Taylor

runNumber

68b6b93c109cc5c44d7ded22

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Pixel Failure Analysis Version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-09-02T08:17:45.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	539	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
PIXEL_FAILURE_BAD_ANALOG	Number of bad pixels from analog scan	integer	single	None	None	None	None	1	None
PIXEL_FAILURE_BAD_DIGITAL	Number of bad pixels from digital scan	integer	single	None	None	None	None	3	None
PIXEL_FAILURE_COLUMN_DISABLED	Number of disabled pixels due to core column issue	integer	single	None	None	None	None	0	None
PIXEL_FAILURE_DEAD_ANALOG	Number of dead pixels from analog scan	integer	single	None	None	None	None	3	None
PIXEL_FAILURE_DEAD_DIGITAL	Number of dead pixels from digital scan	integer	single	None	None	None	None	1	None
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN	Number of disconnected bump from source scan	integer	single	None	None	None	None	-1	None
PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN	Number of bad (transition region) pixels from disconnected bump bond scan (xtalk based)	integer	single	None	None	None	None	3	None
PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN	Number of disconnected bumps from 0-bias threshold scan	integer	single	None	None	None	None	-1	None
PIXEL_FAILURE_DISCONNECTED_PIXELS	Number of disconnected pixels	integer	single	None	None	None	None	3	None
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC	Number of pixels failing disconnected pixel test	integer	single	None	None	None	None	6	None
PIXEL_FAILURE_ELECTRICALLY_FAILED	Number of electrically failed pixels	integer	single	None	None	None	None	21	None
PIXEL_FAILURE_FAILING_PIXELS	Total number of failing pixels	integer	single	None	None	None	None	24	None
PIXEL_FAILURE_HIGH_ENC	Number of pixels with High ENC	integer	single	None	None	None	None	2	None
PIXEL_FAILURE_HIGH_NOISE	Number of pixels with high noise occupancy	integer	single	None	None	None	None	1	None
PIXEL_FAILURE_MERGED_BUMPS	Number of merged bumps	integer	single	None	None	None	None	0	None
PIXEL_FAILURE_SOURCE_SCAN_DONE	Source scan done	boolean	single	None	None	None	None	False	None
PIXEL_FAILURE_TUNING_BAD	Number of pixels with bad tuning	integer	single	None	None	None	None	10	None

cts

2025-09-12T12:54:42.945Z

sys

cts	2025-09-12T12:54:42.945Z
mts	2025-09-12T12:54:43.353Z
rev	1

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

df91d517105afc7d9e97bf268a359c9c

2025-09-12T12:54:43.353Z

TestRun_68c418121a8dab767bdcd9ad_Attachment_Pack.zip

/home/pixeldaq/localdb3/localdb-tools/viewer/static/cache/thumbnail/TestRun_68c418121a8dab767bdcd9ad_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/d/f/9/df91d517105afc7d9e97bf268a359c9c?authz=zteos64:MDAwMDAyYjR4nO1Qv0vDQBilRR06SQWRTh_iUIT8uKRJmg8HB0FwtDrFDJfeJQ2puSO5ghScnF36D7iIiIiDm7Pgqpurk5vg1MnBWBwcHB39eHzD473H4zXu641asfh6cvGw0JpPVSbZan0s2zXLNrgoDaqG9Pv3eZEnhRhJlpaZwbjSKrkhC8E0FhnMiA1_Z63jxC43I1fzbWJqhMSmRn2LabQTxSbxfNez_N3HWrA34tDjEogLxMMKtgOWaTkhjFKGpEPcLglmdUJIvhjb9IKxDEGljOcKCyGU7hDL6jpoV7GbAWJcHTpEJ8TV_a5OzBByeshxFgMsR6jKKsyKyAEqJcJAlAp_NzJxSNMcfzAJFwjliAk0QRW0zxFEHvEBHcbYhKvBZKn5dvu-sny-v5XcTXvt64316SQ7Ozjdvjw-em797_wHO8PLzdPH3Cd5HNjL

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/d/f/9/df91d517105afc7d9e97bf268a359c9c

df91d517105afc7d9e97bf268a359c9c

id	5d317963df98f2000973842f
userIdentity	24-7183-1
firstName	Jon
middleName	None
lastName	Taylor

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660d7c2a2fc9f200350b6c97

49dbbbb08f4f1f7e154aa42a5d6bff95

ready

2024-04-03T15:56:26.551Z

5310-2637-1

False

None

False

None

20UPGFC0142103

None

parent

component

67c714885cfcdd14475557de

code

20ad2454cfdffd9d1678ee51e6cc566e

state

ready

stateTs

2025-03-04T14:56:08.771Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200198

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

highestLevelParent

component

67e40465cd90d23537770385

code

ead9d7e067c7bd1b0451883983c56a75

state

ready

stateTs

2025-03-26T13:43:01.332Z

stateUserIdentity

7075-9969-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM23210402

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/POST_PARYLENE_WARM
name	Post-Parylene Warm
order	15
initial	False
final	False

code	GL
name	Glasgow University

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
Low Power Mode (LP_MODE)	No TestRun!
Data Transmission (DATA_TRANSMISSION)	No TestRun!
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No TestRun!
Undershunt Protection (UNDERSHUNT_PROTECTION)	No TestRun!
SLDO (SLDO)	No TestRun!
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
68b5f2…7de825	LP_MODE	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b6b9…7ded22	PIXEL_FAILURE_ANALYSIS	Pass	JonTaylor	N/A	3 months ago	2.6.4	No tags	Selected
68b6b6…7dec2f	TUNING	Pass	JonTaylor	N/A	3 months ago	2.6.4	No tags	Selected
68b6b2…7de9ea	MIN_HEALTH_TEST	Pass	JonTaylor	N/A	3 months ago	2.6.4	No tags	Selected
68b5f1…7de7fa	INJECTION_CAPACITANCE	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b5f2…7de85e	DATA_TRANSMISSION	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b5f0…7de7aa	VCAL_CALIBRATION	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b5ee…7de74a	SLDO	Fail	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b5e7…7de6fa	ANALOG_READBACK	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected
68b5d8…7de64a	ADC_CALIBRATION	Pass	JonTaylor	3 months ago	3 months ago	2.6.4	No tags	Selected

Past QC Stages and Results

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
68b5f2…7de825	MODULE/POST_PARYLENE_WARM	LP_MODE	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b6b9…7ded22	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	JonTaylor	N/A	3 months ago	No tags	Selected
68b6b6…7dec2f	MODULE/POST_PARYLENE_WARM	TUNING	JonTaylor	N/A	3 months ago	No tags	Selected
68b6b2…7de9ea	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	JonTaylor	N/A	3 months ago	No tags	Selected
68b5f1…7de7fa	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b5f2…7de85e	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b5f0…7de7aa	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b5ee…7de74a	MODULE/POST_PARYLENE_WARM	SLDO	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b5e7…7de6fa	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	JonTaylor	3 months ago	3 months ago	No tags	Selected
68b5d8…7de64a	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	JonTaylor	3 months ago	3 months ago	No tags	Selected
68c16e…b2b80d	MODULE/FINAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c294…b2c062	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c19a…b2baba	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c19c…b2bb62	MODULE/FINAL_COLD	TUNING	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c16e…b2b7e9	MODULE/FINAL_COLD	LP_MODE	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c16d…b2b791	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c16d…b2b75d	MODULE/FINAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c16c…b2b719	MODULE/FINAL_COLD	SLDO	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c168…b2b651	MODULE/FINAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c15f…b2b599	MODULE/FINAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c148…b2b01b	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c149…b2b046	MODULE/FINAL_WARM	LP_MODE	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c15c…b2b2e5	MODULE/FINAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c15c…b2b4a9	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c15b…b2b188	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	3 months ago	No tags	Selected
68c149…b2b07f	MODULE/FINAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c148…b2af67	MODULE/FINAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c147…b2ae57	MODULE/FINAL_WARM	SLDO	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c142…b2ad6b	MODULE/FINAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68c139…b2a213	MODULE/FINAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	3 months ago	3 months ago	No tags	Selected
68446d…bf18e1	MODULE/INITIAL_WARM	ADC_CALIBRATION	JonTaylor	6 months ago	6 months ago	No tags	Selected
684488…bf1a69	MODULE/INITIAL_WARM	DATA_TRANSMISSION	JonTaylor	6 months ago	6 months ago	No tags	Selected
684487…bf1a45	MODULE/INITIAL_WARM	LP_MODE	JonTaylor	6 months ago	6 months ago	No tags	Selected
684485…bf19ed	MODULE/INITIAL_WARM	VCAL_CALIBRATION	JonTaylor	6 months ago	6 months ago	No tags	Selected
684483…bf19a9	MODULE/INITIAL_WARM	SLDO	JonTaylor	6 months ago	6 months ago	No tags	Selected
660d7d…4511c1	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0142103

MODULE/POST_PARYLENE_COLD

Component Information

Wafer

Properties

Comments

Test: PIXEL_FAILURE_ANALYSIS QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Post-Parylene Cold

Candidate TestRuns of this Stage

Past QC Stages and Results

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
