Database for ITk Pixel Module

Serial Number	20UPGFC0141766
ProdDB ID	b44e17…4996fe
LocalDB ID	660d236aeeb7490035a471e4
Component Type	fe_chip
Parents	20UPGM24210028 20UPGB43200226
Children	No match.
Flags

Item	Value
Target Iref trim	9
Target Iref trim version	1
Wafer serial number	None

Key	Data
QC Passed	True
Date	2 months ago
component ObjectId	660d236aeeb7490035a471e4
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	DanielAceves
ObjectId of this record	68debe2b12752b66da90fd1e
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.6.4
MEASUREMENT_DATE	2025-10-02T17:20:16.000+00:00
MEASUREMENT_DURATION	659
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.5
TUNING_TUNED_NOISE_95_HIGH	122.297
TUNING_TUNED_NOISE_95_LOW	81.072

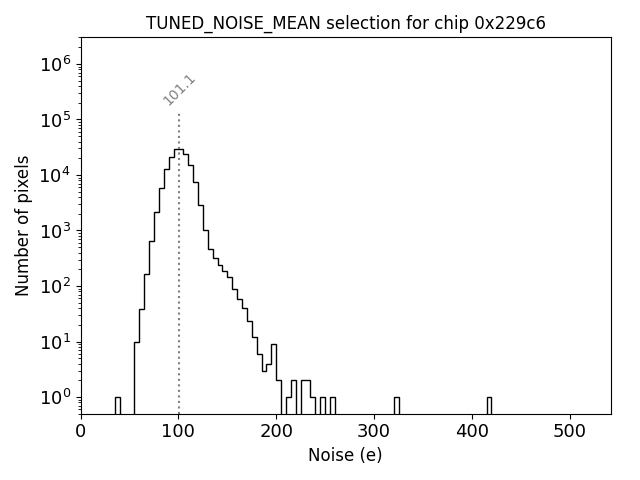

TUNING_TUNED_NOISE_MEAN	101.085
TUNING_TUNED_NOISE_SIGMA	10.966
TUNING_TUNED_TDAC_MEAN	-1
TUNING_TUNED_TDAC_SIGMA	4.123
TUNING_TUNED_THRESHOLD_95_HIGH	1561.471
TUNING_TUNED_THRESHOLD_95_LOW	1428.516
TUNING_TUNED_THRESHOLD_FAILED_FITS	6

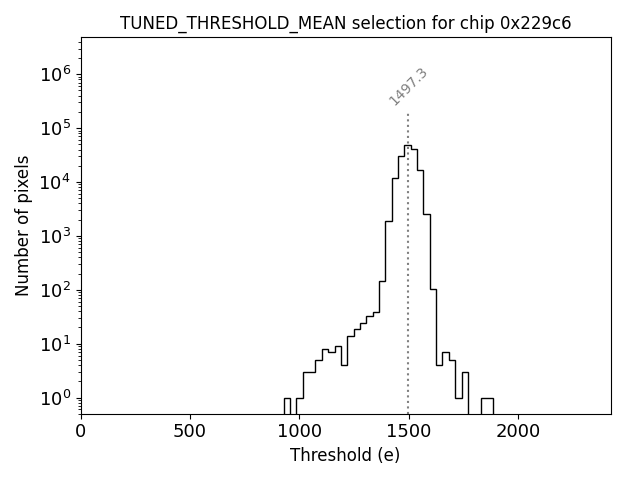

TUNING_TUNED_THRESHOLD_MEAN	1497.3
TUNING_TUNED_THRESHOLD_SIGMA	35
TUNING_TUNED_TOT_95_HIGH	9.97
TUNING_TUNED_TOT_95_LOW	5.19

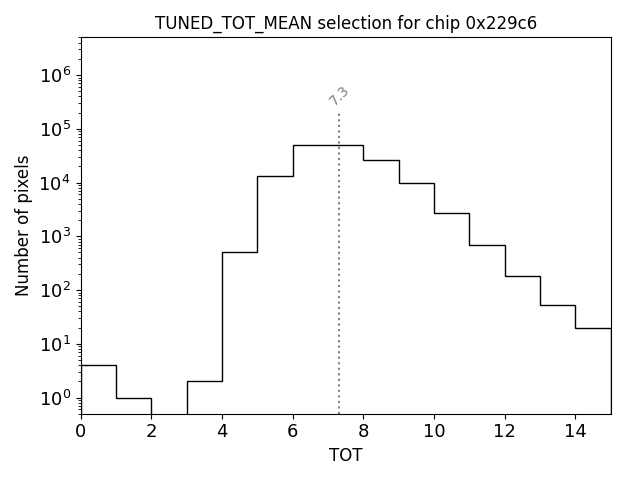

TUNING_TUNED_TOT_MEAN	7.3
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_UNTUNED_NOISE_95_HIGH	119.999
TUNING_UNTUNED_NOISE_95_LOW	79.919

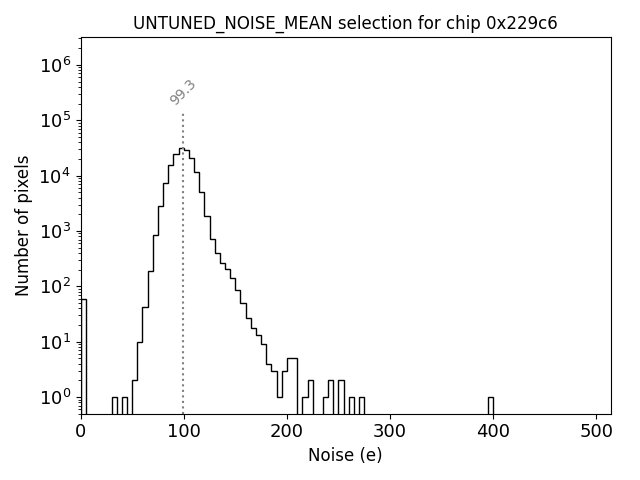

TUNING_UNTUNED_NOISE_MEAN	99.336
TUNING_UNTUNED_NOISE_SIGMA	10.71
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2732.026
TUNING_UNTUNED_THRESHOLD_95_LOW	1523.844
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	113

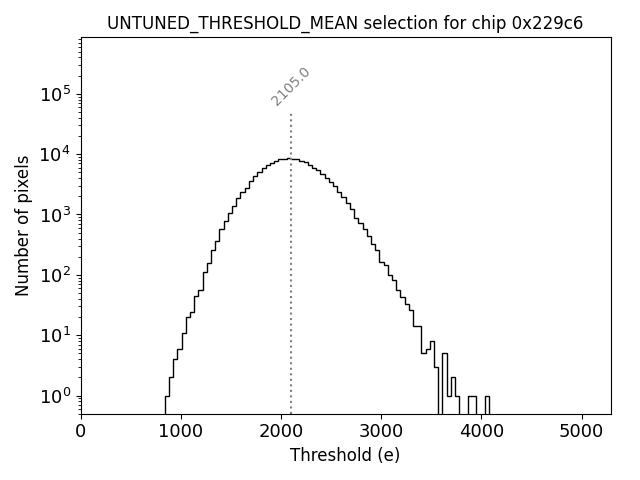

TUNING_UNTUNED_THRESHOLD_MEAN	2104.967
TUNING_UNTUNED_THRESHOLD_SIGMA	308

Filename	Contents
0x229c6_L2_warm.json	Download
output.log	Download
0x229c6.log	Download
20UPGFC0141766_MODULE__INITIAL_WARM_TUNING.zip	Download

Expand ProductionDB Record

68debf2e46c81c946f504217

state

ready

stateTs

2025-10-02T18:06:38.901Z

stateUserIdentity

4728-7541-1

date

2025-10-02T18:02:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318624df98f200097386d5
code	ANL
name	Argonne National Laboratory

user

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

runNumber

68debe2b12752b66da90fd1e

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.6.4	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-10-02T17:20:16.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	659	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.5	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	122.297	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	81.072	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	101.085	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.966	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-1	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.123	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1561.471	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1428.516	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	6	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1497.3	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	35	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	9.97	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	5.19	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7.3	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.3	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	119.999	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	79.919	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	99.336	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	10.71	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2732.026	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1523.844	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	113	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2104.967	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	308	None

cts

2025-10-02T18:06:38.902Z

sys

cts	2025-10-02T18:06:38.902Z
mts	2025-10-02T18:07:09.470Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

4e7d9cf82f78bcd6dceeb68bb4b28ded

2025-10-02T18:06:51.506Z

0x229c6_L2_warm.json

{"_id":"68b21a788428c598c033593e","serialNumber":"20UPGFC0141766","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"68deba4088c00028d9e93230"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/e/7/4e7d9cf82f78bcd6dceeb68bb4b28ded?authz=zteos64:MDAwMDAyZjh4nO2RMUsDQRCFjaJFBJEUFmIxiIUIl7tdL7d7U9kJIgoiiIQUuzd78YjeHpeNRQRLQfAPCP4PQawsBDs7sRCxsLC1tjAGCwtrK6eY4uPNYx6v-jparZTT5x8XdxOz45nrFDQ_2i8WK3zbN7brK7evvndiyrxd2l5BWbfjk3HeQO4XpSWPtB_6xhd-aATFSSp5KqROKKLEGB1JrUPNJRlaW2ApF0wF3EuUST3G0sCTcaI8Feo0YCKOBI-37ivNHUOwYQ-BR8Akhgw5Ax7wRgt6GSELWSRZc_hvC9pfZDkQzX7RApeRyR2W1ro6Z5EIliVGsWisNBHTwWCD1RmL6rGss6AFuTowOPQByhEGcRx2St0AVRQIe7br8PdDsgcqy_EHaRuL0O2RxQBcqRKDYHNt9tR-ijVYets8fZmqPZO63X3aLM6O5k6uqjOTduR99WH9-EbP_jfxJ03Ay-P15dgnN0DtyQ%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/e/7/4e7d9cf82f78bcd6dceeb68bb4b28ded

4e7d9cf82f78bcd6dceeb68bb4b28ded

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

ade22a4b45999985961eaa4f38418f13

2025-10-02T18:07:09.470Z

TestRun_68debf2e46c81c946f504217_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_68debf2e46c81c946f504217_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/d/e/ade22a4b45999985961eaa4f38418f13?authz=zteos64:MDAwMDAyZjh4nO1RPUvEQBTkBC2uEiuxeoiFFrns20ty2VeppYWFCApHis3t5gyn2ZDbs7CyFhH8KBTExh_gD9A_IFhcaWEhiKBgaecHRrGwsLZyilcMb4YZpno_UK0Uw0evx5dDY4Op7eRqfGAjn6zwRVebrivtqvy-LV1k7cL0cpV2O67S1inf3bwwylGxK13lalcqzbn0Ys8XJUJfBKil9JJ66GGYYH1uAhNPKdaSTkvqxEFMmBOjEE4pShg2RNDgYqFfaS5pBfNmHXgAGJKHxBE4434EvVQRehiE2PzKG0H7k6mzRnMjj8CmSmeWCmNsjWPQYL5HgRBsukmUlCAfa4hBTYQ1ZBFkck3Tlw-ojKCsY6lTxD7IPCdYMV1LvwuVWZNpRj-YtjYE3Z4yxMAWsqUJTBbrFbma0AhsvkUzT7uzL_z65naKzt5PDh-270b3znsHyxenO_uPY_9L_MkScPXc3xr6AFkK8OI%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/d/e/ade22a4b45999985961eaa4f38418f13

ade22a4b45999985961eaa4f38418f13

id	6526ef19d2e4250042313864
userIdentity	4728-7541-1
firstName	Daniel
middleName
lastName	Aceves

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

660d236aeeb7490035a471e4

b44e1705d32569b8361af1d1cc4996fe

ready

2024-04-03T09:37:46.559Z

5310-2637-1

False

None

False

None

20UPGFC0141766

None

parent

component

67e41735f1be53f1ec4d33b1

code

9c4018f2b526b7cf7e4745b875c0c3a1

state

ready

stateTs

2025-03-26T15:03:17.036Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200226

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

highestLevelParent

component

689ce47b4352ea8e9ff63ef3

code

a776e459c05ca8d554c3f592f47598fb

state

ready

stateTs

2025-08-13T19:16:11.195Z

stateUserIdentity

1294-8027-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM24210028

alternativeIdentifier

ANL_ITkPix_123

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

code	name	dataType	required	default	value
TARGET_IREF_TRIM	Target Iref trim	integer	False	False	9
TARGET_IREF_TRIM_VERSION	Target Iref trim version	string	False	False	1

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	GL
name	Glasgow University

Test Type	Local Result
ADC Calibration (ADC_CALIBRATION)	No TestRun!
Analog Readback (ANALOG_READBACK)	No TestRun!
SLDO (SLDO)	No TestRun!
VCAL Calibration (VCAL_CALIBRATION)	No TestRun!
Low Power Mode (LP_MODE)	No TestRun!
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No TestRun!
Undershunt Protection (UNDERSHUNT_PROTECTION)	No TestRun!
Data Transmission (DATA_TRANSMISSION)	No TestRun!
Injection Capacitance (INJECTION_CAPACITANCE)	No TestRun!
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Tuning (TUNING)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
68debe…90fd99	PIXEL_FAILURE_ANALYSIS	Pass	DanielAceves	N/A	2 months ago	2.6.4	No tags	Selected
68debe…90fd1e	TUNING	Pass	DanielAceves	N/A	2 months ago	2.6.4	No tags	Selected
68debd…90fc3e	MIN_HEALTH_TEST	Pass	DanielAceves	N/A	2 months ago	2.6.4	No tags	Selected
68deb1…90fb00	INJECTION_CAPACITANCE	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68deb1…90fad0	DATA_TRANSMISSION	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68deb2…90fb28	LP_MODE	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68deb0…90faa4	VCAL_CALIBRATION	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68deaf…90fa64	SLDO	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68dead…90fa18	ANALOG_READBACK	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected
68dea5…90f8f8	ADC_CALIBRATION	Pass	DanielAceves	2 months ago	2 months ago	2.6.4	No tags	Selected

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6904ec…bad73e	MODULE/POST_PARYLENE_WARM	LP_MODE	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
691b81…aefca3	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
691b80…aefbd7	MODULE/POST_PARYLENE_WARM	TUNING	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
691b80…aefac6	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	Simpson,Liana Rae	N/A	a month ago	No tags	Selected
6904eb…bad708	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
6904ea…bad6bc	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
6904ea…bad674	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
6904e9…bad618	MODULE/POST_PARYLENE_WARM	SLDO	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
6904e6…bad567	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
6904df…bad4c4	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	Simpson,Liana Rae	a month ago	a month ago	No tags	Selected
68debe…90fd99	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	DanielAceves	N/A	2 months ago	No tags	Selected
68debe…90fd1e	MODULE/INITIAL_WARM	TUNING	DanielAceves	N/A	2 months ago	No tags	Selected
68debd…90fc3e	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	DanielAceves	N/A	2 months ago	No tags	Selected
68deb1…90fb00	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	DanielAceves	2 months ago	2 months ago	No tags	Selected
68deb1…90fad0	MODULE/INITIAL_WARM	DATA_TRANSMISSION	DanielAceves	2 months ago	2 months ago	No tags	Selected
68deb2…90fb28	MODULE/INITIAL_WARM	LP_MODE	DanielAceves	2 months ago	2 months ago	No tags	Selected
68deb0…90faa4	MODULE/INITIAL_WARM	VCAL_CALIBRATION	DanielAceves	2 months ago	2 months ago	No tags	Selected
68deaf…90fa64	MODULE/INITIAL_WARM	SLDO	DanielAceves	2 months ago	2 months ago	No tags	Selected
68dead…90fa18	MODULE/INITIAL_WARM	ANALOG_READBACK	DanielAceves	2 months ago	2 months ago	No tags	Selected
68dea5…90f8f8	MODULE/INITIAL_WARM	ADC_CALIBRATION	DanielAceves	2 months ago	2 months ago	No tags	Selected
661411…5903ab	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags	Selected
660d30…a4acc4	TESTONWAFER	FECHIP_TEST	DimaManeuski	N/A	a year ago	No tags

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0141766

MODULE/QC_CROSSCHECK

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: QC cross-check (module swapping)

Candidate TestRuns of this Stage

Past QC Stages and Results

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
