Database for ITk Pixel Module

Serial Number	20UPGFC0141607
ProdDB ID	067389…190fc7
LocalDB ID	660d225feeb7490035a46f75
Component Type	fe_chip
Parents	20UPGM24210397 20UPGB43200228
Children	No match.
Flags

Item	Value
Target Iref trim	4
Target Iref trim version	1
Wafer serial number	None

Key	Data
QC Passed	True
Date	a month ago
component ObjectId	660d225feeb7490035a46f75
Stage	MODULE/POST_PARYLENE_WARM
Test Type	TUNING
Institute ObjectId
User Name	Simpson,Liana Rae
ObjectId of this record	691b999ed7bf966e0aaefe48
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.7.1
MEASUREMENT_DATE	2025-10-31T17:55:09.000+00:00
MEASUREMENT_DURATION	1376
YARR_VERSION	v1.5.5

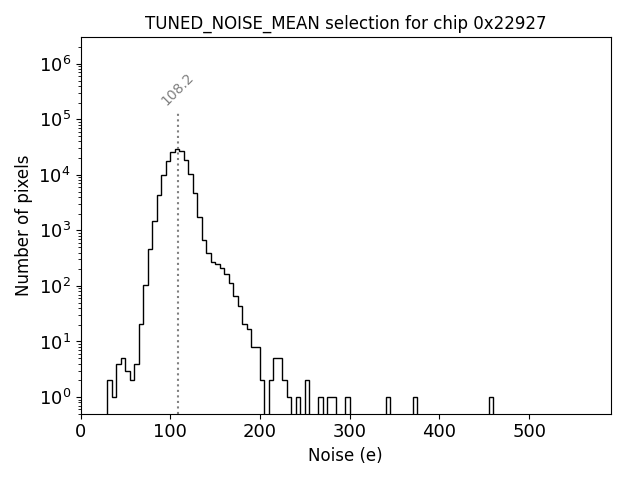

TUNING_TUNED_NOISE_95_HIGH	130.194
TUNING_TUNED_NOISE_95_LOW	87.6
TUNING_TUNED_NOISE_MEAN	108.234
TUNING_TUNED_NOISE_SIGMA	11.462
TUNING_TUNED_TDAC_MEAN	-1.2
TUNING_TUNED_TDAC_SIGMA	4.197

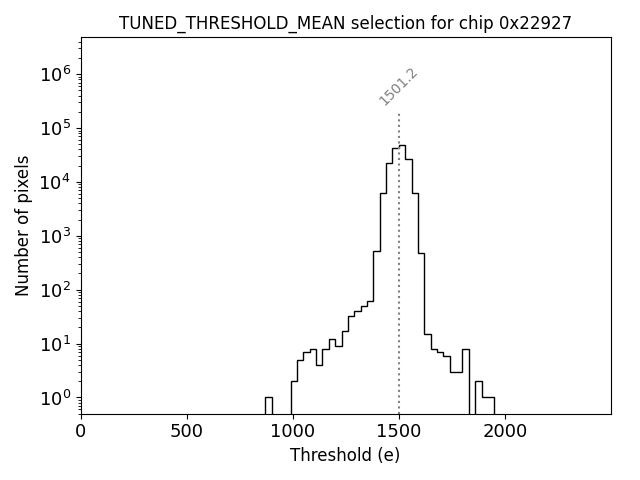

TUNING_TUNED_THRESHOLD_95_HIGH	1567.534
TUNING_TUNED_THRESHOLD_95_LOW	1431.024
TUNING_TUNED_THRESHOLD_FAILED_FITS	14
TUNING_TUNED_THRESHOLD_MEAN	1501.2
TUNING_TUNED_THRESHOLD_SIGMA	37
TUNING_TUNED_TOT_95_HIGH	10.05
TUNING_TUNED_TOT_95_LOW	5.21
TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.3

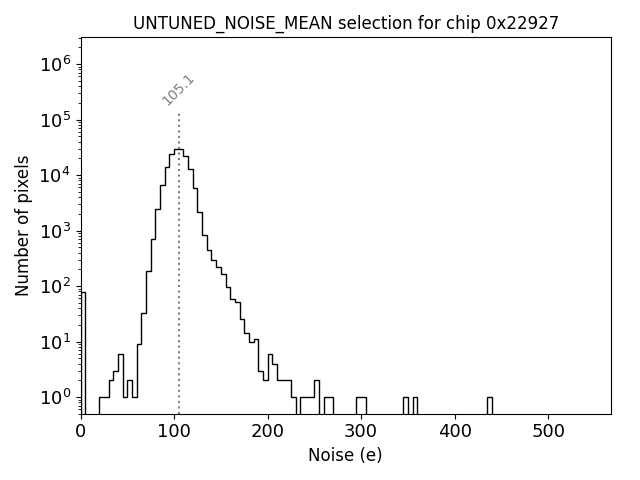

TUNING_UNTUNED_NOISE_95_HIGH	125.977
TUNING_UNTUNED_NOISE_95_LOW	85.506
TUNING_UNTUNED_NOISE_MEAN	105.051
TUNING_UNTUNED_NOISE_SIGMA	11.039
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

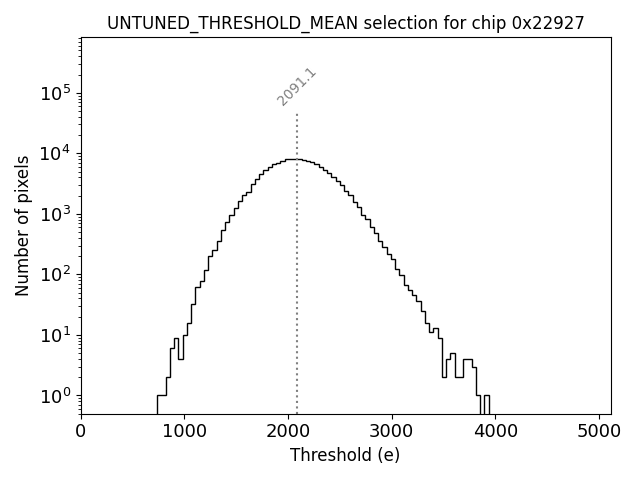

TUNING_UNTUNED_THRESHOLD_95_HIGH	2730.113
TUNING_UNTUNED_THRESHOLD_95_LOW	1492.425

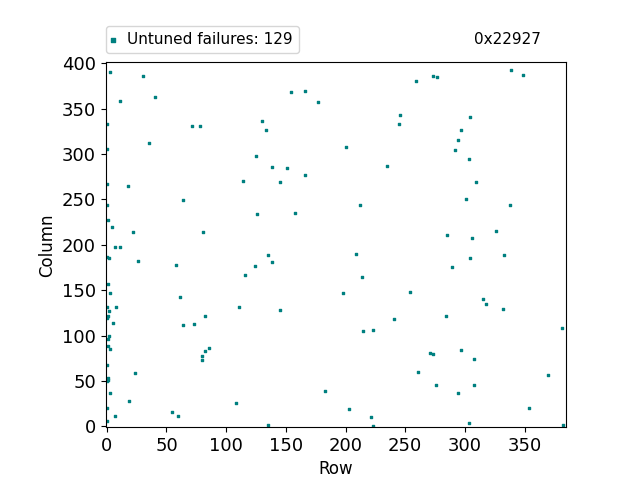

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	129
TUNING_UNTUNED_THRESHOLD_MEAN	2091.132
TUNING_UNTUNED_THRESHOLD_SIGMA	314.447

Filename	Contents
0x22927_L2_warm.json	Download
output.log	Download
0x22927.log	Download
20UPGFC0141607_MODULE__POST_PARYLENE_WARM_TUNING.zip	Download
